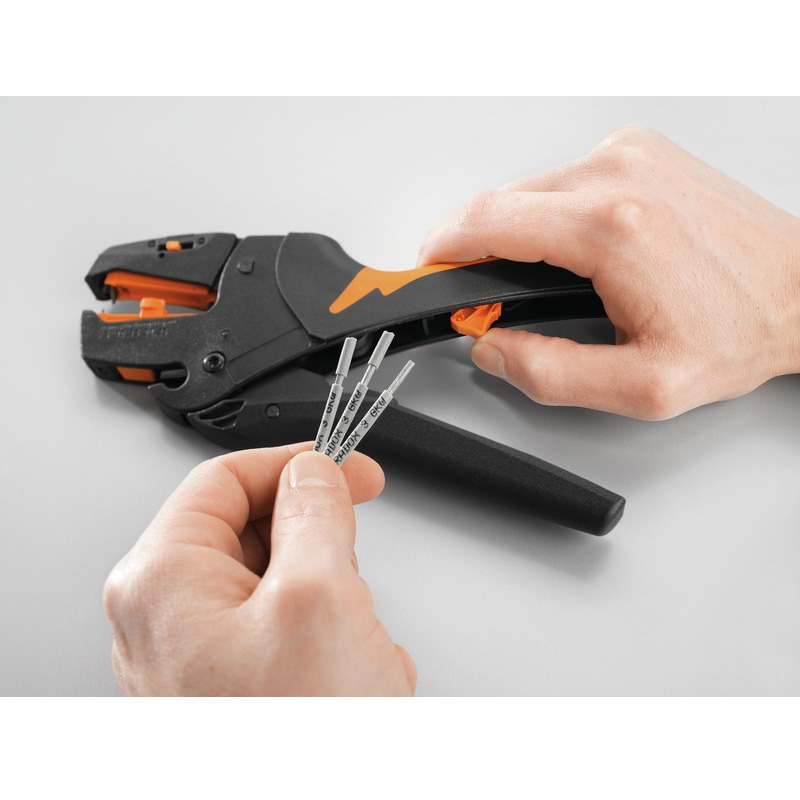

Weidmuller STRIPAX ULTIMATE XL 1512780000 are designed for UL-specified conductors and halogen-free insulation materials 2.5-10mm² ( 14-6 AWG ) .
Product Name : Wire Strippers
Item No : STRIPAX ULTIMATE XL
Stripping Range : 2.5-10mm2 ( AWG 14-6)
Cutting Range : Up to 6mm2
Application Cable : Halogen-free Insulation
Feature : For Halogen-free Insulation Flexible or Solid
Stripping length adjustable via end stop
Double-insulated cables in two process steps without special adjustment
Automatic opening of clamping jaws after stripping
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Order No | Insulation of Cable | Stripping Range (mm2) | Cutting Range (mm2) | Depth (mm) | Height(mm) | Width(mm) | Weight(gram) |
| STRIPAX | 9005000000 | PVC | 0.08-10 | 0.08-6 | 22 | 99 | 190 | 225 |
| STRIPAX 16 | 9005610000 | PVC | 6-16 | Up to 6 | 22 | 99 | 190 | 175 |
| STRIPAX ULTIMATE | 1468880000 | Halogen-Free Insulation | 0.25-6 | Up to 6 | 22 | 99 | 190 | 222 |
| STRIPAX ULTIMATE XL | 1512780000 | Halogen-Free Insulation | 2.5-10 | Up to 6 | 22 | 99 | 190 | 20 |
