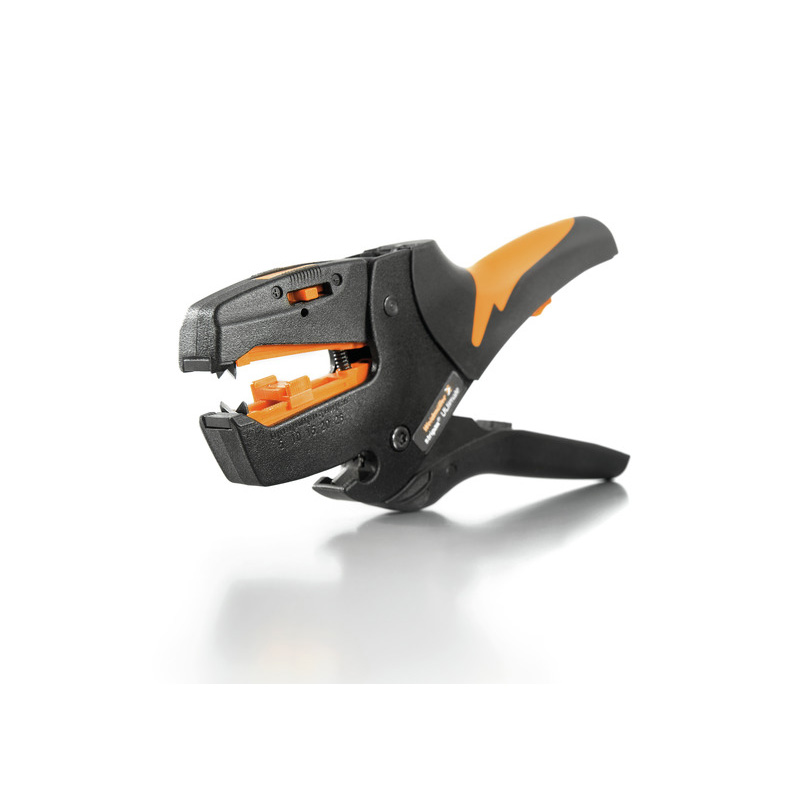

Weidmuller STRIPAX ULTIMATE 1468880000

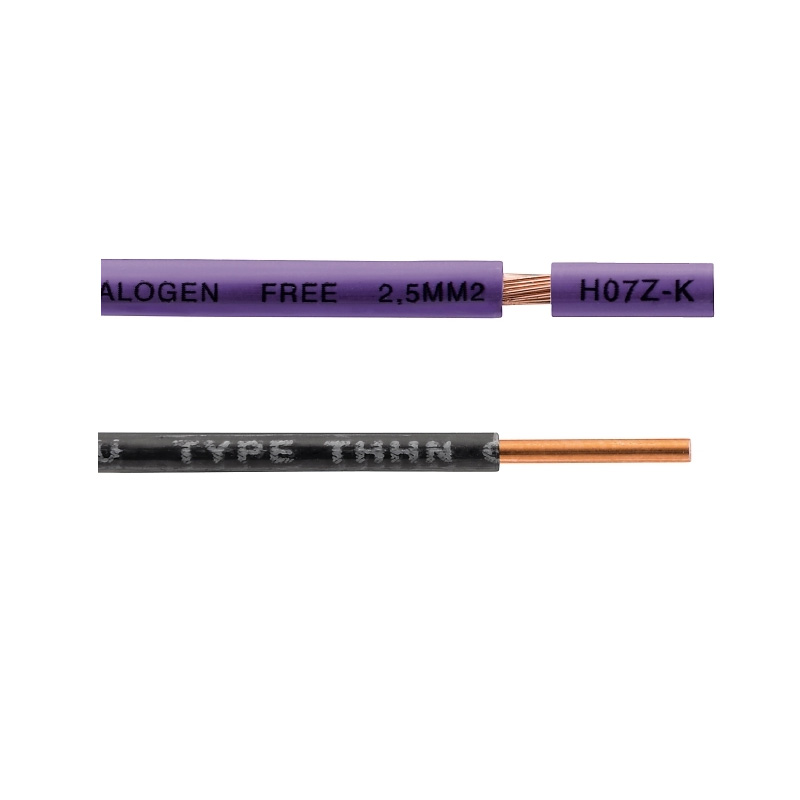

Weidmuller STRIPAX ULTIMATE 1468880000 are designed for  UL-specified conductors and halogen-free insulation materials 0.25-6 mm² ( 24-10 AWG ) .

Product Name : Wire Strippers

Item No : STRIPAX ULTIMATE

Stripping Range : 0.25-6mm2 ( AWG 24-10)

Cutting Range : Up to 6mm2

Application Cable : Halogen-free Insulation

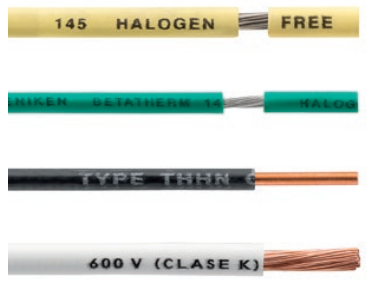

STRIPAX ULTIMATE-Application

Feature :  For Halogen-free Insulation Flexible or Solid

Stripping length adjustable via end stop

Double-insulated cables in two process steps without special adjustment

Automatic opening of clamping jaws after stripping

tag: , ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No Order No Insulation of Cable Stripping Range (mm2) Cutting Range (mm2) Depth (mm) Height(mm) Width(mm) Weight(gram)
STRIPAX 9005000000 PVC 0.08-10 0.08-6 22 99 190 225
STRIPAX  16 9005610000 PVC 6-16 Up to 6 22 99 190 175
STRIPAX ULTIMATE 1468880000 Halogen-Free Insulation 0.25-6 Up to 6 22 99 190 222
STRIPAX ULTIMATE XL 1512780000 Halogen-Free Insulation 2.5-10 Up to 6 22 99 190 20
