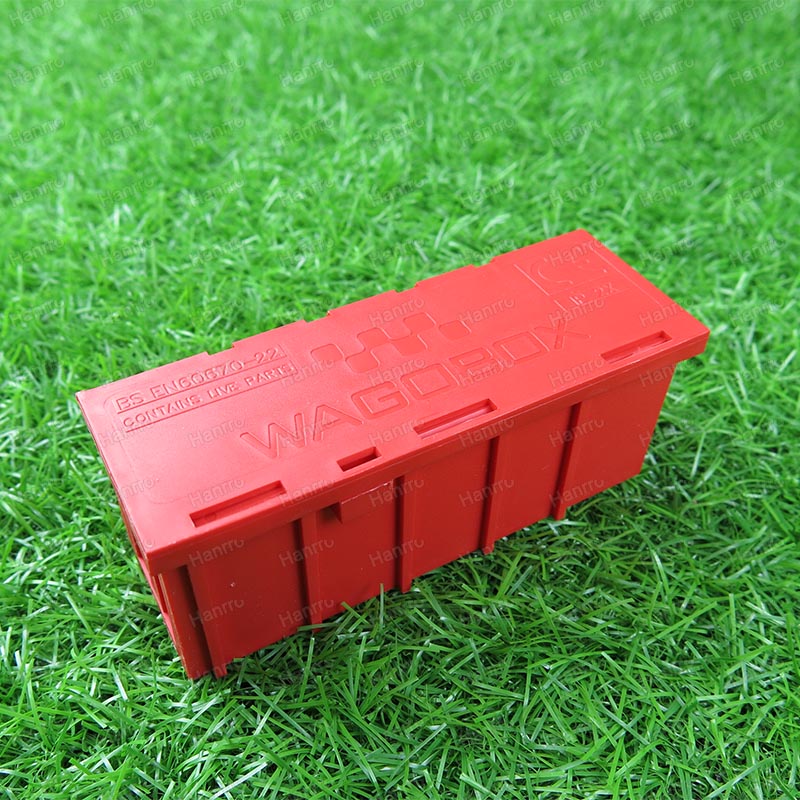

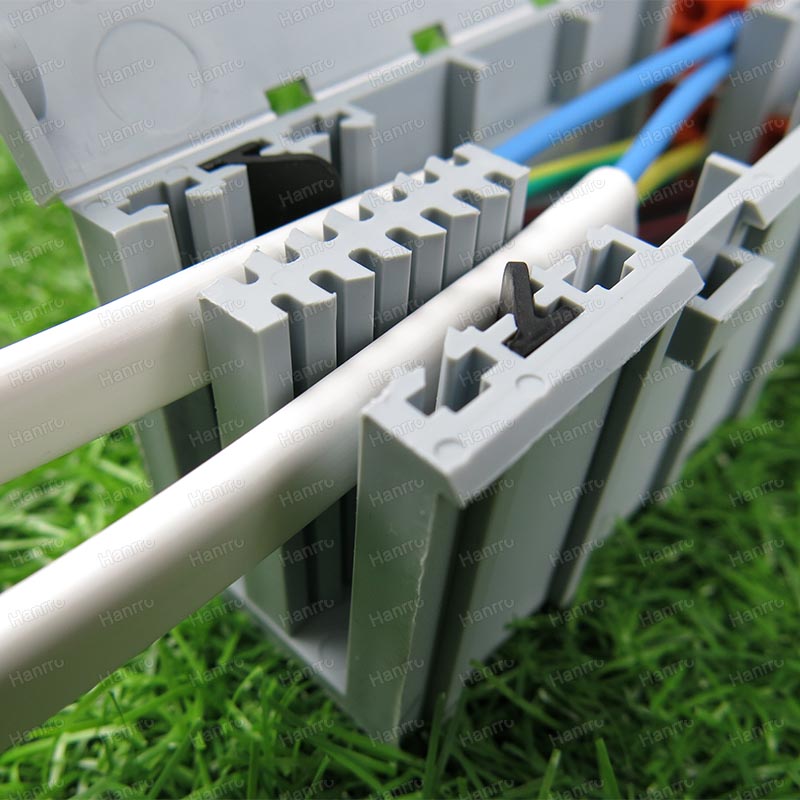

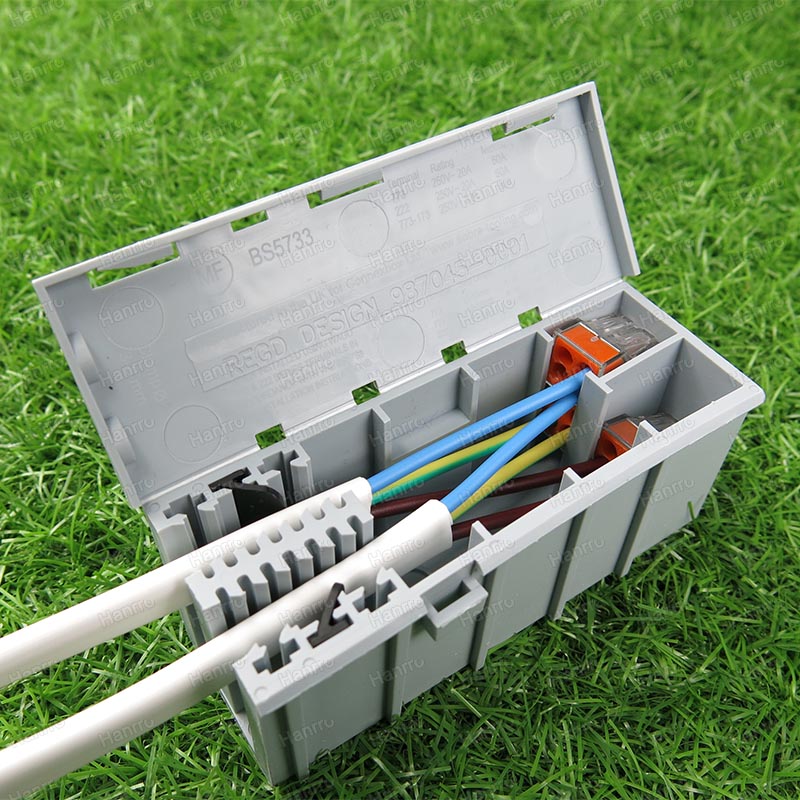

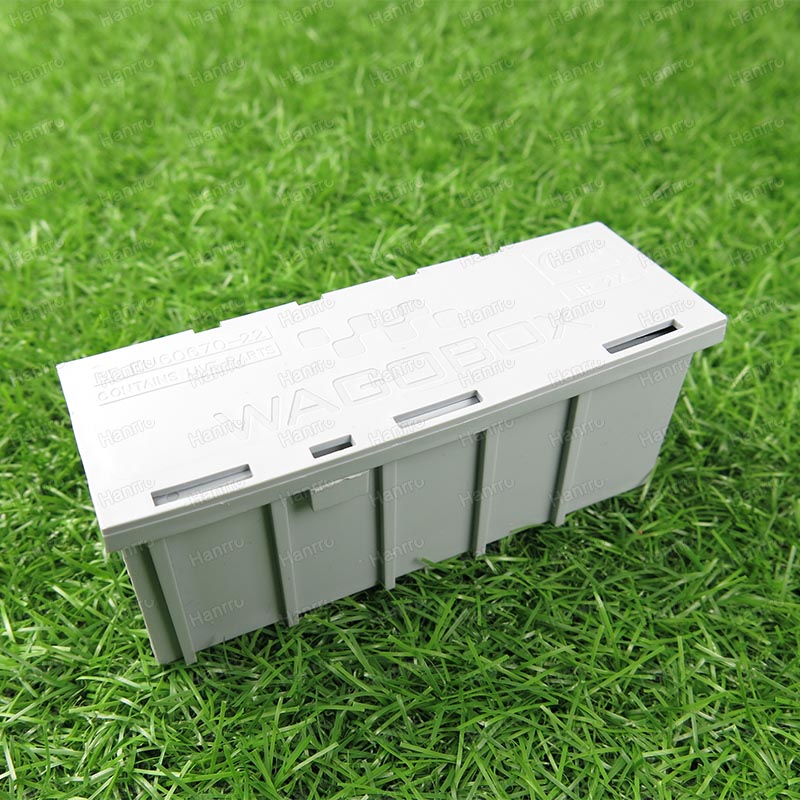

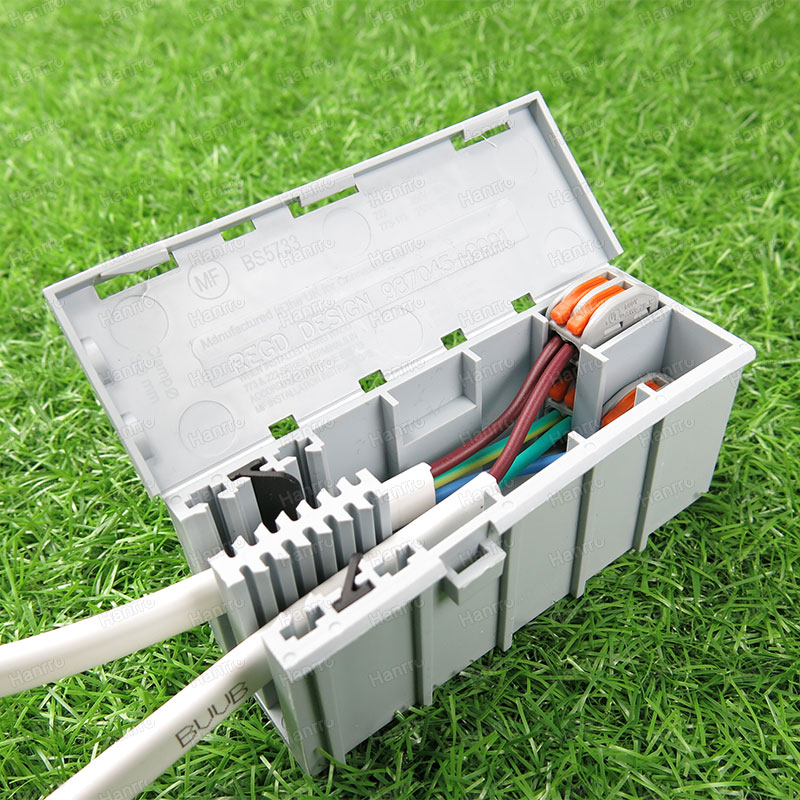

WAGO Junction Box for use with the 222 and 773 series wiring connectors. Provides a neat, compact protective housing for Wago connectors. Suitable for use with up to 6 cables, the compact size of 39mm x 44mm x 108mm allows it to fit in hole sizes with a 60mm diameter. Ideal for use in lighting applications with recessed downlights.
The Wago iPCC junction box is rated up to 400V and can support conductor sizes from 0.08mm2 to 6.0mm2.
Cable sizes 3 x 6.0mm² Twin & Earth or 4 x 4.0mm² Twin & Earth or 6 x 1.0, 1.5 or 2.5mm² Twin & Earth or 6 x 1.0 or 1.5mm² 3-core & Earth
Current rating Up to 41A
Voltage rating 400V / 4KV
Material : PP

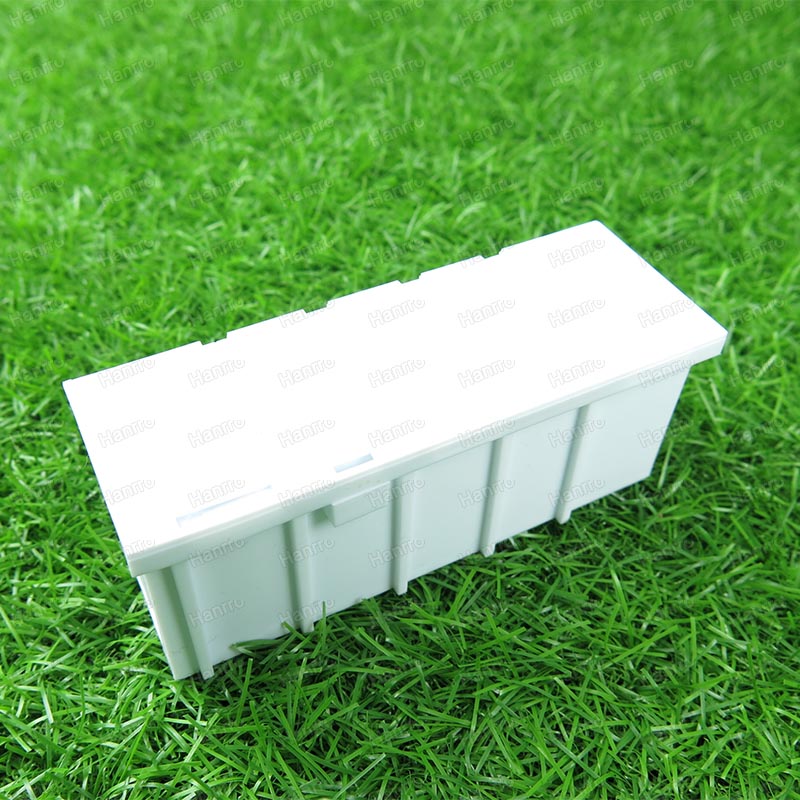

Color : Grey , White and Red
Flammability Rating : UL94V-2
IP Rating : Max IP2X

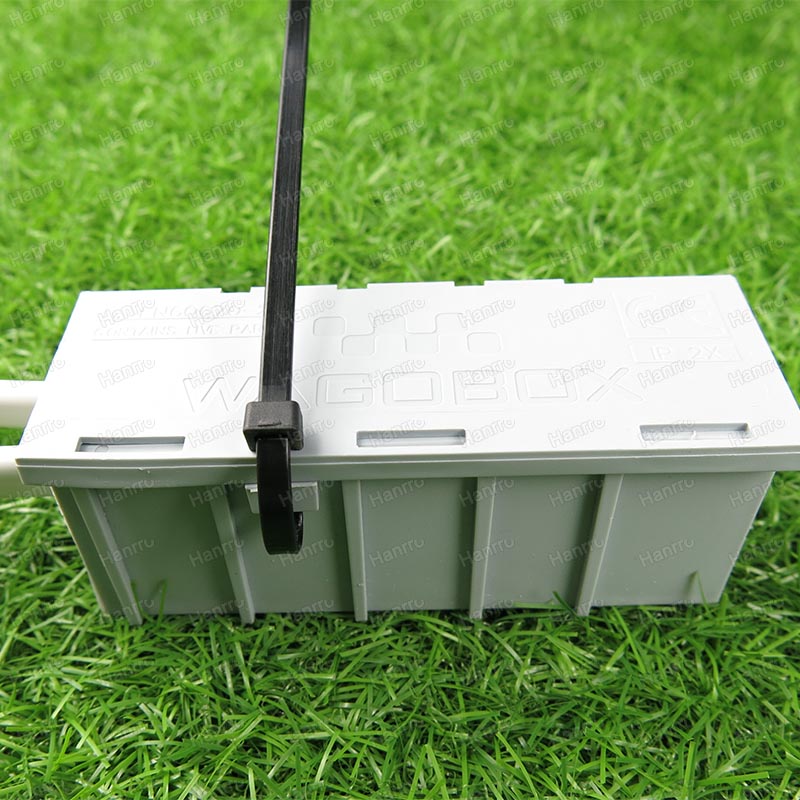

Fixing : Screw Directly Fix or Special Mounting Button
Weight : 46.2 g
Dimension : 39 x 44 x 108 mm
