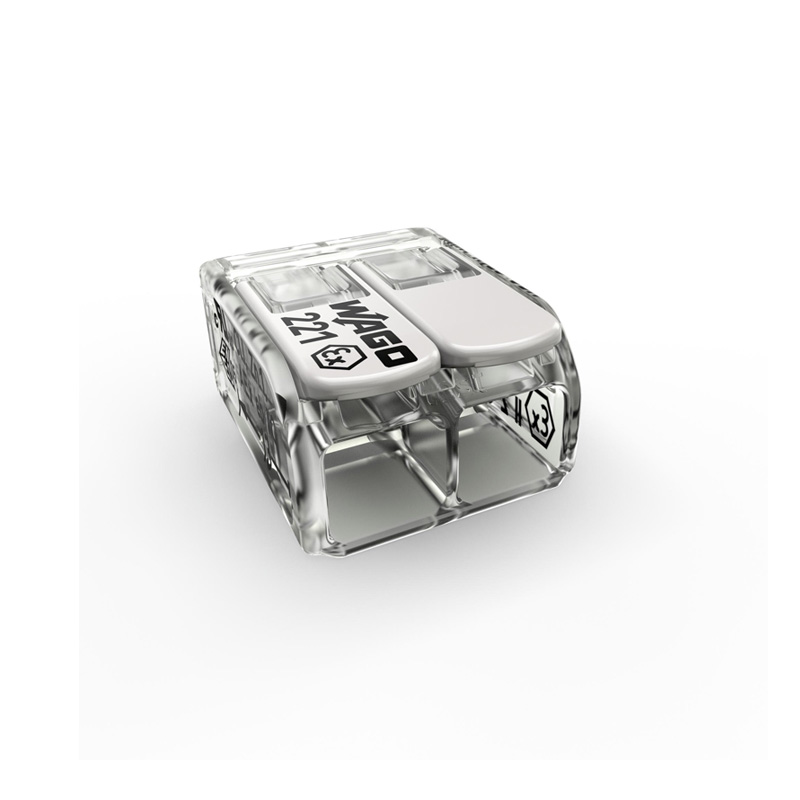

WAGO 221-682 Compact Splicing Connectors

WAGO 221-682 Compact Splicing Connectors are designed for all conductors types. It with 2-conductors with levers with transparent housing. It is ease of use – pull the lever up, insert a conductor and push the lever back down.

221-682 are suitable for 0.5-6mm2 Which is suitable for Solid Conductors , Stranded Fine Conductors and Etc.Time savings for installers and device manufacturers

Safety information 1:
The permissible operating voltage of the connector with carrier (440 V or 275 V) depends on the mounting type.
Safety information 2:
Only approved in conjunction with a mounting carrier (221-511). Other carriers are possible, see certificate/file.
The connectors must be installed in an enclosure meeting the requirements of a recognized protection type per EN 60079-0, Section 1 or EN 60079-31.
When installing the connectors in an enclosure of protection type “eb” (increased safety) per EN 60079-7, the clearances and creepage distances of Table 2 for this standard must be observed. See point 1 for the use of accessories. The connectors can be used both in Group II and Group I, as the standard requirements are identical in this case.
The use of these components requires a new assessment by a notified certification agency.

tag： 221-682 , WAGO 221-682
