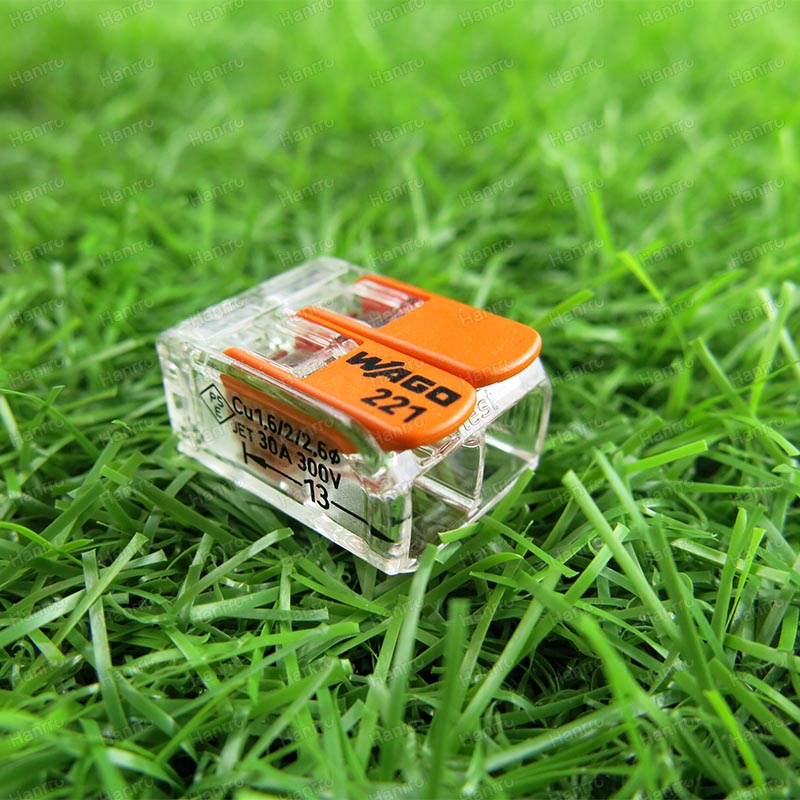

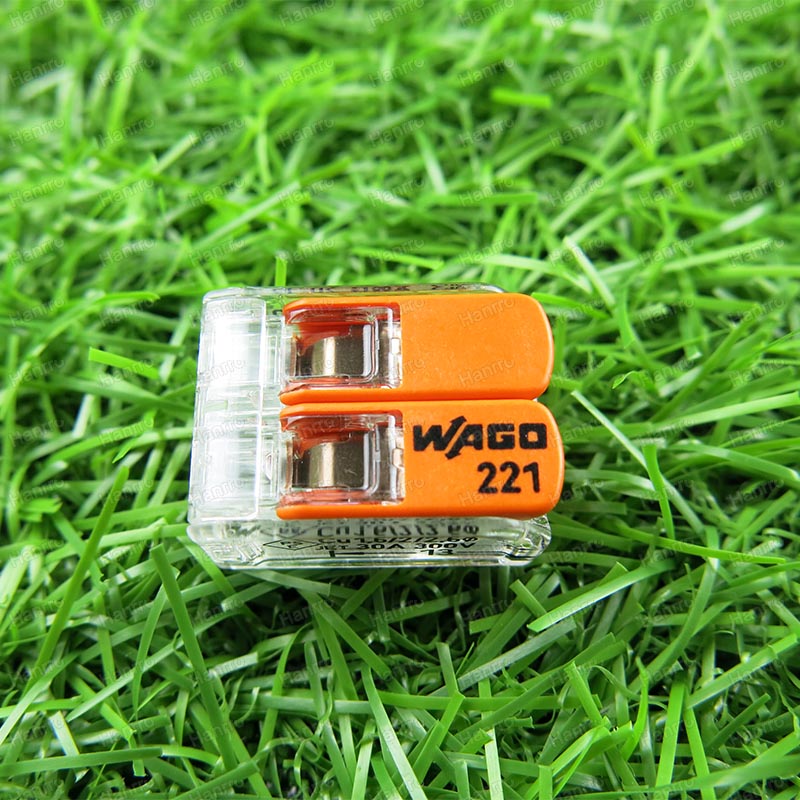

221-612 WAGO compact splicing connectors easily, quickly, and safely connect solid, stranded, and fine stranded wires ranging from 20-10 AWG (0.5-6mm²)2-conductor; with operating levers; transparent housing.
- Easily terminate conductors from 20-10 AWG
- Connect solid, stranded and fine-stranded conductors
- Easily combine different wire sizes and types
- Time savings for installers and device manufacturers
- Quickly install devices with higher levels of power consumption
- Pull the lever up, insert a conductor and push the lever back down
- 221-612 Setting new standards in electrical installations, WAGO’s new ‘all-around’ connector
is smaller and even more user friendly than its successful predecessor, the 222 Series
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Electrical data | |
|

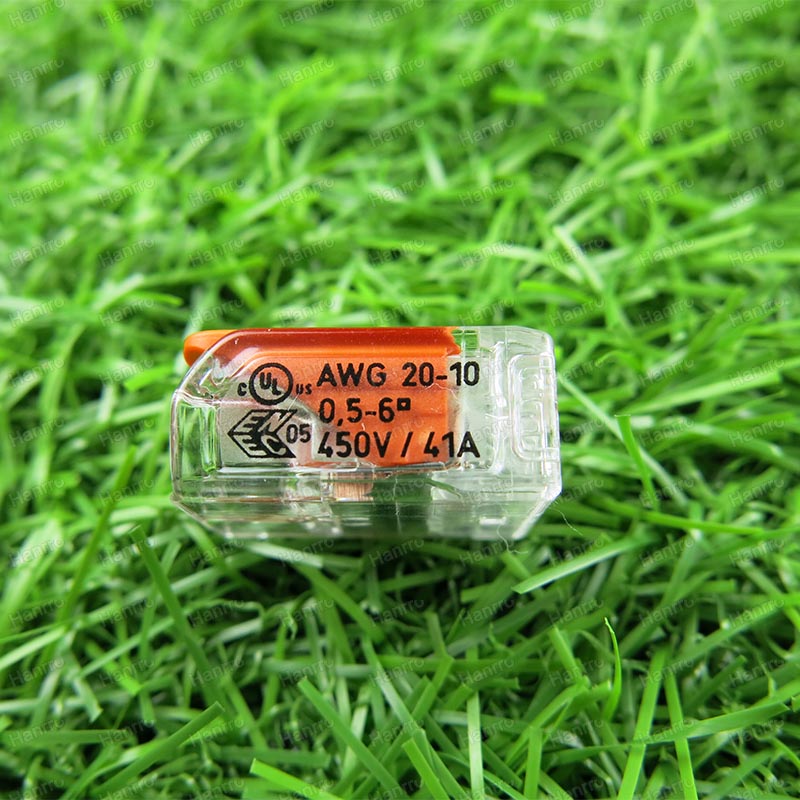

Ratings per IEC/EN 60664-1
|
|
|
Rated voltage (II / 2)
|
450 V |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated current | 41 A |
|
Connection data
|
|
|
Connection technology
|
CAGE CLAMP® |
| Actuation type | Lever |
| Connectable conductor materials | Copper |
| Nominal cross section | 6 mm² |
| Solid conductor | 0.5 … 6 mm² / 20 … 10 AWG |
| Stranded conductor | 0.5 … 6 mm² / 20 … 10 AWG |
| Fine-stranded conductor | 0.5 … 6 mm² / 20 … 10 AWG |
| Strip length | 12-14 mm / 0.47-0.55 inch |
| Total number of connection points | 2 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Leiterquerschnitte eindrähtig | 0.5 mm² |
| Less | |
|
Geometrical Data
|
|
|
Width
|
16 mm / 0.63 inch |
| Height | 10.1 mm / 0.398 inch |
| Depth | 21.1 mm / 0.831 inch |
| Plug width | 16 mm / 0.63 inch |
|
Material Data
|
|
|
Color
|
Transparent |
| Flammability class per UL94 | V2 |
| Weight | 2.55 g |
|
Environmental Requirements
|
|
|
Continuous operating temperature
|
105 °C |
| T-Marking per EN 60998 | T85 |
|
Commercial data
|
|
|
Product Group
|
7 (Push Wire Conn.) |
| Country of origin | DE |
| GTIN | 4055143704168 |
