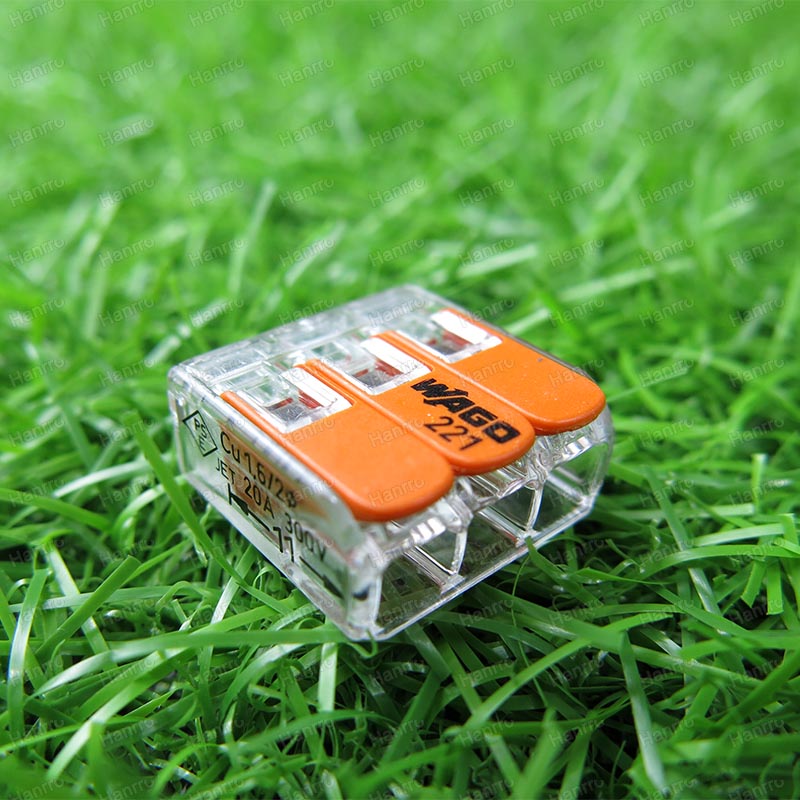

221-413 WAGO compact splicing connectors easily, quickly, and safely connect solid, stranded, and fine stranded wires ranging from 24-12 AWG (0.14-4mm²)2-conductor; with operating levers; transparent housing.

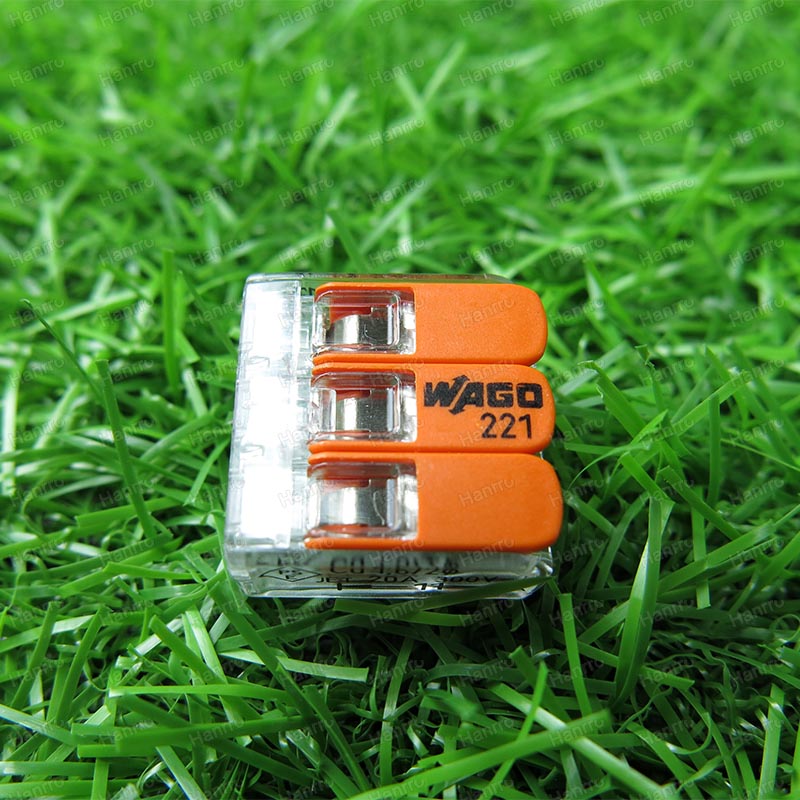

New 221-413 Minimize space consumption in the junction box —by 40% compared to 222-413. Visually inspect for proper strip length and complete wire insertion through its transparent housing. Operate comfortably and with lower operating forces by using familiar orange levers

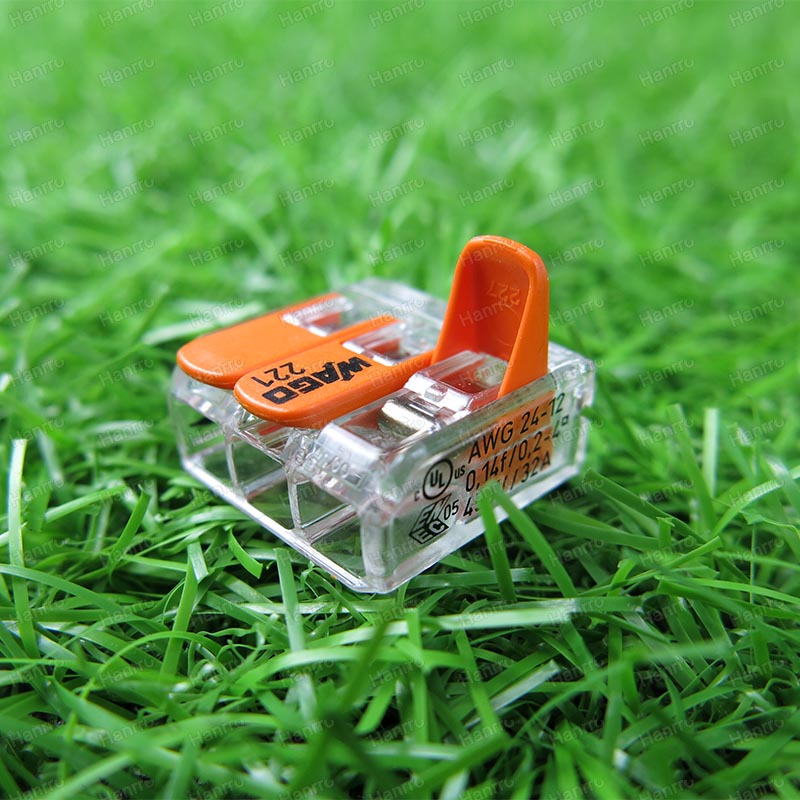

Pull the lever up, insert a stripped conductor, and push lever back down – done
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Electrical data | |
|
Ratings per IEC/EN 60664-1
|
|
|
Rated voltage (II / 2)
|
450 V |
| Rated impulse voltage (II / 2) | 4 kV |
| Rated current | 32 A |
|
Connection data
|
|
|
Connection technology
|
CAGE CLAMP® |
| Actuation type | Lever |
| Connectable conductor materials | Copper |
| Nominal cross section | 4 mm² |

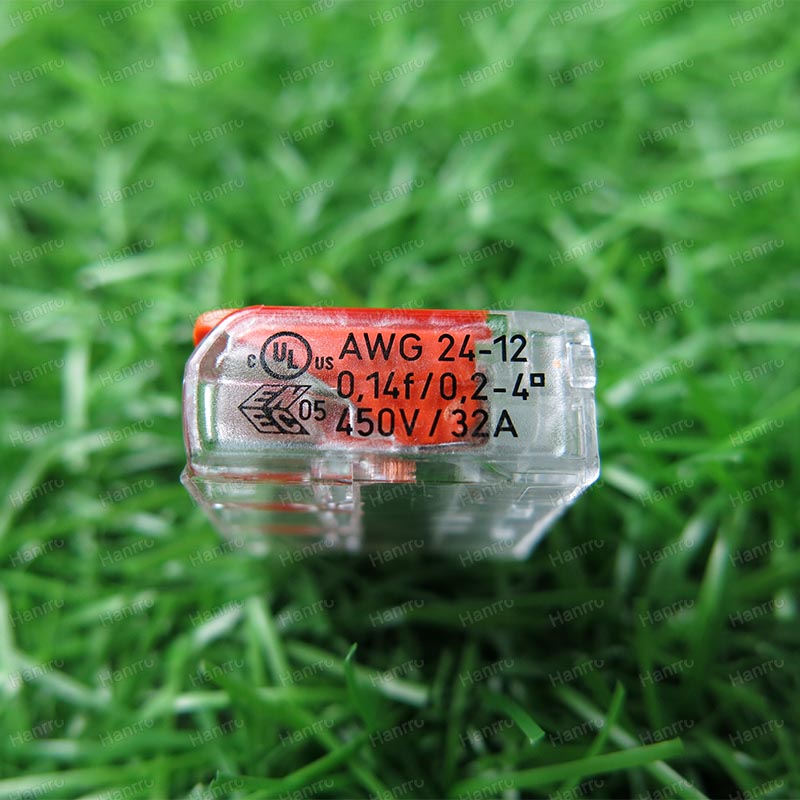

| Solid conductor | 0.2 … 4 mm² / 24 … 12 AWG |
| Stranded conductor | 0.2 … 4 mm² / 24 … 12 AWG |
| Fine-stranded conductor | 0.14 … 4 mm² / 24 … 12 AWG |

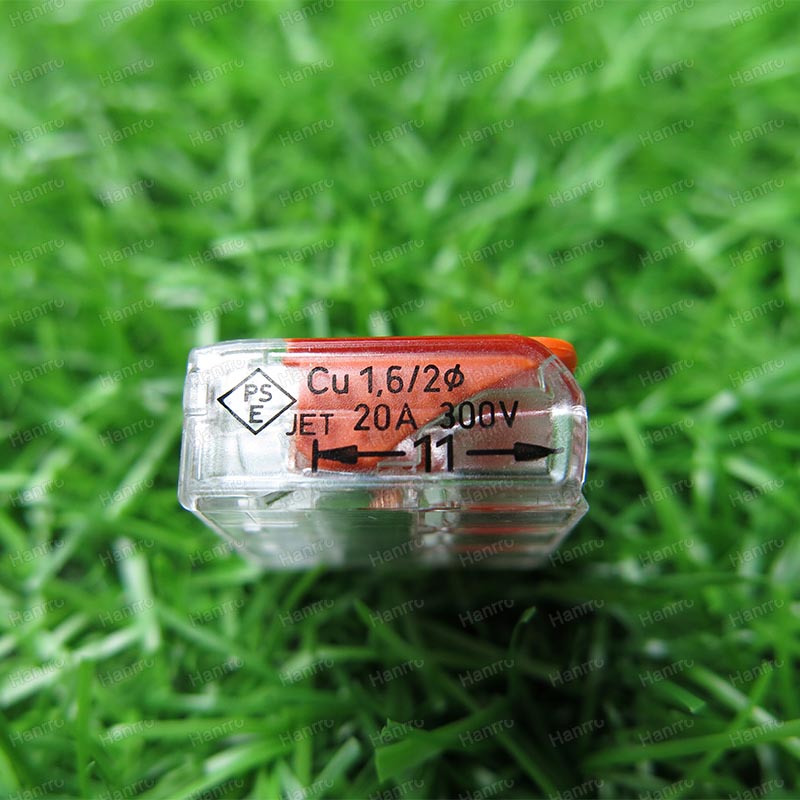

| Strip length | 11 mm / 0.43 inch |
| Total number of connection points | 3 |
| Total number of potentials | 1 |
| Type of wiring | Side-entry wiring |
| Leiterquerschnitte eindrähtig | 0.2 mm² |
| Less | |
|
Geometrical Data
|
|
|
Width
|
18.7 mm / 0.736 inch |
| Height | 8.3 mm / 0.327 inch |
| Depth | 18.6 mm / 0.732 inch |
| Plug width | 18.7 mm / 0.736 inch |
|
Material Data
|
|
|
Color
|
Transparent |
| Flammability class per UL94 | V2 |
| Weight | 2.527 g |
|
Environmental Requirements
|
|
|
Continuous operating temperature
|
105 °C |
| T-Marking per EN 60998 | T85 |
|
Commercial data
|
|
|
Product Group
|
7 (Push Wire Conn.) |
| Country of origin | DE |
| GTIN | 4050821808442 |
