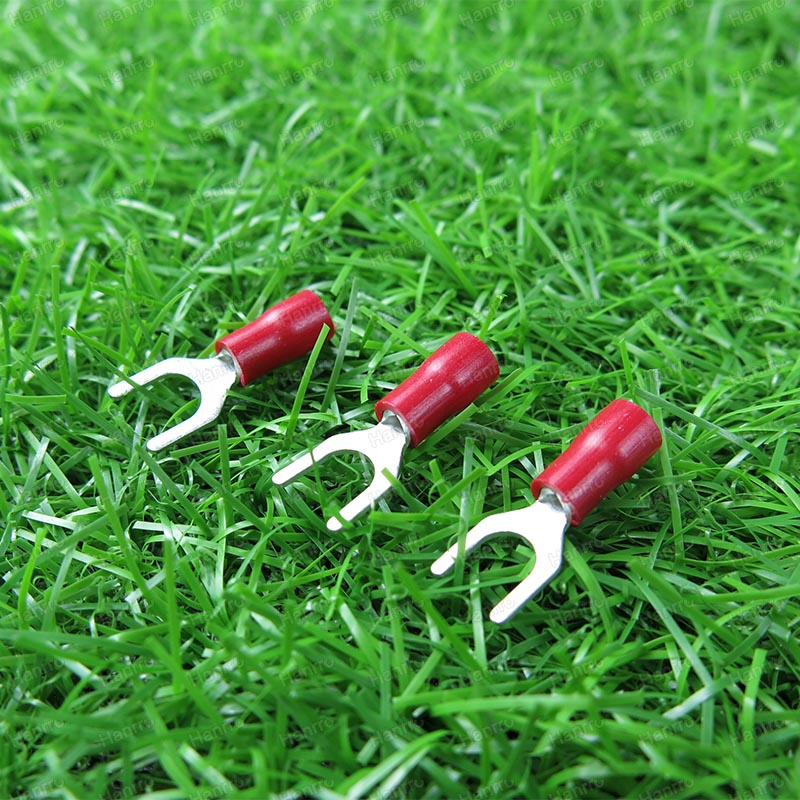

Vinyl Spade Terminals lock in place for tight and secure connection in cramped space.They allow the end user to quicly and easily terminate a connection without the need to remove the fastener. Internal barrel serrations assure good wire contact and maximum tensile strength
Feature :
Butted seam-construction prevents splitting under maximum pressure
Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
Tin-plated brass construction for corrosion resistance
Shouldered barrel insulation quickly positions terminal for proper crimping
Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
Color-coded insulation and wire range stamped on terminal for easy identification
Product Name : Vinyl Insulated Spade Terminals-Single Crimp
Material of Body : Copper , Tin Plated
Material of Insulation : Vinyl

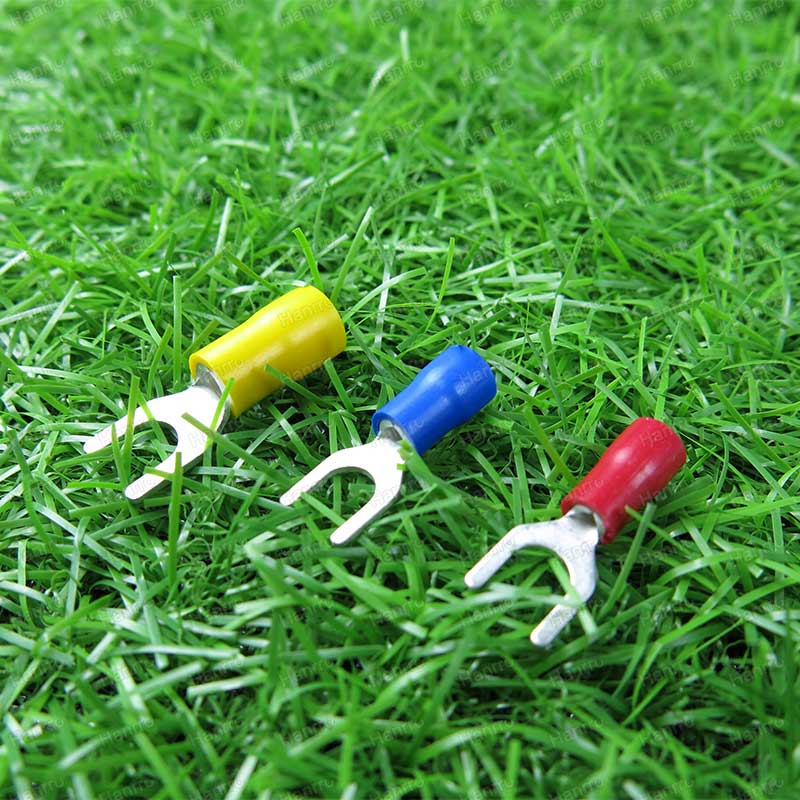

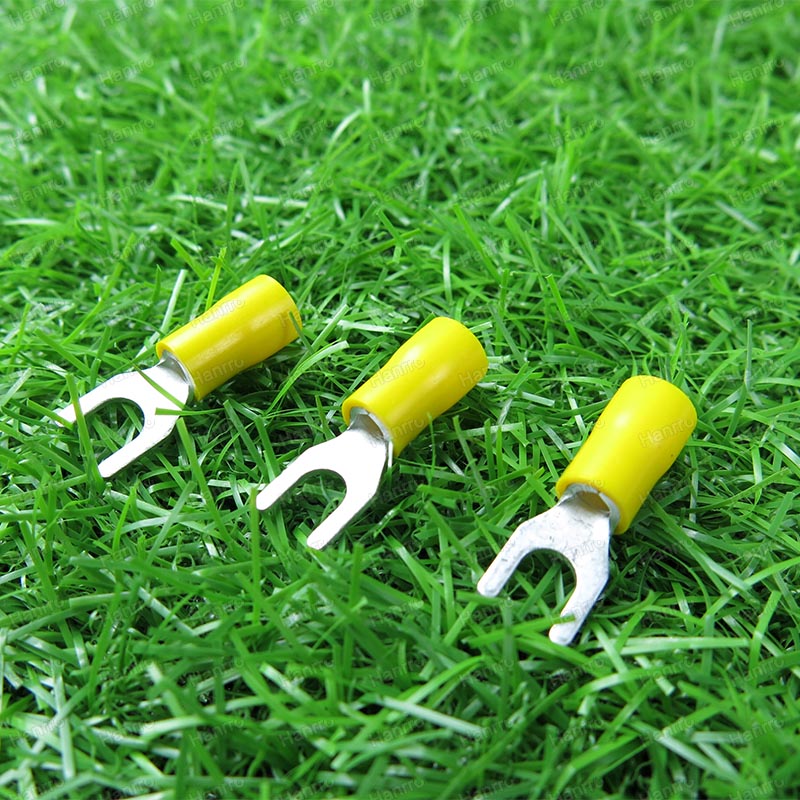

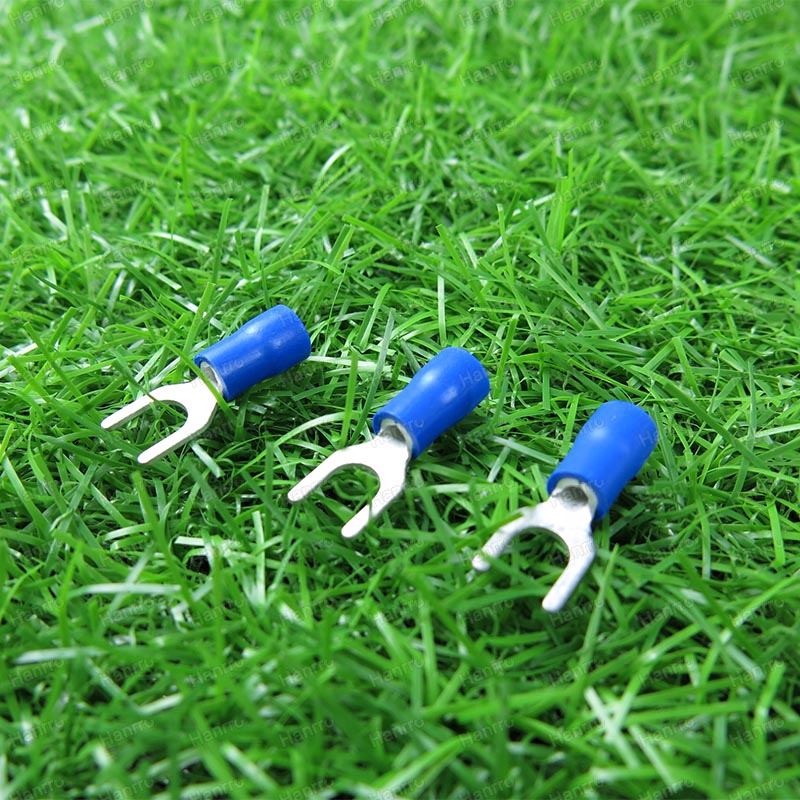

Color of Insulation : Red , Blue , Black , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

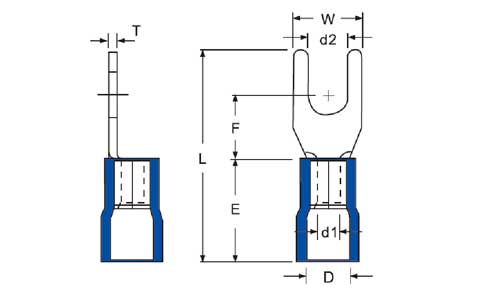

| Item No | Wire Size(mm2) | AWG | d2 | W | F | L | E | D | d1 | T | Color | ||||
| mm | USA | ||||||||||||||
| SV 1.25-3 | 0.5-1.5 | 22-16 | 3.2 | #4 | 5.7 | 6.5 | 21.8 | 10.7 | 4.2 | 1.7 | 0.75 | ||||
| SV 1.25-3.5S | 3.7 | #6 | 5.7 | 6.5 | 21.8 | ||||||||||
| SV 1.25-3.5L | 3.7 | #6 | 6.4 | 6.5 | 21.8 | ||||||||||
| SV 1.25-4S | 4.3 | #8 | 6.4 | 6.5 | 21.8 | ||||||||||
| SV 1.25-4M | 4.3 | #8 | 7.2 | 6.5 | 21.8 | ||||||||||
| SV 1.25-4L | 4.3 | #8 | 8.1 | 6.5 | 21.8 | ||||||||||
| SV 1.25-5S | 5.3 | #10 | 8.1 | 6.5 | 21.8 | ||||||||||
| SV 1.25-5L | 5.3 | #10 | 9.5 | 6.5 | 21.8 | ||||||||||
| SV 1.25-6S | 6.4 | 1/4" | 9.5 | 6.5 | 21.8 | ||||||||||
| SV 1.25-6L | 6.4 | 1/4" | 12.0 | 11.0 | 28.0 | ||||||||||
| SV 2-3 | 1.5-2.5 | 16-14 | 3.2 | #4 | 5.7 | 6.5 | 21.7 | 10.7 | 4.9 | 2.3 | 0.8 | ||||
| SV 2-3.5S | 3.7 | #6 | 5.7 | 6.5 | 21.7 | ||||||||||
| SV 2-3.5L | 3.7 | #6 | 6.2 | 6.5 | 21.7 | ||||||||||
| SV 2-4S | 4.3 | #8 | 6.4 | 6.5 | 21.7 | ||||||||||
| SV 2-4M | 4.3 | #8 | 7.2 | 6.5 | 21.7 | ||||||||||
| SV 2-4L | 4.3 | #8 | 8.1 | 6.5 | 21.7 | ||||||||||
| SV 2-5S | 5.3 | #10 | 8.1 | 6.5 | 21.7 | ||||||||||
| SV 2-5L | 5.3 | #10 | 9.5 | 6.5 | 21.7 | ||||||||||
| SV 2-6S | 6.4 | 1/4" | 9.5 | 6.5 | 21.7 | ||||||||||
| SV 2-6L | 6.4 | 1/4" | 12.0 | 11.0 | 27.7 | ||||||||||
| SV 3.5-3 | 2.5-4.0 | 14-12 | 3.2 | #4 | 5.7 | 7.0 | 25.8 | 13.8 | 5.8 | 3.0 | 1.0 | ||||
| SV 3.5-4S | 4.3 | #8 | 7.2 | 7.0 | 25.8 | ||||||||||
| SV 3.5-4 | 4.3 | #8 | 8.0 | 7.0 | 25.8 | ||||||||||
| SV 3.5-5 | 5.3 | #10 | 8.0 | 7.0 | 25.8 | ||||||||||
| SV 3.5-6 | 6.4 | 1/4" | 12.0 | 12.1 | 28.8 | ||||||||||
| SV 5.5-3.5 | 4.0-6.0 | 12-10 | 3.7 | #6 | 7.2 | 7.5 | 24.8 | 14.0 | 6.5 | 3.4 | 1.0 | ||||
| SV 5.5-4S | 4.3 | #8 | 8.3 | 7.5 | 26.0 | ||||||||||
| SV 5.5-4L | 4.3 | #8 | 9.0 | 7.5 | 26.0 | ||||||||||
| SV 5.5-5 | 5.3 | #10 | 9.0 | 7.5 | 26.0 | ||||||||||
| SV 5.5-6S | 6.4 | 1/4" | 9.0 | 7.5 | 26.0 | ||||||||||
| SV 5.5-6L | 6.4 | 1/4" | 12.0 | 12.0 | 32.0 | ||||||||||
| SV 5.5-8 | 8.4 | 5/16" | 14.0 | 11.5 | 30.8 | ||||||||||
