Two Hole Lugs with Short Barrel are fabricated from high conductivity copper tubing, tin plated for optimal corrosion resistance .It withstands high mechanical stress; ideal for direct burial and grounding applications. Available for wire sizes from 8 to 1000 MCM

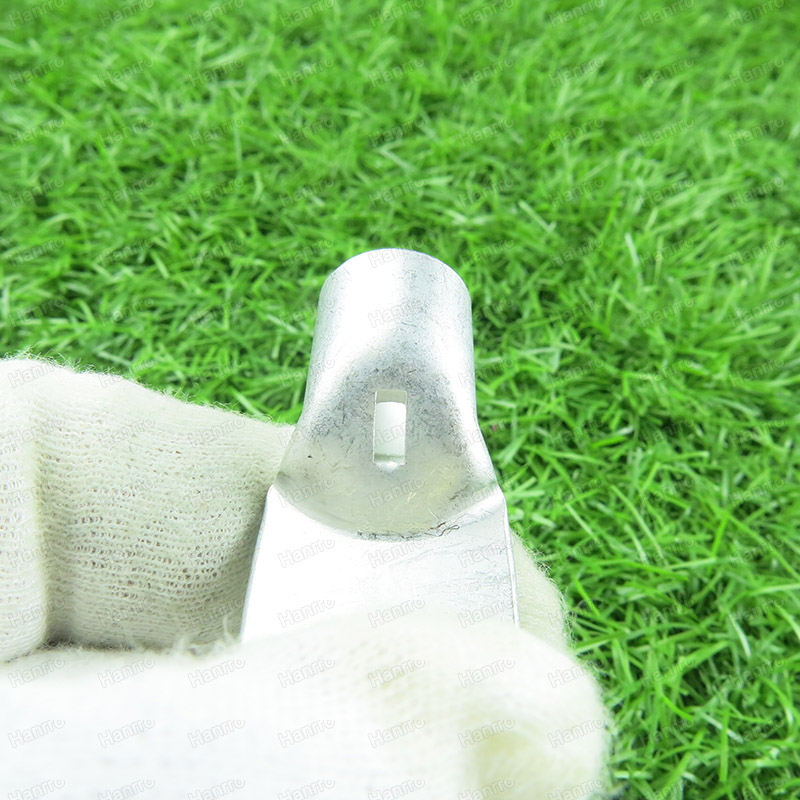

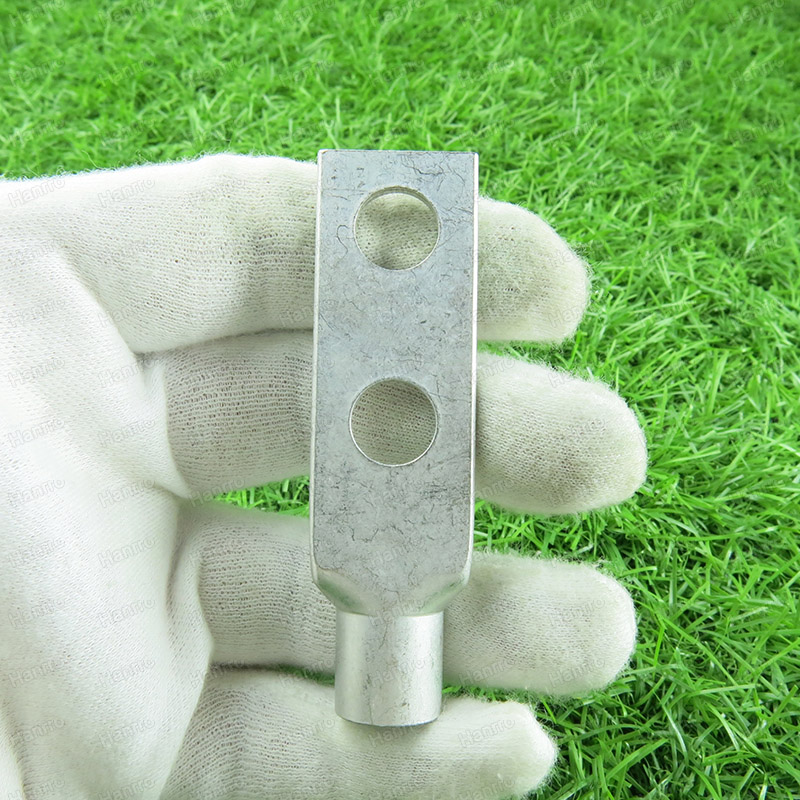

Double stud connections of Two Hole Lugs allow you to secure this lug in two places. The sight hole allows you to ensure your wire is inserted properly, plus it’s UL Listed and can be used up to 35kv
Features & Benefits

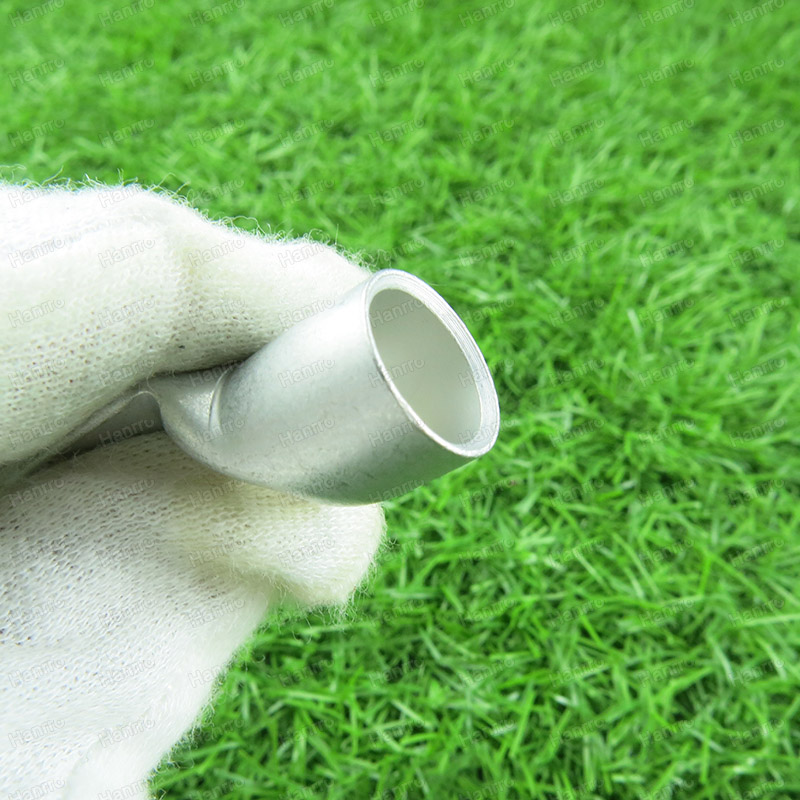

Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments
Tin-Plated to inhibit corrosion
UL Listed and CSA Certified to 35 KV and Temperature rated to 90℃
Tested by Telcordia-meets NEBS Level 3
Available in 90&45 Degree bent tongue
- Favorite list is empty.
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

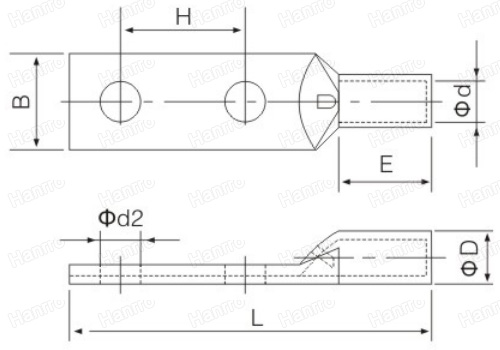

Item No | Cable Range | Dimension (mm) | H | ||||||
mm2 | AWG | Φ d2 | B | L | Φ D | Φ d | E | ||
AD38-8 | 38 | 2 | 9 | 17.5 | 65.8 | 11.7 | 9.5 | 12.5 | 25.4 |

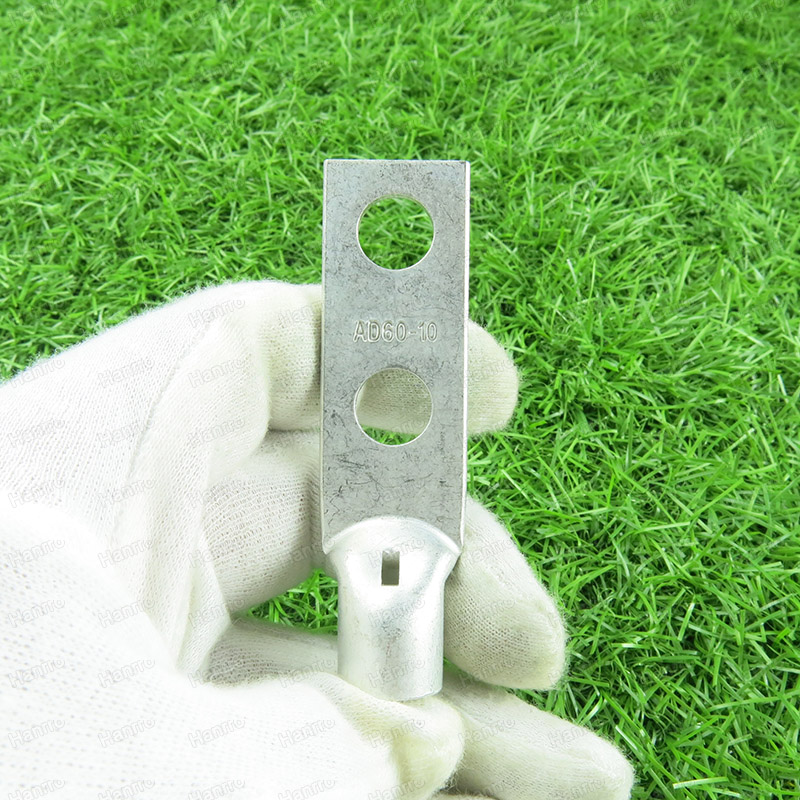

AD60-10 | 60 | 1/0 | 11 | 21.3 | 74.7 | 14.4 | 11.9 | 14.5 | 25.4 |
AD80-10 | 80 | 3/0 | 11 | 26.7 | 82.3 | 17.9 | 14.9 | 19.5 | 25.4 |
AD100-10 | 100 | 4/0 | 11 | 29.7 | 86.6 | 20.1 | 16.8 | 19.5 | 25.4 |
AD125-10 | 125 | 250MCM | 11 | 32 | 89.7 | 21.3 | 17.8 | 19.5 | 25.4 |
AD150-10 | 150 | 300MCM | 11 | 35 | 94.5 | 23.4 | 19.6 | 22.8 | 25.4 |
AD185-12 | 185 | 350MCM | 14 | 37.8 | 117 | 25.3 | 21.1 | 23.8 | 44.5 |
AD200-12 | 200 | 400MCM | 14 | 40.4 | 119.6 | 27 | 22.5 | 24.8 | 44.5 |
AD250-12 | 250 | 500MCM | 14 | 45.2 | 120.7 | 30.2 | 25.2 | 26.8 | 44.5 |
AD325-12 | 350 | 600MCM | 14 | 49.2 | 130.2 | 33.1 | 27.6 | 36 | 44.5 |
AD400-12 | 400 | 800MCM | 14 | 56.9 | 136.8 | 38.2 | 31.8 | 40 | 44.5 |
AD500-12 | 500 | 1000MCM | 14 | 63.5 | 147.5 | 42.7 | 35.6 | 43 | 44.5 |
