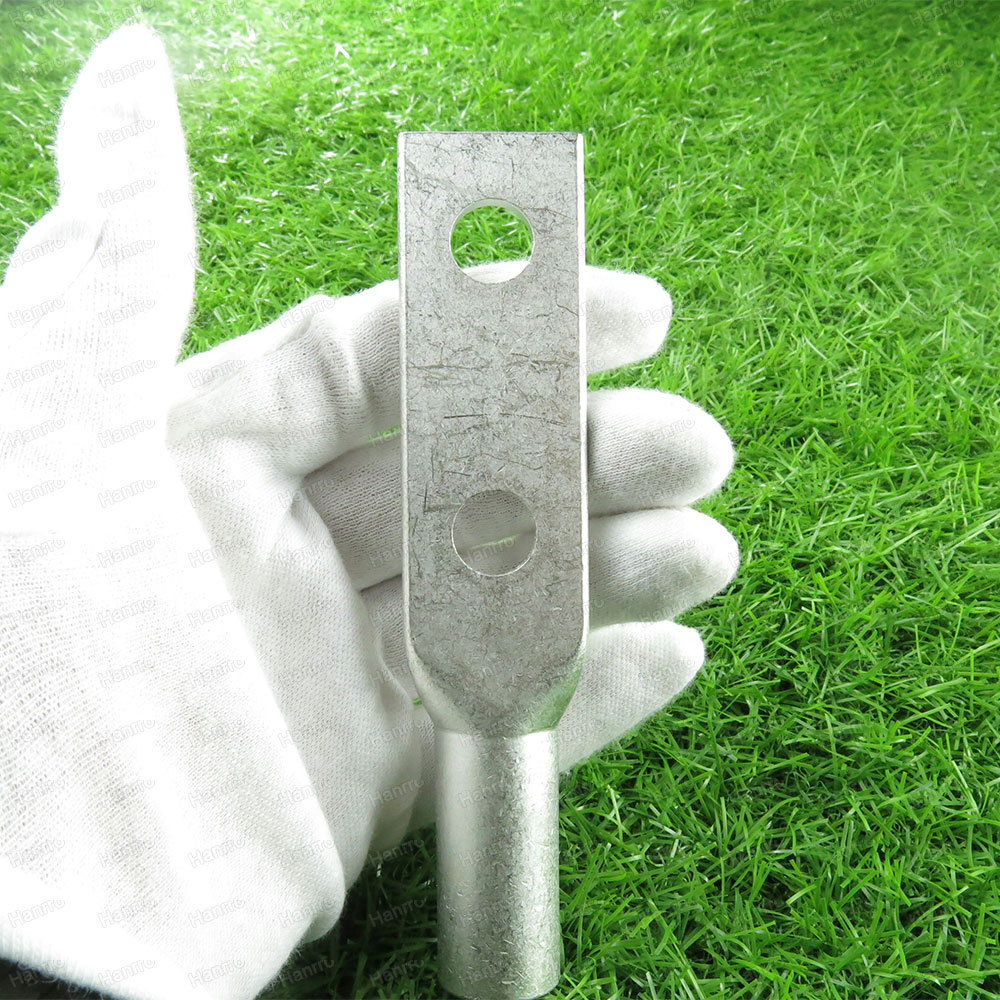

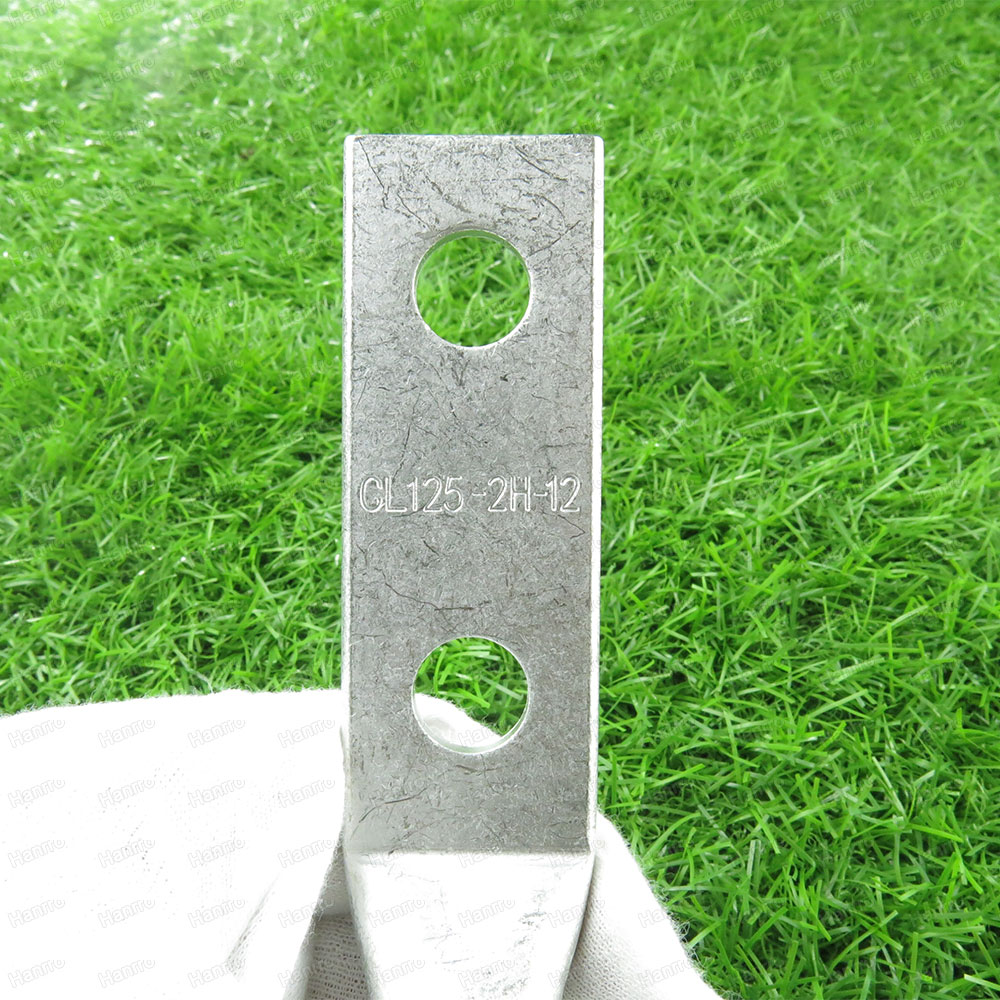

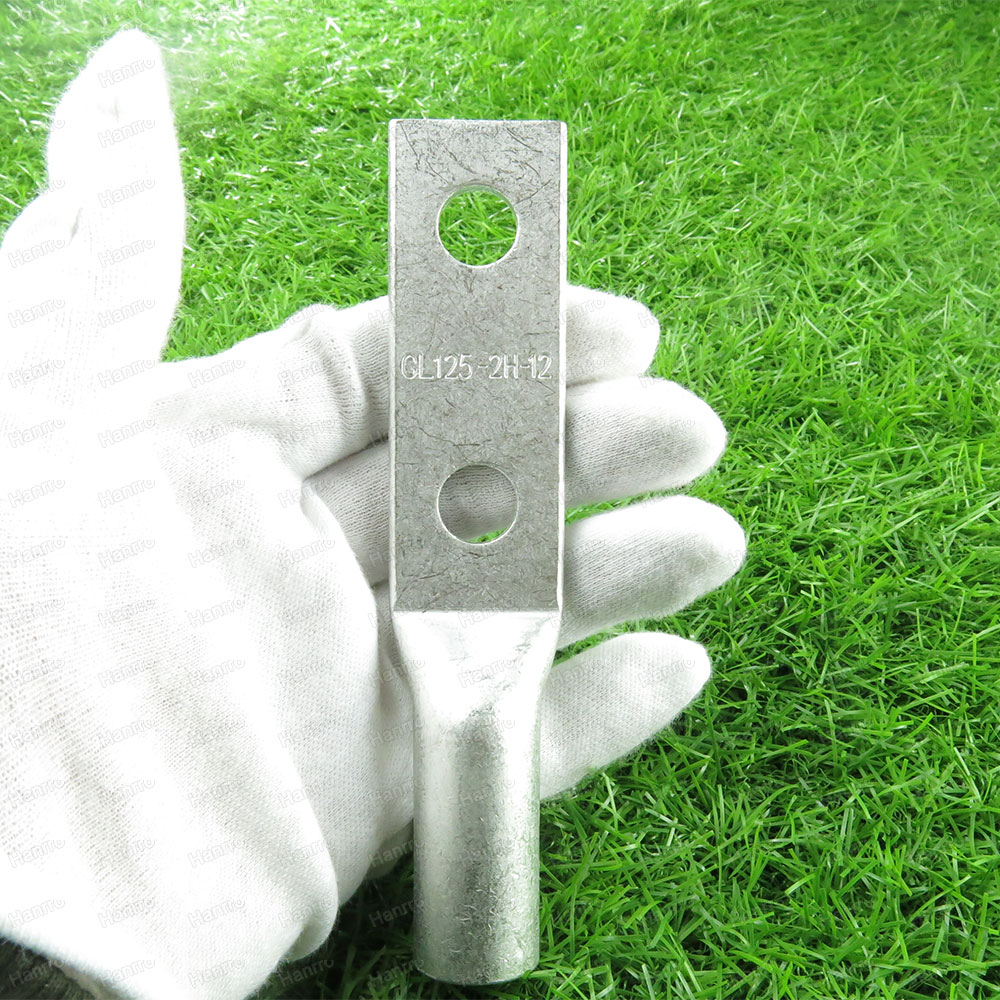

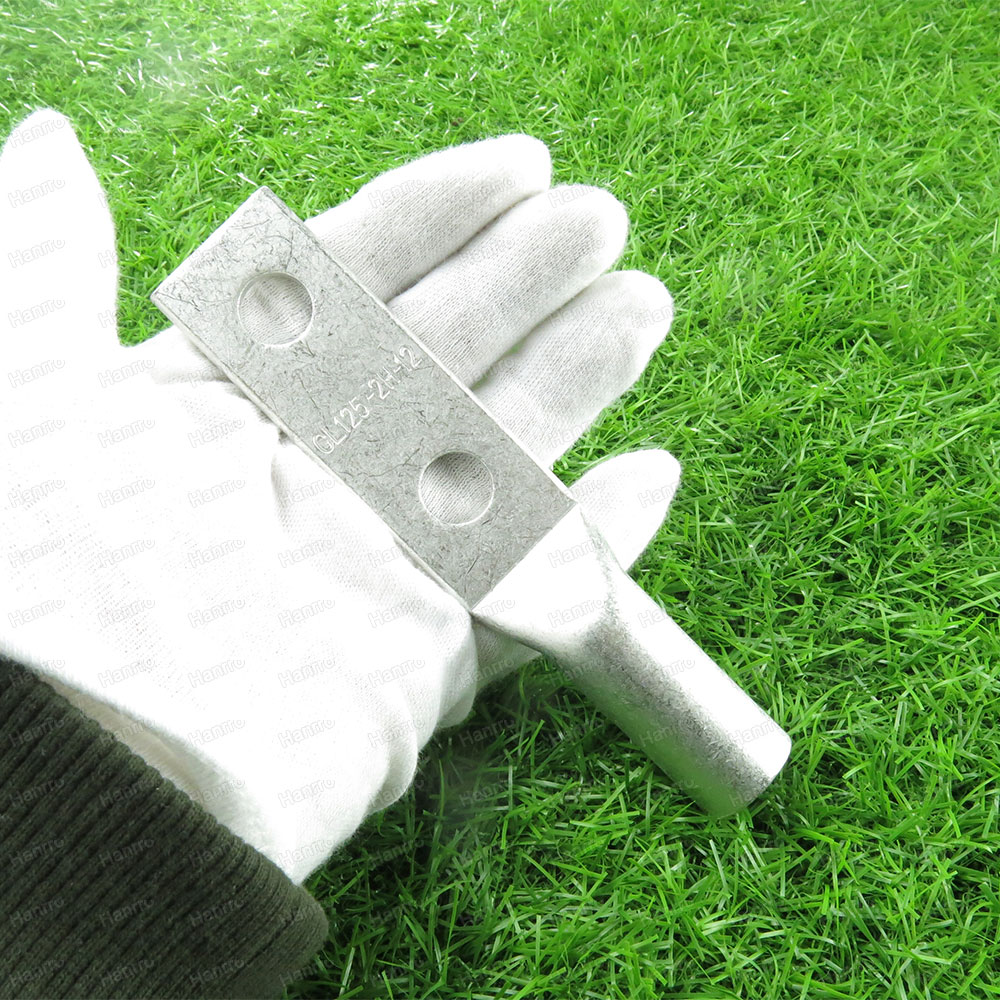

Two Hole Compression Lugs-Long Barrel

Two Hole Compression Lugs-Long Barrel are fabricated from high conductivity copper tubing, tin plated for optimal corrosion resistance and color coded for easy identification. Terminal lug withstands high mechanical stress; ideal for direct burial and grounding applications. Available for wire sizes from 8 to 750 MCM; UL listed.

Double stud connections of Two Hole Compression Lugs  allow you to secure this lug in two places. The extended barrel allows you to easily make a double crimp, for good wire contact. The sight hole allows you to ensure your wire is inserted properly, plus it’s UL Listed and can be used up to 35kv

Features & Benefits

Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance

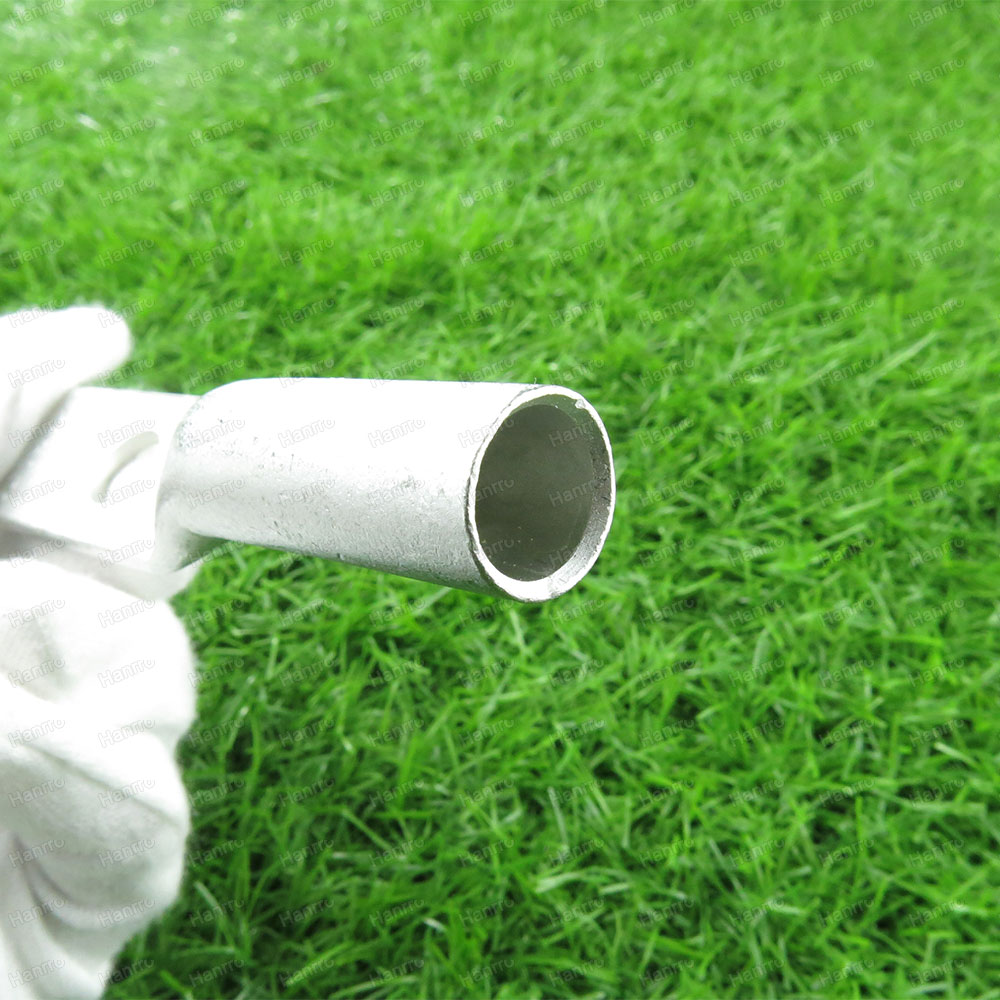

Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments

Tin-Plated to inhibit corrosion

UL Listed and CSA Certified to 35 KV and Temperature rated to 90℃

Tested by Telcordia-meets NEBS Level 3

Two Hole Compression Lugs-Long Barrel availble in 90&45 Degree bent tongue

tag：

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

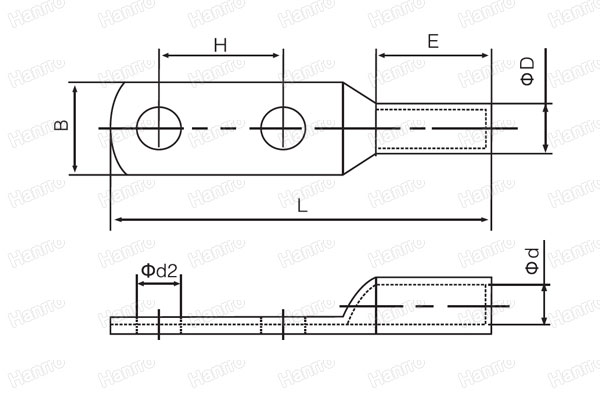

Two Hole Compression Lugs-Long Barrel-Drawings

Item No Dimension
Φ d2 B L  Φ D Φ d E H
CL14-2H-6 6.4 13 117.5 8.8 5.8 28.5 45
CL22-2H-8 8.4 16 119.2 11.3 7.7 28.5 45
CL38-2H-10 10.5 18.3 120 12.4 9.8 31.7 45
CL38-2H-12 13 18.3 120 12.4 9.8 31.7 45
CL60-2H-10 10.5 20.5 130 14 11 40 45
CL60-2H-12 13 20.5 130 14 11 40 45
CL70-2H-10 10.5 21.4 130 15 12 40 45
CL70-2H-12 13 21.4 130 15 12 40 45
CL80-2H-12 13 23.2 130 16 13 40 45
CL100-2H-12 13 26 132 18 14 42 45
CL125-2H-12 13 29 135 20 16 42 45
CL150-2H-12 13 31 150 22 17 50 45
CL180-2H-12 13 33 150 23 18.2 50 45
CL200-2H-12 13 37 150 26 20 52.5 45
CL250-2H-12 13 40 150 28 22 50 45
CL325-2H-12 13 46 180 32 25 68 45
CL400-2H-12 13 54 180 37 30 60 45
CL500-2H-12 13 57.5 180 40 31 60 45
B-CL14-2H-6 6.4 13 117.5 8.3 5.8 28.5 45
B-CL22-2H-8 8.4 16 119.2 10.7 7.7 28.5 45
B-CL38-2H-10 10.5 17.5 120 11.9 9.8 31.7 45
B-CL38-2H-12 13 17.5 120 11.9 9.8 31.7 45
B-CL60-2H-10 10.5 19.5 130 13.5 11 40 45
B-CL60-2H-12 13 19.5 130 13.5 11 40 45
B-CL70-2H-10 10.5 21.4 130 14.5 12 40 45
B-CL70-2H-12 13 21.4 130 14.5 12 40 45
B-CL80-2H-12 13 23.2 130 15.5 13 40 45
B-CL100-2H-12 13 26 132 17.3 14 42 45
B-CL125-2H-12 13 28 135 19.3 16 42 45
B-CL150-2H-12 13 31 150 21.1 17 50 45
B-CL180-2H-12 13 33 150 22.1 18.2 50 45
B-CL200-2H-12 13 36 150 24.9 20 50 45
B-CL250-2H-12 13 39 150 26.9 22 50 45
B-CL325-2H-12 13 45 180 30.7 25 68 45
B-CL400-2H-12 13 54 180 35.7 30 60 45
B-CL500-2H-12 13 56 180 38.4 31 60 45
