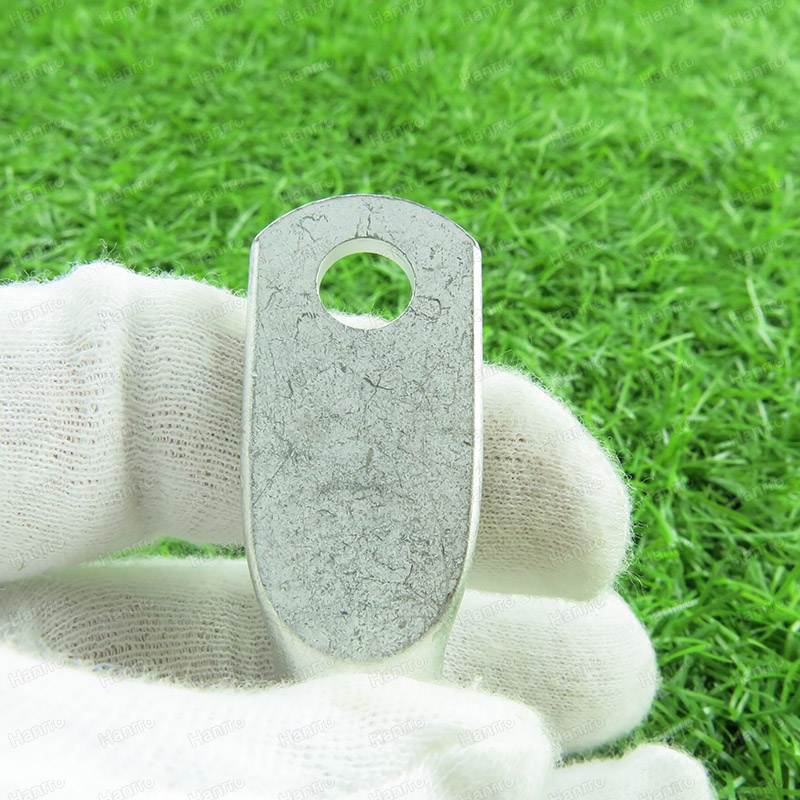

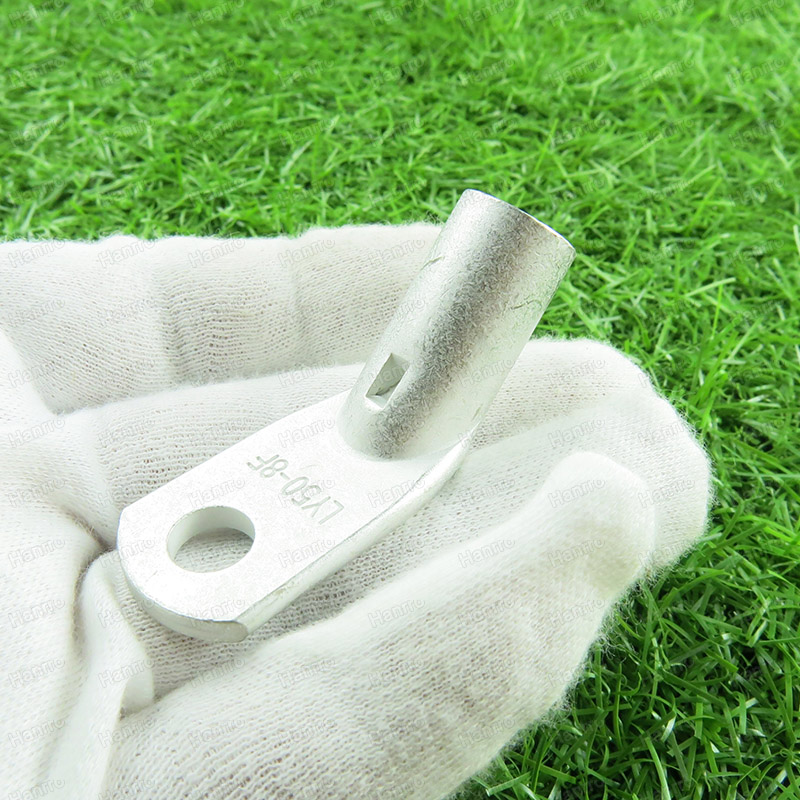

Tubular Angled Terminals 45 are extremely convenient when the lug is to be attached in area where regular lug use would be awkward. The 45 degree tilted barrel allows to attach the cable at an angle.
Tubular Angled Terminals 45 made from high strength , high conductivity electrolytic copper material to provide optimum connectivity for power and grounding application
Angled Cable Lugs are designed for use with many different code and flex conductor types and are available in a broad range of style and sizes including copper one-hole, two-hole and blank tongue lugs and splices
Feature :
Annealed Material optimises material and crimping properties

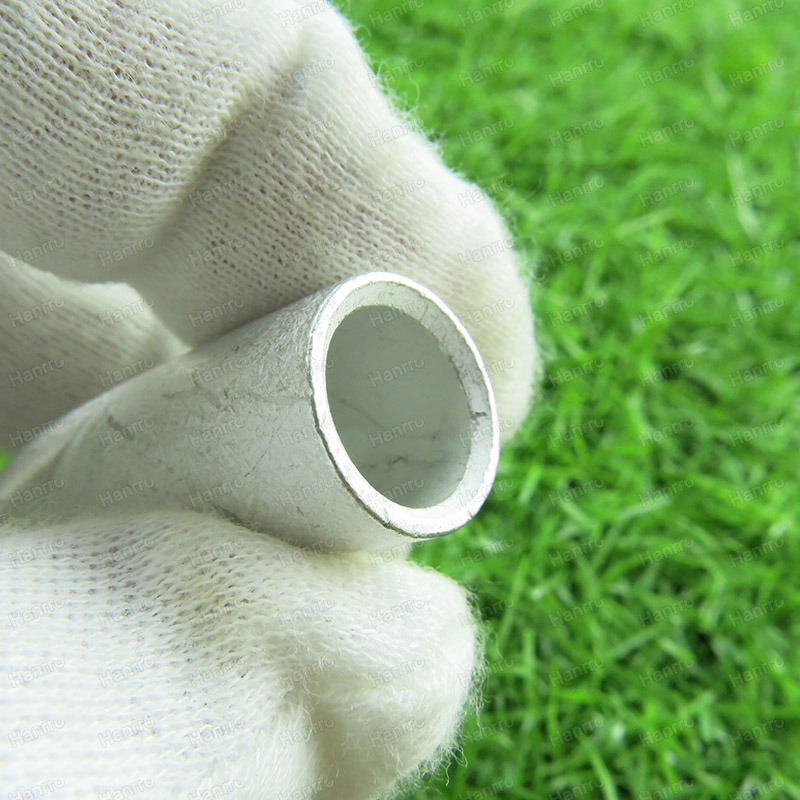

Simple cable entry due to precise internal chamfer

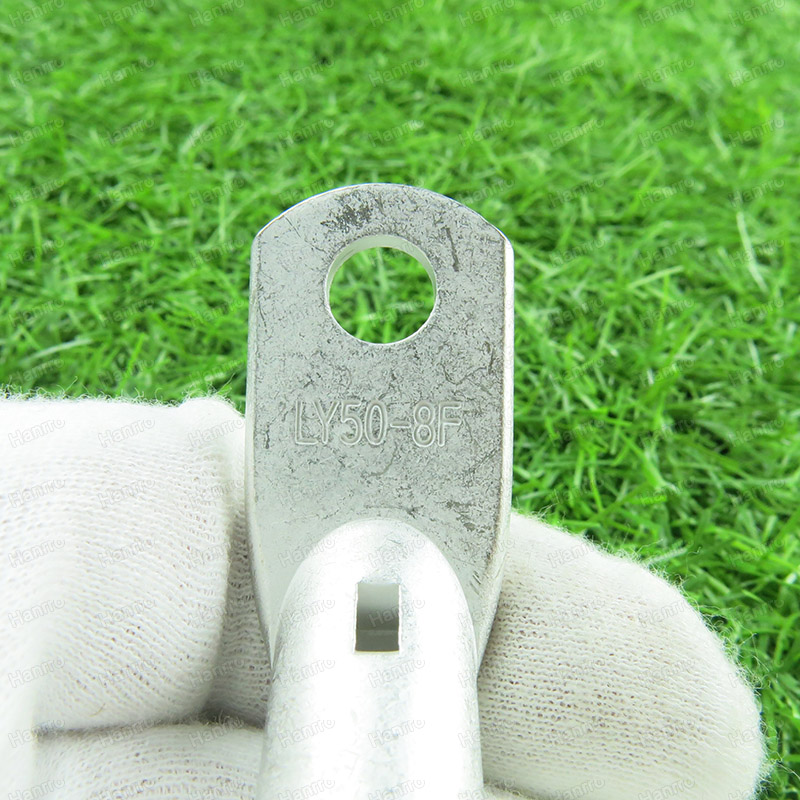

Reliable assignment owed to item designation on the cable lug
For Straight , Please visit : Copper Cable Lugs
For 90 Angled Degree , Please visit : Tubular Angled Lugs 90
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Dimension | |||||
| Φ d2 | B | L1 | Φ D | Φ d | E | |
| LYF45-10/6 | 6.5 | 13 | 18 | 8 | 5 | 19 |
| LYF45-10/8 | 8.4 | 13.5 | 20.5 | 8 | 5 | 19 |
| LYF45-16/6 | 6.5 | 13 | 18 | 9 | 6 | 23 |
| LYF45-16/8 | 8.4 | 13.5 | 20.5 | 9 | 6 | 23 |
| LYF45-25/6 | 6.5 | 17 | 18 | 11 | 8 | 24 |
| LYF45-25/8 | 8.4 | 17 | 20.5 | 11 | 8 | 24 |
| LYF45-25/10 | 10.5 | 17 | 25 | 11 | 8 | 24 |
| LYF45-35/6 | 6.5 | 18 | 18 | 13 | 9 | 30 |
| LYF45-35/8 | 8.4 | 18 | 20.5 | 13 | 9 | 30 |
| LYF45-35/10 | 10.5 | 18 | 25 | 13 | 9 | 30 |
| LYF45-50/8 | 8.4 | 21 | 26 | 14.5 | 11 | 31 |
| LYF45-50/10 | 10.5 | 21 | 30 | 14.5 | 11 | 31 |
| LYF45-50/12 | 13 | 21 | 32 | 14.5 | 11 | 31 |
| LYF45-70/8 | 8.4 | 25 | 26 | 17 | 13 | 35 |
| LYF45-70/10 | 10.5 | 25 | 30 | 17 | 13 | 35 |
| LYF45-70/12 | 13 | 25 | 32 | 17 | 13 | 35 |
| LYF45-95/10 | 10.5 | 29 | 30 | 20 | 15 | 40 |
| LYF45-95/12 | 13 | 29 | 32 | 20 | 15 | 40 |
| LYF45-95/16 | 17 | 29 | 36 | 20 | 15 | 40 |
| LYF45-120/10 | 10.5 | 32 | 30 | 22 | 17 | 43 |
| LYF45-120/12 | 13 | 32 | 32 | 22 | 17 | 43 |
| LYF45-120/16 | 17 | 32 | 36 | 22 | 17 | 43 |
