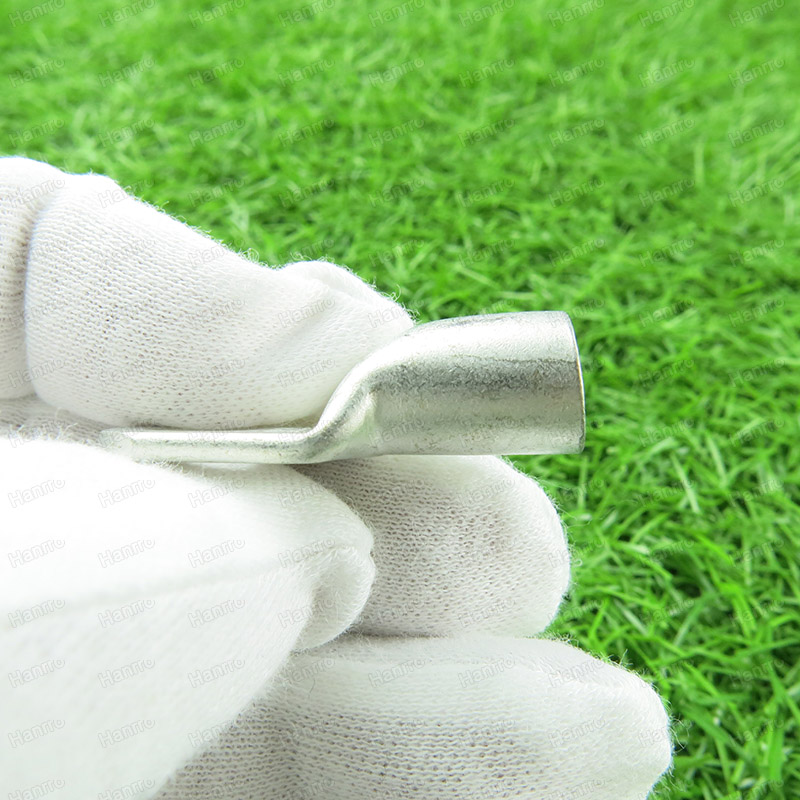

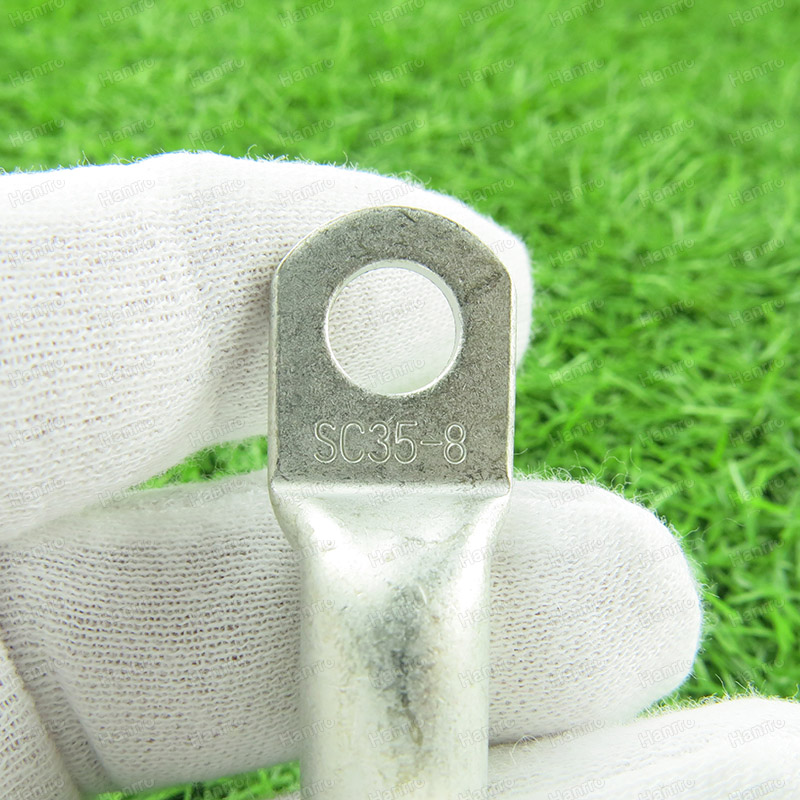

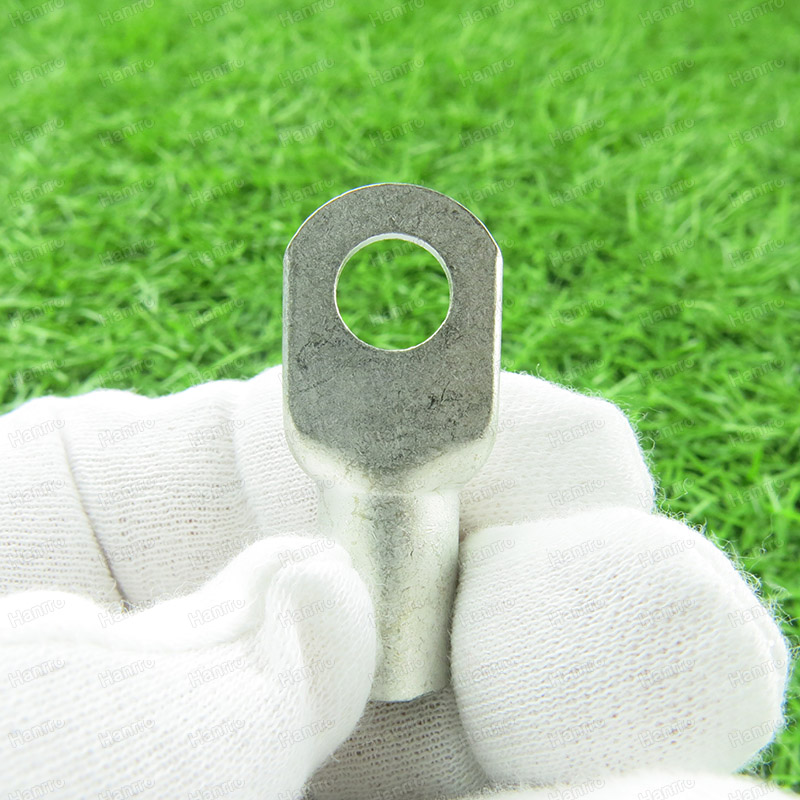

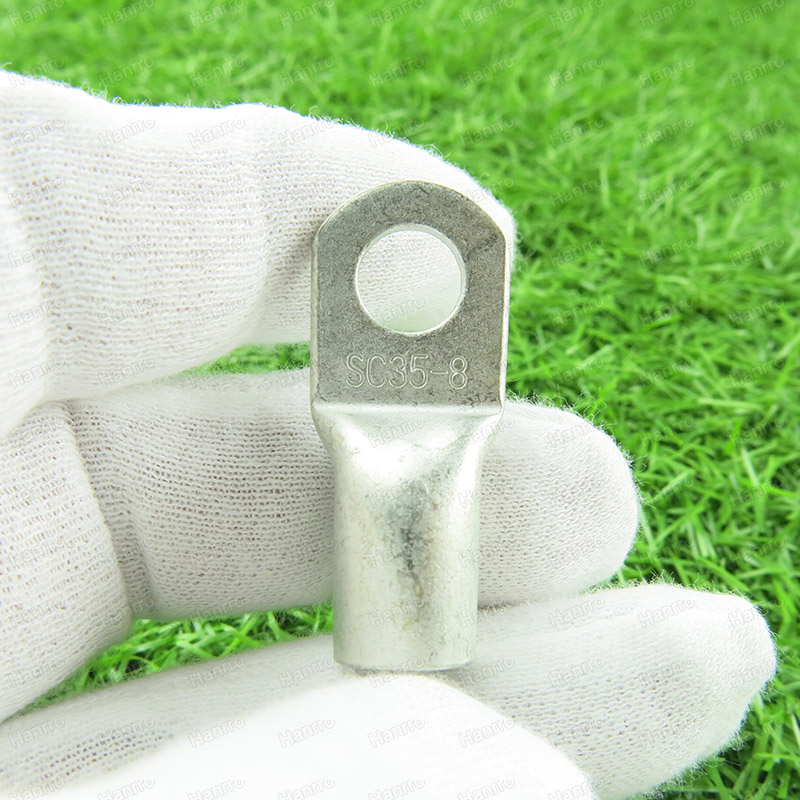

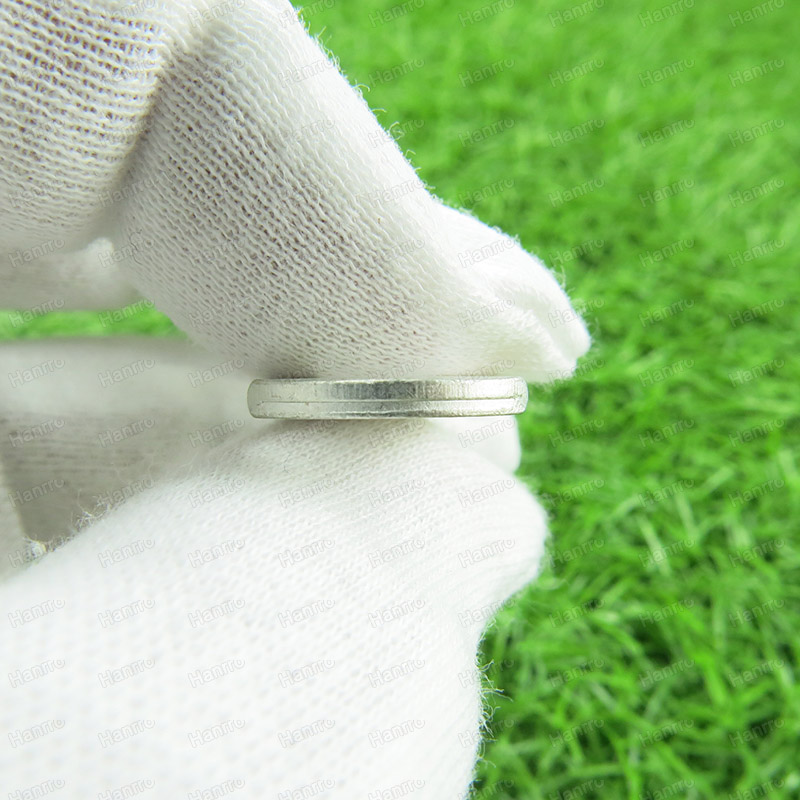

SC Cable Lugs without Inspection Hole

SC Cable Lugs without Inspection Hole made by high conductivity copper which used for code conductors One-Hole without Inspection Hole Design. Seamless tubular barrel provides a consistent high performance quality crimp.

Features & Benefits :

Enclosed barrel prevents corrosive material from entering barrel when used

In harsh environments

Tin-Plated to inhibit corrosion

tag: ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

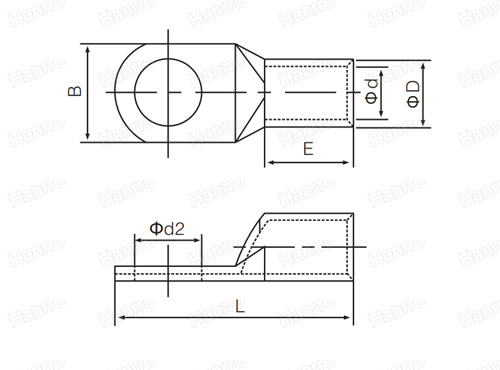

SC Copper Tube Terminals-Drawing

Item No φ d2 E L φ D φ d B
SCNH1.5-4 4.3 7 19 4 2.4 8.7
SCNH1.5-6 6.4 7 20 4 2.4 10.2
SCNH2.5-4 4.3 7 19 4.3 2.7 8.7
SCNH2.5-6 6.4 7 21 4.3 2.7 10.2
SCNH4-6 6.4 9.5 23.5 4.8 3.1 10.2
SCNH4-8 8.3 9.5 28.5 4.8 3.1 12.5
SCNH6-5 5.3 10 26 5.5 3.8 10.3
SCNH6-6 6.4 10 26 5.5 3.8 10.3
SCNH6-8 8.3 10 29 5.5 3.8 13.9
SCNH10-6 6.4 11.5 27.5 6.9 4.7 12
SCNH10-8 8.3 11.5 30.5 6.9 4.7 13.5
SCNH10-10 10.5 11.5 30.5 6.9 4.7 15
SCNH16-6 6.4 18 33.5 7.8 5.6 12
SCNH16-8 8.3 18 37 7.8 5.6 13.5
SCNH16-10 10.5 18 38 7.8 5.6 16
SCNH25-6 6.4 20 40.5 9.5 7.1 14
SCNH25-8 8.3 20 40.5 9.5 7.1 14
SCNH25-10 10.5 20 43.5 9.5 7.1 16
SCNH25-12 13.2 20 46.5 9.5 7.1 18
SCNH35-8 8.3 20 43 11 8.2 16.5
SCNH35-10 10.5 20 47 11 8.2 16.5
SCNH35-12 13.2 20 47 11 8.2 18
SCNH50-10 10.5 20 49 12.5 9.5 18
SCNH50-12 13.2 20 49 12.5 9.5 18
SCNH70-8 8.3 24 51.6 15 11.5 21.6
SCNH70-10 10.5 24 55.6 15 11.5 21.6
SCNH70-12 13.2 24 55.6 15 11.5 21.6
SCNH70-14 14.5 24 66.6 15 11.5 21.6
SCNH95-8 8.3 27 60.8 17 13.5 24.7
SCNH95-10 10.5 27 60.8 17 13.5 24.7
SCNH95-12 13.2 27 60.8 17 13.5 24.7
SCNH95-14 14.5 27 71.8 17 13.5 24.7
SCNH120-10 10.5 27 71.5 20 15.6 29
SCNH120-12 13.2 27 71.5 20 15.6 29
SCNH120-14 14.5 27 71.5 20 15.6 29
SCNH150-12 13.2 32 78 21 16.5 30.4
SCNH150-14 14.5 32 78 21 16.5 30.4
SCNH150-16 16.5 32 78 21 16.5 30.4
SCNH185-14 14.5 34 84 23.6 18.4 34
SCNH185-16 16.5 34 84 23.6 18.4 34
SCNH240-12 13.2 37 92 26.4 21.2 38.3
SCNH240-14 14.5 37 92 26.4 21.2 38.3
SCNH240-16 16.5 37 92 26.4 21.2 38.3
SCNH300-12 13.2 37 92 26.4 21.2 38.3
SCNH300-14 14.5 40 100 30 23.6 43.2
SCNH300-16 16.5 40 100 30 23.6 43.2
SCNH300-20 21 40 100 30 23.6 43.2
