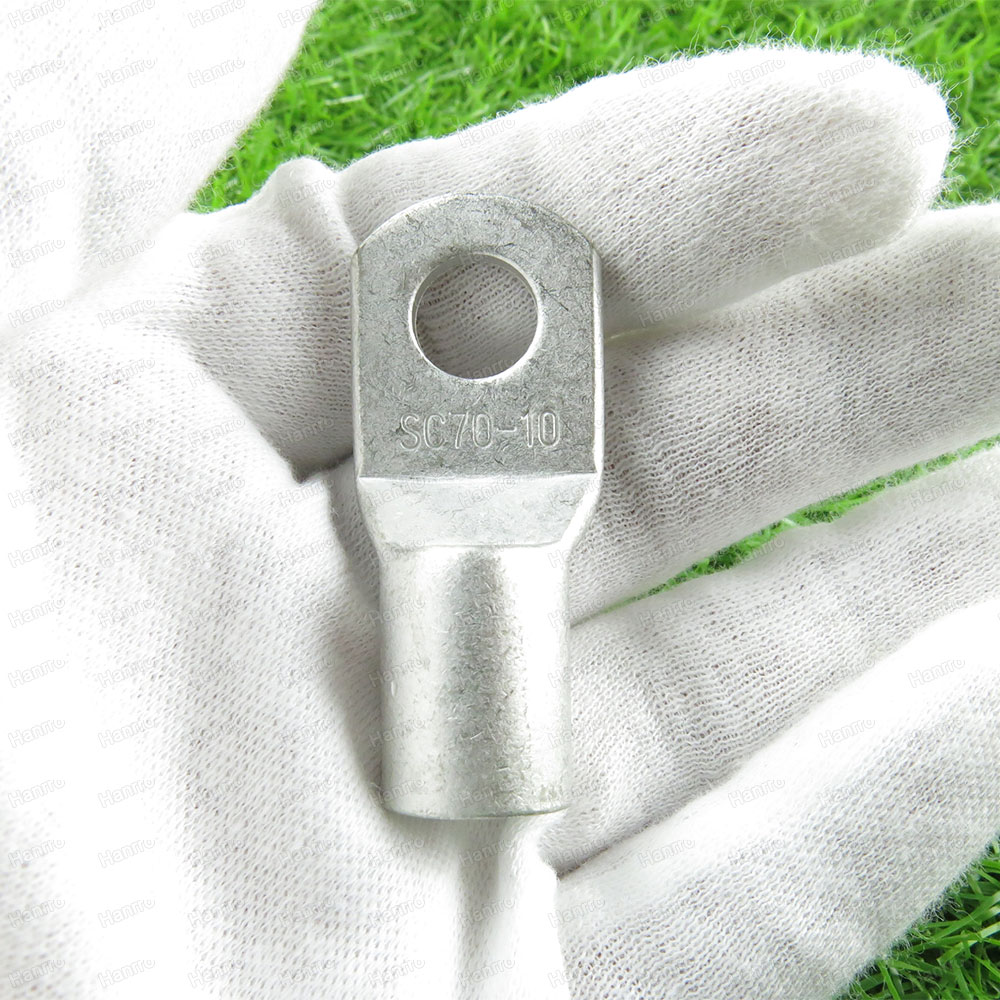

SC Cable Lugs made by high conductivity copper which used for code conductors One-Hole with Inspection Window Design. Seamless tubular barrel provides a consistent high performance quality crimp.

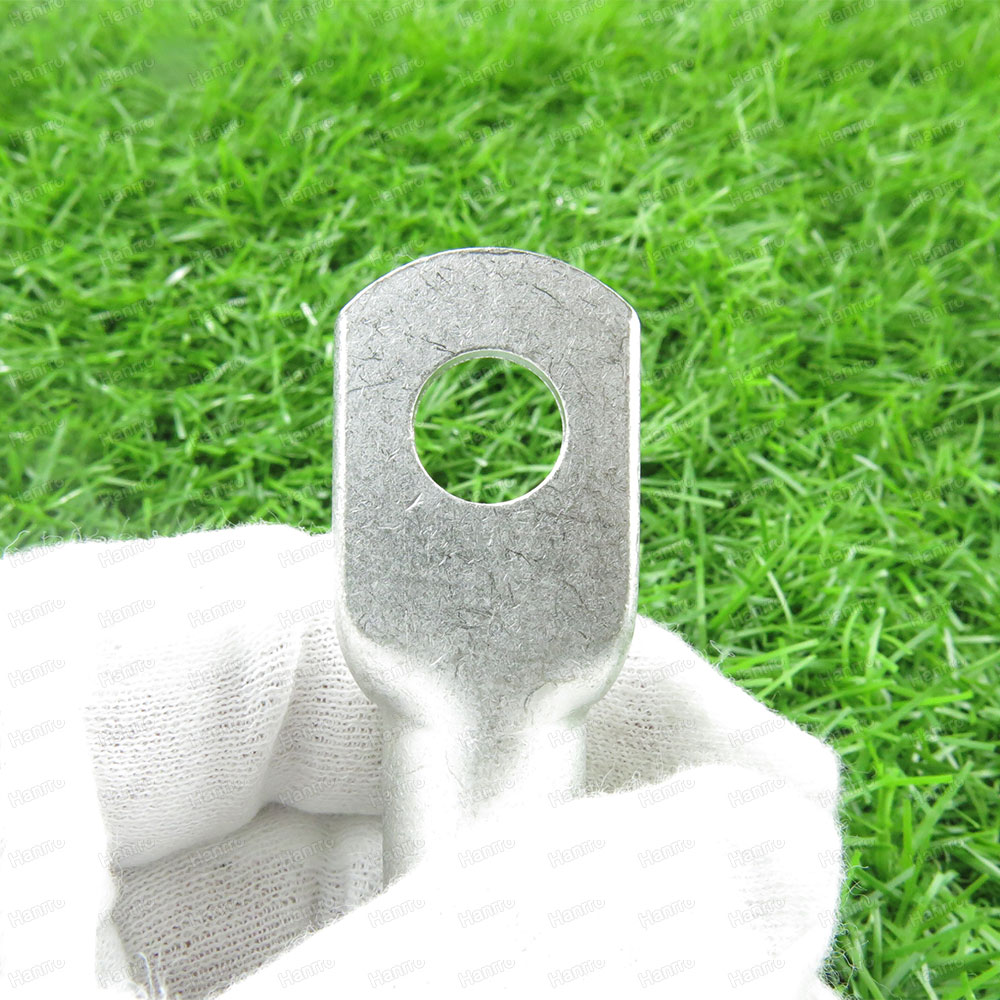

Round double thick tongue for reliable power application. And Barrel of terminal internally beveled to provide quick and easy wire insertion.
Features & Benefits :
Inspection window allows visual inspection of proper wire insertion
UL Listed and CSA Certified to 35KV and Temperature rated to 90℃ when crimped with specified Hanrro crimping tools and dies
SC Cable Lugs Surface Treatment by Tin-Plated to inhibit corrosion
FAQ :
Question : What is the material ?
Answer : There are four different materials for choice
Best : T2 , 99.9% Copper , Few Manufactures use it Due to Expensive
Good : T3 , 99.7% , Almost 50% Manufactures use it Due to Reasonable
Common : Normal Copper , 20% Manufactures use it Due to Cheap
Bad : Brass , Special for Online Business , Such as Aliexpress , Ebay
Most of Customers pay more attention Price than Quality
Question : How many types of SC Cable Lugs ?
Answer : If We sort by Size , There are three different types
Heavy Duty SC Cable Lugs , Standard SC Cable Lugs , Economy SC Cable Lugs

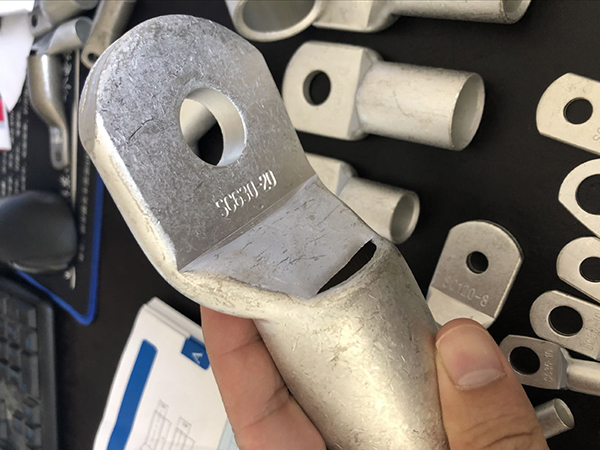

Heavy Duty Type usually be used in High Current Application Due to Thicker
If We sort by Hole ： With Inspection Hole , Without Inspection Hole

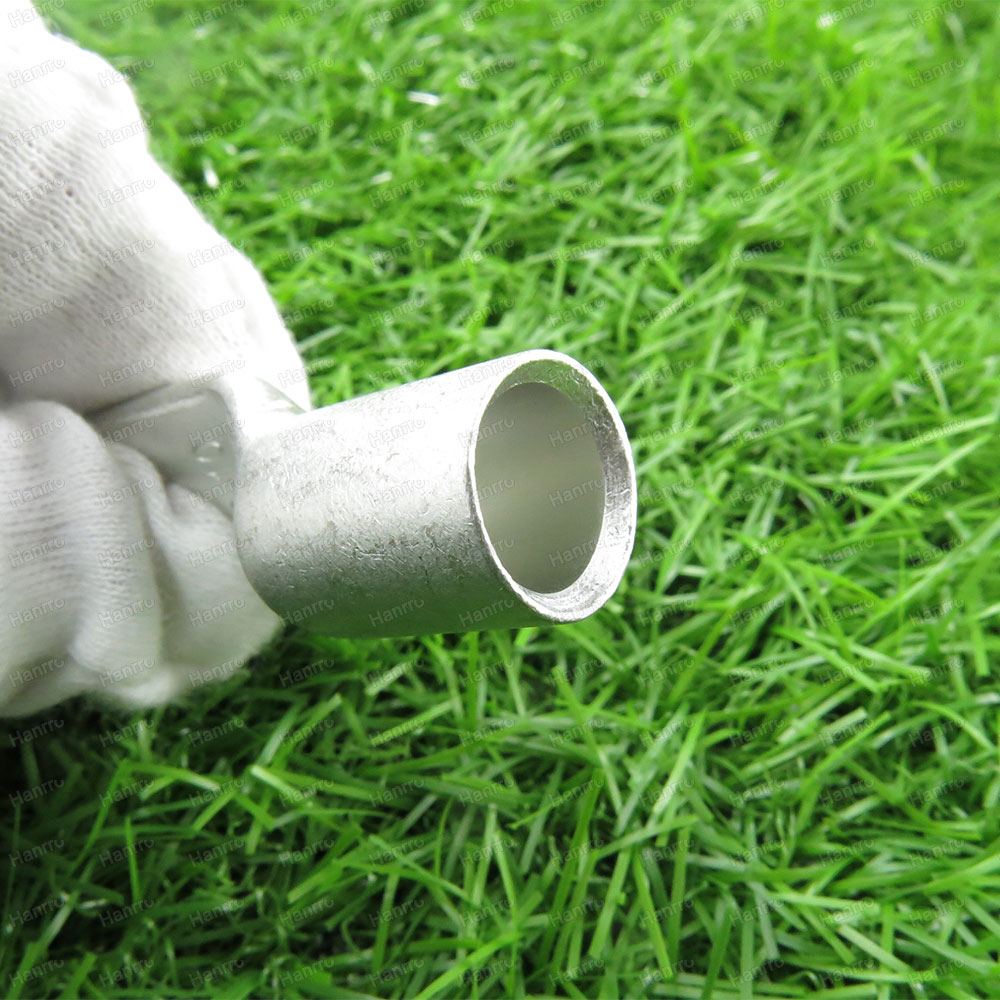

Besides There are special types which have bell-mouth for wire easy insert
Question : What is the Thickness of SC Cable Lugs ?
Answer : Our Treatment of Surface will be Tin Plated up to 3-5um
For Special Requirement , We can also do 8-10um , 13-15um and 20-25um
Question : How to crimp these SC Cable Lugs ?
Answer : As Customers know that The Sizes from 4-630mm2
4-16mm2 : Hand Crimping Tools or Pneumatic Crimping Tools be best
16-120mm2 : Heavy Duty Crimping Tools or Hydraulic Crimping Tools be best
150-630mm2 : Hydraulic Crimping Tools or Special Puncher be best
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

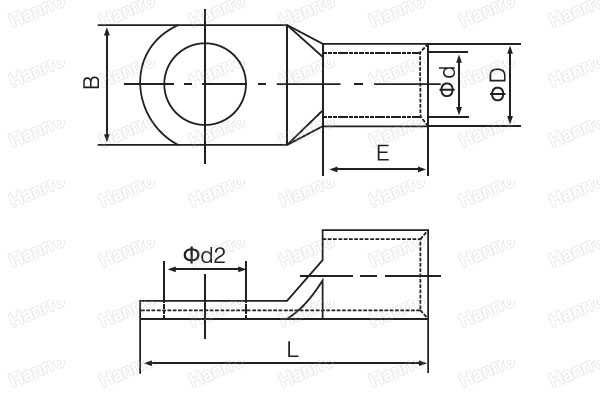

| Item No | Dimension | |||||
| Φ d2 | B | L | Φ D | Φ d | E | |
| SC1.5-4 | 4.2 | 8 | 16 | 3.7 | 1.8 | 5 |
| SC1.5-5 | 5.2 | 10 | 17 | 3.7 | 1.8 | 5 |
| SC1.5-6 | 6.5 | 10 | 18 | 3.7 | 1.8 | 5 |
| SC2.5-4 | 4.2 | 8 | 18 | 4 | 2.4 | 7 |
| SC2.5-5 | 5.2 | 10 | 20 | 4 | 2.4 | 7 |
| SC2.5-6 | 6.5 | 10 | 20 | 4 | 2.4 | 7 |
| SC2.5-8 | 8.4 | 12.5 | 23 | 4 | 2.4 | 7 |
| SC4-4 | 4.2 | 10 | 20 | 4.8 | 3.1 | 7 |
| SC4-5 | 5.2 | 10 | 20 | 4.8 | 3.1 | 7 |
| SC4-6 | 6.5 | 10 | 20 | 4.8 | 3.1 | 7 |
| SC4-8 | 8.4 | 12.5 | 23 | 4.8 | 3.1 | 7 |
| SC6-4 | 4.2 | 10 | 24 | 5.5 | 3.8 | 9 |
| SC6-5 | 5.2 | 10 | 24 | 5.5 | 3.8 | 9 |
| SC6-6 | 6.5 | 12 | 24 | 5.5 | 3.8 | 9 |
| SC6-8 | 8.4 | 12.5 | 26 | 5.5 | 3.8 | 9 |
| SC6-10 | 10.5 | 15 | 28 | 6.2 | 4 | 9 |
| SC10-5 | 5.2 | 12 | 25 | 6.2 | 4.5 | 9 |
| SC10-6 | 6.5 | 12 | 25 | 6.2 | 4.5 | 9 |
| SC10-8 | 8.4 | 12.5 | 27 | 6.2 | 4.5 | 9 |
| SC10-10 | 10.5 | 15 | 29 | 6.2 | 4.5 | 9 |
| SC10-12 | 13 | 17 | 31 | 6.2 | 4.5 | 9 |
| SC16-5 | 5.2 | 12 | 30 | 7.1 | 5.4 | 12 |
| SC16-6 | 6.5 | 12 | 30 | 7.1 | 5.4 | 12 |
| SC16-8 | 8.4 | 12.5 | 30 | 7.1 | 5.4 | 12 |
| SC16-10 | 10.5 | 16 | 33 | 7.1 | 5.4 | 12 |
| SC16-12 | 13 | 17 | 35 | 7.1 | 5.4 | 12 |
| SC25-5 | 5.2 | 13 | 33 | 8.8 | 6.8 | 12 |
| SC25-6 | 6.5 | 13 | 33 | 8.8 | 6.8 | 12 |
| SC25-8 | 8.4 | 15 | 33 | 8.8 | 6.8 | 12 |
| SC25-10 | 10.5 | 18 | 34 | 8.8 | 6.8 | 12 |
| SC25-12 | 13 | 18 | 35 | 8.8 | 6.8 | 12 |
| SC25-14 | 15 | 20 | 38 | 8.8 | 6.8 | 12 |
| SC35-5 | 5.2 | 16 | 38 | 10.6 | 8.2 | 14 |
| SC35-6 | 6.5 | 16 | 38 | 10.6 | 8.2 | 14 |
| SC35-8 | 8.4 | 16 | 38 | 10.6 | 8.2 | 14 |
| SC35-10 | 10.5 | 18 | 39 | 10.6 | 8.2 | 14 |
| SC35-12 | 13 | 19 | 40.5 | 10.6 | 8.2 | 14 |
| SC35-14 | 15 | 20 | 42 | 10.6 | 8.2 | 14 |
| SC50-6 | 6.5 | 17.8 | 45 | 12.4 | 9.5 | 16 |
| SC50-8 | 8.4 | 17.8 | 45 | 12.4 | 9.5 | 16 |
| SC50-10 | 10.5 | 17.8 | 45 | 12.4 | 9.5 | 16 |
| SC50-12 | 13 | 20 | 45 | 12.4 | 9.5 | 16 |
| SC50-14 | 15 | 22 | 46 | 12.4 | 9.5 | 16 |
| SC50-16 | 17 | 24 | 47 | 12.4 | 9.5 | 16 |
| SC70-8 | 8.4 | 21 | 52 | 14.7 | 11.2 | 20 |
| SC70-10 | 10.5 | 21 | 52 | 14.7 | 11.2 | 20 |
| SC70-12 | 13 | 21 | 52 | 14.7 | 11.2 | 20 |
| SC70-14 | 15 | 21 | 52 | 14.7 | 11.2 | 20 |
| SC70-16 | 17 | 25 | 53 | 14.7 | 11.2 | 20 |
| SC95-8 | 8.4 | 25 | 58 | 17.4 | 13.5 | 23 |
| SC95-10 | 10.5 | 25 | 58 | 17.4 | 13.5 | 23 |
| SC95-12 | 13 | 25 | 58 | 17.4 | 13.5 | 23 |
| SC95-14 | 15 | 25 | 58 | 17.4 | 13.5 | 23 |
| SC95-16 | 17 | 25 | 58 | 17.4 | 13.5 | 23 |
| SC120-8 | 8.4 | 28 | 63 | 19.4 | 15 | 22 |
| SC120-10 | 10.5 | 28 | 63 | 19.4 | 15 | 22 |
| SC120-12 | 13 | 28 | 63 | 19.4 | 15 | 22 |
| SC120-14 | 15 | 28 | 63 | 19.4 | 15 | 22 |
| SC120-16 | 17 | 28 | 63 | 19.4 | 15 | 22 |
| SC120-20 | 21 | 28 | 63 | 19.4 | 15 | 22 |
| SC150-8 | 8.4 | 30.5 | 70 | 21.2 | 16.5 | 26 |
| SC150-10 | 10.5 | 30.5 | 70 | 21.2 | 16.5 | 26 |
| SC150-12 | 13 | 30.5 | 70 | 21.2 | 16.5 | 26 |
| SC150-14 | 15 | 30.5 | 70 | 21.2 | 16.5 | 26 |
| SC150-16 | 17 | 30.5 | 70 | 21.2 | 16.5 | 26 |
| SC150-20 | 21 | 30.5 | 70 | 21.2 | 16.5 | 26 |
| SC185-10 | 10.5 | 34 | 75 | 23.5 | 18.5 | 32 |
| SC185-12 | 13 | 34 | 75 | 23.5 | 18.5 | 32 |
| SC185-14 | 15 | 34 | 75 | 23.5 | 18.5 | 32 |
| SC185-16 | 17 | 34 | 75 | 23.5 | 18.5 | 32 |
| SC185-20 | 21 | 34 | 75 | 23.5 | 18.5 | 32 |
| SC240-10 | 10.5 | 38.5 | 90 | 26.5 | 21 | 38 |
| SC240-12 | 13 | 38.5 | 90 | 26.5 | 21 | 38 |
| SC240-14 | 15 | 38.5 | 90 | 26.5 | 21 | 38 |
| SC240-16 | 17 | 38.5 | 90 | 26.5 | 21 | 38 |
| SC240-18 | 19 | 38.5 | 90 | 26.5 | 21 | 38 |
| SC240-20 | 21 | 38.5 | 90 | 26.5 | 21 | 38 |
| SC300-10 | 10.5 | 43 | 98 | 30 | 23.5 | 42 |
| SC300-12 | 13 | 43 | 98 | 30 | 23.5 | 42 |
| SC300-14 | 15 | 43 | 98 | 30 | 23.5 | 42 |
| SC300-16 | 17 | 43 | 98 | 30 | 23.5 | 42 |
| SC300-20 | 21 | 43 | 98 | 30 | 23.5 | 42 |
| SC400-10 | 10.5 | 52 | 110 | 36.5 | 28.5 | 44 |
| SC400-12 | 13 | 52 | 110 | 36.5 | 28.5 | 44 |
| SC400-14 | 15 | 52 | 110 | 36.5 | 28.5 | 44 |
| SC400-16 | 17 | 52 | 110 | 36.5 | 28.5 | 44 |
| SC400-20 | 21 | 52 | 110 | 36.5 | 28.5 | 44 |
| SC500-10 | 10.5 | 56 | 120 | 39 | 30 | 48 |
| SC500-12 | 13 | 56 | 120 | 39 | 30 | 48 |
| SC500-14 | 15 | 56 | 120 | 39 | 30 | 48 |
| SC500-16 | 17 | 56 | 120 | 39 | 30 | 48 |
| SC500-20 | 21 | 56 | 120 | 39 | 30 | 48 |
| SC630-10 | 10.5 | 65 | 140 | 45 | 35 | 56 |
| SC630-12 | 13 | 65 | 140 | 45 | 35 | 56 |
| SC630-14 | 15 | 65 | 140 | 45 | 35 | 56 |
| SC630-16 | 17 | 65 | 140 | 45 | 35 | 56 |
| SC630-20 | 21 | 65 | 140 | 45 | 35 | 56 |
