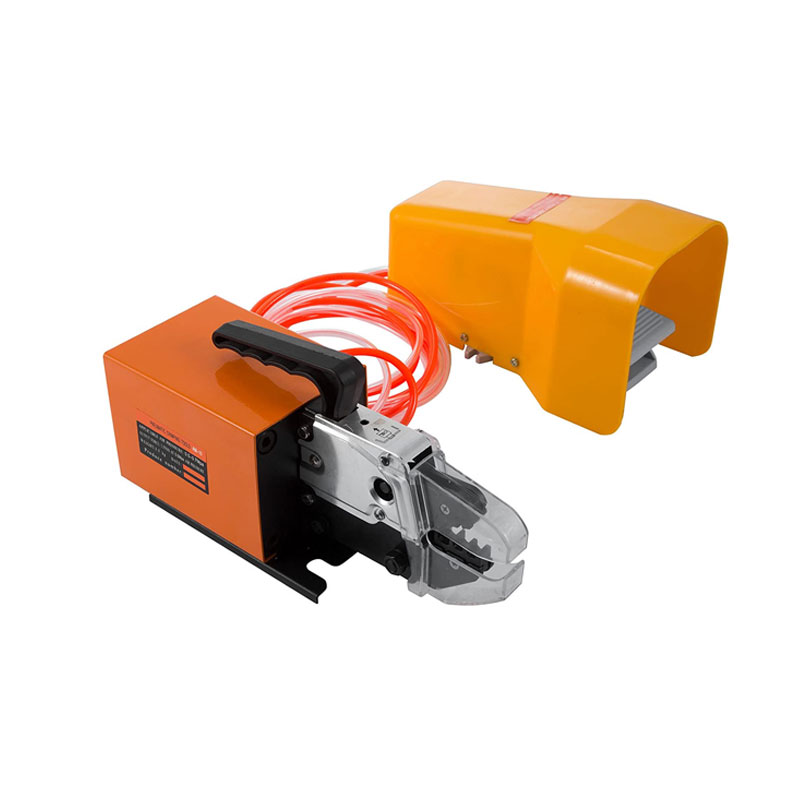

Pneumatic Crimping Tools AM-10 are specially designed for Crimping Wire Terminals and Connectors. Such as Insulated Terminals , Non-Insulated Terminals , Wire Ferrules , Open Barrel Terminals Etc. It was Powered by Pneumatic .When Workers need to crimp , Just Press Hand or Foot Switch, It Helps Reduce Operator Fatigue.
General Information :
Item No : AM-10

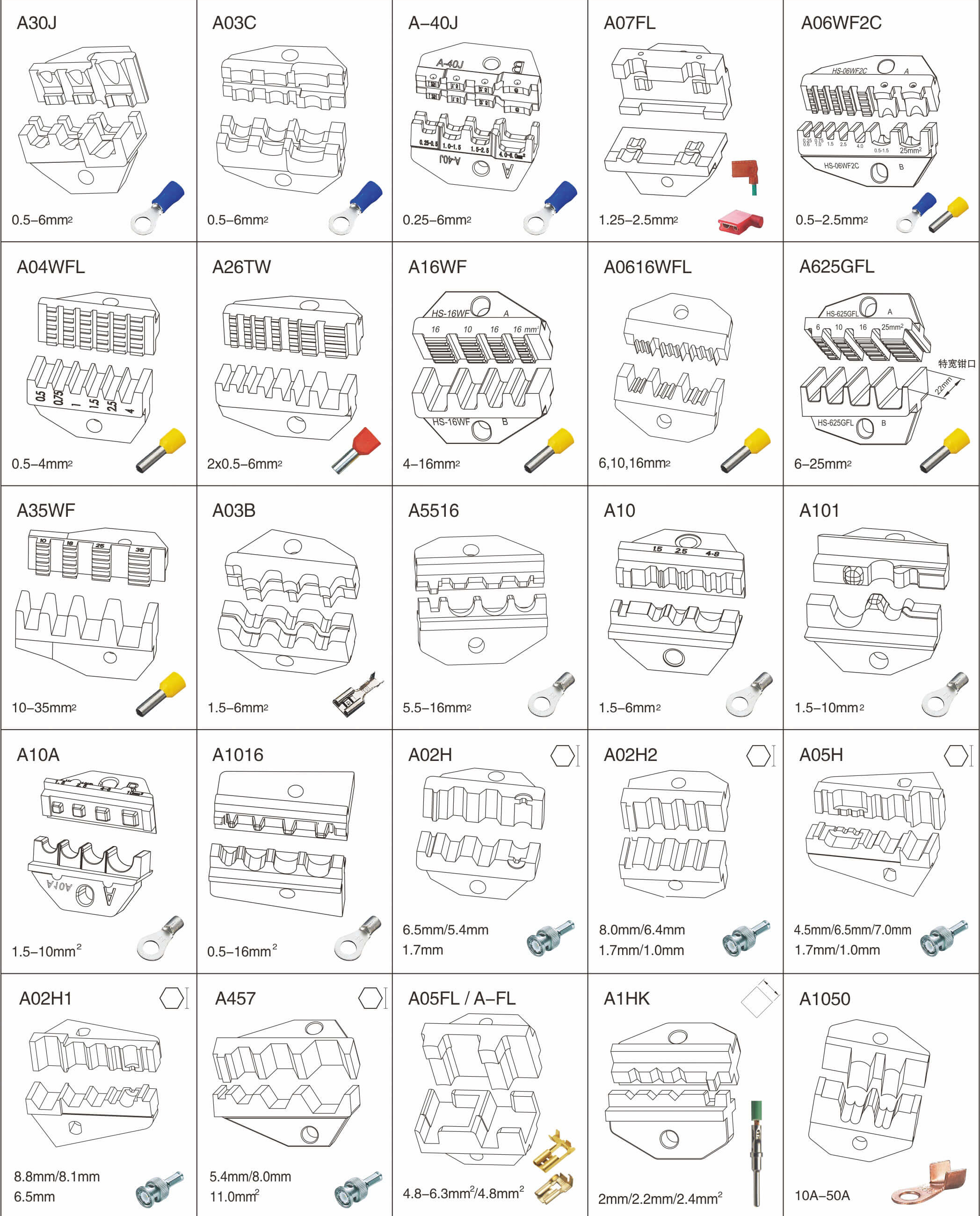

Crimping Dies : As Documents
Output Force : 13.5 KN
Air Pressure : 0.5-0.8 MPA
Dimension : 260 x 120 x 140mm
Weight : 4 KGS
The Pneumatic Crimping Tools usually come with 1 Set of Crimping Dies For Your Application. When You buy , Please tell Hanrro Sales Which You need.

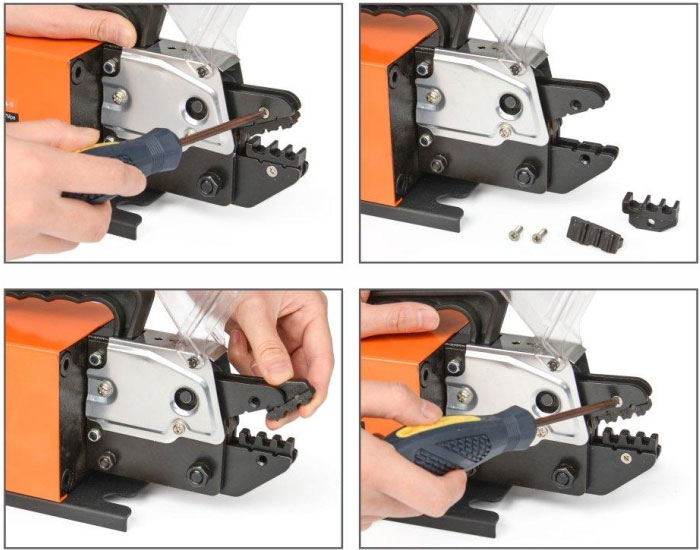

Question : How to Install or Change the Crimping Dies ?
Our answer : Choose the Suitable Screwdriver to Install, See pictures

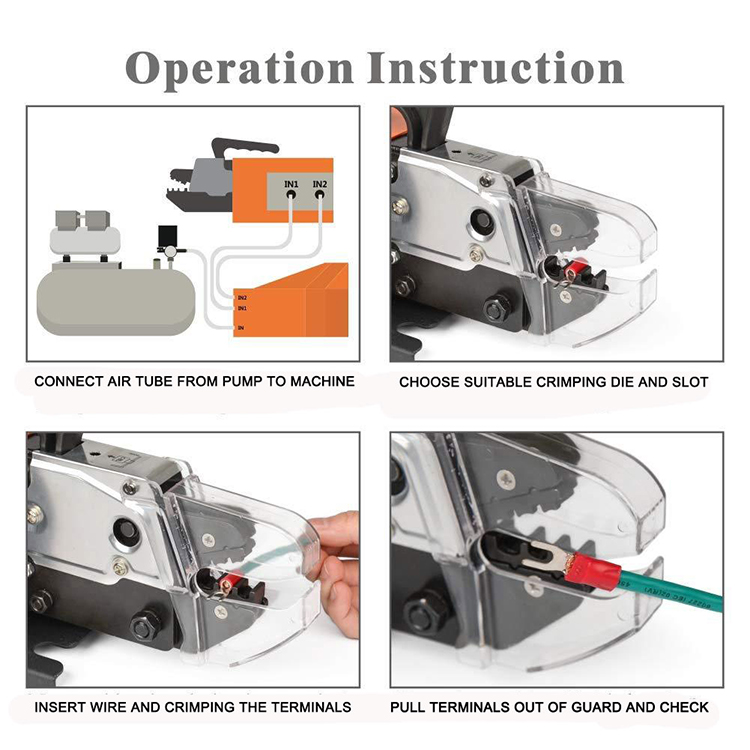

Question : How to operate the Pneumatic Crimping Tools AM-10 ?
Our answer :
1 : Installation the Suitable Crimping Dies on Machine
2 : Adjust Air Pump Pressure From 0.5-0.8 MPA
3 : Connect the Air Tube From Pump to Machine
4 : Press Foot Switch to Test Crimping Effect
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Crimping Range | Air Pressure | Weight | Dimension | |||
| Insulated Terminals | Non-Insulated Terminals | Wire Ferrules | Open Barrel Terminals | ||||
| AM-10 | Up to 6mm2 | Up to 16mm2 | Up to 35mm2 | Up to 6mm2 | 0.5-0.8 MPA | 4 KGS | 260 x 120 x 140mm |
