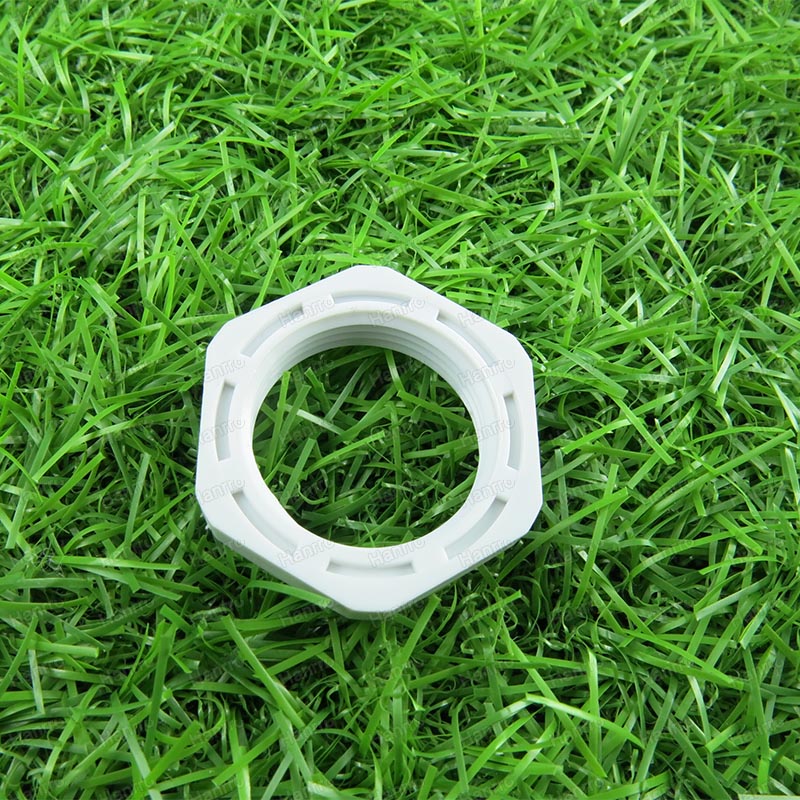

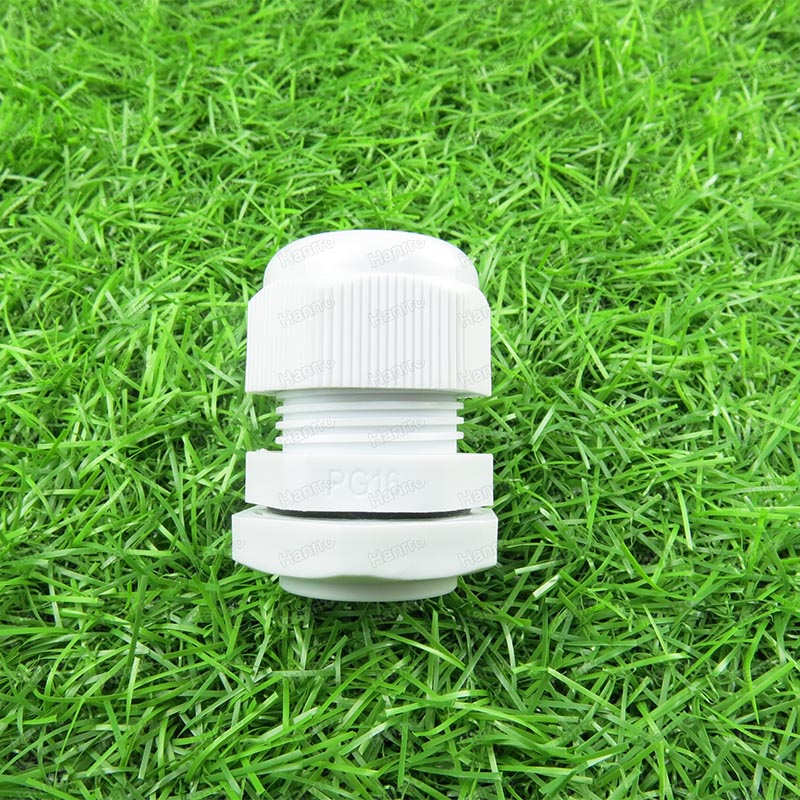

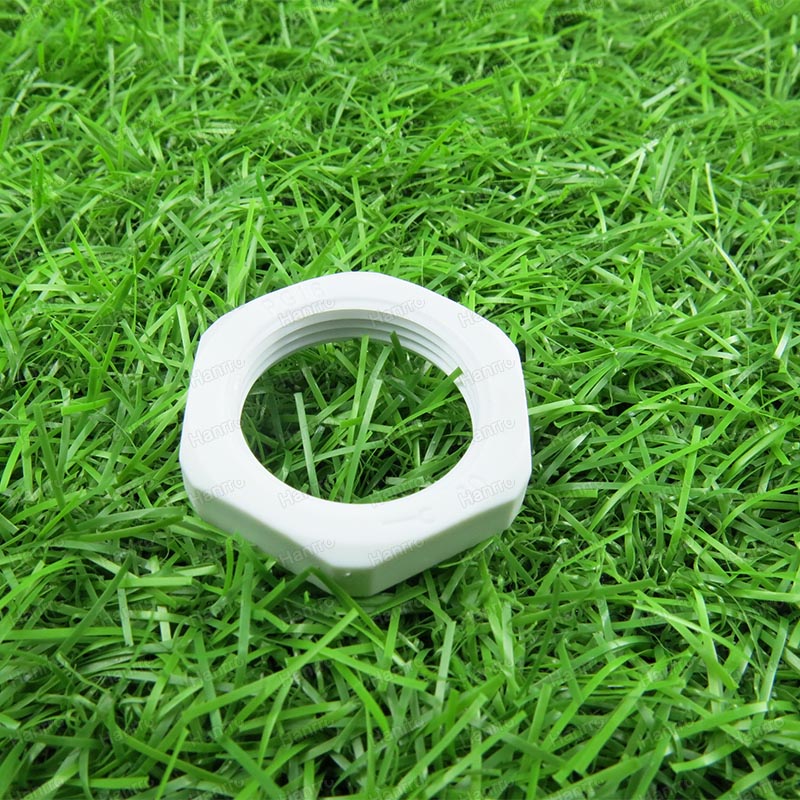

PG Thread Cable Glands are easy to use and provide a good strain relief and water tight seal for round cables. The Cable Glands are rated up to IP 68-5 Bar (comparable to NEMA 6P) and feature a wide clamping range. A Locking Nut is supplied on all PG threaded parts. Colours offered are Black, Gray, Red, White and Blue.
Product Name : PG Thread Cable Glands with Standard Length
Material of Body : Halogen Free Nylon 6
Material of Sealing : Neoprene( EPDM can be done as customer requirement )
Color : Grey ( RAL7035) , Black ( RAL9005 ) , White , Red , Blue Etc
Operating Temperature : From -20℃ to + 80℃
Flammabilty : UL94V-2 (UL94V-0 can be done by Customers Special Requirement)
Protection Grade : IP68
Certification : CE
Testing Report : IP68 Testing Report, ROHS , REACH , PAHS , Etc
Package : 100 Pcs / Polybag
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

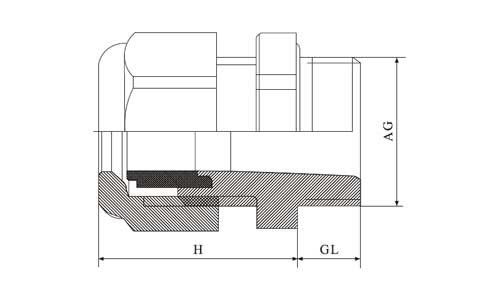

| Item No. | Cable Range(mm) | GL(mm) | H(mm) | Spanner Size(mm) | AG(mm) |
| PG7 | 3–6.5 | 8 | 22 | 16 | 12.5 |
| PG7 | 2–5 | 8 | 22 | 16 | 12.5 |
| PG9 | 4–8 | 8 | 26 | 19 | 15.2 |
| PG9 | 2–6 | 8 | 26 | 19 | 15.2 |
| PG11 | 5–10 | 8 | 27 | 22 | 18.6 |
| PG11 | 3–7 | 8 | 27 | 22 | 18.6 |
| PG13.5 | 6–12 | 9 | 28 | 24 | 20.4 |
| PG13.5 | 5–9 | 9 | 28 | 24 | 20.4 |
| PG16 | 10–14 | 10 | 30 | 27 | 22.5 |
| PG16 | 7–12 | 10 | 30 | 27 | 22.5 |
| PG21 | 13–18 | 10 | 35 | 33 | 28.3 |
| PG21 | 9–16 | 10 | 35 | 33 | 28.3 |
| PG29 | 18–25 | 12 | 40 | 41/42 | 37 |
| PG29 | 13–20 | 12 | 40 | 41/42 | 37 |
| PG36 | 22–32 | 14 | 48 | 52/53 | 47 |
| PG36 | 20–26 | 14 | 48 | 52/53 | 47 |
| PG42 | 32–38 | 14 | 49 | 60/61 | 54 |
| PG42 | 25–31 | 14 | 49 | 60/61 | 54 |
| PG48 | 37–44 | 14 | 50 | 64/65 | 59.3 |
| PG48 | 29–35 | 14 | 50 | 64/65 | 59.3 |
