Nylon Spade Terminals provide higher temperature and better durability than vinyl. For the maximum protection and environmental exposure, use heat shrink spade terminals. Spade terminals come in either standard, flanged, or locking spades. Both flanged and locking spades are designed to hold themselves to the mounting stud better than the standard spades.
Feature :
Butted seam-construction prevents splitting under maximum pressure
Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
Tin-plated brass construction for corrosion resistance
Shouldered barrel insulation quickly positions terminal for proper crimping
Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
Color-coded insulation and wire range stamped on terminal for easy identification
Product Name : Nylon Insulated Spade Terminals-Single Crimp
Material of Body : Copper , Tin Plated
Material of Insulation : Nylon

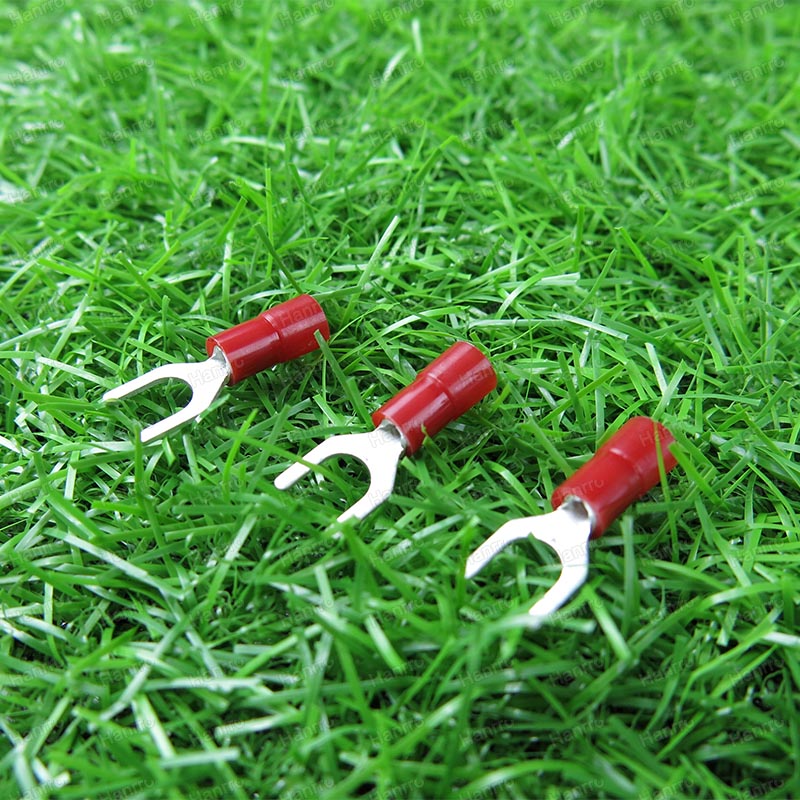

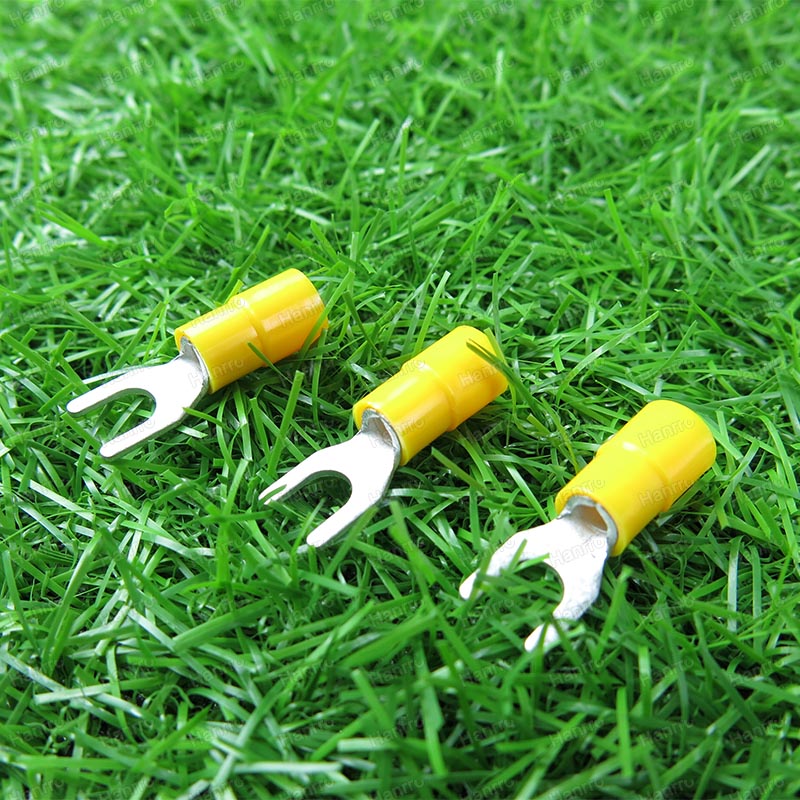

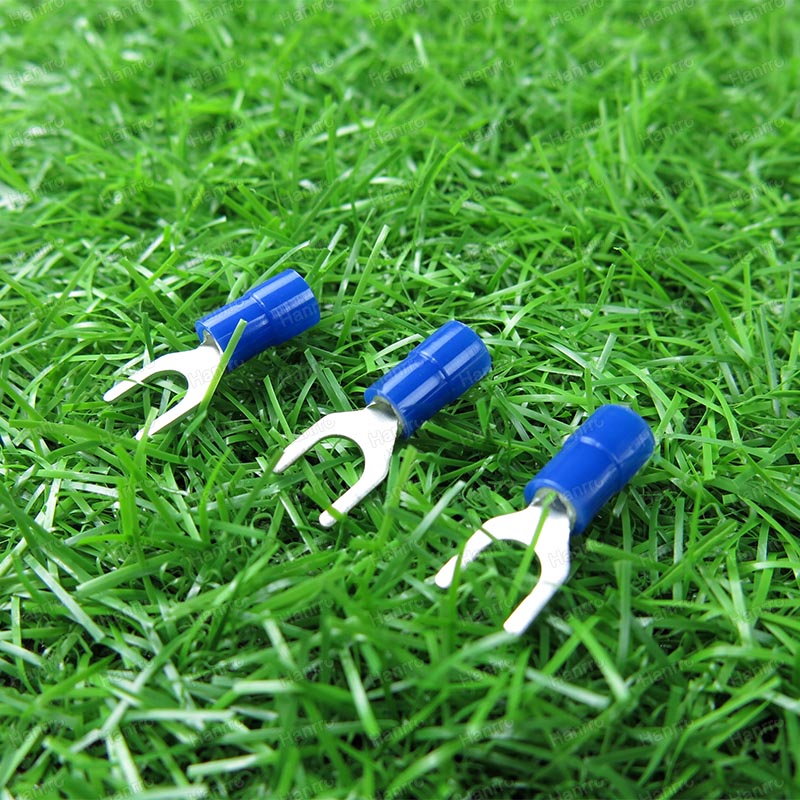

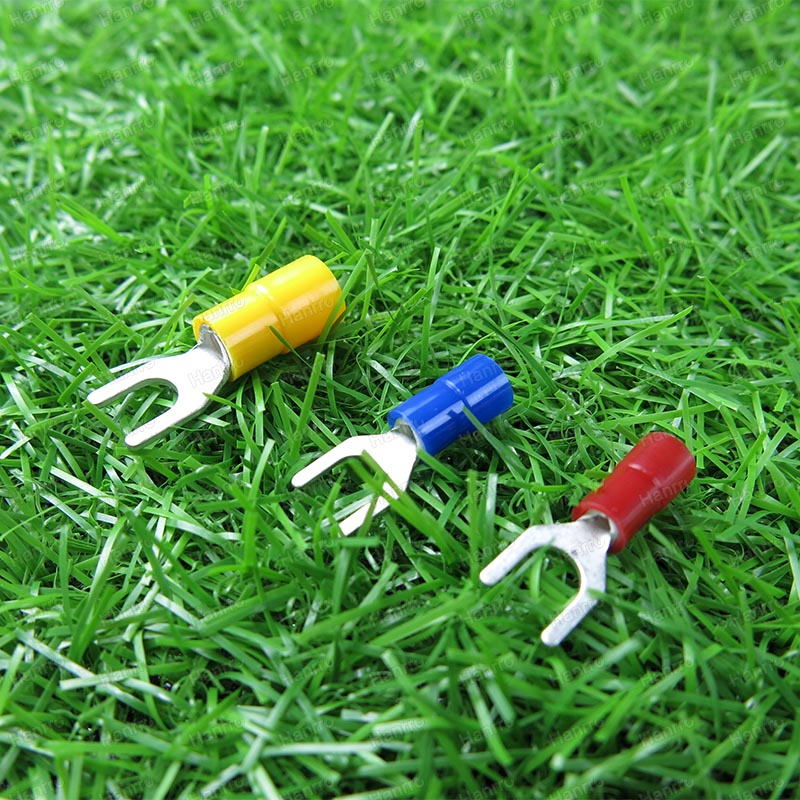

Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

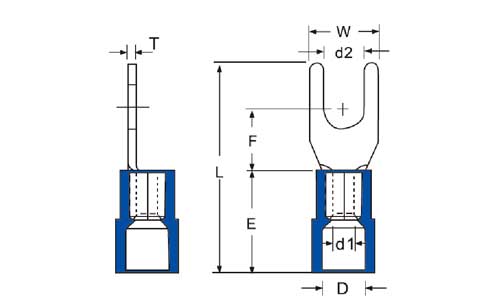

| Item No | Wire Size(mm2) | AWG | d2 | W | F | L | E | D | d1 | T | Color | ||||
| mm | USA | ||||||||||||||
| SNY 1.25-3 | 0.5-1.5 | 22-16 | 3.2 | #4 | 5.7 | 6.5 | 22.8 | 11.7 | 4.2 | 1.7 | 0.75 | ||||
| SNY 1.25-3.5S | 3.7 | #6 | 5.7 | 6.5 | 22.8 | ||||||||||
| SNY 1.25-3.5L | 3.7 | #6 | 6.4 | 6.5 | 22.8 | ||||||||||
| SNY 1.25-4S | 4.3 | #8 | 6.4 | 6.5 | 22.8 | ||||||||||
| SNY 1.25-4M | 4.3 | #8 | 7.2 | 6.5 | 22.8 | ||||||||||
| SNY 1.25-4L | 4.3 | #8 | 8.1 | 6.5 | 22.8 | ||||||||||
| SNY 1.25-5S | 5.3 | #10 | 8.1 | 6.5 | 22.8 | ||||||||||
| SNY 1.25-5L | 5.3 | #10 | 9.5 | 6.5 | 22.8 | ||||||||||
| SNY 1.25-6S | 6.4 | 1/4" | 9.5 | 6.5 | 22.8 | ||||||||||
| SNY 1.25-6L | 6.4 | 1/4" | 12.0 | 11.0 | 29.0 | ||||||||||
| SNY 2-3 | 1.5-2.5 | 16-14 | 3.2 | #4 | 5.7 | 6.5 | 22.7 | 11.7 | 4.9 | 2.3 | 0.8 | ||||
| SNY 2-3.5S | 3.7 | #6 | 5.7 | 6.5 | 22.7 | ||||||||||
| SNY 2-3.5L | 3.7 | #6 | 6.2 | 6.5 | 22.7 | ||||||||||
| SNY 2-4S | 4.3 | #8 | 6.4 | 6.5 | 22.7 | ||||||||||
| SNY 2-4M | 4.3 | #8 | 7.2 | 6.5 | 22.7 | ||||||||||
| SNY 2-4L | 4.3 | #8 | 8.1 | 6.5 | 22.7 | ||||||||||
| SNY 2-5S | 5.3 | #10 | 8.1 | 6.5 | 22.7 | ||||||||||
| SNY 2-5L | 5.3 | #10 | 9.5 | 6.5 | 22.7 | ||||||||||
| SNY 2-6S | 6.4 | 1/4" | 9.5 | 6.5 | 22.7 | ||||||||||
| SNY 2-6L | 6.4 | 1/4" | 12.0 | 11.0 | 22.7 | ||||||||||
| SNY 5.5-3.5 | 4.0-6.0 | 12-10 | 3.7 | #6 | 7.2 | 7.5 | 24.8 | 14.0 | 6.5 | 3.4 | 1.0 | ||||
| SNY 5.5-4S | 4.3 | #8 | 8.3 | 7.5 | 26.0 | ||||||||||
| SNY 5.5-4L | 4.3 | #8 | 9.0 | 7.5 | 26.0 | ||||||||||
| SNY 5.5-5 | 5.3 | #10 | 9.0 | 7.5 | 26.0 | ||||||||||
| SNY 5.5-6S | 6.4 | 1/4" | 9.0 | 7.5 | 26.0 | ||||||||||
| SNY 5.5-6L | 6.4 | 1/4" | 12.0 | 12.0 | 32.0 | ||||||||||
| SNY 5.5-8 | 8.4 | 5/16" | 14.0 | 11.5 | 30.8 | ||||||||||
