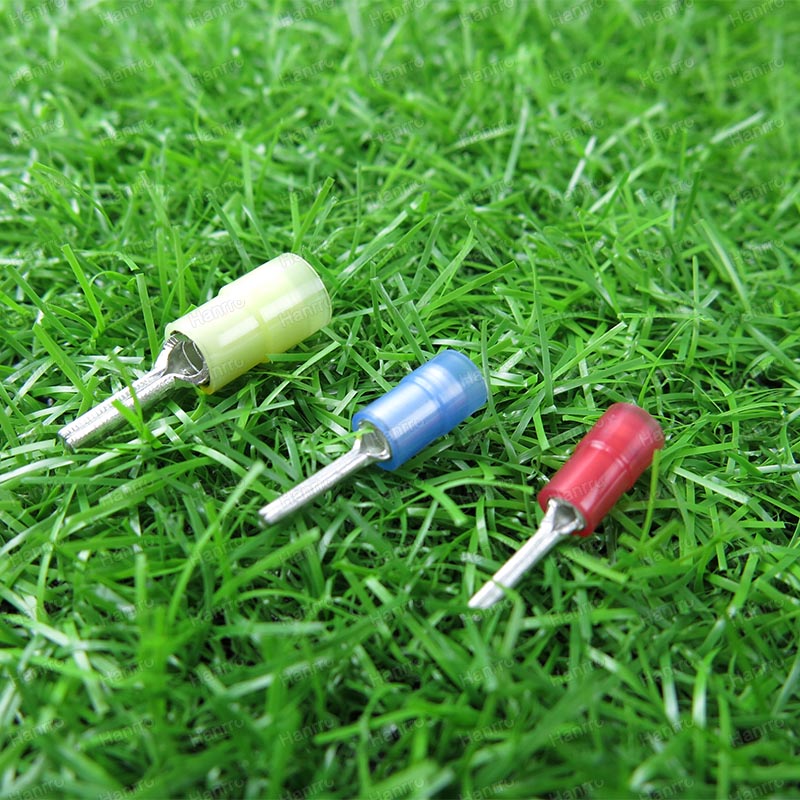

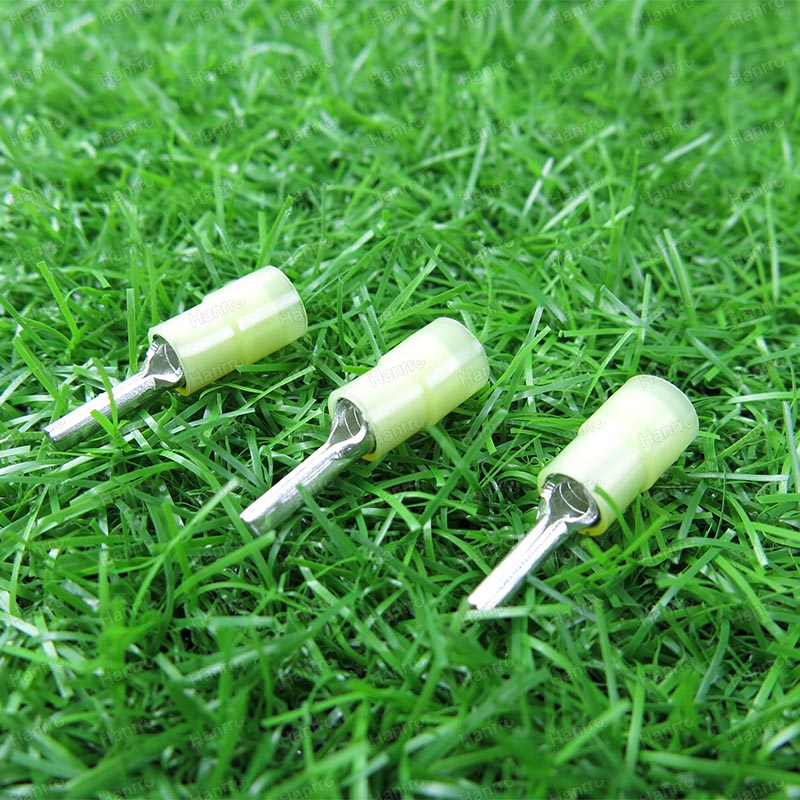

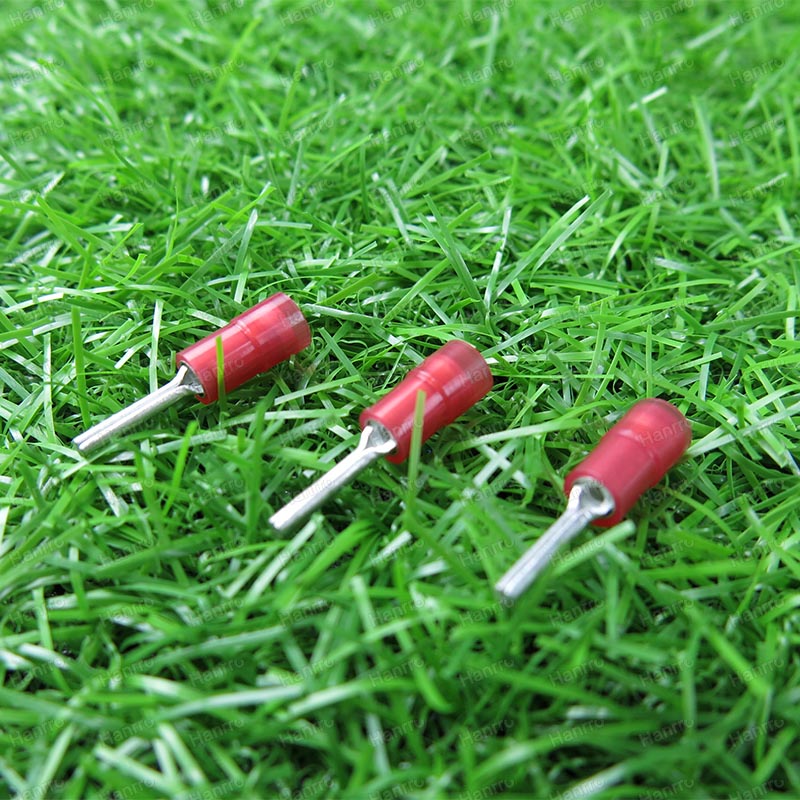

Product Name : Nylon Insulated Pin Terminals-Double Crimp
Material of Body : Copper , Tin Plated
Material of Sleeve : Copper , Tin Plated
Material of Insulation : Nylon
Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

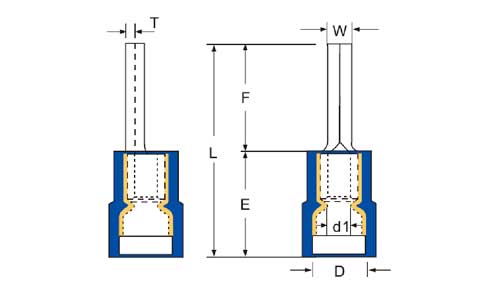

| Item No | Wire Size(mm2) | AWG | W | F | L | E | D | d1 | T | Color | |||
| PTNYD 1.25-10 | 0.5-1.5 | 22-16 | 1.9 | 10.0 | 21.7 | 11.7 | 4.7 | 1.7 | 0.75 | ||||
| PTNYD 1.25-12 | 1.9 | 12.0 | 23.7 | ||||||||||
| PTNYD 1.25-13 | 1.9 | 13.0 | 24.7 | ||||||||||
| PTNYD 1.25-18 | 1.9 | 18.0 | 29.7 | ||||||||||
| PTNYD 2-10 | 1.5-2.5 | 16-14 | 1.9 | 10.0 | 21.7 | 11.7 | 5.6 | 2.3 | 0.8 | ||||
| PTNYD 2-12 | 1.9 | 12.0 | 23.7 | ||||||||||
| PTNYD 2-13 | 1.9 | 13.0 | 24.7 | ||||||||||
| PTNYD 2-18 | 1.9 | 18.0 | 29.7 | ||||||||||
| PTNYD 5.5-13 | 4.0-6.0 | 12-10 | 2.8 | 13.0 | 27.0 | 14.0 | 7.1 | 3.4 | 1.0 | ||||
