Nylon Insulated Female Push On Terminals are flat male terminals with a blade type connector that mates with male to connect or quick disconnect a wired connection. To create a wire connection, simply install the wire to a male and female terminal, put them together and push on them to create the secured connection. Each Terminals carries different characteristics to ensure the best connection for your automotive, motorcycle, and marine application

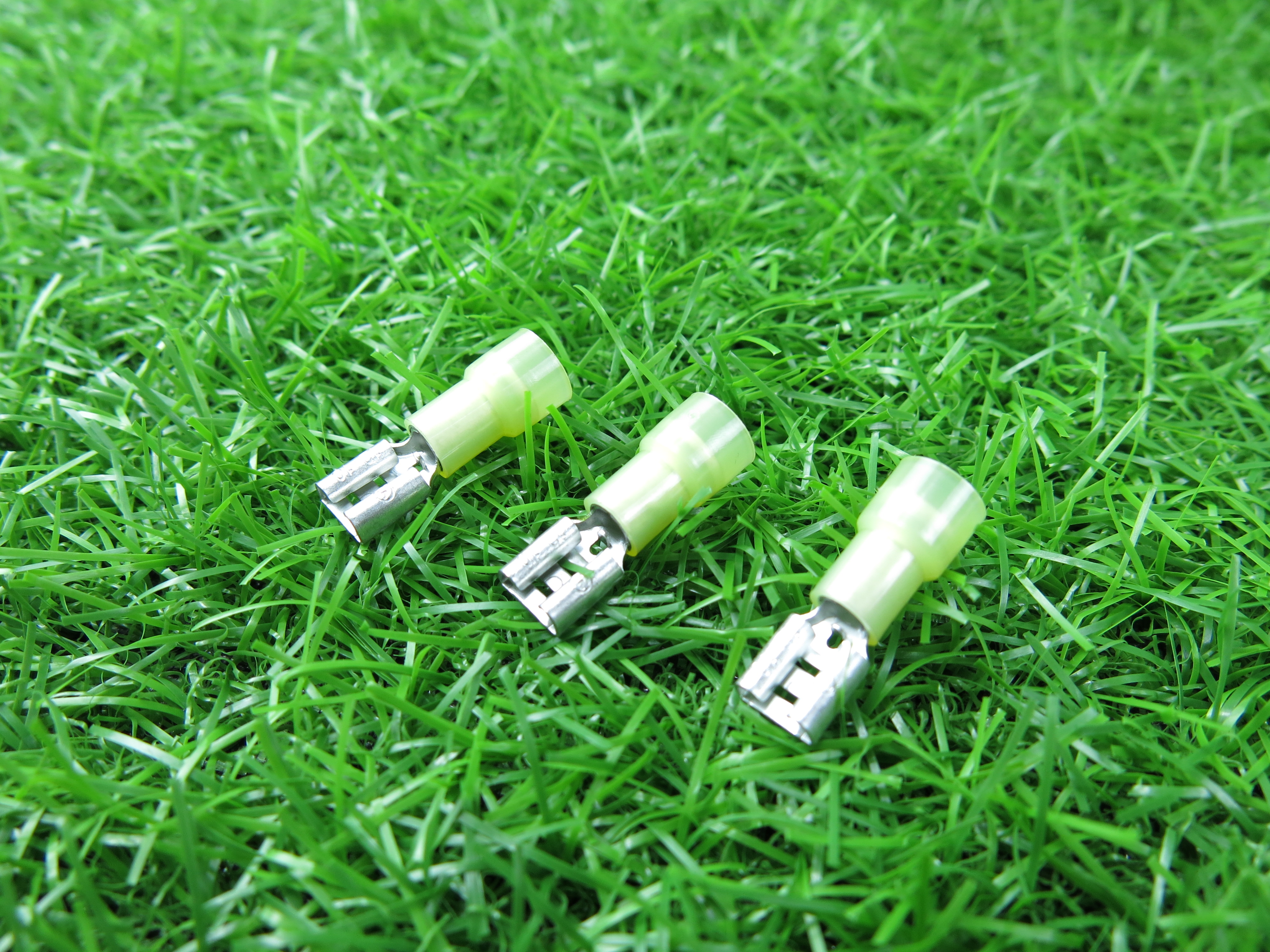

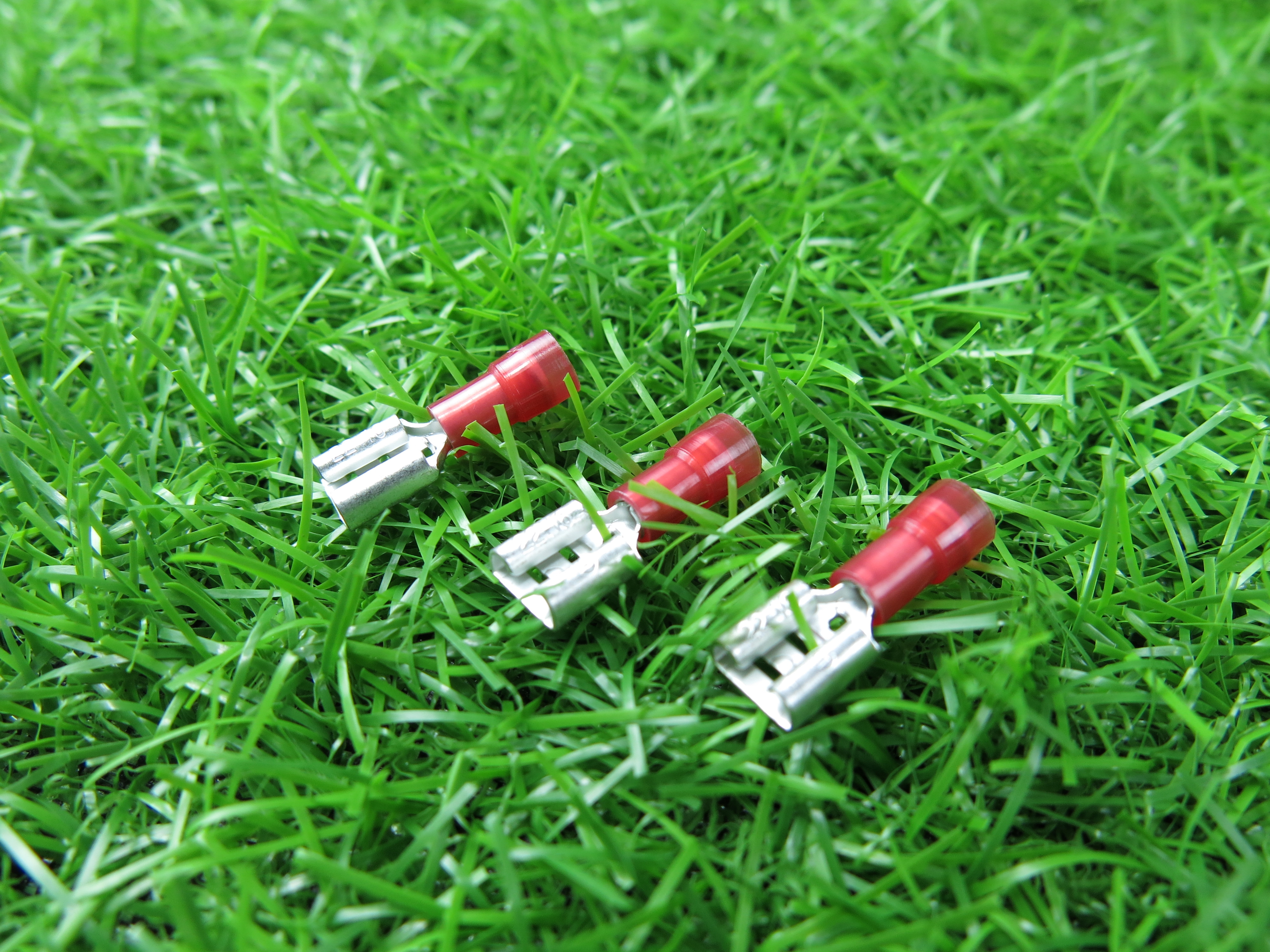

Product Name : Nylon Insulated Female Push On Terminals-Double Crimp
Material of Body : Brass , Tin Plated
Material of Sleeve : Copper , Tin Plated
Material of Insulation : Nylon
Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Wire Size(mm2) | AWG | NEMA TAB | W | F | L | B | D | d1 | T | Color | ||
| FDNYD1-110(5) | 0.5-1.5 | 22-16 | 0.5 x 2.8 | 3.2 | 6.5 | 19.6 | 11.0 | 4.0 | 1.7 | 0.3 | |||
| FDNYD1-110(8) | 0.8 x 2.8 | 3.2 | 6.5 | 19.6 | 0.3 | ||||||||
| FDNYD1-187(5) | 0.5 x 4.75 | 5.0 | 6.4 | 20.0 | 0.35 | ||||||||
| FDNYD1-187(8) | 0.8 x 4.75 | 5.0 | 6.4 | 20.0 | 0.35 | ||||||||
| FDNYD1-205(5) | 0.5 x 5.2 | 5.7 | 5.8 | 19.5 | 0.35 | ||||||||
| FDNYD1-205(8) | 0.8 x 5.2 | 5.7 | 5.8 | 19.5 | 0.35 | ||||||||
| FDNYD1-250 | 0.8 x 6.35 | 6.6 | 7.5 | 21.5 | 0.4 | ||||||||
| FDNYD1-312 | 0.8 x 8.0 | 8.2 | 10.0 | 25.2 | 0.4 | ||||||||
| FDNYD2-110(5) | 1.5-2.5 | 16-14 | 0.5 x 2.8 | 3.2 | 6.4 | 19.6 | 11.0 | 5.0 | 2.3 | 0.3 | |||
| FDNYD2-110(8) | 0.8 x 2.8 | 3.2 | 6.4 | 19.6 | 0.3 | ||||||||
| FDNYD2-187(5) | 0.5 x 4.75 | 5.0 | 6.5 | 20.0 | 0.35 | ||||||||
| FDNYD2-187(8) | 0.8 x 4.75 | 5.0 | 6.5 | 20.0 | 0.35 | ||||||||
| FDNYD2-205(5) | 0.5 x 5.2 | 5.7 | 5.8 | 19.5 | 0.35 | ||||||||
| FDNYD2-205(8) | 0.8 x 5.2 | 5.7 | 5.8 | 19.5 | 0.35 | ||||||||
| FDNYD2-250 | 0.8 x 6.35 | 6.6 | 7.5 | 21.5 | 0.4 | ||||||||
| FDNYD2-312 | 0.8 x 8.0 | 8.2 | 10.0 | 25.2 | 0.4 | ||||||||
| FDNYD2-375 | 1.2 x 9.4 | 10.0 | 12.0 | 26.5 | 0.5 | ||||||||
| FDNYD5-110(5) | 4.0-6.0 | 12-10 | 0.5 x 2.8 | 3.2 | 6.5 | 22.0 | 13.0 | 6.5 | 3.4 | 0.35 | |||
| FDNYD5-110(8) | 0.8 x 2.8 | 3.2 | 6.5 | 22.0 | 0.35 | ||||||||
| FDNYD5-187(5) | 0.5 x 4.75 | 5.0 | 6.5 | 22.0 | 0.35 | ||||||||
| FDNYD5-187(8) | 0.8 x 4.75 | 5.0 | 6.5 | 22.0 | 0.35 | ||||||||
| FDNYD5-250 | 0.8 x 6.35 | 6.6 | 7.5 | 23.5 | 0.35 | ||||||||
| FDNYD5-375 | 1.2 x 9.4 | 10.0 | 12.0 | 28.5 | 0.5 | ||||||||
