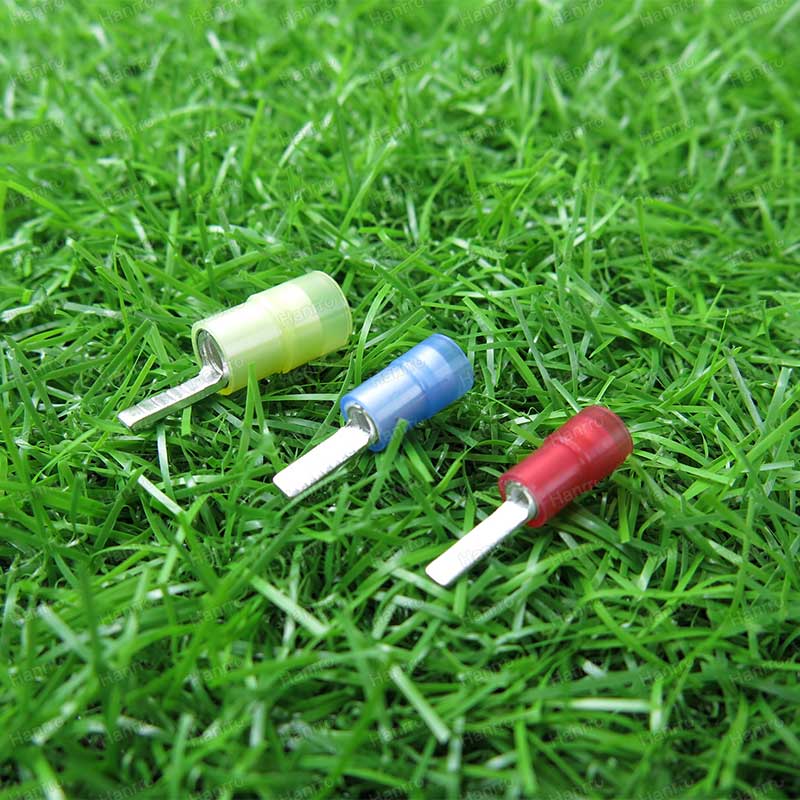

Product Name : Nylon Insulated Blade Terminals-Double Crimp
Material of Body : Copper , Tin Plated
Material of Sleeve : Copper , Tin Plated
Material of Insulation : Nylon

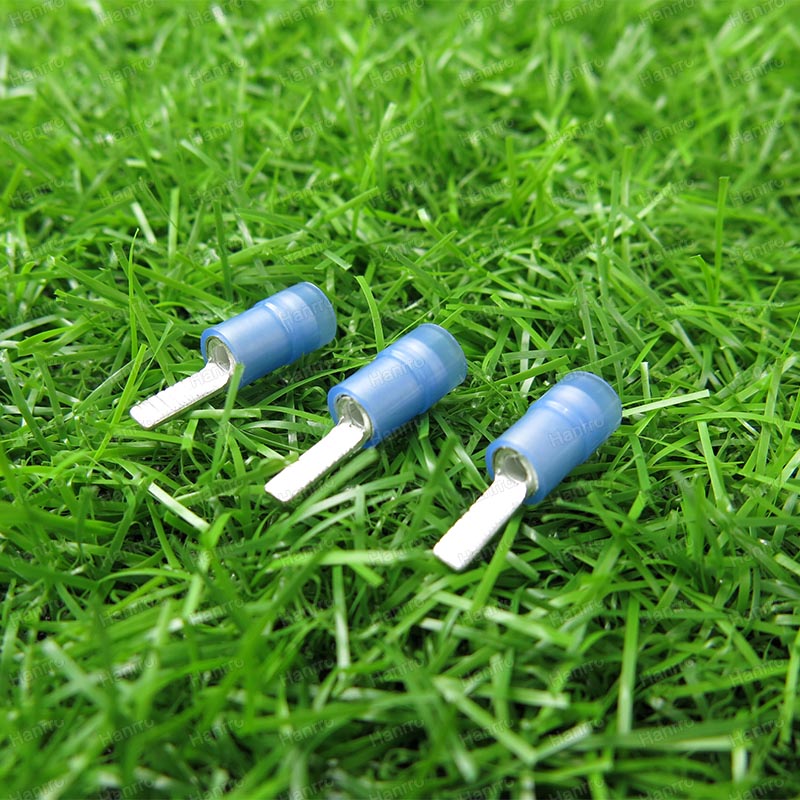

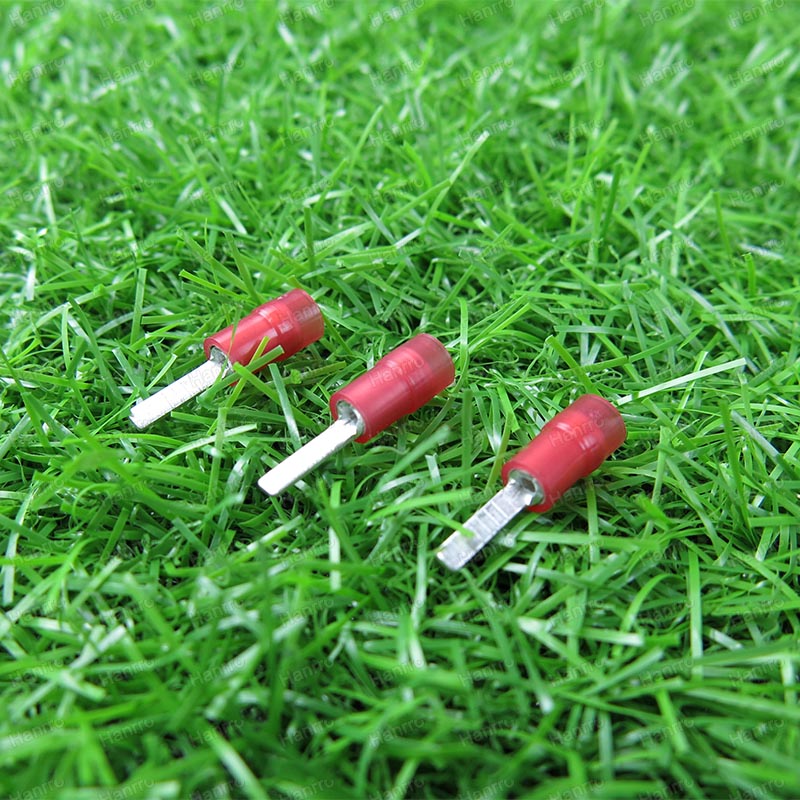

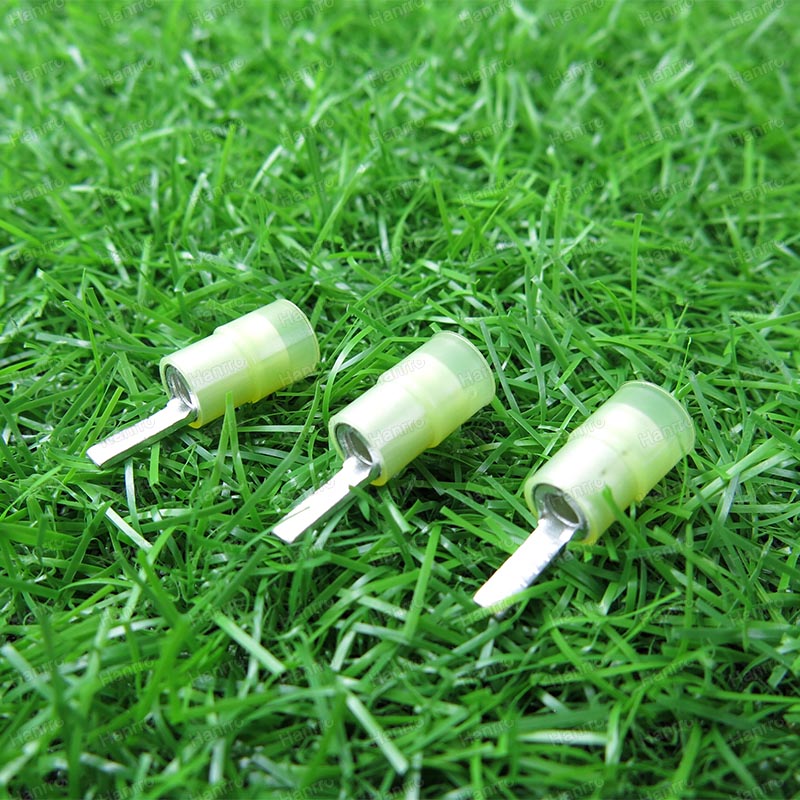

Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

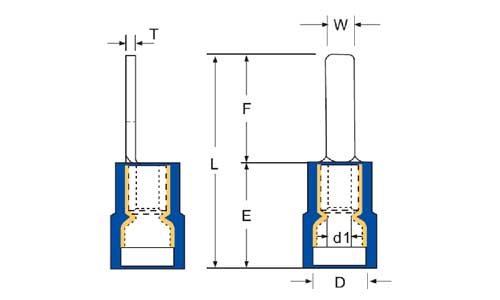

| Item No | Wire Size(mm2) | AWG | W | F | L | E | D | d1 | T | Color | |||
| DBNYD 1.25-10 | 0.5-1.5 | 22-16 | 2.3 | 10.0 | 21.7 | 11.7 | 4.7 | 1.7 | 0.75 | ||||
| DBNYD 1.25-14 | 2.3 | 14.0 | 25.7 | ||||||||||
| DBNYD 1.25-18 | 2.2 | 18.0 | 29.7 | ||||||||||
| DBNYD 2-10 | 1.5-2.5 | 16-14 | 2.8 | 10.0 | 21.7 | 11.7 | 5.6 | 2.3 | 0.8 | ||||
| DBNYD 2-14 | 2.4 | 14.0 | 25.7 | ||||||||||
| DBNYD 2-18 | 2.2 | 18.0 | 29.7 | ||||||||||
| DBNYD 5.5-10 | 4.0-6.0 | 12-10 | 2.8 | 10.0 | 24.0 | 14.0 | 7.1 | 3.4 | 1.0 | ||||
| DBNYD 5.5-14 | 4.5 | 14.0 | 28.0 | ||||||||||
| DBNYD 5.5-18 | 4.5 | 18.0 | 32.0 | ||||||||||
