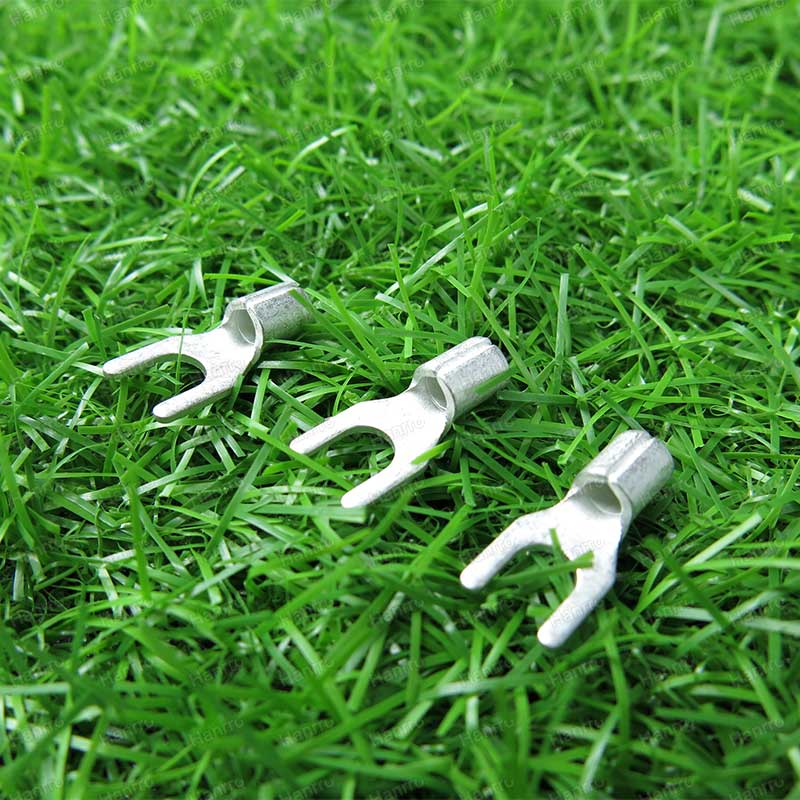

Non Insulated Spade Terminals are made from 99.9% pure copper that has been tin plated to help resist corrosion and it also makes them easy to solder. Rated for temperatures as high as 221°F (105°C) and voltages up to 600 volts. These ring terminals feature a butted seam that can be crimped with any standard low-cost crimping tool. Wire entry is tapered to make wire insertion easier. Available in ring sizes from #6 all the way up to 1/2 inch.
Feature :
Butted seam-construction prevents splitting under maximum pressure
Internal barrel serrations grip wires tightly to resist pull-out and reduce electrical resistance
Tin-plated brass construction for corrosion resistance
Shouldered barrel insulation quickly positions terminal for proper crimping
Expanded insulation entry accommodates a wide variety of insulation diameters and provides additional insulation support
Product Name : Non Insulated Spade Terminals
Material of Body : Copper , Tin Plated
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

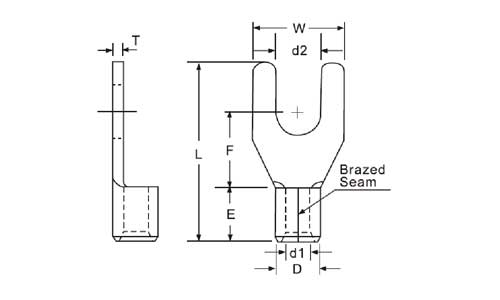

| Item No | Wire Size(mm2) | AWG | d2 | W | F | L | E | D | d1 | T | ||||
| mm | USA | |||||||||||||
| SNB 1.25-3 | 0.5-1.5 | 22-16 | 3.2 | #4 | 5.7 | 6.5 | 16.0 | 4.8 | 3.4 | 1.7 | 0.75 | |||
| SNB 1.25-3.5S | 3.7 | #6 | 5.7 | 6.5 | 16.0 | |||||||||
| SNB 1.25-3.5L | 3.7 | #6 | 6.4 | 6.5 | 16.0 | |||||||||
| SNB 1.25-4S | 4.3 | #8 | 6.4 | 6.5 | 16.0 | |||||||||
| SNB 1.25-4M | 4.3 | #8 | 7.2 | 6.5 | 16.0 | |||||||||
| SNB 1.25-4L | 4.3 | #8 | 8.1 | 6.5 | 16.0 | |||||||||
| SNB 1.25-5S | 5.3 | #10 | 8.1 | 6.5 | 16.0 | |||||||||
| SNB 1.25-5L | 5.3 | #10 | 9.5 | 6.5 | 16.0 | |||||||||
| SNB 1.25-6S | 6.4 | 1/4" | 9.5 | 6.5 | 16.0 | |||||||||
| SNB 1.25-6L | 6.4 | 1/4" | 12.0 | 11.0 | 22.0 | |||||||||
| SNB 2-3 | 1.5-2.5 | 16-14 | 3.2 | #4 | 5.7 | 6.5 | 16.0 | 4.8 | 4.1 | 2.3 | 0.8 | |||
| SNB 2-3.5S | 3.7 | #6 | 5.7 | 6.5 | 16.0 | |||||||||
| SNB 2-3.5L | 3.7 | #6 | 6.2 | 6.5 | 16.0 | |||||||||
| SNB 2-4S | 4.3 | #8 | 6.4 | 6.5 | 16.0 | |||||||||
| SNB 2-4M | 4.3 | #8 | 7.2 | 6.5 | 16.0 | |||||||||
| SNB 2-4L | 4.3 | #8 | 8.1 | 6.5 | 16.0 | |||||||||
| SNB 2-5S | 5.3 | #10 | 8.1 | 6.5 | 16.0 | |||||||||
| SNB 2-5L | 5.3 | #10 | 9.5 | 6.5 | 16.0 | |||||||||
| SNB 2-6S | 6.4 | 1/4" | 9.5 | 6.5 | 16.0 | |||||||||
| SNB 2-6L | 6.4 | 1/4" | 12.0 | 11.0 | 22.0 | |||||||||
| SNB 3.5-3 | 2.5-4.0 | 14-12 | 3.2 | #4 | 5.7 | 7.0 | 18.3 | 6.0 | 5.0 | 3.0 | 1.0 | |||
| SNB 3.5-4S | 4.3 | #8 | 7.2 | 7.0 | 18.3 | |||||||||
| SNB 3.5-4 | 4.3 | #8 | 8.0 | 7.0 | 18.3 | |||||||||
| SNB 3.5-5 | 5.3 | #10 | 8.0 | 7.0 | 18.3 | |||||||||
| SNB 3.5-6 | 6.4 | 1/4" | 12.0 | 12.1 | 21.5 | |||||||||
| SNB 5.5-3.5 | 4.0-6.0 | 12-10 | 3.7 | #6 | 7.2 | 7.5 | 18.2 | 6.8 | 5.6 | 3.4 | 1.0 | |||
| SNB 5.5-4S | 4.3 | #8 | 8.3 | 7.5 | 19.5 | |||||||||
| SNB 5.5-4L | 4.3 | #8 | 9.0 | 7.5 | 19.5 | |||||||||
| SNB 5.5-5 | 5.3 | #10 | 9.0 | 7.5 | 19.5 | |||||||||
| SNB 5.5-6S | 6.4 | 1/4" | 9.0 | 7.5 | 19.5 | |||||||||
| SNB 5.5-6L | 6.4 | 1/4" | 12.0 | 12.0 | 25.5 | |||||||||
| SNB 5.5-8 | 8.4 | 5/16" | 14.0 | 11.5 | 24.5 | |||||||||
| SNB 8-4 | 6.0-10 | 10-8 | 4.3 | #8 | 8.7 | 6.0 | 23.0 | 8.5 | 7.2 | 4.5 | 1.2 | |||
| SNB 8-5 | 5.3 | #10 | 11.0 | 5.7 | 23.5 | |||||||||
| SNB 8-6 | 6.4 | 1/4" | 12.0 | 5.7 | 24.0 | |||||||||
| SNB 8-8 | 8.4 | 5/16" | 14.5 | 8.3 | 28.0 | |||||||||
