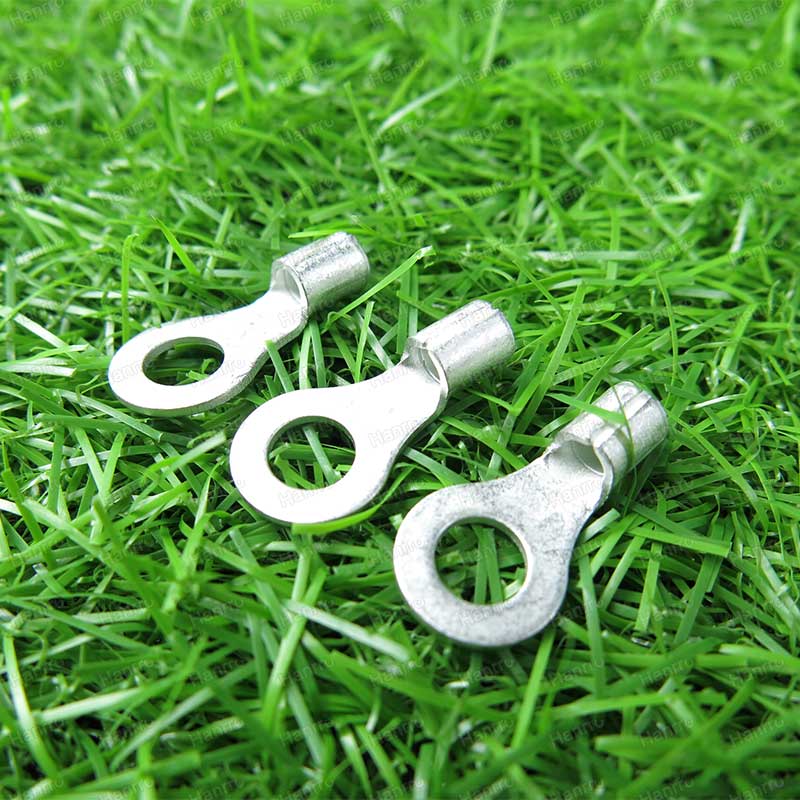

Non Insulated Ring Terminals are made from 99.9% pure copper that has been tin plated to help resist corrosion and it also makes them easy to solder. Rated for temperatures as high as 221°F (105°C) and voltages up to 600 volts. These ring terminals feature a butted seam that can be crimped with any standard low-cost crimping tool. Wire entry is tapered to make wire insertion easier. Available in ring sizes from #6 all the way up to 1/2 inch. Manufactured in the China
Product Name : Non Insulated Ring Terminals
Material of Body : Copper , Tin Plated
Testing Report : ROHS
Certification : UL , CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

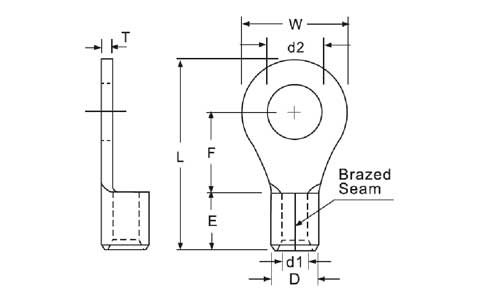

| Item No | Wire Size(mm2) | AWG | d2 | W | F | L | E | D | d1 | T | ||||
| mm | USA | |||||||||||||
| RNB 1.25-3 | 0.5-1.5 | 22-16 | 3.2 | #4 | 5.7 | 4.9 | 12.6 | 4.8 | 3.4 | 1.7 | 0.75 | |||
| RNB 1.25-3.5S | 3.7 | #6 | 5.7 | 4.9 | 12.6 | |||||||||
| RNB 1.25-3.5M | 3.7 | #6 | 6.6 | 6.3 | 14.4 | |||||||||
| RNB 1.25-3.5L | 3.7 | #6 | 8.0 | 7.0 | 15.8 | |||||||||
| RNB 1.25-4S | 4.3 | #8 | 6.6 | 6.3 | 14.4 | |||||||||
| RNB 1.25-4L | 4.3 | #8 | 8.0 | 7.0 | 15.8 | |||||||||
| RNB 1.25-5S | 5.3 | #10 | 8.0 | 7.0 | 15.8 | |||||||||
| RNB 1.25-5L | 5.3 | #10 | 9.8 | 8.5 | 18.0 | |||||||||
| RNB 1.25-6S | 6.4 | 1/4" | 9.8 | 8.5 | 18.0 | |||||||||
| RNB 1.25-6L | 6.4 | 1/4" | 11.6 | 11.1 | 21.8 | |||||||||
| RNB 1.25-8 | 8.4 | 5/16" | 11.6 | 11.1 | 21.8 | |||||||||
| RNB 1.25-10 | 10.5 | 3/8" | 13.6 | 13.9 | 25.5 | |||||||||
| RNB 1.25-12 | 13.0 | 1/2" | 19.2 | 16.5 | 30.5 | |||||||||
| RNB 1.25-14 | 15.0 | 9/16" | 27.0 | 21.0 | 39.3 | 0.8 | ||||||||
| RNB 1.25-16 | 17.0 | 5/8" | 27.0 | 21.0 | 39.3 | |||||||||
| RNB 1.25-20 | 21.0 | 3/4" | 27.0 | 21.0 | 39.3 | |||||||||
| RNB 2-3 | 1.5-2.5 | 16-14 | 3.2 | #4 | 6.6 | 4.3 | 12.3 | 4.8 | 4.1 | 2.3 | 0.8 | |||
| RNB 2-3.5S | 3.7 | #6 | 6.6 | 4.3 | 12.3 | |||||||||
| RNB 2-3.5M | 3.7 | #6 | 6.6 | 6.5 | 14.5 | |||||||||
| RNB 2-3.5L | 3.7 | #6 | 8.5 | 7.7 | 16.8 | |||||||||
| RNB 2-4S | 4.3 | #8 | 6.6 | 6.5 | 14.5 | |||||||||
| RNB 2-4L | 4.3 | #8 | 8.5 | 7.7 | 16.8 | |||||||||
| RNB 2-5S | 5.3 | #10 | 8.5 | 7.7 | 16.8 | |||||||||
| RNB 2-5L | 5.3 | #10 | 9.5 | 7.2 | 16.8 | |||||||||
| RNB 2-6S | 6.4 | 1/4" | 9.5 | 7.2 | 16.8 | |||||||||
| RNB 2-6L | 6.4 | 1/4" | 12.0 | 11.0 | 21.8 | |||||||||
| RNB 2-8 | 8.4 | 5/16" | 12.0 | 11.0 | 21.8 | |||||||||
| RNB 2-10 | 10.5 | 3/8" | 14.6 | 13.9 | 26.0 | |||||||||
| RNB 2-12 | 13.0 | 1/2" | 19.2 | 16.5 | 31.2 | |||||||||
| RNB 2-14 | 15.0 | 9/16" | 27.0 | 21.0 | 39.3 | |||||||||
| RNB 2-16 | 17.0 | 5/8" | 27.0 | 21.0 | 39.3 | |||||||||
| RNB 2-20 | 21.0 | 3/4" | 27.0 | 21.0 | 39.3 | |||||||||
| RNB 3.5-4 | 2.5-4.0 | 14-12 | 4.3 | #8 | 8.0 | 7.7 | 18.0 | 6.0 | 5.0 | 3.0 | 1.0 | |||
| RNB 3.5-5S | 5.3 | #10 | 8.0 | 7.7 | 18.0 | |||||||||
| RNB 3.5-5L | 5.3 | #10 | 12.0 | 7.7 | 21.4 | |||||||||
| RNB 3.5-6 | 6.4 | 1/4" | 12.0 | 7.7 | 21.4 | |||||||||
| RNB 3.5-8 | 8.4 | 5/16" | 15.0 | 14.0 | 27.5 | |||||||||
| RNB 3.5-10 | 10.5 | 3/8" | 15.0 | 14.0 | 27.5 | |||||||||
| RNB 5.5-3 | 4.0-6.0 | 12-10 | 3.2 | #4 | 7.2 | 5.9 | 16.2 | 6.8 | 5.6 | 3.4 | 1.0 | |||
| RNB 5.5-3.5 | 3.7 | #6 | 7.2 | 5.9 | 16.2 | |||||||||
| RNB 5.5-4S | 4.3 | #8 | 7.2 | 5.9 | 16.2 | |||||||||
| RNB 5.5-4L | 4.3 | #8 | 9.5 | 8.3 | 19.8 | |||||||||
| RNB 5.5-5 | 5.3 | #10 | 9.5 | 8.3 | 19.8 | |||||||||
| RNB 5.5-6 | 6.4 | 1/4" | 12.0 | 13.0 | 24.3 | |||||||||
| RNB 5.5-8 | 8.4 | 5/16" | 15.0 | 13.7 | 28.0 | |||||||||
| RNB 5.5-10 | 10.5 | 3/8" | 15.0 | 13.7 | 28.0 | |||||||||
| RNB 5.5-12 | 13.0 | 1/2" | 19.2 | 16.0 | 32.4 | |||||||||
| RNB 5.5-14 | 15.0 | 9/16" | 32.0 | 25.2 | 47.2 | |||||||||
| RNB 5.5-16 | 17.0 | 5/8" | 32.0 | 25.2 | 47.2 | |||||||||
| RNB 5.5-20 | 21.0 | 3/4" | 32.0 | 25.2 | 47.2 | |||||||||
| RNB 8-4 | 8 | 8 | 4.3 | #8 | 8.8 | 9.3 | 23.8 | 8.5 | 7.2 | 4.5 | 1.2 | |||
| RNB 8-4L | 4.3 | #8 | 12.0 | 9.3 | 23.8 | |||||||||
| RNB 8-5S | 5.3 | #10 | 8.8 | 9.3 | 23.8 | |||||||||
| RNB 8-5M | 5.3 | #10 | 12.0 | 9.3 | 23.8 | |||||||||
| RNB 8-5L | 5.3 | #10 | 15.0 | 13.8 | 29.8 | |||||||||
| RNB 8-6S | 6.4 | 1/4" | 12.0 | 9.3 | 23.8 | |||||||||
| RNB 8-6L | 6.4 | 1/4" | 15.0 | 13.8 | 29.8 | |||||||||
| RNB 8-8 | 8.4 | 5/16" | 15.0 | 13.8 | 29.8 | |||||||||
| RNB 8-10 | 10.5 | 3/8" | 15.0 | 13.8 | 29.8 | |||||||||
| RNB 8-12 | 13.0 | 1/2" | 22.0 | 15.0 | 39.5 | |||||||||
| RNB 14-4 | 14 | 6 | 4.3 | #8 | 12.0 | 13.3 | 29.8 | 10.5 | 9.0 | 5.8 | 1.5 | |||
| RNB 14-5 | 5.3 | #10 | 12.0 | 13.3 | 29.8 | |||||||||
| RNB 14-6S | 6.4 | 1/4" | 12.0 | 13.3 | 29.8 | |||||||||
| RNB 14-6L | 6.4 | 1/4" | 16.0 | 13.3 | 32.8 | |||||||||
| RNB 14-8 | 8.4 | 5/16" | 16.0 | 14.5 | 32.8 | |||||||||
| RNB 14-10 | 10.5 | 3/8" | 16.0 | 14.5 | 32.8 | |||||||||
| RNB 14-12 | 13.0 | 1/2" | 22.0 | 19.5 | 41.0 | |||||||||
| RNB 14-14 | 15.0 | 9/16" | 30.0 | 25.0 | 51.0 | |||||||||
| RNB 14-16 | 17.0 | 5/8" | 30.0 | 26.0 | 51.0 | |||||||||
| RNB 14-18 | 19.0 | 11/16" | 30.0 | 27.0 | 51.0 | |||||||||
| RNB 14-20 | 21.0 | 3/4" | 30.0 | 28.0 | 51.0 | |||||||||
| RNB 22-5S | 22 | 4 | 5.3 | #10 | 12.2 | 14.5 | 33.2 | 12.0 | 11.6 | 8.2 | 1.7 | |||
| RNB 22-5L | 5.3 | #10 | 16.5 | 13.5 | 33.7 | |||||||||
| RNB 22-6S | 6.4 | 1/4" | 12.2 | 14.5 | 33.2 | |||||||||
| RNB 22-6L | 6.4 | 1/4" | 16.5 | 13.5 | 33.7 | |||||||||
| RNB 22-8 | 8.4 | 5/16" | 16.5 | 13.5 | 33.7 | |||||||||
| RNB 22-10 | 10.5 | 3/8" | 16.5 | 13.5 | 33.7 | |||||||||
| RNB 22-12 | 13.0 | 1/2" | 22.0 | 19.5 | 42.5 | |||||||||
| RNB 22-14 | 15.0 | 9/16" | 30.0 | 24.0 | 51.0 | |||||||||
| RNB 22-16 | 17.0 | 5/8" | 30.0 | 25.0 | 51.0 | |||||||||
| RNB 22-18 | 19.0 | 11/16" | 30.0 | 26.0 | 51.0 | |||||||||
| RNB 22-20 | 21.0 | 3/4" | 30.0 | 27.0 | 51.0 | |||||||||
| RNB 38-5 | 38 | 2 | 5.3 | #10 | 15.3 | 18.3 | 39.0 | 14.0 | 13.3 | 9.4 | 1.8 | |||
| RNB 38-6 | 6.4 | 1/4" | 15.3 | 18.3 | 39.0 | |||||||||
| RNB 38-8S | 8.4 | 5/16" | 15.3 | 18.3 | 39.0 | |||||||||
| RNB 38-8L | 8.4 | 5/16" | 22.0 | 17.7 | 42.7 | |||||||||
| RNB 38-10S | 10.5 | 3/8" | 15.3 | 18.3 | 39.0 | |||||||||
| RNB 38-10L | 10.5 | 3/8" | 22.0 | 17.7 | 42.7 | |||||||||
| RNB 38-12 | 13.0 | 1/2" | 22.0 | 17.7 | 42.7 | |||||||||
| RNB 38-14 | 15.0 | 9/16" | 30.0 | 22.5 | 52.2 | |||||||||
| RNB 38-16 | 17.0 | 5/8" | 30.0 | 23.5 | 52.2 | |||||||||
| RNB 38-18 | 19.0 | 11/16" | 30.0 | 24.5 | 52.2 | |||||||||
| RNB 38-20 | 21.0 | 3/4" | 30.0 | 25.5 | 52.2 | |||||||||
| RNB 60-6 | 60 | 1/0 | 6.4 | 1/4" | 22.0 | 20.7 | 49.7 | 18.0 | 15.4 | 12.0 | 1.8 | |||
| RNB 60-8 | 8.4 | 5/16" | 22.0 | 20.7 | 49.7 | |||||||||
| RNB 60-10 | 10.5 | 3/8" | 22.0 | 20.7 | 49.7 | |||||||||
| RNB 60-12 | 13.0 | 1/2" | 22.0 | 20.7 | 49.7 | |||||||||
| RNB 60-14 | 15.0 | 9/16" | 32.0 | 23.5 | 57.5 | |||||||||
| RNB 60-16 | 17.0 | 5/8" | 32.0 | 23.5 | 57.5 | |||||||||
| RNB 60-18 | 19.0 | 11/16" | 32.0 | 23.5 | 57.5 | |||||||||
| RNB 60-20 | 21.0 | 3/4" | 32.0 | 23.5 | 57.5 | |||||||||
| RNB 60-22 | 23.0 | 7/8" | 32.0 | 23.5 | 57.5 | |||||||||
| RNB 70-6 | 70 | 2/0 | 6.4 | 1/4" | 24.0 | 20.0 | 51.0 | 19.0 | 17.5 | 13.5 | 2.0 | |||
| RNB 70-8 | 8.4 | 5/16" | 24.0 | 20.0 | 51.0 | |||||||||
| RNB 70-10 | 10.5 | 3/8" | 24.0 | 20.0 | 51.0 | |||||||||
| RNB 70-12 | 13.0 | 1/2" | 24.0 | 20.0 | 51.0 | |||||||||
| RNB 70-14 | 15.0 | 9/16" | 32.0 | 26.0 | 61.0 | |||||||||
| RNB 70-16 | 17.0 | 5/8" | 32.0 | 26.0 | 61.0 | |||||||||
| RNB 70-18 | 19.0 | 11/16" | 32.0 | 26.0 | 61.0 | |||||||||
| RNB 70-20 | 21.0 | 3/4" | 32.0 | 26.0 | 61.0 | |||||||||
| RNB 70-22 | 23.0 | 7/8" | 32.0 | 26.0 | 61.0 | |||||||||
| RNB80-6 | 80 | 3/0 | 6.4 | 1/4" | 27.0 | 20.7 | 54.2 | 20.0 | 19.5 | 14.5 | 2.3 | |||
| RNB80-8 | 8.4 | 5/16" | 27.0 | 20.7 | 54.2 | |||||||||
| RNB80-10 | 10.5 | 3/8" | 27.0 | 20.7 | 54.2 | |||||||||
| RNB80-12 | 13.0 | 1/2" | 27.0 | 20.7 | 54.2 | |||||||||
| RNB80-14 | 15.0 | 9/16" | 32.0 | 32.0 | 68.0 | |||||||||
| RNB80-16 | 17.0 | 5/8" | 32.0 | 32.0 | 68.0 | |||||||||
| RNB80-18 | 19.0 | 11/16" | 32.0 | 32.0 | 68.0 | |||||||||
| RNB80-20 | 21.0 | 3/4" | 32.0 | 32.0 | 68.0 | |||||||||
| RNB80-22 | 23.0 | 7/8" | 32.0 | 32.0 | 68.0 | |||||||||
| RNB100-6 | 100 | 4/0 | 6.4 | 1/4" | 28.5 | 20.4 | 55.6 | 21.0 | 22.5 | 17.0 | 2.7 | |||
| RNB100-8 | 8.4 | 5/16" | 28.5 | 20.4 | 55.6 | |||||||||
| RNB100-10 | 10.5 | 3/8" | 28.5 | 20.4 | 55.6 | |||||||||
| RNB100-12 | 13.0 | 1/2" | 28.5 | 20.4 | 55.6 | |||||||||
| RNB100-14 | 15.0 | 9/16" | 32.0 | 32.0 | 69.0 | |||||||||
| RNB100-16 | 17.0 | 5/8" | 32.0 | 32.0 | 69.0 | |||||||||
| RNB100-18 | 19.0 | 11/16" | 32.0 | 32.0 | 69.0 | |||||||||
| RNB100-20 | 21.0 | 3/4" | 32.0 | 32.0 | 69.0 | |||||||||
| RNB100-22 | 23.0 | 7/8" | 32.0 | 32.0 | 69.0 | |||||||||
| RNB150-8 | 150 | 250/300 | 8.4 | 5/16" | 36.5 | 23.0 | 66.0 | 27.0 | 26.6 | 19.5 | 3.2 | |||
| RNB150-10 | 10.5 | 3/8" | 36.5 | 23.0 | 66.0 | |||||||||
| RNB150-12 | 13.0 | 1/2" | 36.5 | 23.0 | 66.0 | |||||||||
| RNB150-14 | 15.0 | 9/16" | 36.5 | 23.0 | 66.0 | |||||||||
| RNB150-16 | 17.0 | 5/8" | 36.5 | 23.0 | 66.0 | |||||||||
| RNB150-18 | 19.0 | 11/16" | 36.0 | 36.0 | 81.0 | |||||||||
| RNB150-20 | 21.0 | 3/4" | 36.0 | 36.0 | 81.0 | |||||||||
| RNB150-22 | 23.0 | 7/8" | 36.0 | 36.0 | 81.0 | |||||||||
| RNB150-24 | 25.0 | 15/16" | 36.0 | 36.0 | 81.0 | |||||||||
| RNB150-27 | 28.0 | 1 | 36.0 | 36.0 | 81.0 | |||||||||
| RNB180-8 | 180 | 300/350 | 8.4 | 5/16" | 38.5 | 24.5 | 69.0 | 28.5 | 28.6 | 21.0 | 3.5 | |||
| RNB180-10 | 10.5 | 3/8" | 38.5 | 24.5 | 69.0 | |||||||||
| RNB180-12 | 13.0 | 1/2" | 38.5 | 24.5 | 69.0 | |||||||||
| RNB180-14 | 15.0 | 9/16" | 38.5 | 24.5 | 69.0 | |||||||||
| RNB180-16 | 17.0 | 5/8" | 38.5 | 24.5 | 69.0 | |||||||||
| RNB180-18 | 19.0 | 11/16" | 38.5 | 39.0 | 86.6 | |||||||||
| RNB180-20 | 21.0 | 3/4" | 38.5 | 39.0 | 86.6 | |||||||||
| RNB180-22 | 23.0 | 7/8" | 38.5 | 39.0 | 86.6 | |||||||||
| RNB180-24 | 25.0 | 15/16" | 38.5 | 39.0 | 86.6 | |||||||||
| RNB180-27 | 28.0 | 1 | 38.5 | 39.0 | 86.6 | |||||||||
| RNB200-8 | 200 | 400/500 | 8.4 | 5/16" | 44.0 | 24.5 | 78.0 | 31.5 | 32.6 | 24.0 | 4.0 | |||
| RNB200-10 | 10.5 | 3/8" | 44.0 | 24.5 | 78.0 | |||||||||
| RNB200-12 | 13.0 | 1/2" | 44.0 | 24.5 | 78.0 | |||||||||
| RNB200-14 | 15.0 | 9/16" | 44.0 | 24.5 | 78.0 | |||||||||
| RNB200-16 | 17.0 | 5/8" | 44.0 | 24.5 | 78.0 | |||||||||
| RNB200-18 | 19.0 | 11/16" | 44.0 | 37.5 | 91.0 | |||||||||
| RNB200-20 | 21.0 | 3/4" | 44.0 | 37.5 | 91.0 | |||||||||
| RNB200-22 | 23.0 | 7/8" | 44.0 | 37.5 | 91.0 | |||||||||
| RNB200-24 | 25.0 | 15/16" | 44.0 | 37.5 | 91.0 | |||||||||
| RNB200-27 | 28.0 | 1 | 44.0 | 37.5 | 91.0 | |||||||||
| RNB325-8 | 325 | 500/600 | 8.4 | 5/16" | 50.5 | 33.5 | 88.0 | 35.5 | 37.6 | 28.5 | 4.3 | |||
| RNB325-10 | 10.5 | 3/8" | 50.5 | 33.5 | 88.0 | |||||||||
| RNB325-12 | 13.0 | 1/2" | 50.5 | 33.5 | 88.0 | |||||||||
| RNB325-14 | 15.0 | 9/16" | 50.5 | 33.5 | 88.0 | |||||||||
| RNB325-16 | 17.0 | 5/8" | 50.5 | 33.5 | 88.0 | |||||||||
| RNB325-18 | 19.0 | 11/16" | 50.5 | 45.0 | 105.7 | |||||||||
| RNB325-20 | 21.0 | 3/4" | 50.5 | 45.0 | 105.7 | |||||||||
| RNB325-22 | 23.0 | 7/8" | 50.5 | 45.0 | 105.7 | |||||||||
| RNB325-24 | 25.0 | 15/16" | 50.5 | 45.0 | 105.7 | |||||||||
| RNB325-27 | 28.0 | 1 | 50.5 | 45.0 | 105.7 | |||||||||
