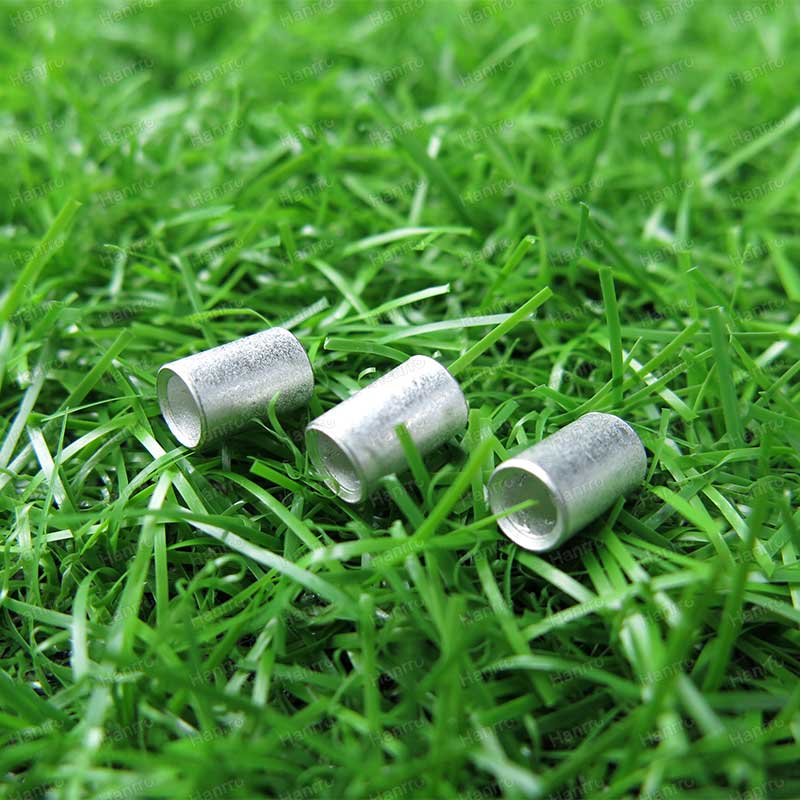

Non Insulated Parallel Splice Connectors plus the excellent chamfered entries, make wiring be reliable and easier. Seamless window butt splice from copper tubular with tin plated.
Product Name : Non Insulated Parallel Splice Connectors
Material of Body : Copper Tubular , Tin Plated
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

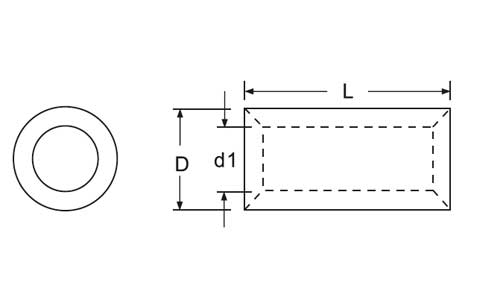

| Item No | Wire Size(mm2) | AWG | L | D | d1 | Thickness |
| PNT 0.5 | 0.2-0.5 | 26-22 | 5 | 2.1 | 1.3 | 0.4 |
| PNT 1 | 0.5-1.5 | 22-16 | 8 | 3.3 | 1.7 | 0.8 |
| PNT 2 | 1.5-2.5 | 16-14 | 8 | 3.9 | 2.3 | 0.8 |
| PNT 3 | 2.5-4.0 | 14-12 | 8.5 | 5 | 3 | 1 |
| PNT 5 | 4.0-6.0 | 12-10 | 8.5 | 5.4 | 3.4 | 1 |
| PNT 8 | 8 | 8 | 9.5 | 7 | 4.6 | 1.2 |
| PNT 14 | 14 | 6 | 11 | 8.9 | 5.9 | 1.5 |
| PNT 22 | 22 | 4 | 13.5 | 11.3 | 7.8 | 1.75 |
| PNT 38 | 38 | 2 | 16.5 | 13.2 | 9.5 | 1.85 |
| PNT 60 | 60 | 1/0 | 19 | 15.3 | 11.4 | 1.95 |
| PNT 70 | 70 | 2/0 | 19 | 17.5 | 13.3 | 2.1 |
| PNT 80 | 80 | 3/0 | 19.5 | 19.5 | 14.5 | 2.5 |
| PNT 100 | 100 | 4/0 | 20 | 22.1 | 16.4 | 2.85 |
| PNT 150 | 150 | 250/300 | 27 | 26.4 | 19.5 | 3.45 |
| PNT 180 | 180 | 300/350 | 28.5 | 28.5 | 21 | 3.75 |
| PNT 200 | 200 | 400/500 | 32 | 32.4 | 24 | 4.2 |
| PNT 325 | 325 | 500/600 | 37 | 37 | 28 | 4.5 |
