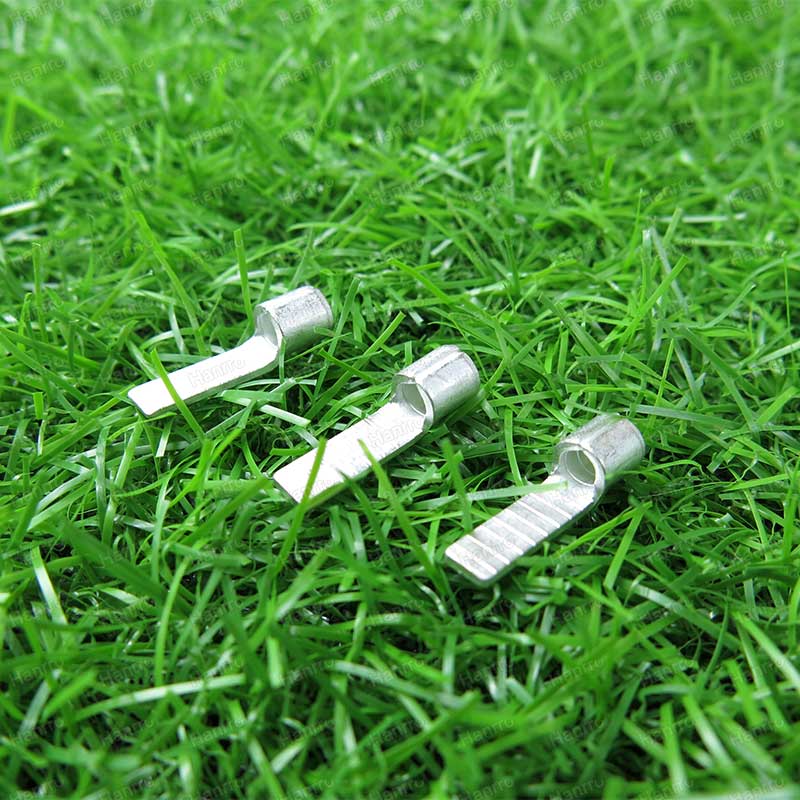

Product Name : Non-Insulated Blade Terminals
Material of Body : Copper , Tin Plated
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

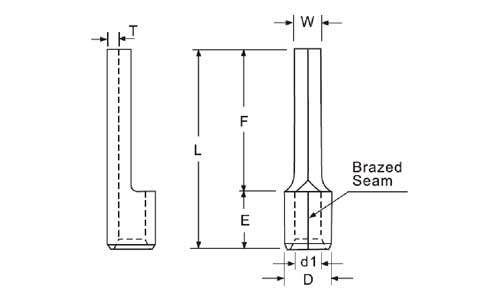

| Item No | Wire Size(mm2) | AWG | W | F | L | E | D | d1 | T | |||
| DBNB1.25-9 | 0.5-1.5 | 22-16 | 2.8 | 9.0 | 13.8 | 4.8 | 3.4 | 1.7 | 0.75 | |||
| DBNB1.25-10 | 2.3 | 10.0 | 14.8 | |||||||||
| DBNB1.25-11 | 3.0 | 11.0 | 15.8 | |||||||||
| DBNB1.25-13 | 3.0 | 13.0 | 17.8 | |||||||||
| DBNB1.25-14 | 3.0 | 14.0 | 18.8 | |||||||||
| DBNB1.25-18 | 2.2 | 18.0 | 22.8 | |||||||||
| DBNB2-9 | 1.5-2.5 | 16-14 | 2.8 | 9.0 | 13.8 | 4.8 | 4.1 | 2.3 | 0.80 | |||
| DBNB2-10 | 2.4 | 10.0 | 14.8 | |||||||||
| DBNB2-13 | 2.4 | 13.0 | 17.8 | |||||||||
| DBNB2-14 | 2.4 | 14.0 | 18.8 | |||||||||
| DBNB2-18 | 2.2 | 18.0 | 22.8 | |||||||||
| DBNB5.5-10 | 4.0-6.0 | 12-10 | 2.8 | 10.0 | 16.0 | 6.0 | 5.6 | 3.4 | 1.00 | |||
| DBNB5.5-14 | 4.5 | 14.0 | 20.0 | |||||||||
| DBNB5.5-18 | 4.5 | 18.0 | 24.0 | |||||||||
