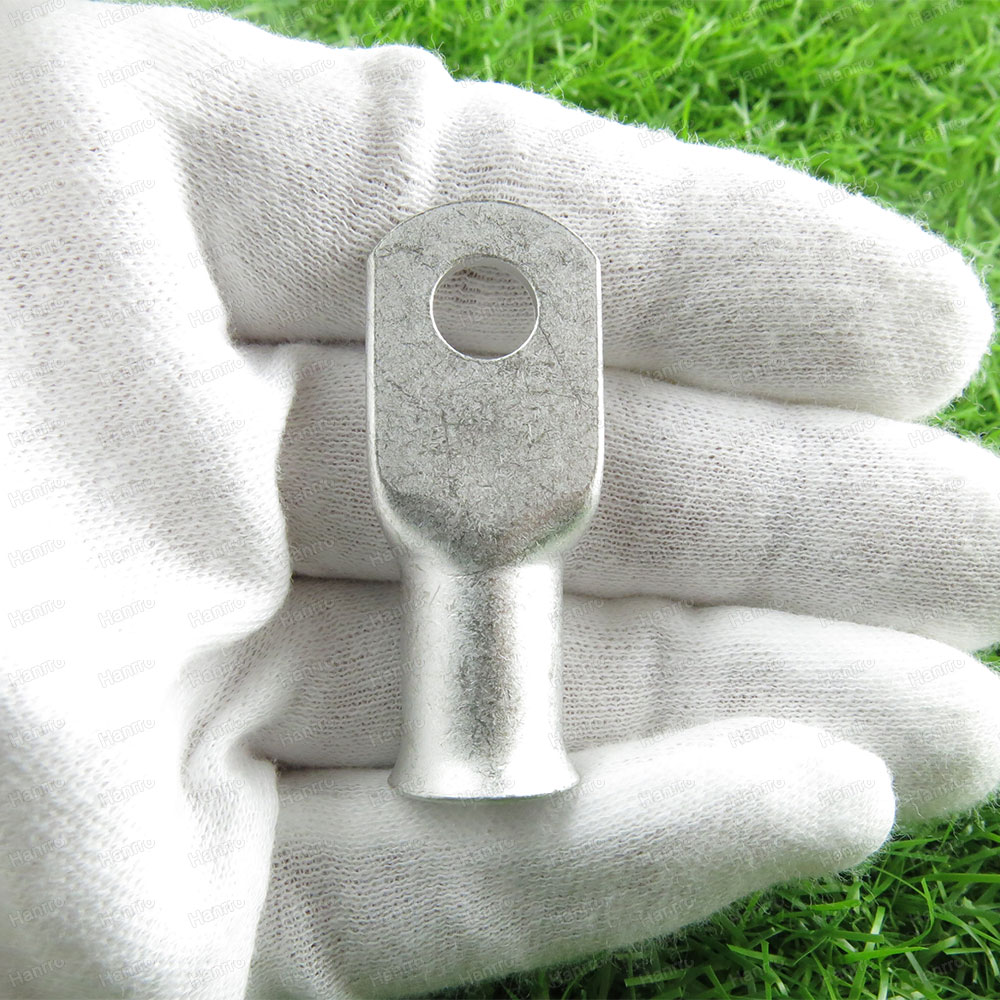

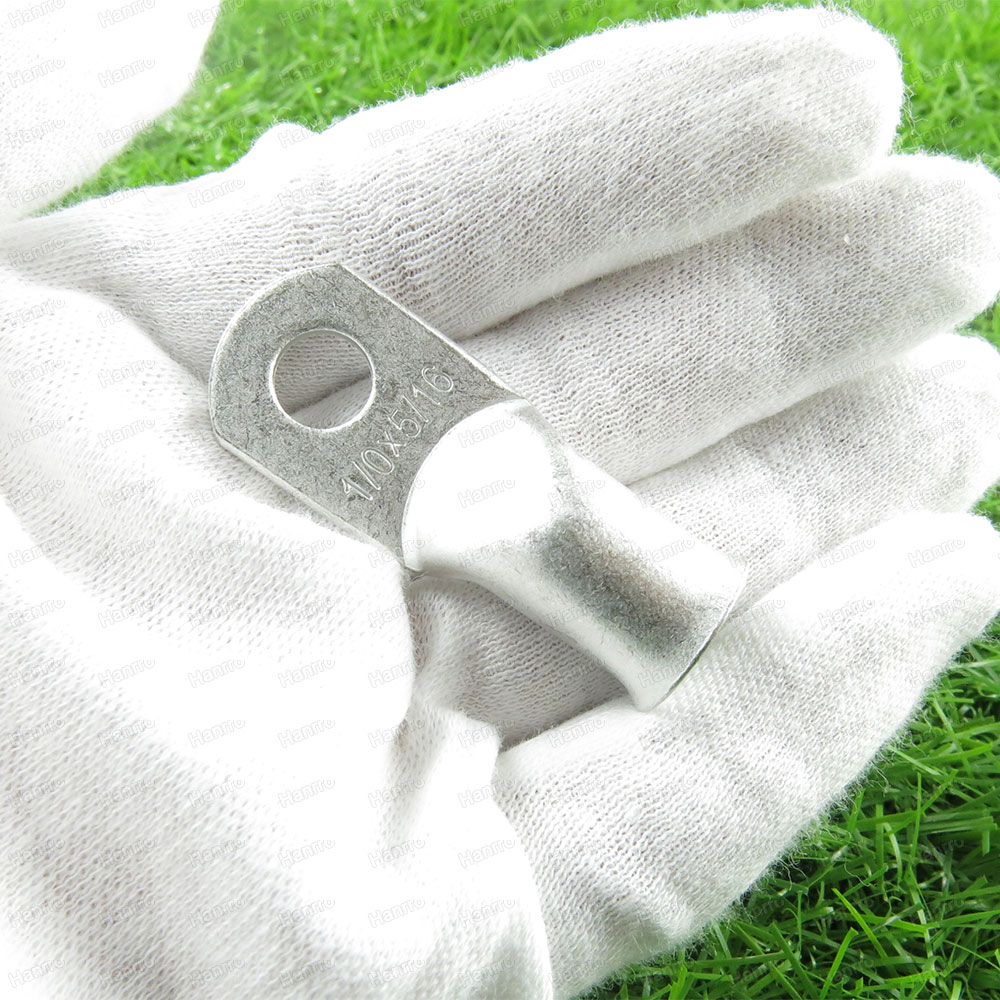

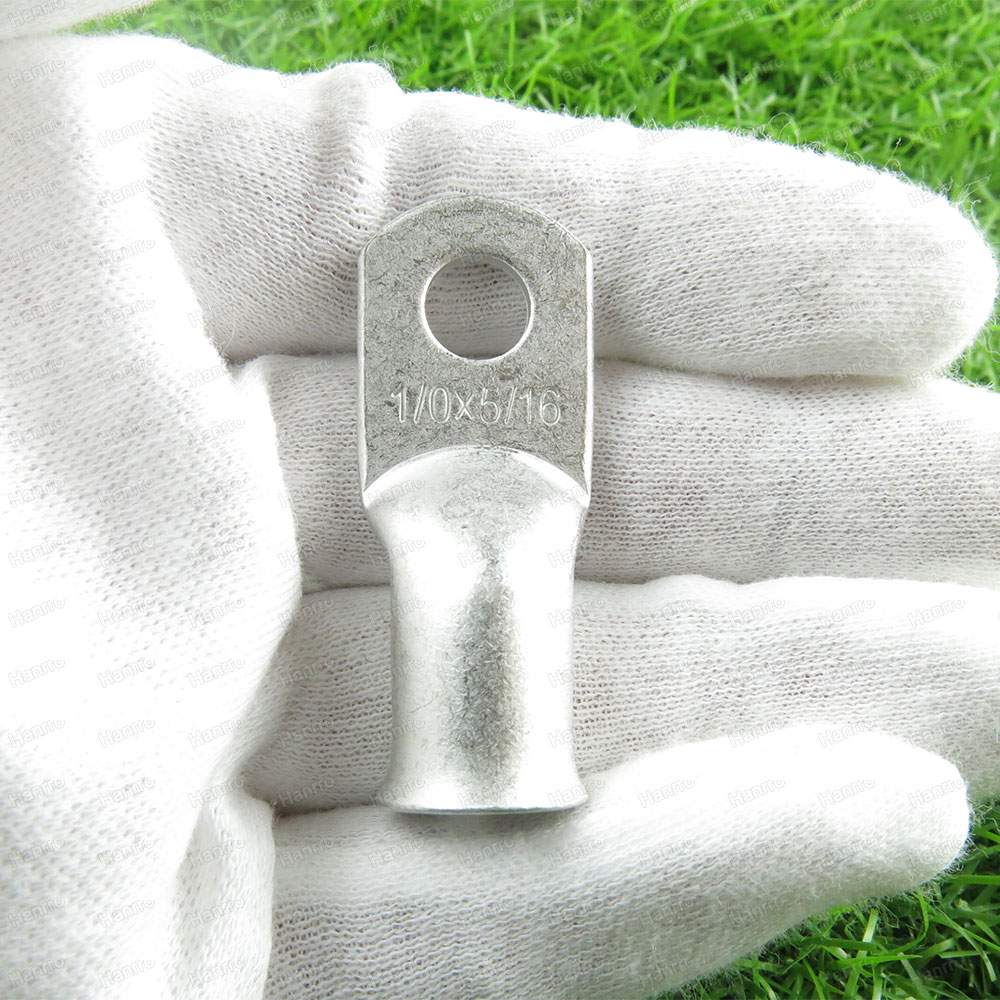

Molex Battery Cable Lugs seamless barrel designed lugs are ideal for heavy-duty 600V+ applications. Wire ranges from 8 AWG to 250 MCM with a variety of stud hole sizes can be crimped with industry standard tooling. The flared barrel entry accommodates easy insertion of stranded wire. Additionally, inspection sight holes are an available option.
Features & Benefits :
Crimps in industry standard tooling
Minimizes customer capital investment

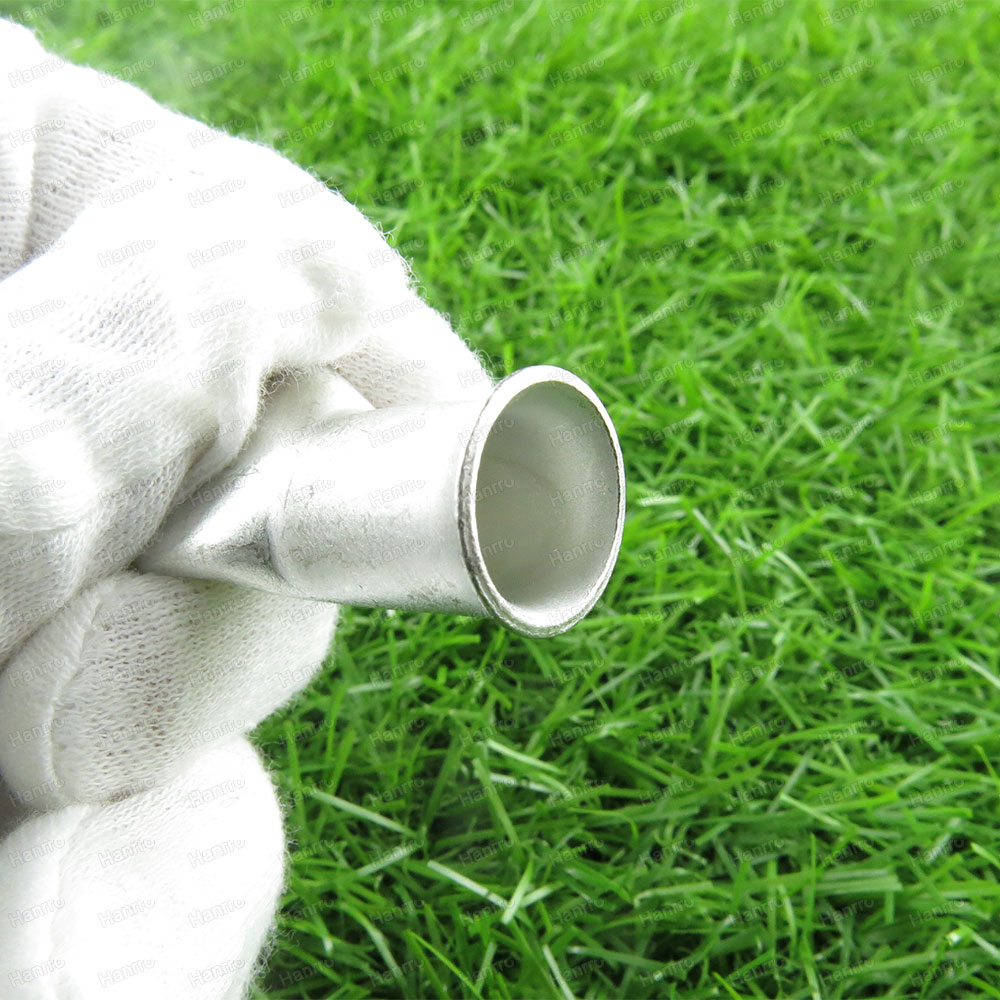

Flared barrel entry
Ensures easy wire insertion
Made of CDA-110 copper or tin stock
Offers 100% conductivity
Seamless barrel design
No special orientation in crimp tool required

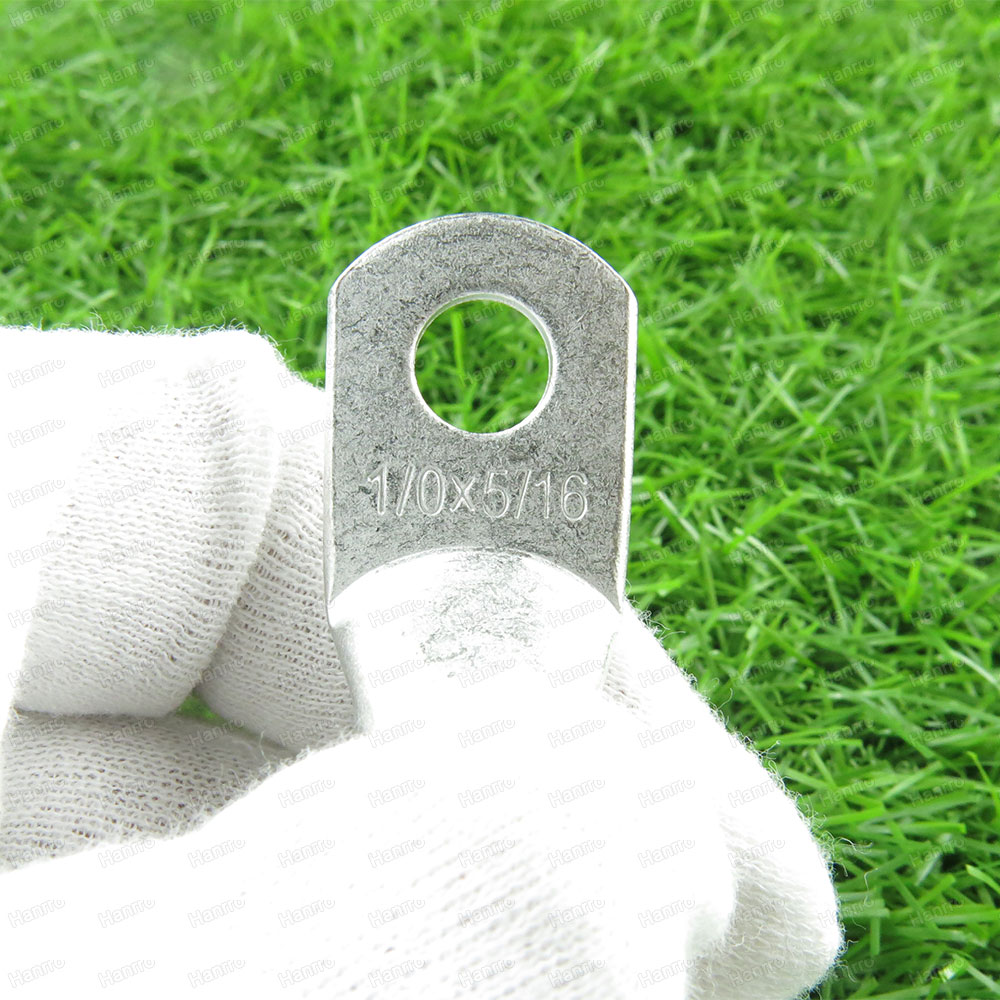

AWG wire size and stud size identification on barrel
Easy part identification
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Dimension | |||||
| Φ d2 | B | L | Φ D | Φ d | E | |
| 8#10 | 5.1 | 11.8 | 33.3 | 7.1 | 4.8 | 13 |
| 8 x 1/4 | 6.8 | 11.8 | 33.3 | |||
| 8 x 5/16 | 8.3 | 11.8 | 33.3 | |||
| 8 x 3/8 | 10.4 | 14.5 | 33.3 | |||
| 8 x 1/2 | 13.1 | 17 | 33.3 | |||
| 6 #10 | 5.1 | 11.8 | 37.3 | 8.1 | 5.9 | 15 |
| 6 x 1/4 | 6.8 | 13.7 | 37.3 | |||
| 6 x 5/16 | 8.3 | 13.7 | 37.3 | |||
| 6 x 3/8 | 10.4 | 13.7 | 37.3 | |||
| 6 x 1/2 | 13.1 | 17 | 37.3 | |||
| 4 x 1/4 | 6.8 | 13.8 | 38.9 | 9.5 | 7.3 | 15.5 |
| 4 x 5/16 | 8.3 | 13.8 | 38.9 | |||
| 4 x 3/8 | 10.4 | 14.5 | 38.9 | |||
| 4 x 1/2 | 13.1 | 17 | 38.9 | 15 | ||
| 2 x 1/4 | 6.8 | 16.5 | 41.1 | 11.1 | 8.5 | 16 |
| 2 x 5/16 | 8.3 | 16.5 | 41.1 | |||
| 2 x 3/8 | 10.4 | 16.5 | 41.1 | |||
| 2 x 1/2 | 13.1 | 17 | 41.1 | 15.3 | ||
| 1 x 1/4 | 6.8 | 16.4 | 43.6 | 11.7 | 9.1 | 16 |
| 1 x 5/16 | 8.3 | 16.4 | 43.6 | |||
| 1 x 3/8 | 10.4 | 17.1 | 43.6 | |||
| 1 x 1/2 | 13.1 | 19.1 | 43.6 | |||
| 1/0 x 1/4 | 6.8 | 18.4 | 46.8 | 13 | 10.4 | 19 |
| 1/0 x 5/16 | 8.3 | 18.4 | 46.8 | |||
| 1/0 x 3/8 | 10.4 | 18.4 | 46.8 | |||
| 1/0 x 1/2 | 13.1 | 21 | 46.8 | |||
| 2/0 x 1/4 | 6.8 | 21 | 52.4 | 14.2 | 11.7 | 22 |
| 2/0 x 5/16 | 8.3 | 21 | 52.4 | |||
| 2/0 x 3/8 | 10.4 | 21 | 52.4 | |||
| 2/0 x 1/2 | 13.1 | 21 | 52.4 | 21 | ||
| 3/0 x 1/4 | 6.8 | 23.1 | 55.9 | 15.7 | 13 | 22.5 |
| 3/0 x 5/16 | 8.3 | 23.1 | 55.9 | |||
| 3/0 x 3/8 | 10.4 | 23.1 | 55.9 | |||
| 3/0 x 1/2 | 13.1 | 23.1 | 55.9 | |||
| 4/0 x 1/4 | 6.8 | 25.8 | 60.5 | 17.2 | 14.2 | 24 |
| 4/0 x 5/16 | 8.3 | 25.8 | 60.5 | |||
| 4/0 x 3/8 | 10.4 | 25.8 | 60.5 | |||
| 4/0 x 1/2 | 13.1 | 25.8 | 60.5 | |||
