Metric to Metric Adaptor are designed to meet special requirement.

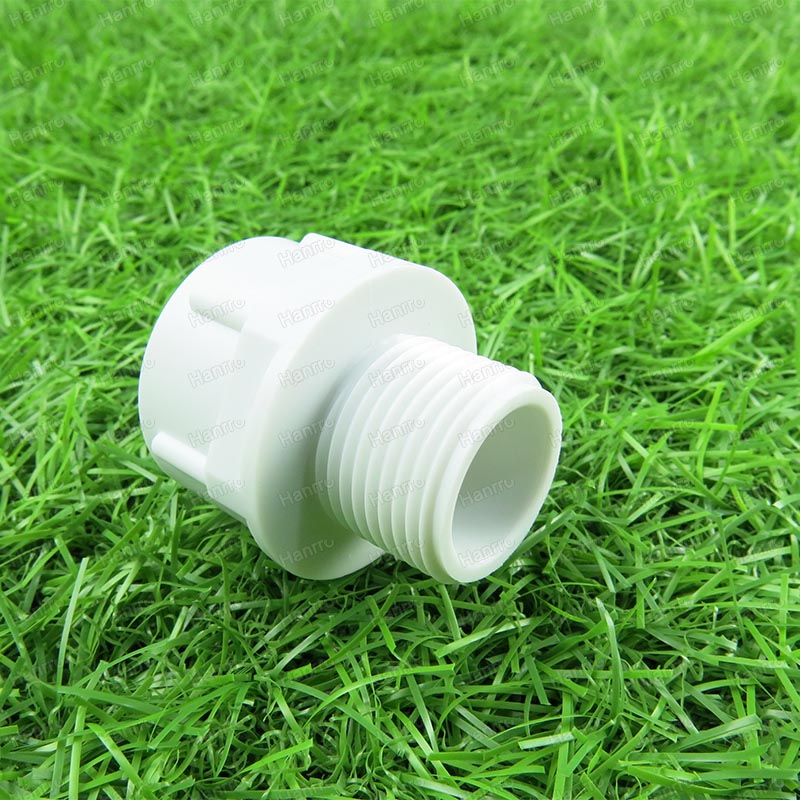

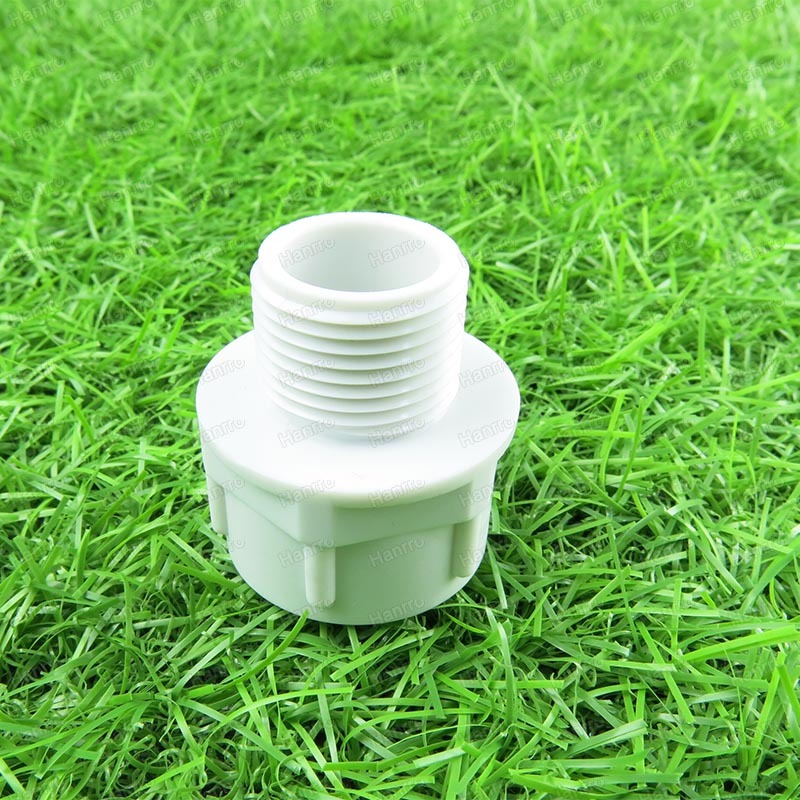

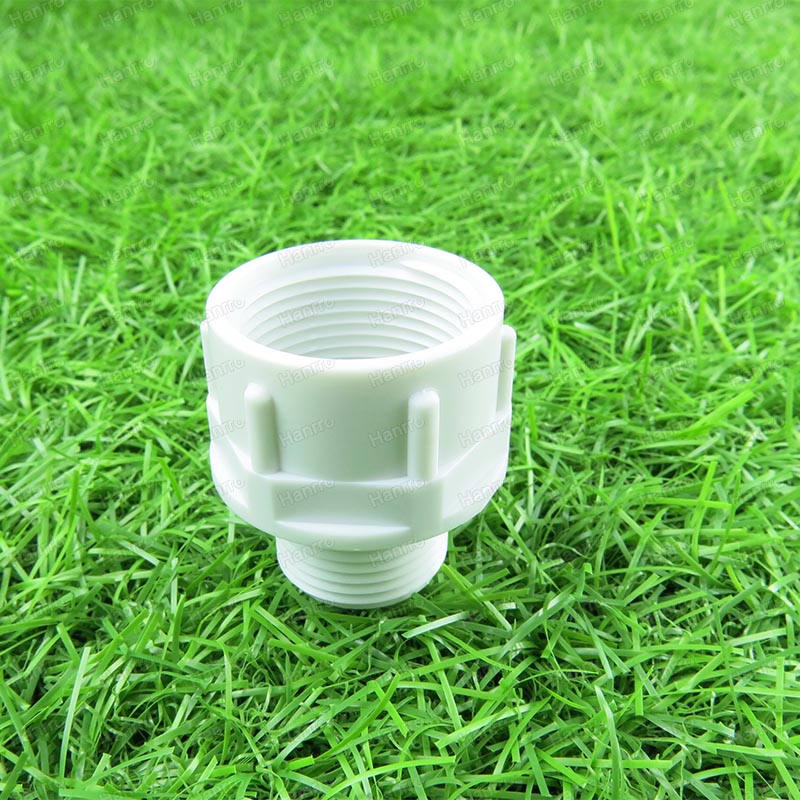

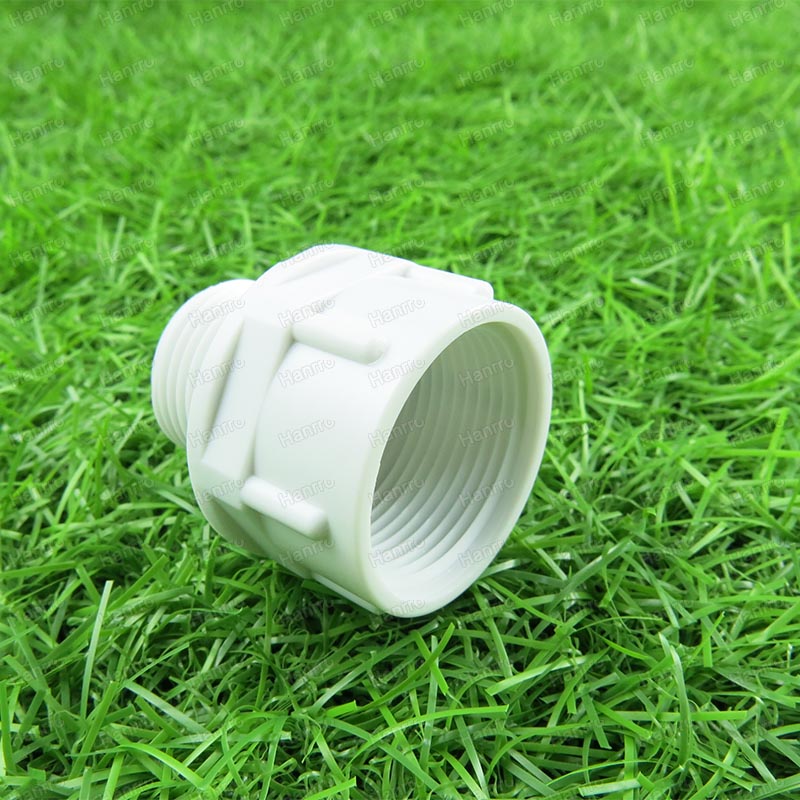

Product Name : Metric to Metric Adaptor
Material : Halogen Free Nylon 6
Color : Grey , Black , White , Red and Blue Etc
Operating Temperature : From -20℃ to + 80℃
Flammability : UL94V-2 ( UL94V-0 can be done as requirement )
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No. | GL(mm) | H(mm) | AG(mm) | IG(mm) |
| M12 x 1.5-M16 x 1.5 | 15 | 19 | 12 | 16 |
| M16 x 1.5-M20 x 1.5 | 15 | 19 | 16 | 20 |
| M20 x 1.5-M25 x 1.5 | 15 | 19 | 20 | 25 |
| M25 x 1.5-M32 x 1.5 | 15 | 19 | 25 | 32 |
| M32 x 1.5-M40 x 1.5 | 15 | 19.5 | 32 | 40 |
| M40 x 1.5-M50 x 1.5 | 15 | 19.5 | 40 | 50 |
| M50 x 1.5-M63 x 1.5 | 15 | 19.5 | 50 | 63 |
