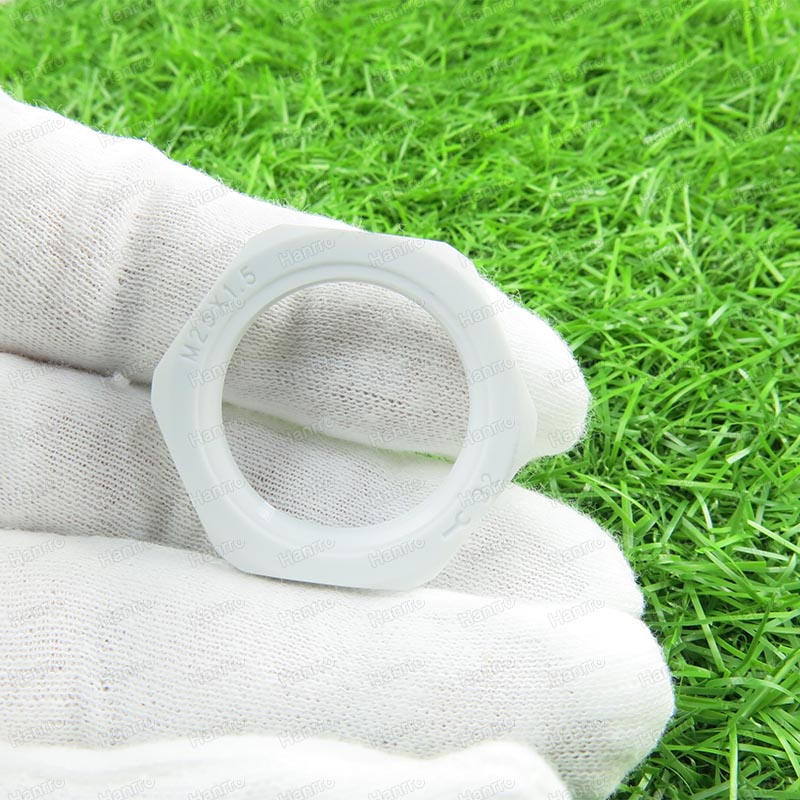

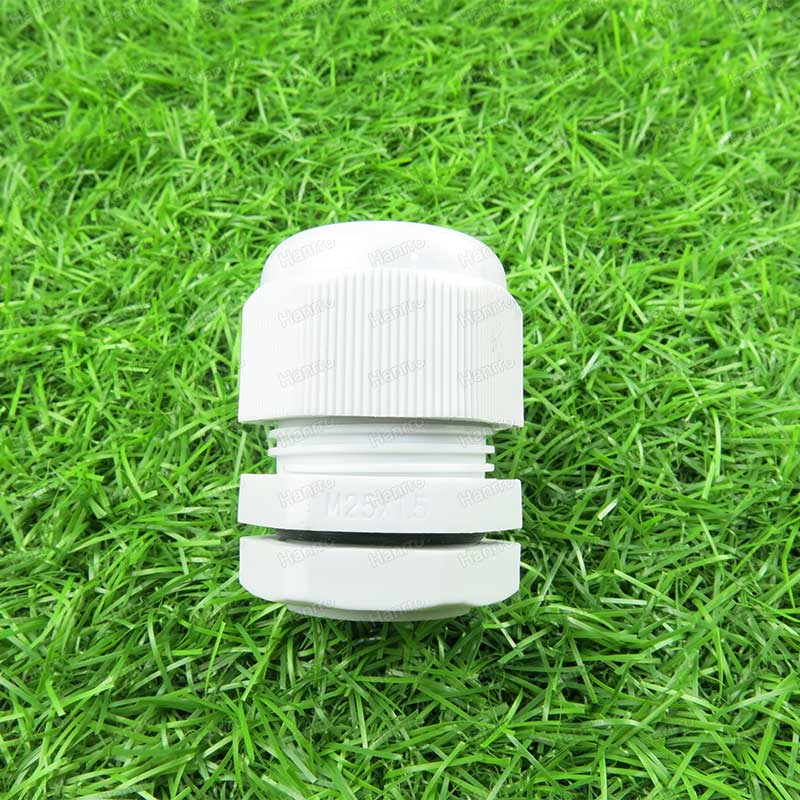

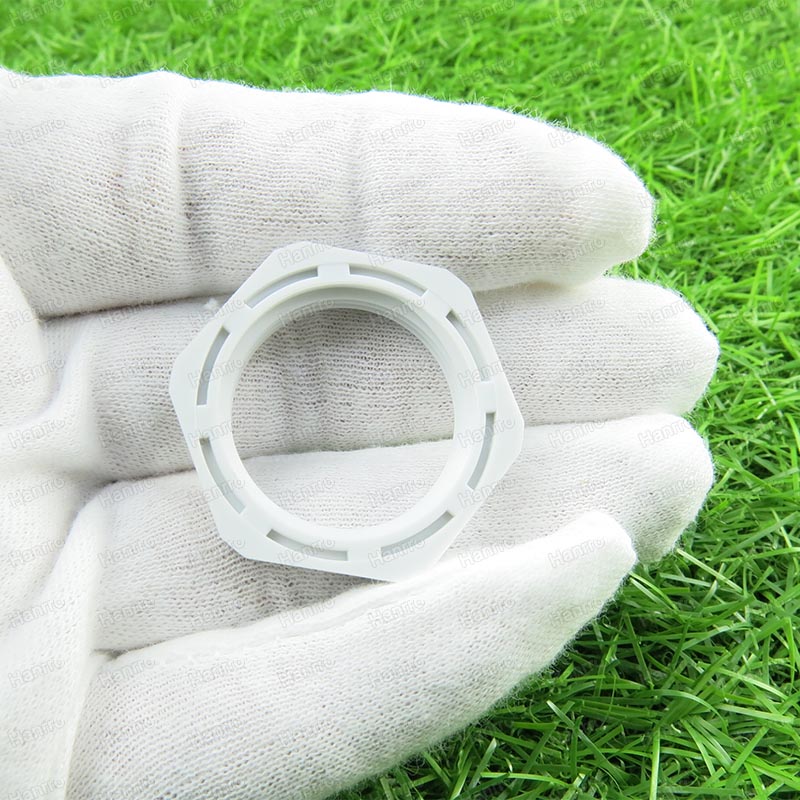

Metric Thread Cable Glands are easy to use and provide a good strain relief and water tight seal for round cables. The Cable Glands are rated up to IP 68-5 Bar (comparable to NEMA 6P) and feature a wide clamping range. A Locking Nut is supplied on all Metric threaded parts. Colours offered are Black, Gray, Red, White and Blue.
Product Name : Metric Thread Cable Glands with Standard Length
Material of Body : Halogen Free Nylon 6

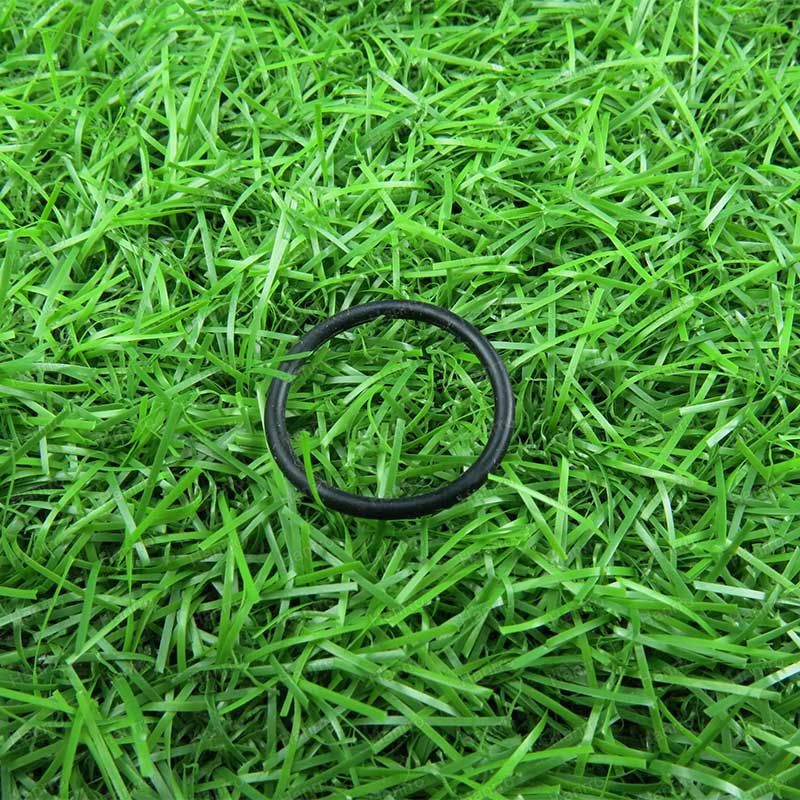

Material of Sealing : Neoprene( EPDM can be done as customer requirement )

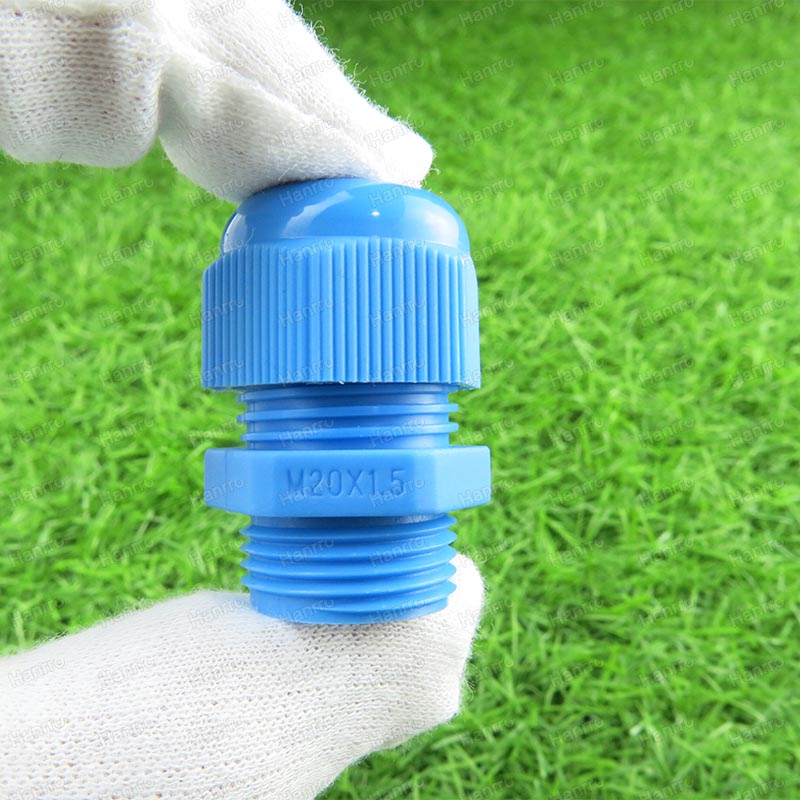

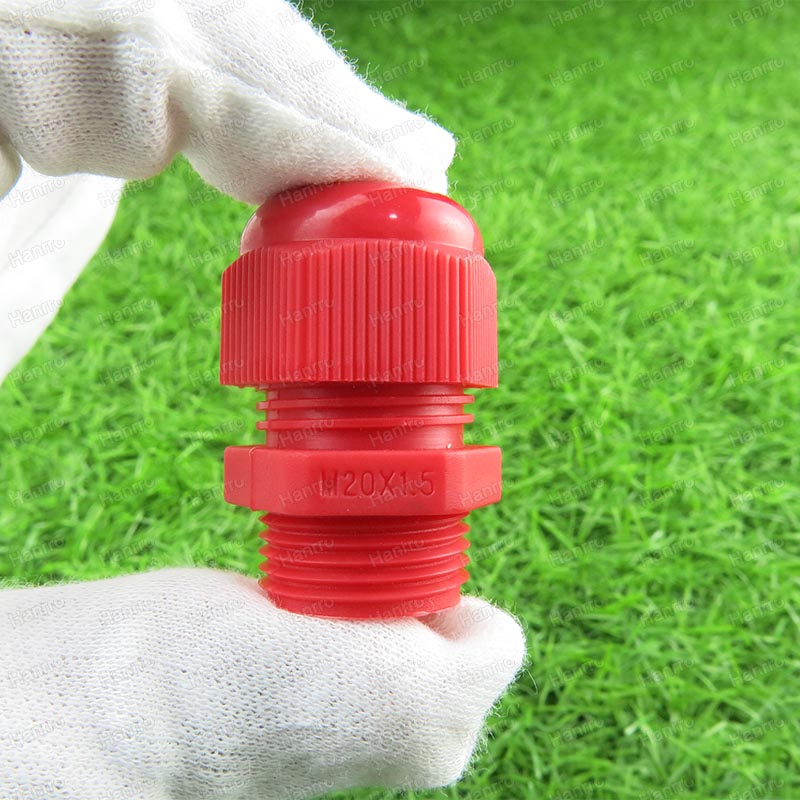

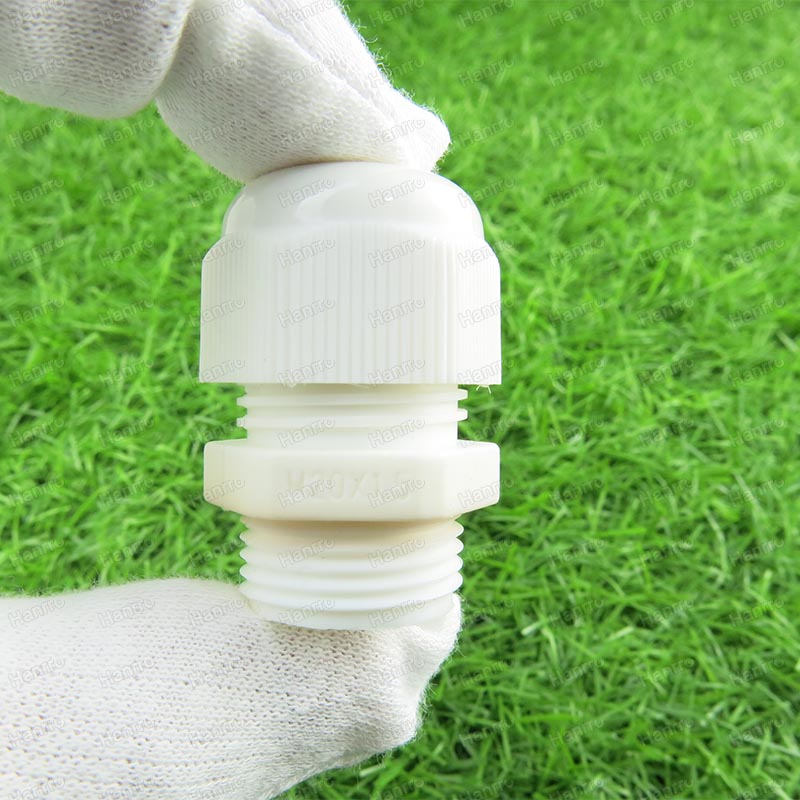

Color : Grey ( RAL7035) , Black ( RAL9005 ) , White , Red , Blue Etc
Operating Temperature : From -20℃ to + 80℃
Flammabilty : UL94V-2 (UL94V-0 can be done by Customers Special Requirement)
Protection Grade : IP68
Certification : CE
Testing Report : IP68 Testing Report, ROHS , REACH , PAHS , Etc
Package : 100 Pcs / Polybag
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

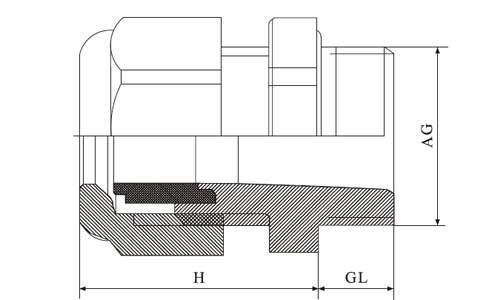

| Item No. | Cable Range(mm) | GL(mm) | H(mm) | Spanner Size(mm) | AG(mm) |
| M10*1 | 3–6.5 | 8 | 22 | 15 | 10 |
| M12*1.5 | 3–6.5 | 8 | 22 | 16 | 12 |
| M12*1.5 | 2–5 | 8 | 22 | 16 | 12 |
| M14*1.5 | 4–8 | 8 | 26 | 19 | 14 |
| M14*1.5 | 2–6 | 8 | 26 | 19 | 14 |
| M16*1.5 | 4–8 | 8 | 26 | 19 | 16 |
| M16*1.5 | 2–6 | 8 | 26 | 19 | 16 |
| M18*1.5 | 5–10 | 8 | 27 | 22 | 18 |
| M18*1.5 | 3–7 | 8 | 27 | 22 | 18 |
| M20*1.5 | 6–12 | 9 | 28 | 24 | 20 |
| M20*1.5 | 5–9 | 9 | 28 | 24 | 20 |
| M22*1.5 | 10–14 | 10 | 30 | 27 | 22 |
| M22*1.5 | 7–12 | 10 | 30 | 27 | 22 |
| M24*1.5 | 12–15 | 10 | 30 | 27 | 24 |
| M24*1.5 | 10–12 | 10 | 30 | 27 | 24 |
| M25*1.5 | 13–18 | 10 | 35 | 33 | 25 |
| M25*1.5 | 9–16 | 10 | 35 | 33 | 25 |
| M27*1.5 | 13–18 | 10 | 35 | 33 | 27 |
| M27*1.5 | 9–16 | 10 | 35 | 33 | 27 |
| M30*1.5 | 12–21 | 11 | 34 | 35/36 | 30 |
| M30*1.5 | 7–15 | 11 | 34 | 35/36 | 30 |
| M32*1.5 | 12–21 | 11 | 34 | 36/37 | 32 |
| M32*1.5 | 7–15 | 11 | 34 | 36/37 | 32 |
| M36*1.5 | 18–25 | 12 | 40 | 41/42 | 36 |
| M36*1.5 | 13–20 | 12 | 40 | 41/42 | 36 |
| M40*1.5 | 22–32 | 14 | 48 | 52/53 | 40 |
| M40*1.5 | 20–26 | 14 | 48 | 52/53 | 40 |
| M50*1.5 | 32–38 | 14 | 49 | 60/61 | 50 |
| M50*1.5 | 25–31 | 14 | 49 | 60/61 | 50 |
| M63*1.5 | 37–44 | 14 | 50 | 67 | 63 |
| M63*1.5 | 29–35 | 14 | 50 | 67 | 63 |
| M75*2 | 53-60 | 25 | 63 | 82 | 75 |
| M75*2 | 48-55 | 25 | 63 | 82 | 75 |
