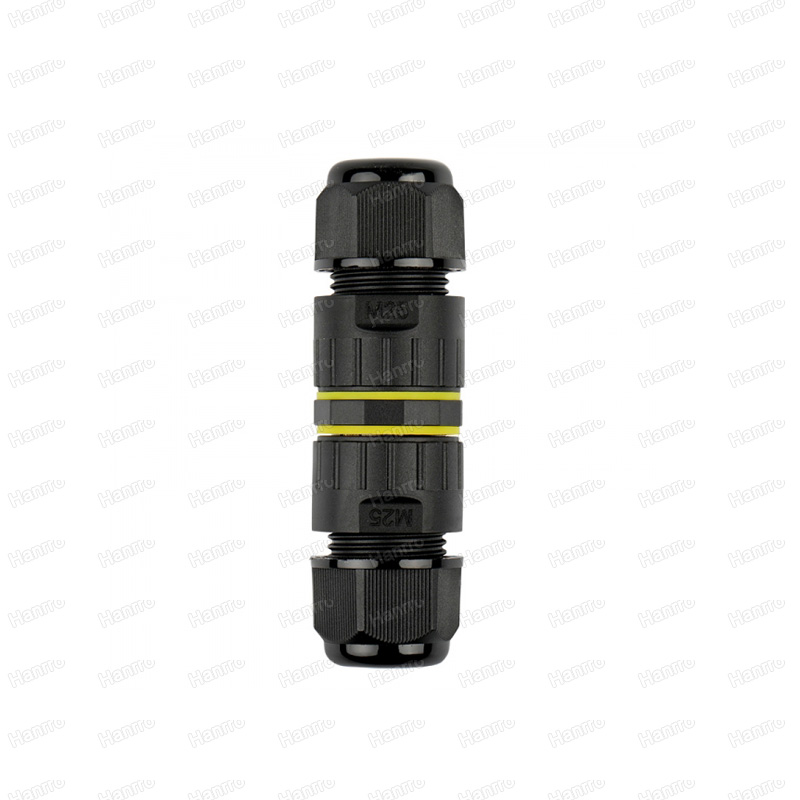

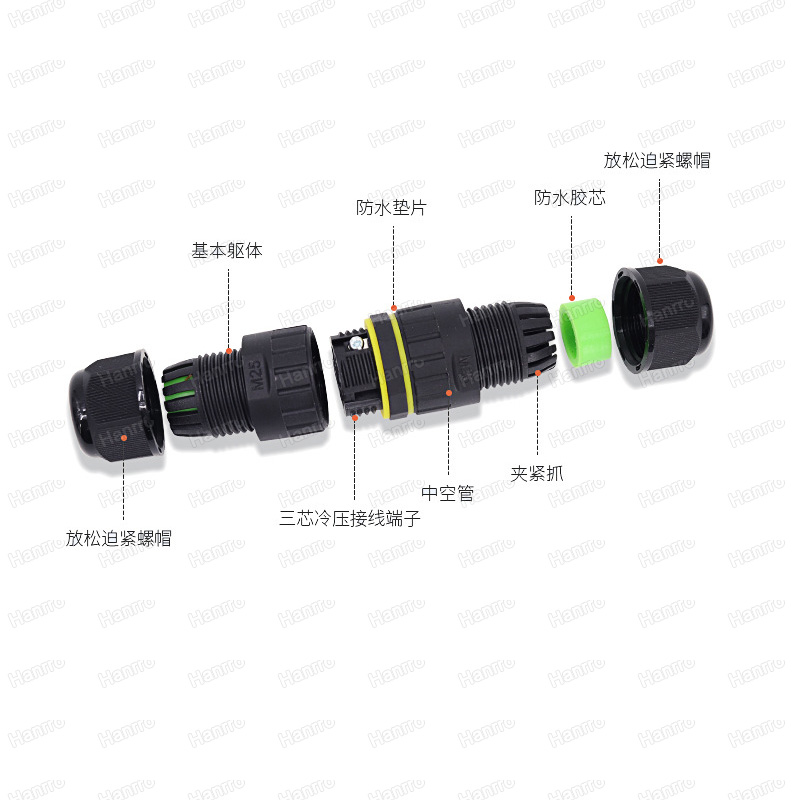

M25 Straight Waterproof Connectors with an IP rating of IP68 (0.5bar). In-line assembly and seperate screw and clamp terminal block allows for quick easy installation. High quality construction with tough nylon 66 body and brass terminal blocks. Conductor size 0.5mm2 to 6mm2, suitable for -20 to +85°C. CE and RoHS certified.
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Pin | Voltage | Current | Cable O.D (mm) | Wire Size |
| M25-2P | 2 | 400V | 24A | 5-9 / 9-12 / 10-14 | 0.5-6.0mm2 |
| M25-3P | 3 | 400V | 24A | 5-9 / 9-12 / 10-14 | 0.5-6.0mm2 |
| M25-4P | 4 | 400V | 24A | 5-9 / 9-12 / 10-14 | 0.5-6.0mm2 |
| M25-5P | 5 | 400V | 24A | 5-9 / 9-12 / 10-14 | 0.5-2.5mm2 |
