Long Barrel Compression Lugs

Long Barrel Compression Lugs provide permanent terminations for a wariety of power and grounding application, with innocation , highest reliableility and lowest installaed cost. Hanrro offer the first and only copper compression lugs to meet Network Equipment-Building Systems ( NEBS) Level 3 requirement as tested by Telcordia Technologies.

Features & Benefits :

Long Barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance

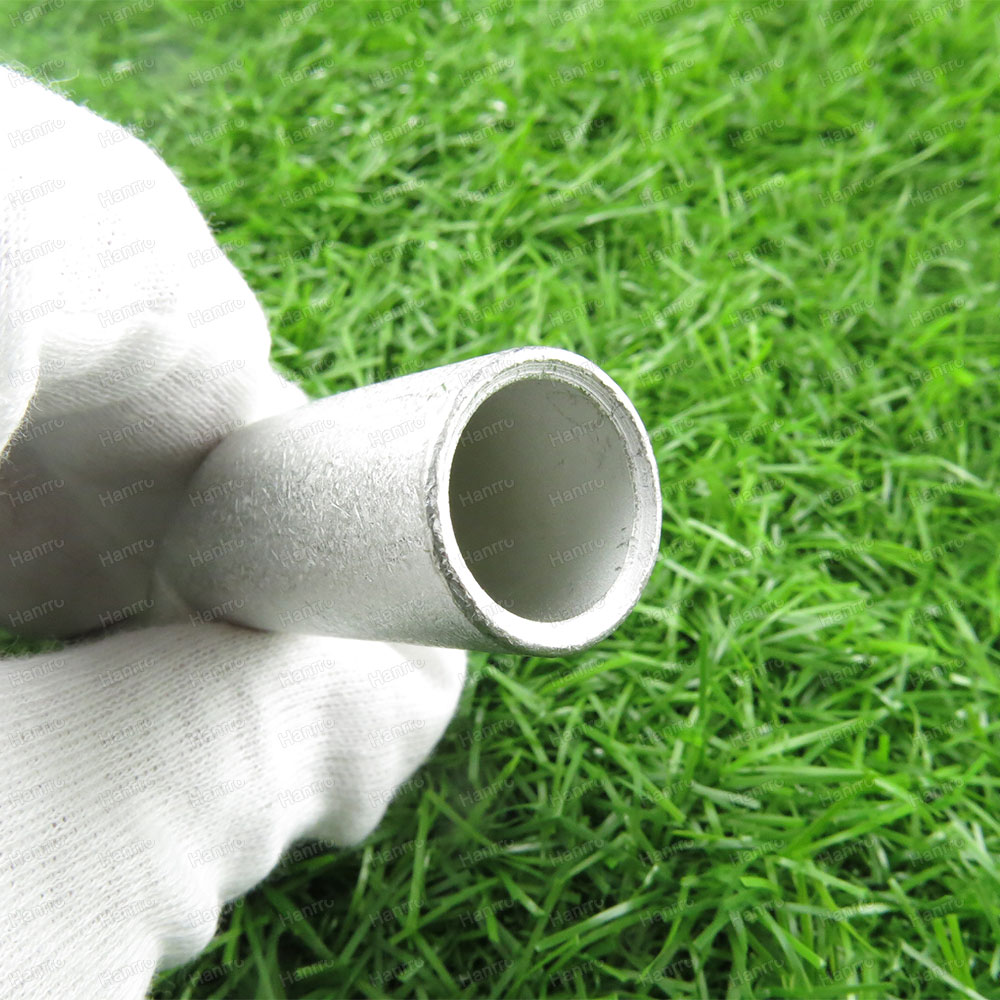

Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments

Tin-Plated to inhibit corrosion

Lugs available in 90 & 45 degree bent tongue, please refer to www.hanrro.com

UL Listed and CSA Certified to 35 KV and Temperature to 90℃

tag：

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

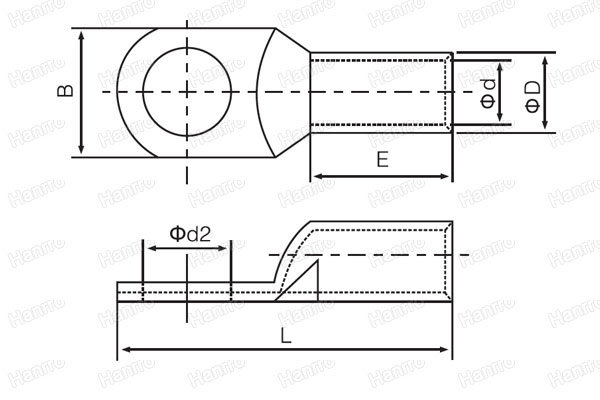

Long Barrel Compression Lugs-Drawings

Item No Dimension
Φ d2 B L Φ D Φ d E
CL14-H-6 6.4 18.3 50 8.8 5.8 28.5
CL22-H-8 8.4 18.3 52 11.3 7.7 28.5
CL38-H-10 10.5 18.3 64 12.4 9.8 34
CL38-H-12 13 18.3 64 12.4 9.8 34
CL60-H-10 10.5 20.5 70 14 11 36
CL60-H-12 13 20.5 70 14 11 36
CL70-H-10 10.5 21.4 72 15 12 38
CL70-H-12 13 21.4 72 15 12 38
CL80-H-12 13 23.2 75 16 13 38
CL100-H-12 13 26 75 18 14 40
CL125-H-12 13 28 85 20 16 40
CL150-H-12 13 31.5 94 22 17 46
CL180-H-12 13 33 98 23 18.2 46
CL200-H-12 13 37 104 26 20 48
CL250-H-12 13 41 114 28 22 48
CL325-H-12 13 46 118 32 25 50
CL400-H-12 13 54 130 37 30 60
CL500-H-12 13 57.5 150 40 31 60
B-CL14-H-6 6.4 18.3 50 8.3 5.8 28.5
B-CL22-H-8 8.4 18.3 52 10.7 7.7 28.5
B-CL38-H-10 10.5 17.2 64 11.9 9.8 34
B-CL38-H-12 13 17.2 64 11.9 9.8 34
B-CL60-H-10 10.5 20 70 13.5 11 36
B-CL60-H-12 13 20 70 13.5 11 36
B-CL70-H-10 10.5 21.4 72 14.5 12 38
B-CL70-H-12 13 21.4 72 14.5 12 38
B-CL80-H-12 13 23.2 75 15.5 13 38
B-CL100-H-12 13 25.5 75 17.3 14 40
