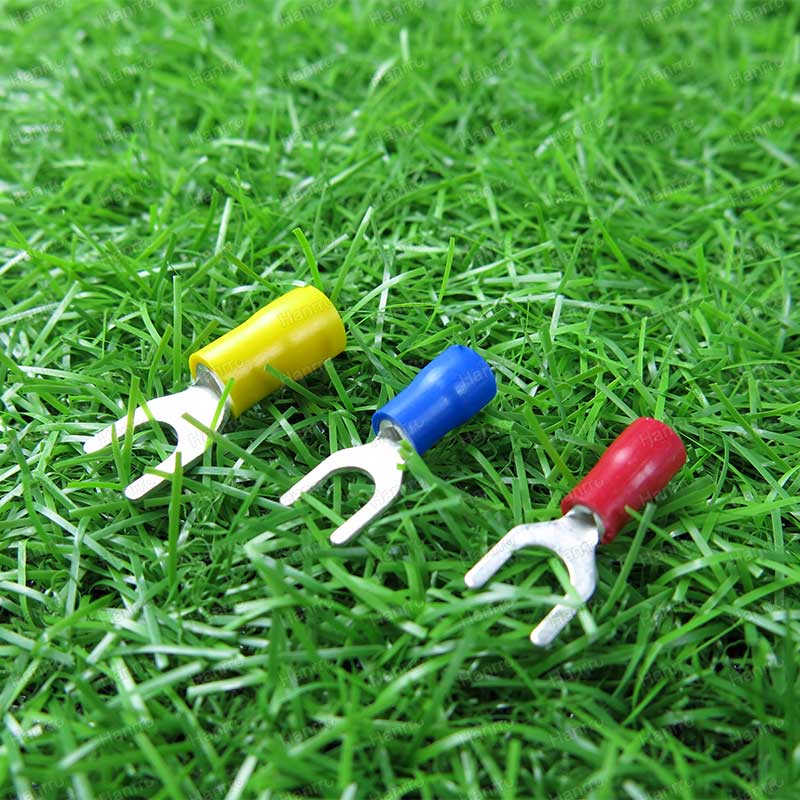

Insulated Spade Terminals

Insulated Spade Terminals can be used for all sorts of wiring and rewiring projects on your trailer or tow vehicle. Terminals may be specifically called for during the installation of certain electrical devices, but in general, they can be used for any number of electrical connection applications using the appropriate size screw or bolt. They offer a more secure mount and a better connection than a bare wire alone. One of the most common ways an electrical terminal is used is in making a ground connection for a connector or other electrical component.

Product Name : Vinyl Insulated Spade Terminals-Double Crimp

Material of Body : Copper , Tin Plated

Material of Sleeve : Copper , Tin Plated

Material of Insulation : Vinyl

Color of Insulation : Red , Blue , Black , Yellow

Testing Report : ROHS

Certification : CE

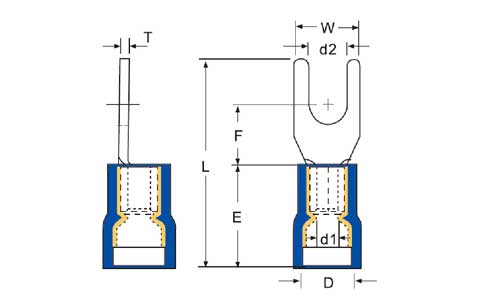

Insulated Spade Terminals-Drawing

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No  Wire Size(mm2) AWG d2 W F L E D d1 T Color
mm USA
SVD 1.25-3 0.5-1.5 22-16 3.2 #4 5.7 6.5 22.3 11.2 4.4 1.7 0.75
SVD 1.25-3.5S 3.7 #6 5.7 6.5 22.3
SVD 1.25-3.5L 3.7 #6 6.4 6.5 22.3
SVD 1.25-4S 4.3 #8 6.4 6.5 22.3
SVD 1.25-4M 4.3 #8 7.2 6.5 22.3
SVD 1.25-4L 4.3 #8 8.1 6.5 22.3
SVD 1.25-5S 5.3 #10 8.1 6.5 22.3
SVD 1.25-5L 5.3 #10 9.5 6.5 22.3
SVD 1.25-6S 6.4 1/4" 9.5 6.5 22.3
SVD 1.25-6L 6.4 1/4" 12.0 11.0 28.5
SVD 2-3 1.5-2.5 16-14 3.2 #4 5.7 6.5 22.2 11.2 5.4 2.3 0.8
SVD 2-3.5S 3.7 #6 5.7 6.5 22.2
SVD 2-3.5L 3.7 #6 6.2 6.5 22.2
SVD 2-4S 4.3 #8 6.4 6.5 22.2
SVD 2-4M 4.3 #8 7.2 6.5 22.2
SVD 2-4L 4.3 #8 8.1 6.5 22.2
SVD 2-5S 5.3 #10 8.1 6.5 22.2
SVD 2-5L 5.3 #10 9.5 6.5 22.2
SVD 2-6S 6.4 1/4" 9.5 6.5 22.2
SVD 2-6L 6.4 1/4" 12.0 11.0 28.2
SVD 5.5-3.5 4.0-6.0 12-10 3.7 #6 7.2 7.5 25.3 14.5 6.9 3.4 1.0
SVD 5.5-4S 4.3 #8 8.3 7.5 26.5
SVD 5.5-4L 4.3 #8 9.0 7.5 26.5
SVD 5.5-5 5.3 #10 9.0 7.5 26.5
SVD 5.5-6S 6.4 1/4" 9.0 7.5 26.5
SVD 5.5-6L 6.4 1/4" 12.0 12.0 32.5
SVD 5.5-8 8.4 5/16" 14.0 11.5 31.3
