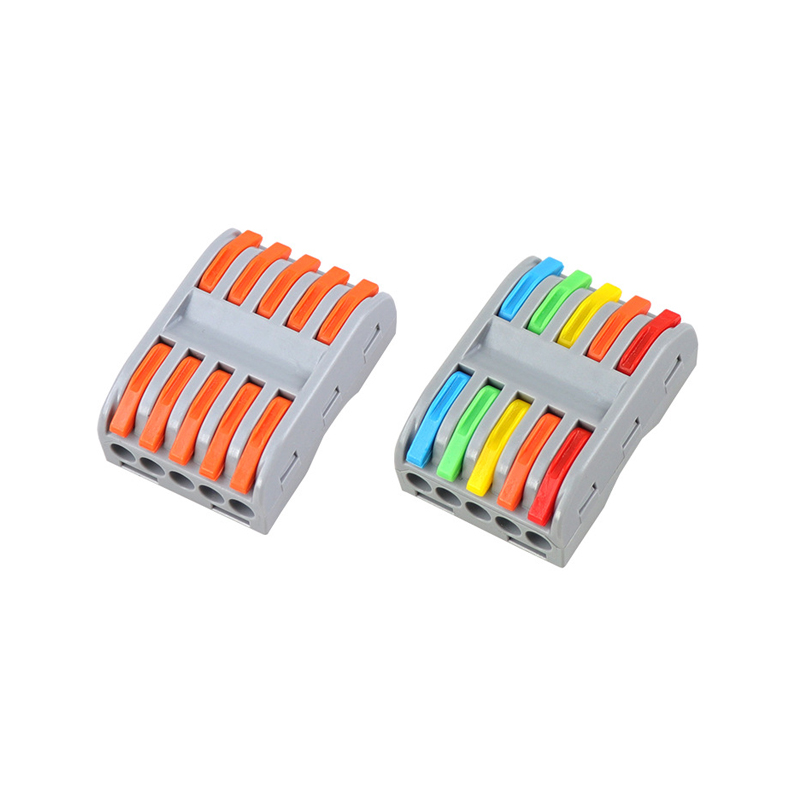

Inline Wire Connectors

Inline Wire Connectors are specially designed for connection Solid , Stranded and Flexible Copper Wires From 0.14-4mm2. It comes with 2 , 3 , 4, and 5 Poles , Lever Nuts Operation make it easy and reliable connection. Here is the FAQ help you to learn more about These Connectors

1 Question : What is the Material of Inline Splicing Connectors ?

Answer : The Material of Body will be Nylon 66

The Material of Spring will be Stainless Steel

The Material of Contact will be Copper

2 Question : How many Types Could I choose ?

Answer : There are Total 4 Different Choice

2 In 2 Out , 3 In 3 Out , 4 In 4 Out , 5 In 5 Out

3 Question : How many Color Could I choose ?

Answer : The Color of Housing usually be Gray or Transparent

The Color of Handles can be done as Your Requirement

Normal Color be Red , Orange , Blue , Yellow , Green Etc

4 Question : Do you have any Operation Video ?

Answer : Yes , Please Watch Following Video :

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.



Item No Wire Range Specification  Poles Color of Lever
Voltage Current
PCT-222 0.14-4mm2 450V 32A 2 Orange / Brown / Red / Blue / Yellow
PCT-223 0.14-4mm2 450V 32A 3 Orange / Brown / Red / Blue / Yellow
PCT-224 0.14-4mm2 450V 32A 4 Orange / Brown / Red / Blue / Yellow
PCT-225 0.14-4mm2 450V 32A 5 Orange / Brown / Red / Blue / Yellow

Inline Splicing Wire Connectors-Operation Manual

video
