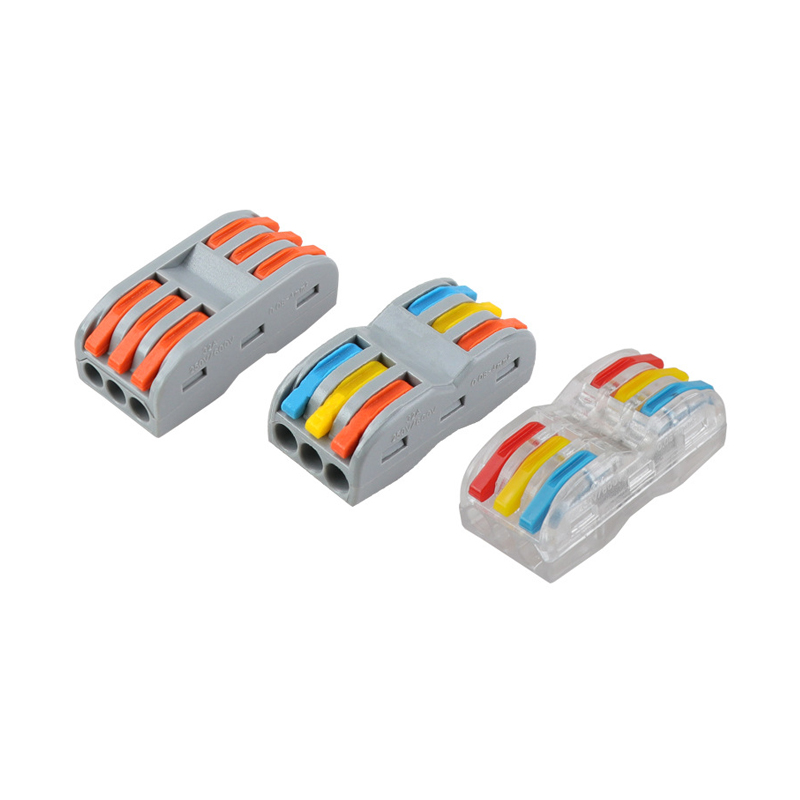

Inline Splicing Wire Connectors are specially designed for connection Solid , Stranded and Flexible Copper Wires From 0.14-4mm2. It comes with 2 , 3 , 4, and 5 Poles , Lever Nuts Operation make it easy and reliable connection.
1 Question : What is the Material of Inline Splicing Connectors ?
Answer : The Material of Body will be Nylon 66
The Material of Spring will be Stainless Steel
The Material of Contact will be Copper
2 Question : How many Types Could I choose ?
Answer : There are Total 4 Different Choice
2 In 2 Out , 3 In 3 Out , 4 In 4 Out , 5 In 5 Out
3 Question : How many Color Could I choose ?
Answer : The Color of Housing usually be Gray or Transparent
The Color of Handles can be done as Your Requirement
Normal Color be Red , Orange , Blue , Yellow , Green Etc

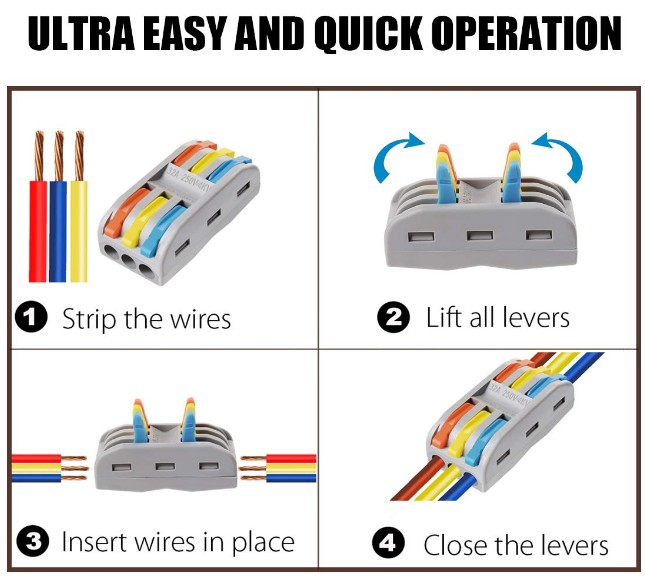

4 Question : Do you have any Operation Video ?
Answer : Yes , Please Watch Following Video :
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Wire Range | Specification | Poles | Color of Lever | |
| Voltage | Current | ||||
| PCT-222 | 0.14-4mm2 | 450V | 32A | 2 | Orange / Brown / Red / Blue / Yellow |
| PCT-223 | 0.14-4mm2 | 450V | 32A | 3 | Orange / Brown / Red / Blue / Yellow |
| PCT-224 | 0.14-4mm2 | 450V | 32A | 4 | Orange / Brown / Red / Blue / Yellow |
| PCT-225 | 0.14-4mm2 | 450V | 32A | 5 | Orange / Brown / Red / Blue / Yellow |
