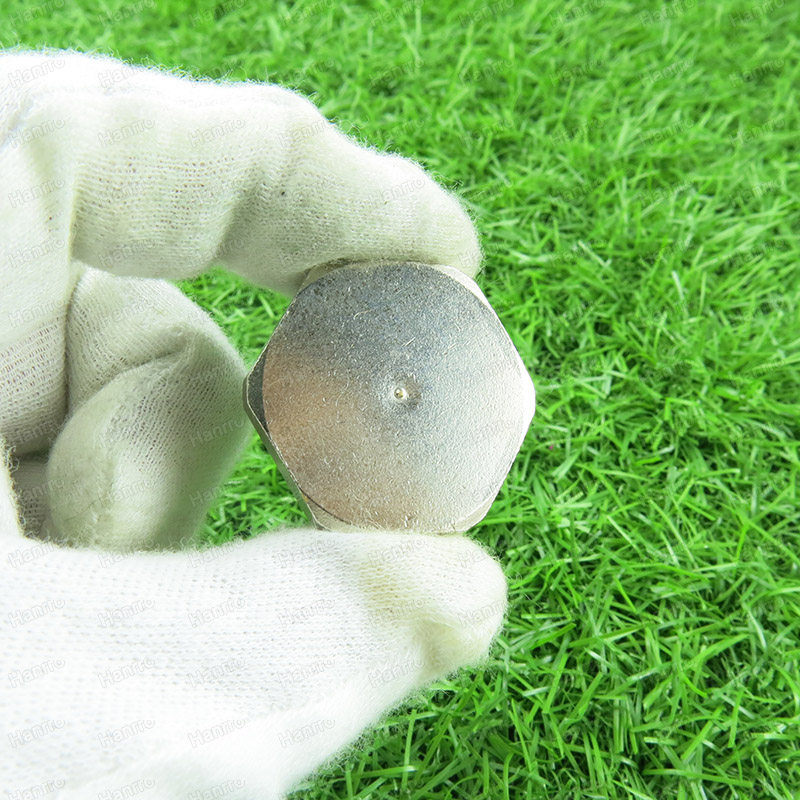

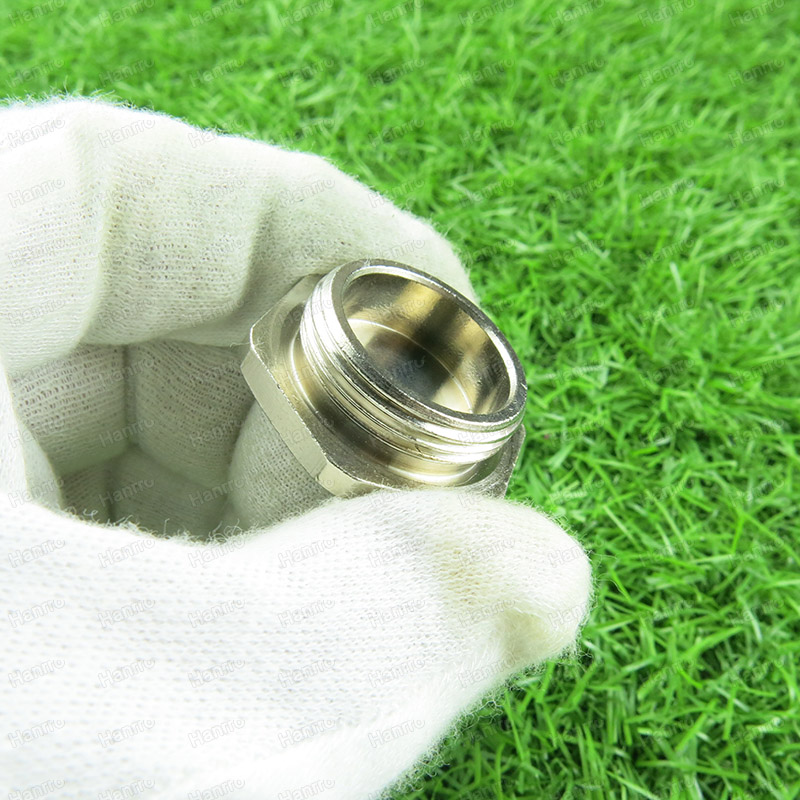

Hex Cable Glands Blanking Plugs also named by Hex Brass Blind plugs, It is for closing pre-threaded holes, assembling with Hex Spanner .Raw Material will be Nickel Plated Brass ,Suitable in may thread type ,such as PG , Metric , NPT and G.
Material of Body : Nickel Plated Brass
Material of Sealing : NBR
Protection Grade : IP54
Working Temperature : From -40℃ to + 100℃
Usage : Machine and equipment manufacturing Electric motor manufacturing
Note : If You need other material of sealings , such as Silicone, EPDM
Please email us or calling
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| PG Thread | |||||
| Item No | GL(mm) | H(mm) | SW1(mm) | AG(mm) | Panel Mounting Hole(mm) |
| HBBP-PG7 | 5 | 8 | 14 | 12.5 | 12.5-12.8 |
| HBBP-PG9 | 6 | 9 | 17 | 15.2 | 15.2-15.5 |
| HBBP-PG11 | 6 | 9.5 | 20 | 18.6 | 18.6-18.9 |
| HBBP-PG13.5 | 6.5 | 10 | 22 | 20.4 | 20.4-20.7 |
| HBBP-PG16 | 6.5 | 10 | 24 | 22.5 | 22.5-22.8 |
| HBBP-PG21 | 7 | 10.5 | 30 | 28.3 | 28.3-28.6 |
| HBBP-PG29 | 8 | 12.5 | 41 | 37 | 37-37.3 |
| HBBP-PG36 | 8 | 13 | 50 | 47 | 47-47.3 |
| HBBP-PG42 | 9 | 15 | 58 | 54 | 54-54.3 |
| HBBP-PG48 | 10 | 16.5 | 65 | 59.3 | 59.3-59.6 |
| Metric Thread | |||||
| Item No | GL(mm) | H(mm) | SW1(mm) | AG(mm) | Panel Mounting Hole(mm) |
| HBBP-M12x1.5 | 6.5 | 9.5 | 14 | 12 | 12-12.3 |
| HBBP-M14x1.5 | 6.5 | 9.5 | 17 | 14 | 14-14.3 |
| HBBP-M16x1.5 | 6.5 | 9.5 | 19 | 16 | 16-16.3 |
| HBBP-M18x1.5 | 6.5 | 9.5 | 20 | 18 | 18-18.3 |
| HBBP-M20x1.5 | 6.5 | 10 | 22 | 20 | 20-20.3 |
| HBBP-M22x1.5 | 6.5 | 10 | 24 | 22 | 22-22.3 |
| HBBP-M24x1.5 | 6.5 | 10 | 27 | 24 | 24-24.3 |
| HBBP-M25x1.5 | 7 | 10.5 | 30 | 25 | 25-25.3 |
| HBBP-M27x1.5 | 7 | 10.5 | 30 | 27 | 27-27.3 |
| HBBP-M30x1.5 | 7 | 11 | 32 | 30 | 30-30.3 |
| HBBP-M32x1.5 | 8 | 12.5 | 41 | 32 | 32-32.3 |
| HBBP-M33x1.5 | 8 | 12.5 | 36 | 33 | 33-33.3 |
| HBBP-M36x1.5 | 8 | 12.5 | 40 | 36 | 36-36.3 |
| HBBP-M40x1.5 | 8 | 13 | 46 | 40 | 40-40.3 |
| HBBP-M42x1.5 | 8 | 13 | 45 | 42 | 42-42.3 |
| HBBP-M44x1.5 | 9 | 14 | 50 | 44 | 44-44.3 |
| HBBP-M48x1.5 | 9 | 14 | 50 | 48 | 48-48.3 |
| HBBP-M50x1.5 | 9 | 15 | 55 | 50 | 50-50.3 |
| HBBP-M56x1.5 | 9 | 15 | 60 | 56 | 56-56.3 |
| HBBP-M60x1.5 | 10 | 15 | 65 | 60 | 60-60.3 |
| HBBP-M63x1.5 | 10 | 16.5 | 70 | 63 | 63-63.3 |
| HBBP-M64x1.5 | 10 | 15.5 | 67 | 64 | 64-64.3 |
| HBBP-M72x2 | 10 | 17 | 75 | 72 | 72-72.3 |
| HBBP-M80x2 | 15 | 23 | 90 | 80 | 80-80.3 |
| HBBP-M90x2 | 15 | 23 | 100 | 90 | 90-90.3 |
| HBBP-M100x2 | 15 | 24 | 110 | 100 | 100-100.3 |
| HBBP-M110x2 | 15 | 25 | 120 | 110 | 110-110.3 |
| HBBP-M120x2 | 15 | 25 | 130 | 120 | 120-120.3 |
| HBBP-M150x2 | 15 | 25 | 160 | 150 | 150-150.3 |
| NPT Thread | |||||
| Item No | GL(mm) | H(mm) | SW1(mm) | AG(mm) | Panel Mounting Hole(mm) |
| HBBP-NPT 1/4 | 8 | 11.5 | 17 | 13.616 | 13.7-14 |
| HBBP-NPT 3/8 | 15 | 18.5 | 20 | 17.055 | 17.1-17.4 |
| HBBP-NPT 1/2 | 13 | 17 | 24 | 21.224 | 21.3-21.6 |
| HBBP-NPT 3/4 | 13 | 17 | 30 | 26.569 | 26.6-26.9 |
| HBBP-NPT1 | 16 | 20.5 | 41 | 33.228 | 33.3-33.6 |
| HBBP-NPT1 1/4 | 18 | 23 | 46 | 41.985 | 42-42.3 |
| HBBP-NPT1 1/2 | 18 | 23 | 55 | 48.054 | 48.1-48.4 |
| HBBP-NPT2 | 18 | 24 | 65 | 60.092 | 60.1-60.4 |
| HBBP-NPT2 1/2 | 23 | 30 | 75 | 72.699 | 72.7-73 |
| HBBP-NPT3 | 26 | 34 | 100 | 88.608 | 88.6-88.9 |
| HBBP-NPT4 | 28 | 38 | 120 | 113.973 | 114-114.5 |
| G Thread | |||||
| Item No | GL(mm) | H(mm) | SW1(mm) | AG(mm) | Panel Mounting Hole(mm) |
| HBBP-G 1/4 | 7 | 10 | 17 | 13.157 | 13.2-13.5 |
| HBBP-G 3/8 | 8 | 11.5 | 20 | 16.662 | 16.7-17 |
| HBBP-G 1/2 | 8 | 11.5 | 24 | 20.995 | 21-21.3 |
| HBBP-G 3/4 | 8 | 11.5 | 30 | 26.441 | 26.5-26.8 |
| HBBP-G1 | 10 | 14.5 | 41 | 32.249 | 33.3-33.6 |
| HBBP-G1 1/4 | 10 | 15 | 46 | 41.910 | 42-42.3 |
| HBBP-G1 1/2 | 10 | 16 | 55 | 47.803 | 47.8-48.1 |
| HBBP-G2 | 12 | 18 | 65 | 59.614 | 59.7-60 |
| HBBP-G3 | 18 | 26 | 100 | 87.884 | 87.9-88.5 |
| HBBP-G4 | 22 | 32 | 120 | 113.030 | 113.1-114 |
