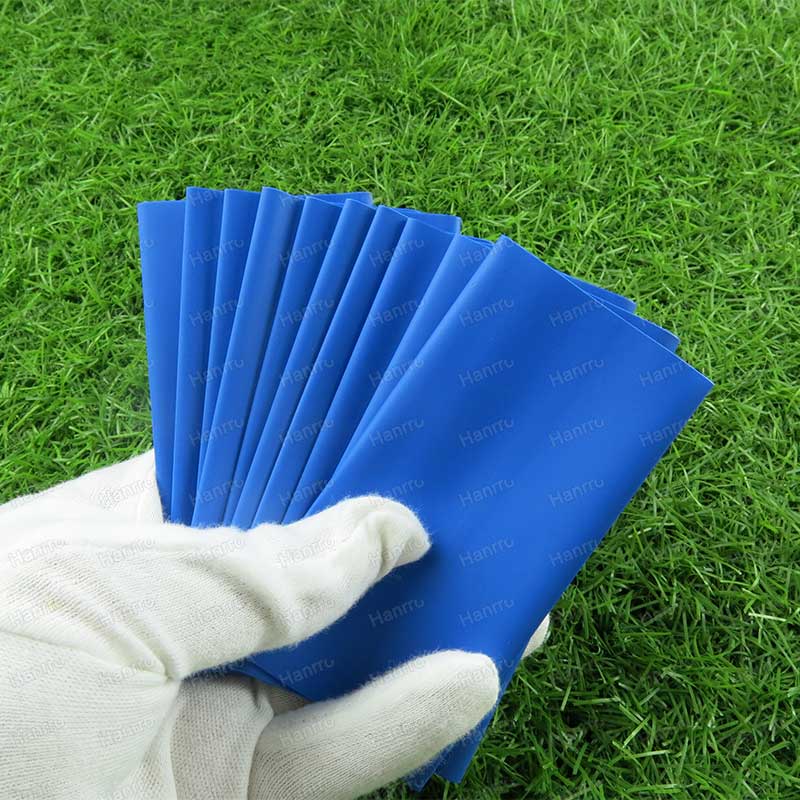

Heat Shrink Tube

Heat Shrink Tube insulates wires and protects them from abrasions and environmental factors. It’s also used to repair insulation on wires, or to bundle them together to provide protection. It’s popular for applications such as a rack mount cabinet and it’s widespread across industries, from automotive and aerospace.

Heat Shrink Tube is a shrinkable plastic sleeving that activates when heated. It is commonly used to insulate cables, wires, joints and terminals due to its durable exterior and snug fit, protecting against various environmental strains and abrasions. While all heat shrink tubing generally serves the same function, different needs require different shrinkable tubing. It is common for manufacturers to produce heat shrink tube that varies in size, thickness and material depending on the desired use, and it is helpful to understand which tubing makeups are best for your particular needs. We provide a wide variety of heat shrinkable tubing that is readily available depending on your specific situation.

Color : Black , Red , Blue , White , Yellow , Green and Transparent

Shrink Ratio : 2:1

Rated Voltage : 600V

tag： Heat Shrink Tube

Add to favorites

Favorite list is empty.

Clear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Specification	Dimension Before Shrinking		Dimension After Shrinking		Standard Packaging ( Meter / Roll )
Specification	Internal Diameter	Wall Thickness	Internal Diameter	Wall Thickness	Standard Packaging ( Meter / Roll )
φ0.8	0.9±0.2	0.20±0.05	0.40±0.1	0.32±0.05	200
φ1.0	1.2±0.3	0.20±0.05	0.48±0.1	0.32±0.05	200
φ1.5	1.7±0.3	0.20±0.05	0.73±0.1	0.32±0.05	200
φ2.0	2.2±0.3	0.25±0.05	0.98±0.1	0.32±0.05	200
φ2.5	2.6±0.3	0.25±0.05	1.23±0.2	0.35±0.05	200
φ3.0	3.2±0.4	0.25±0.05	1.45±0.2	0.35±0.05	200
φ3.5	3.6±0.4	0.25±0.05	1.72±0.2	0.35±0.05	200
φ4.0	4.2±0.4	0.25±0.05	1.96±0.2	0.35±0.05	200
φ4.5	4.6±0.4	0.25±0.05	2.20±0.2	0.35±0.05	200
φ5.0	5.2±0.4	0.25±0.05	2.48±0.2	0.35±0.05	200
φ6.0	6.2±0.4	0.28±0.15	2.96±0.3	0.45±0.15	200
φ7.0	7.2±0.4	0.28±0.15	3.48±0.3	0.45±0.15	100
φ8.0	8.2±0.5	0.28±0.15	3.95±0.3	0.45±0.15	100
φ9.0	9.2±0.5	0.30±0.15	4.40±0.3	0.50±0.15	100
φ10	10.2±0.5	0.30±0.15	4.90±0.3	0.50±0.15	100
φ11	11.2±0.5	0.30±0.15	5.40±0.3	0.50±0.15	100
φ12	12.2±0.5	0.30±0.15	5.90±0.5	0.50±0.15	100
φ13	13.2±0.5	0.33±0.15	6.40±0.5	0.50±0.15	100
φ14	14.2±0.5	0.35±0.15	6.90±0.5	0.50±0.15	100
φ15	15.2±0.6	0.38±0.15	7.40±0.5	0.60±0.15	100
φ16	16.2±0.6	0.38±0.15	7.90±0.5	0.60±0.15	100
φ17	17.2±0.6	0.38±0.15	8.40±0.5	0.60±0.15	100
φ18	18.2±0.6	0.40±0.15	8.90±0.5	0.60±0.15	100
φ20	20.2±0.8	0.40±0.20	9.90±0.5	0.70±0.20	100
φ22	22.2±0.8	0.42±0.20	10.80±1.0	0.70±0.20	100
φ25	25.3±0.8	0.45±0.20	12.30±1.0	0.70±0.20	50
φ28	28.3±0.8	0.45±0.20	13.50±1.0	0.70±0.20	50
φ30	30.2±0.8	0.45±0.20	14.70±1.0	0.70±0.20	50
φ35	35.2±0.8	0.50±0.20	17.30±1.0	0.80±0.20	50
φ40	40.0±1.0	0.50±0.20	19.80±1.0	0.80±0.20	50
φ50	50.0±1.0	0.50±0.20	24.80±1.0	0.80±0.20	50
φ60	60.0±1.0	0.60±0.20	29.80±1.0	0.80±0.20	25
φ70	70.0±1.0	0.65±0.20	34.00±2.0	1.00±0.20	25
φ80	80.0±1.0	0.65±0.20	39.00±2.0	1.00±0.20	25
φ90	90.0±1.0	0.65±0.20	44.00±2.0	1.00±0.20	25
φ100	100.0±2.0	0.65±0.20	49.00±2.0	1.00±0.20	25
φ120	120.0±2.0	0.70±0.20	59.00±2.0	1.20±0.20	25
φ150	150.0±2.0	0.70±0.20	74.00±2.0	1.20±0.20	25
φ180	180.0±2.0	0.70±0.20	88.00±2.0	1.20±0.20	25
