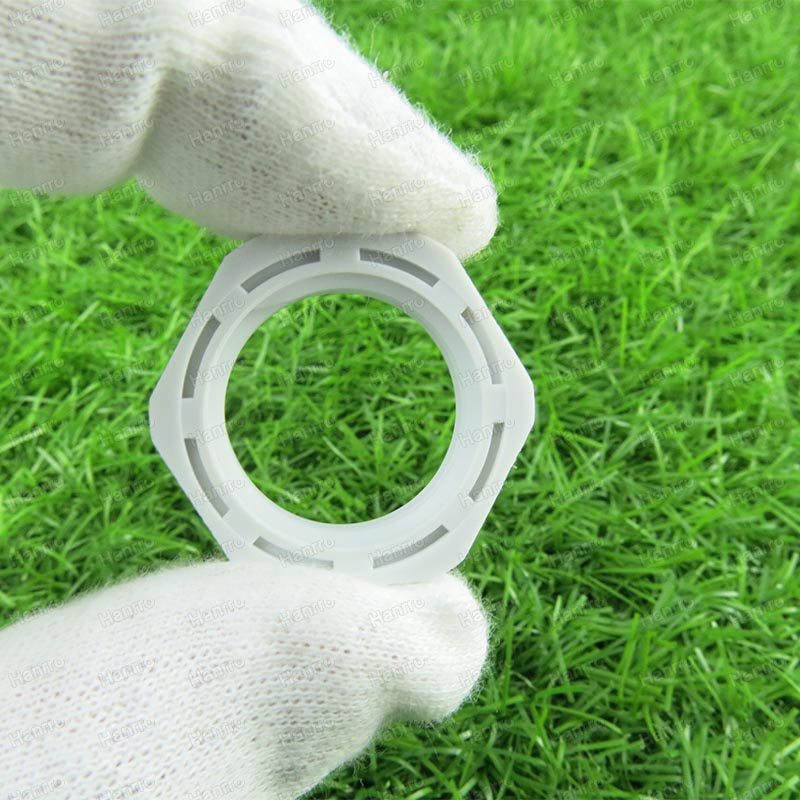

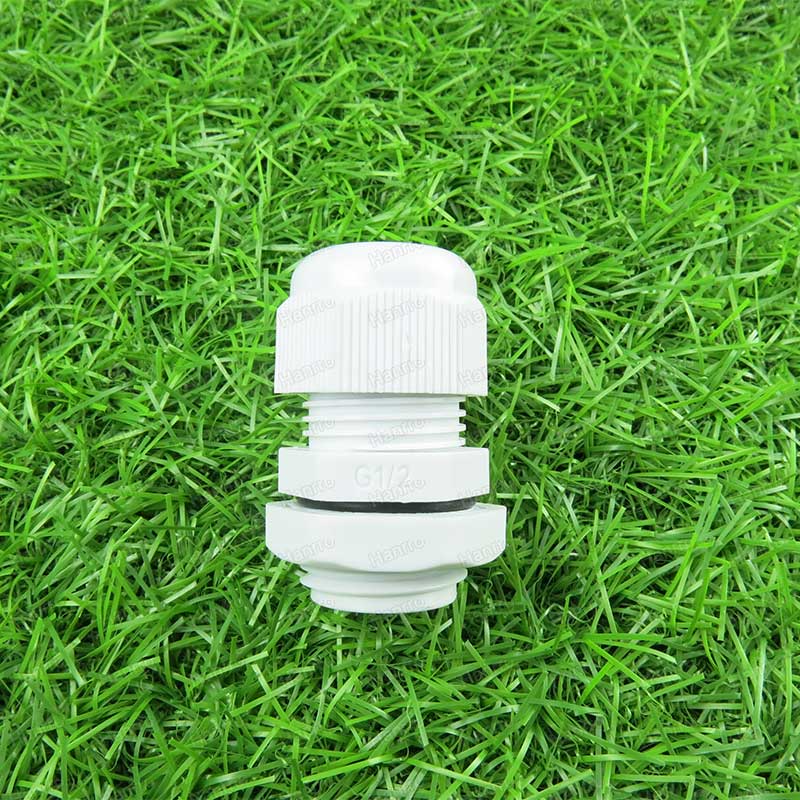

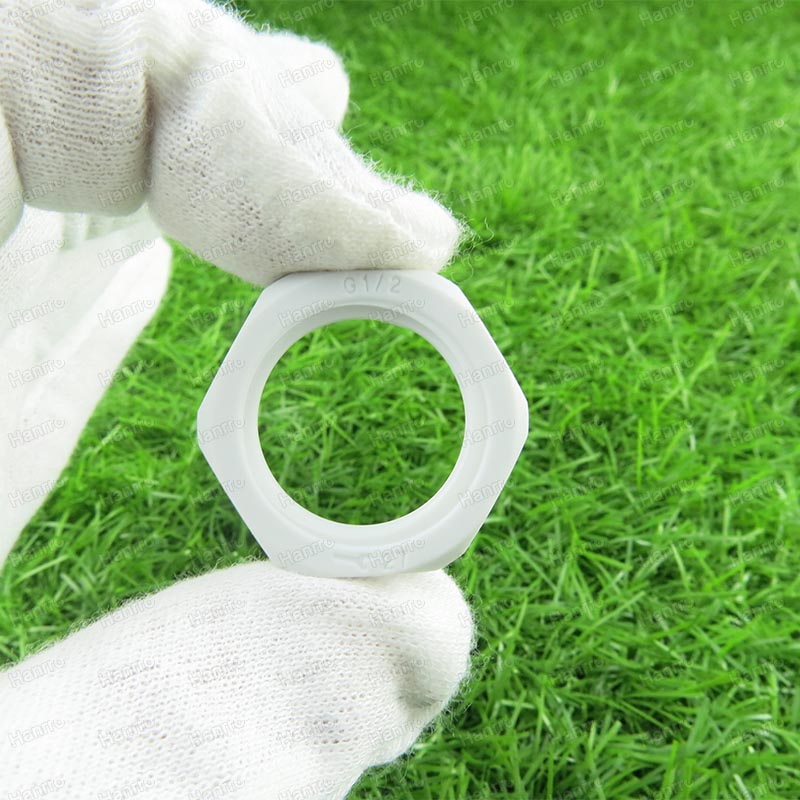

G Thread Cable Glands are easy to use and provide a good strain relief and water tight seal for round cables. The Cable Glands are rated up to IP 68-5 Bar (comparable to NEMA 6P) and feature a wide clamping range. A Locking Nut is supplied on all Metric threaded parts. Colours offered are Black, Gray, Red, White and Blue.
Product Name : G Thread Cable Glands
Material of Body : Halogen Free Nylon 6
Material of Sealing : Neoprene( EPDM can be done as customer requirement )
Color : Grey ( RAL7035) , Black ( RAL9005 ) , White , Red , Blue Etc
Operating Temperature : From -20℃ to + 80℃
Flammabilty : UL94V-2 (UL94V-0 can be done by Customers Special Requirement)
Protection Grade : IP68
Certification : CE
Testing Report : IP68 Testing Report, ROHS , REACH , PAHS , Etc
Package : 100 Pcs / Polybag
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

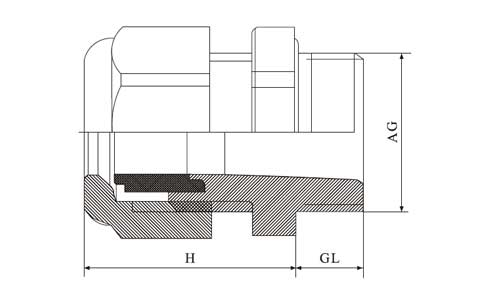

| Item No. | Cable Range(mm) | GL(mm) | H(mm) | Spanner Size(mm) | AG(mm) |
| G1/4" | 3–6.5 | 8 | 22 | 15/16 | 13.1 |
| G1/4" | 2–5 | 8 | 22 | 15/16 | 13.1 |
| G3/8" | 4–8 | 15 | 26 | 19 | 16.6 |
| G3/8" | 2–6 | 15 | 26 | 19 | 16.6 |
| G1/2" | 6–12 | 13 | 30 | 24 | 20.9 |
| G1/2" | 5–9 | 13 | 30 | 24 | 20.9 |
| G1/2" | 10–14 | 13 | 30 | 27 | 20.9 |
| G1/2" | 7–12 | 13 | 30 | 27 | 20.9 |
| G3/4" | 13–18 | 15 | 35 | 33 | 26.4 |
| G3/4" | 9–16 | 15 | 35 | 33 | 26.4 |
| G1" | 18–25 | 16 | 40 | 41 | 33.2 |
| G1" | 13–20 | 16 | 40 | 41 | 33.2 |
| G 1/4" | 18–25 | 18 | 40 | 42/46 | 41.9 |
| G 1/4" | 13–20 | 18 | 40 | 42/46 | 41.9 |
| G1 1/2" | 22-32 | 15 | 48 | 52/53 | 47.8 |
| G1 1/2" | 20-26 | 15 | 48 | 52/53 | 47.8 |
| G2" | 37–44 | 15 | 50 | 64 | 59.6 |
| G2" | 29–35 | 15 | 50 | 64 | 59.6 |
