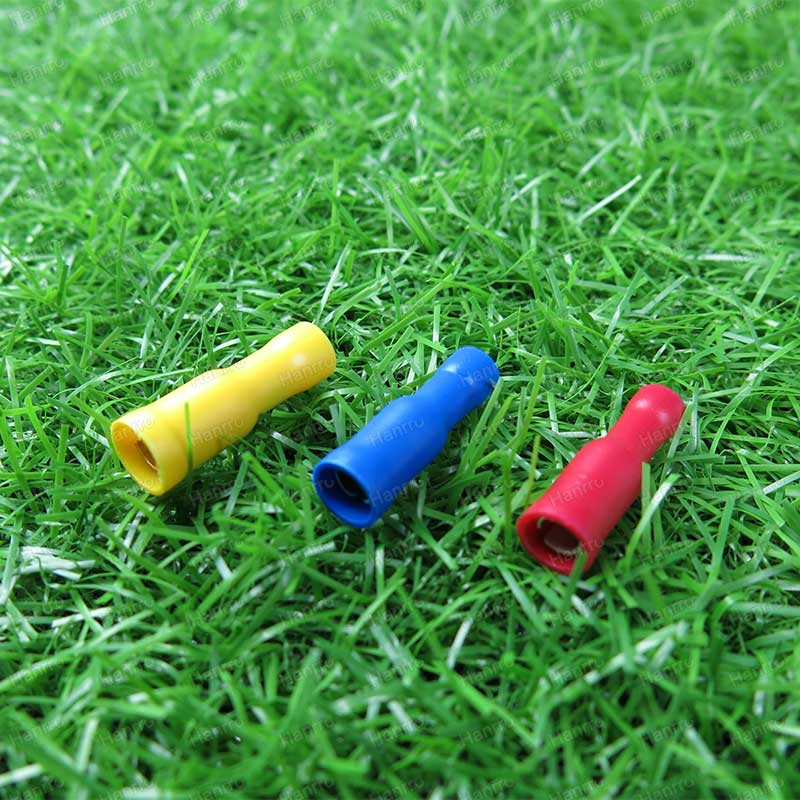

Female Bullet Terminals are a durable, simple wire connector. They are used in a variety of electrical applications. These connectors are round female and male pole-type connectors. They easily fit together with each other to create a wired connection. Female Bullet Terminals are designed to create a secure, high-quality electrical connection. The male terminal is rounded to connect with the hollow female bullet connector. It is important to note that the male and female must be of the same size.
Product Name : Vinyl Insulated Female Bullet Connectors-Double Crimp
Material of Body : Brass , Tin Plated
Material of Sleeve : Brass , Tin Plated
Material of Insulation : Vinyl
Color of Insulation : Red , Blue , Yellow
Testing Report : ROHS
Certification : CE
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

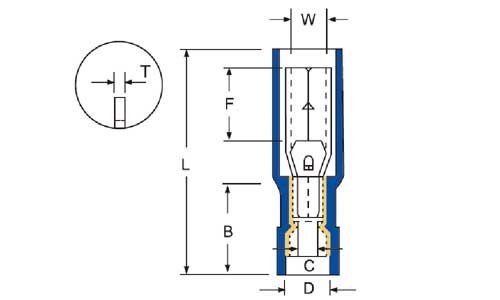

| Item No | Wire Size(mm2) | AWG | W | F | L | B | D | C | C | Color | |||
| FRD1-156 | 0.5-1.5 | 22-16 | 3.9 | 7.0 | 23.3 | 10.5 | 4.2 | 1.7 | 0.4 | ||||
| FRD2-156 | 1.5-2.5 | 16-14 | 3.9 | 7.0 | 23.5 | 10.5 | 5.1 | 2.3 | 0.4 | ||||
| FRD2-195 | 1.5-2.5 | 16-14 | 4.9 | 7.0 | 24.5 | 10.5 | 5.1 | 2.3 | 0.4 | ||||
| FRD5-195 | 4.0-6.0 | 12-10 | 4.9 | 7.0 | 25.1 | 12.5 | 7.2 | 3.4 | 0.45 | ||||
