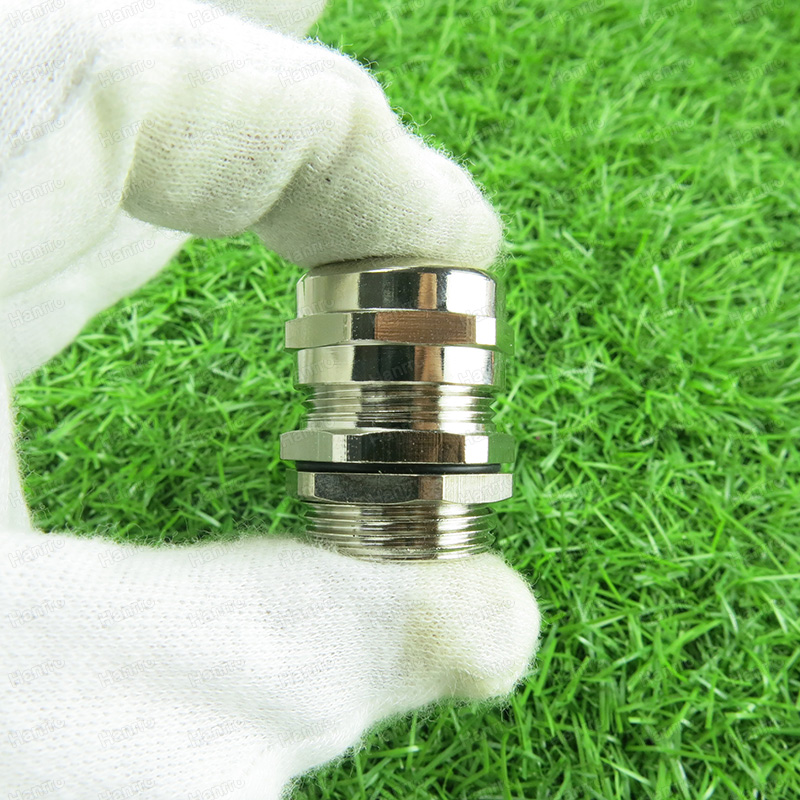

EMC Cable Glands with G Thread are used in applications which involve shielded cables for electromagnetic protection. These Glands help in maintaining electromagnetic integrity of the shielded cable by just tightening the gland.
It comply with highest demands as regards quality and safety. Two different EMC protection systems ensure long contact life and easy-to-assemble application. Different thread types, thread lengths, clamping ranges, temperature ranges, a variety of sealing compounds and a diversity of Approval Certifications come as standard with the Hanrro Series.
Clamping Insert : Nylon 66 V2 According to UL94 ( V0 can be done on request)
Material : Nickel Plated Brass
Material of O-Ring : NBR
NEMA Type Rating : 4 , 4X , 6
Protection Class : IP68-10 Bar , IP69K
Seal : NBR
Temperature Range : From -40℃ to + 100℃
If you need other material of sealing , such as Silicone , EPDM Etc
Please contact with us by email or call
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | Cable Range(mm) | GL(mm) | H(mm) | SW1(mm) | AG(mm) | Panel Mounting Hole(mm) |
| B-EMC-G1/4″ | 3-6.5 | 7 | 18 | 14/15 | 13.1 | 13.1-13.4 |
| B-EMC-G1/4″ | 4-8 | 7 | 20 | 17 | 13.1 | 13.1-13.4 |
| B-EMC-G3/8″ | 4-8 | 8 | 20 | 17/18 | 16.6 | 16.6-16.9 |
| B-EMC-G3/8″ | 5-10 | 8 | 21 | 20 | 16.6 | 16.6-16.9 |
| B-EMC-G1/2″ | 6-12 | 8 | 22 | 22 | 20.9 | 20.9-21.2 |
| B-EMC-G1/2″ | 10-14 | 8 | 23 | 24 | 20.9 | 20.9-21.2 |
| B-EMC-G3/4″ | 13-18 | 8 | 25 | 30 | 26.4 | 26.4-26.7 |
| B-EMC-G1″ | 18-25 | 10 | 30 | 40 | 33.2 | 33.2-33.5 |
| B-EMC-G1 1/4″ | 18-25 | 10 | 30 | 40/44 | 41.9 | 41.9-42.2 |
| B-EMC-G1 1/4″ | 22-32 | 10 | 35 | 50 | 41.9 | 41.9-42.2 |
| B-EMC-G1 1/2″ | 22-32 | 10 | 35 | 50 | 47.8 | 47.8-48.1 |
| B-EMC-G1 1/2″ | 32-38 | 10 | 38 | 57 | 47.8 | 47.8-48.1 |
| B-EMC-G2″ | 37-44 | 12 | 40 | 64 | 59.6 | 59.6-59.9 |
