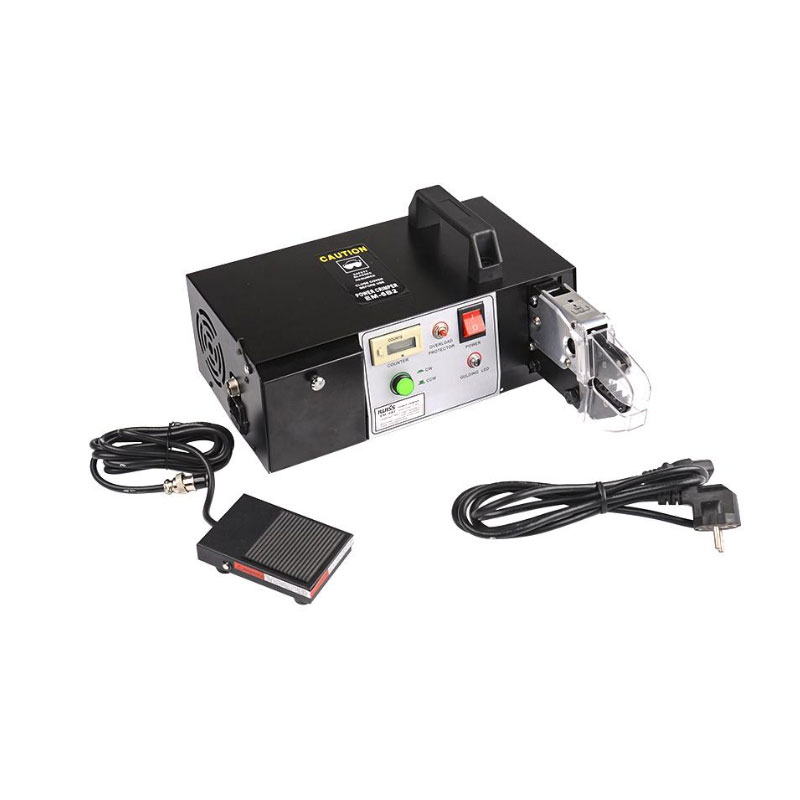

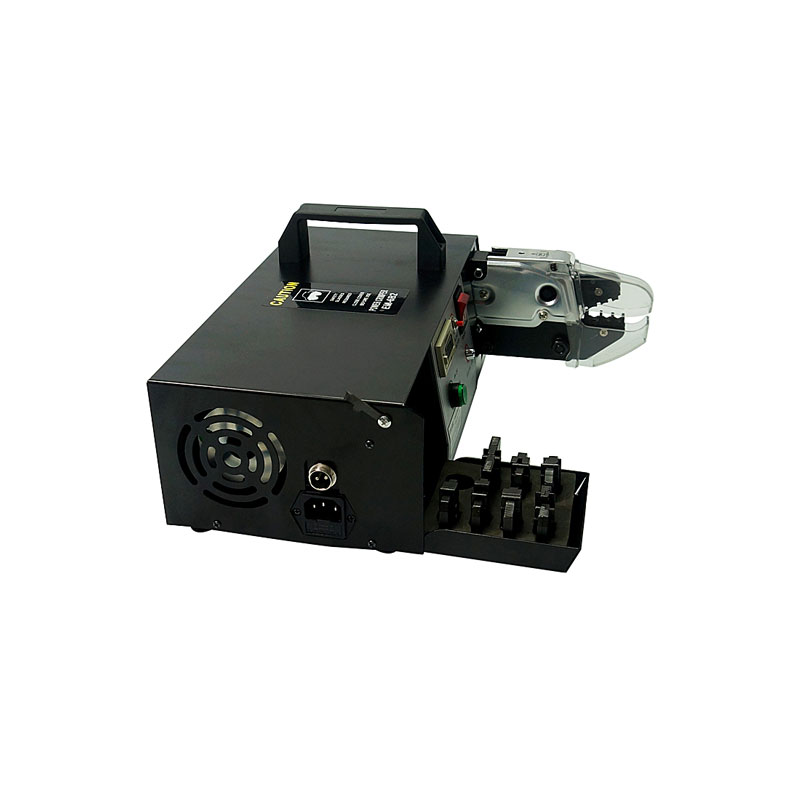

EM-6B2 Electrical Crimping Machine

EM-6B2 Electrical Crimping Machine are Powered by 110V or 220V . They are designed For Crimping Different Kinds of Wire Terminals and Connectors. The Main Terminals listed as following : Insulated Terminals , Non-Insulated Terminals , Wire Ferrules , Open Barrel Terminals Etc. With the help of Interchangeable Crimping Dies, It can be easy to crimping up to 35mm2.

Electrical Crimping Machine is driven by fixed Speed Motor so that it owns advantages of high efficiency and high quality not only in crimping force but crimping speed. It is good for terminal crimping in large or medium quantity

General Data :

Crimping Force : 12.7 KN

Voltage : 100-125V or 200-230V

Crimping Speed : 1.5S (60HZ) , 1,8S (50HZ)

Power Consuption : 90W

Q&A :

1 Question : How many types of the Crimping Machine For ?

Answer : Here is the List :

Insulated Terminals : 0.5-6mm2

Non-Insulated Terminals : 0.5-16mm2

Wire Ferrules : 0.5-35mm2

Open Barrel Terminals : 0.5-6mm2

Flag Terminals : 4.8 or 6.3

Besides , It can also crimp MC4 Solar Connectors , Coaxial Connectors Etc

With the help of Exchange Crimping Dies , It will be easy to do

Note : The Crimping Machine will come with 7 Different Crimping Dies Default

2 Question : How to choose the Voltage ?

Answer : Here is the Reference :

110V : Japan , USA , Canada , Taiwan

220V : China， UK , Germany , France , Australia , New Zealand , Spain , Italy

3 Question : How does EM-6B2 Crimping Machine Work ?

Answer : When You received the Goods , Please do as following :

A :Connect Foot Switch to Machine

B : Connect Power Cable to Machine

C : Choose the Suitable Crimping Dies

After that , Try to press Foot Swtich to test Whether It works or not

Any Questions ,Please contact with Hanrro Salers

tag： EM-6B2 Electrical Crimping Machine , EM-6B2 Electrical Crimping Tools
