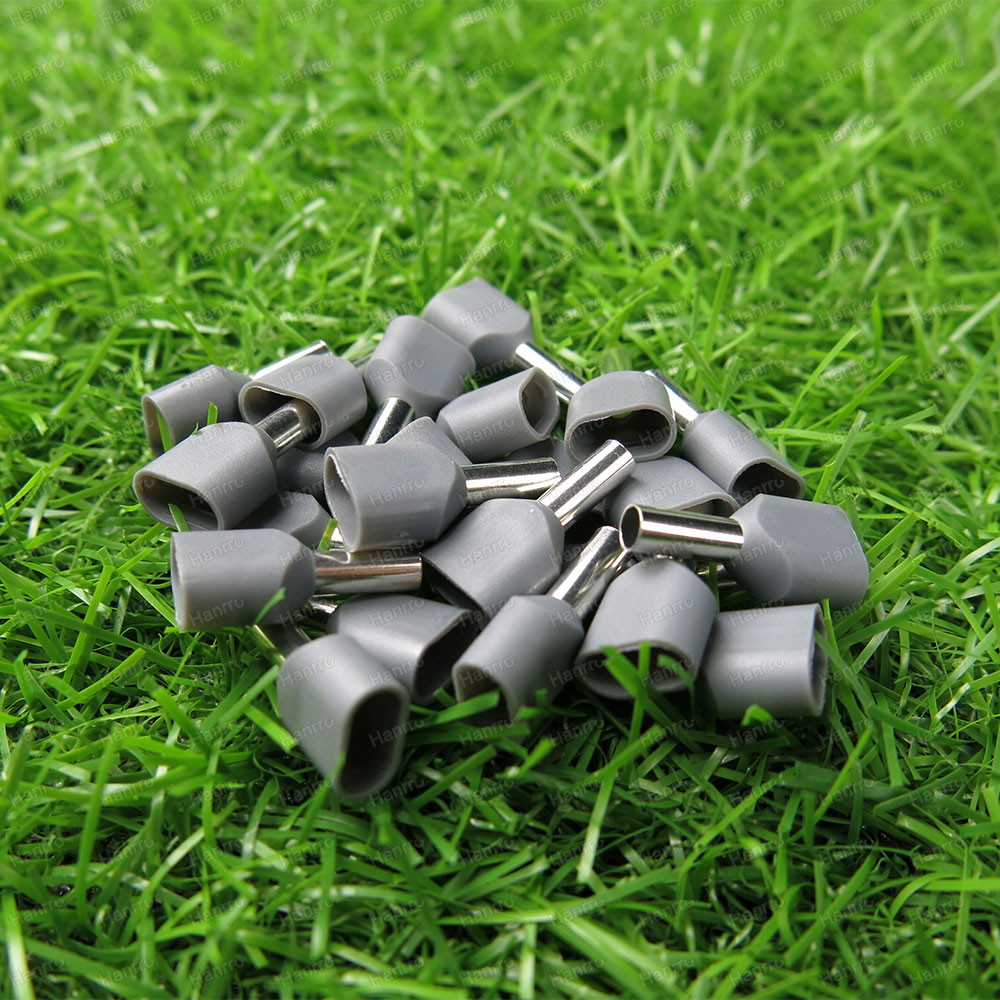

Nylon Dual Entry Cord End Terminals

Dual Entry Cord End Terminals are designed to accommodate
two cables terminating in the same sleeve, prior to fitting screw
type terminal blocks or connectors. The crimped on dual entry
cord end terminal then protects the exposed wire strands from
damage from the screw, which results in a stronger connection

To ensure efficient ferrule crimping always select the smallest ferrules diamater that fits the wire and use only professional crimping tools.

Dual Entry Cord End Terminals can also ensure that you get 100% conductivity when inserting your terminated wire into the connection you are working with. For example- a terminal block or trailer receptacle and plug with pressure plated setscrews.

tag： Dual Entry Cord End Terminals

Add to favorites

Favorite list is empty.

Clear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

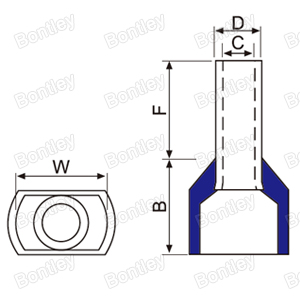

Item No	Wire Size(mm2)	AWG	W	F	B	D	C	French	Germany	DIN
											TENY0508	2 x 0.5	2 x 22	5.0	8.0	6.5	1.8	1.5	White	Orange	White
TENY0510	10.0
TENY7508	2 x 0.75	2 x 20	5.5	8.0	6.7	2.1	1.8	Blue	White	Grey
TENY7510				10.0
TENY1008	2 x 1.0	2 x 18	5.5	8.0	7.1	2.3	2.0	Red	Yellow	Red
TENY1010				10.0
TENY1508	2 x 1.5	2 x 16	6.4	8.0	7.5	2.6	2.3	Black	Red	Black
TENY1510				10.0
TENY1512				12.0
TENY2508	2 x 2.5	2 x 14	8.0	8.0	8.5	3.3	2.9	Grey	Blue	Blue
TENY2510				10.0
TENY2513				13.0
TENY4012	2 x 4	2 x 12	8.8	12.0	11.1	4.2	3.8	Orange	Grey	Grey
TENY6014	2 x 6	2 x 10	9.5	14.0	12.1	5.3	4.9	Green	Black	Yellow
TENY10-14	2 x 10	2 x 8	12.6	14.0	12.6	6.9	6.5	Brown	Ivory	Red
TENY16-14	2 x 16	2 x 6	19.0	14.0	17.3	8.7	8.3	Ivory	Green	Blue
