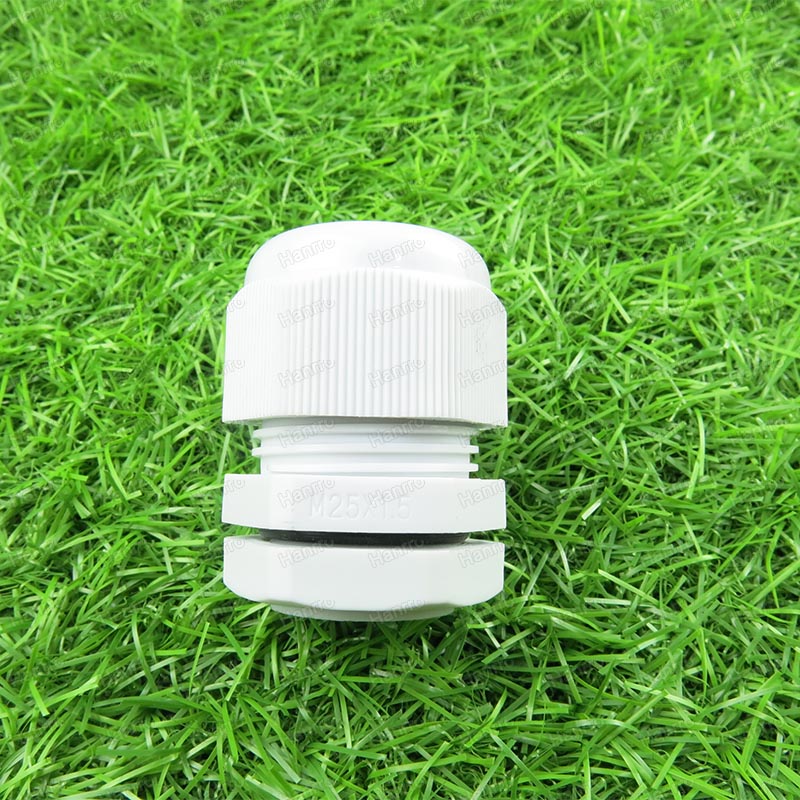

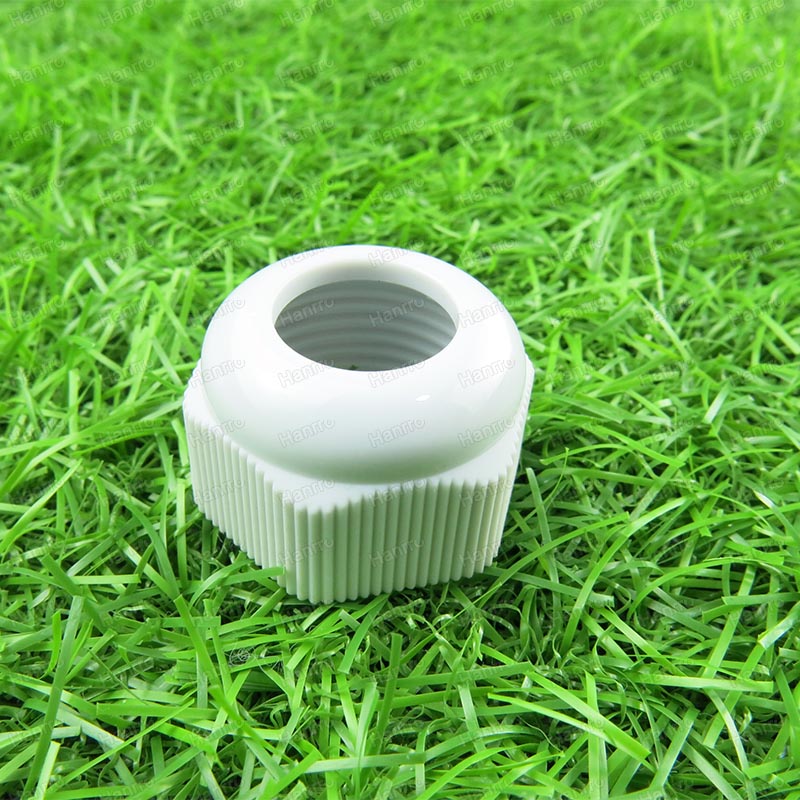

Dome Top Cable Glands and locknut designed with anti-vibration dome top caps.
It assists in areas where vibration could be a problem, although the cap when tightened is locked it can be un-screwed and re-tightened.

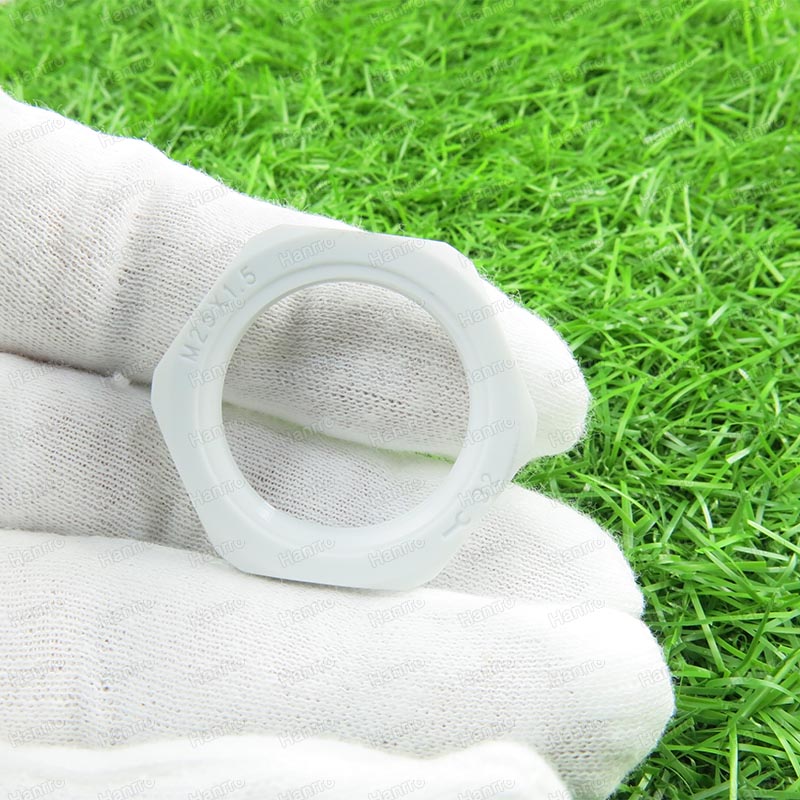

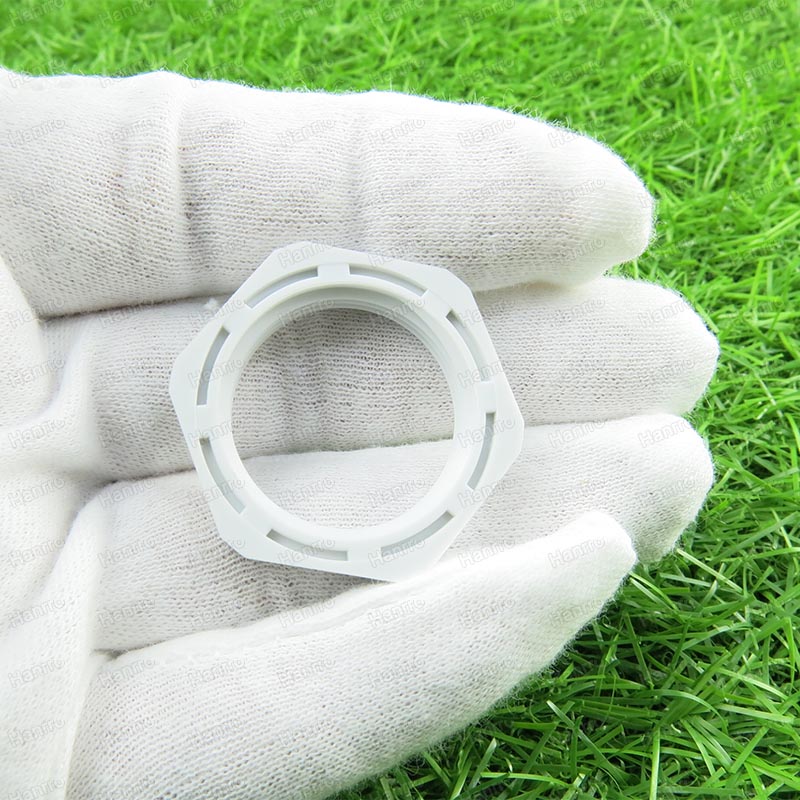

Dome Top Cable Glands are easy to use and provide a good strain relief and water tight seal for round cables. The Cable Glands are rated up to IP 68-5 Bar (comparable to NEMA 6P) and feature a wide clamping range. A Locking Nut is supplied on all Metric threaded parts. Colours offered are Black, Gray, Red, White and Blue.
Product Name : Dome Top Cable Glands
Material of Body : Halogen Free Nylon 6
Material of Sealing : Neoprene( EPDM can be done as customer requirement )
Color : Grey ( RAL7035) , Black ( RAL9005 ) , White , Red , Blue Etc
Operating Temperature : From -20℃ to + 80℃
Flammabilty : UL94V-2 (UL94V-0 can be done by Customers Special Requirement)
Protection Grade : IP68
Certification : CE
Testing Report : IP68 Testing Report, ROHS , REACH , PAHS , Etc
Package : 100 Pcs / Polybag
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

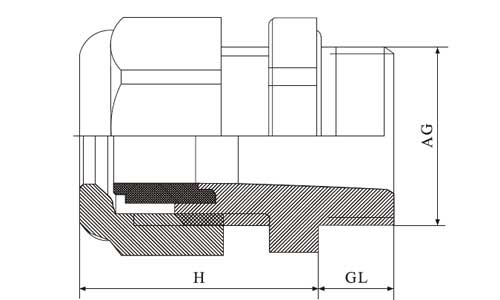

| Item No. | Cable Range(mm) | GL(mm) | H(mm) | Spanner Size(mm) | AG(mm) |
| DT-M16 x 1.5 | 5–10 | 8 | 27 | 22 | 16 |
| DT-M16 x 1.5 | 3–7 | 8 | 27 | 22 | 16 |
| DT-M20 x 1.5 | 10–14 | 10 | 30 | 27 | 20 |
| DT-M20 x 1.5 | 7–12 | 10 | 30 | 27 | 20 |
| DT-M32 x 1.5 | 18–25 | 12 | 40 | 41/42 | 32 |
| DT-M32 x 1.5 | 13–20 | 12 | 40 | 41/42 | 32 |
