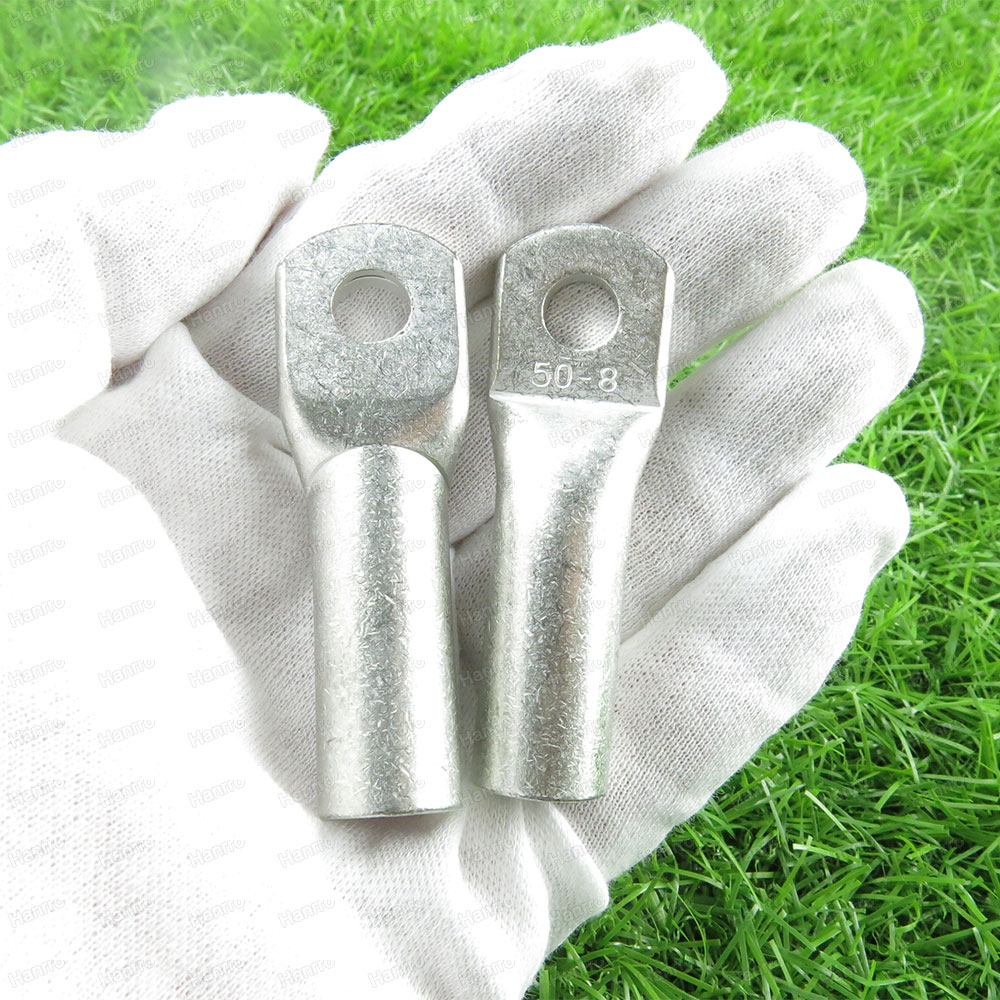

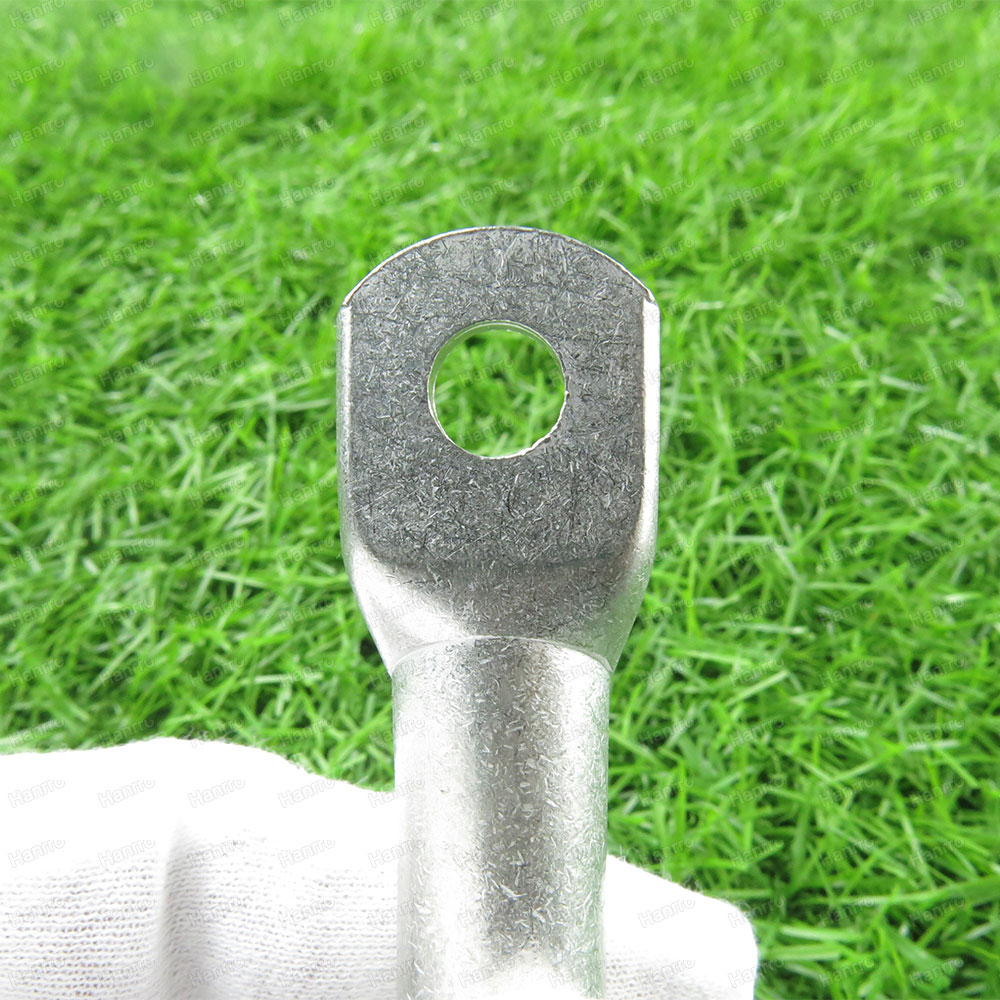

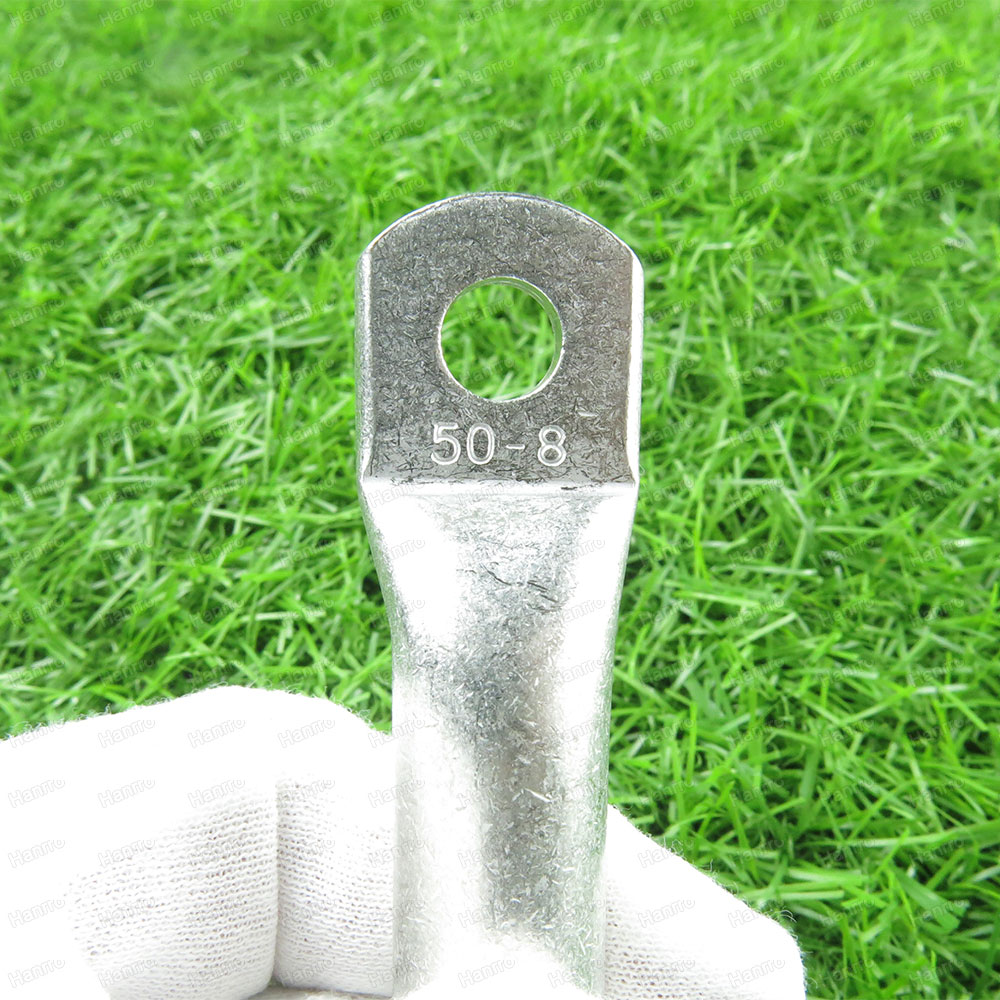

DIN46235 Cable Lugs also named by DIN 46235 Compression Lugs which is sutiable for electrical connection. DIN standards are manufactured and supplied by Hanrro with utmost quality and are tested for at National Testing House (NTH), Mumbai as per IEC 61238-1-2003 Standards
DIN Standard Lugs comprise of copper lugs of various dimensions and are made from the purest copper to ensure best electrical connectivity between the wires/cables and devices
We have gained the expertise in offering High Voltage DIN 46235 Cable Lugs Terminals 33 KV that complies with electrical specification and are in accordance with the general requirements. In the terminals, we use Compression joints that are as per BS 4579 part 11970 (1988). Our clients can avail these at competitive prices.
Features & Benefits
These terminals are designed for high voltage applications upto 33kv
They are manufactured from high purity copper tube & tin plated

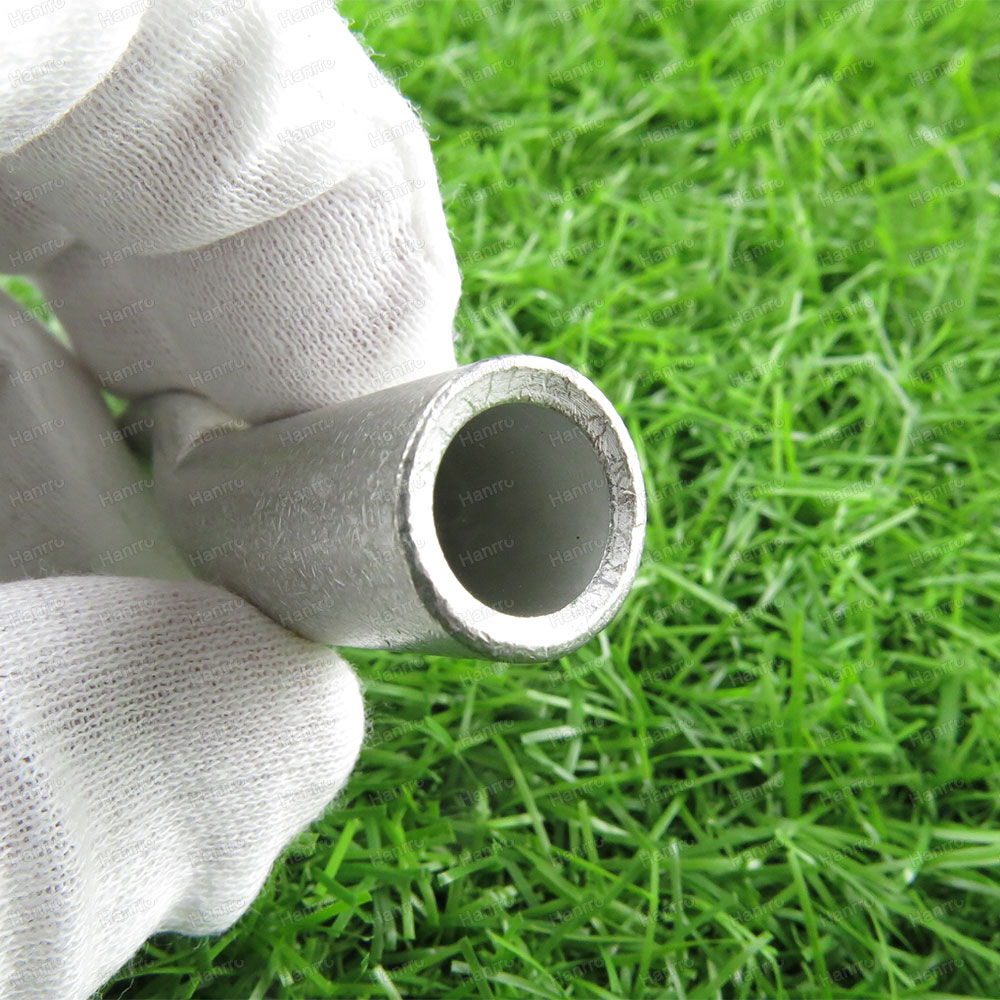

The extended barrel enhances both electrical and mechanical performance.
The absence of an inspection hole to prevent moisture entry into the crimped joint makes these terminals suitable for outdoor applications.
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

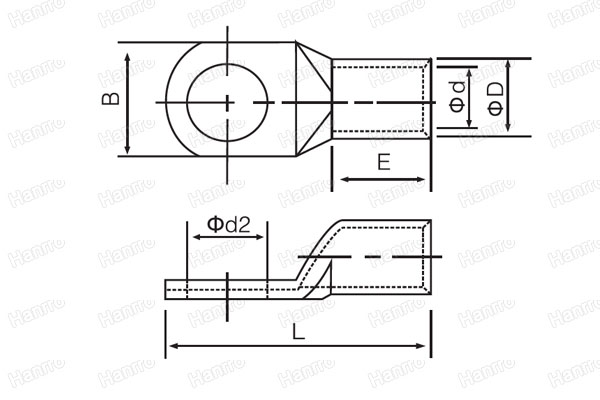

| Item No | Dimension | |||||
| Φ d2 | B | L | Φ D | Φ d | E | |
| DIN6-5 | 5.3 | 8.5 | 30.5 | 5.5 | 3.8 | 10 |
| DIN6-6 | 6.4 | 8.5 | 31.5 | |||
| DIN6-8 | 8.4 | 13 | 34 | |||
| DIN10-5 | 5.3 | 9 | 34 | 6 | 4.5 | 10 |
| DIN10-6 | 6.4 | 9 | 34.5 | |||
| DIN10-8 | 8.4 | 13 | 37 | |||
| DIN10-10 | 10.5 | 15 | 39 | |||
| DIN16-6 | 6.4 | 13 | 43.5 | 8.5 | 5.5 | 20 |
| DIN16-8 | 8.4 | 13 | 46 | |||
| DIN16-10 | 10.5 | 17 | 48 | |||
| DIN16-12 | 13 | 18 | 49 | |||
| DIN25-6 | 6.4 | 14 | 45.5 | 10 | 7 | 20 |
| DIN25-8 | 8.4 | 16 | 48 | |||
| DIN25-10 | 10.5 | 17 | 50 | |||
| DIN25-12 | 13 | 19 | 51 | |||
| DIN35-6 | 6.4 | 17 | 49.5 | 12.5 | 8.2 | 20 |
| DIN35-8 | 8.4 | 17 | 52 | |||
| DIN35-10 | 10.5 | 19 | 54 | |||
| DIN35-12 | 13 | 21 | 55 | |||
| DIN35-14 | 15 | 21 | 56.5 | |||
| DIN50-8 | 8.4 | 20 | 62 | 14.5 | 10 | 28 |
| DIN50-10 | 10.5 | 22 | 64 | |||
| DIN50-12 | 13 | 24 | 65 | |||
| DIN50-14 | 15 | 24 | 66.5 | |||
| DIN50-16 | 17 | 28 | 68 | |||
| DIN70-8 | 8.4 | 24 | 65 | 16.5 | 11.5 | 28 |
| DIN70-10 | 10.5 | 24 | 67 | |||
| DIN70-12 | 13 | 24 | 68 | |||
| DIN70-14 | 15 | 24 | 69.5 | |||
| DIN70-16 | 17 | 30 | 71 | |||
| DIN95-8 | 8.4 | 28 | 77 | 19 | 13.5 | 35 |
| DIN95-10 | 10.5 | 28 | 77 | |||
| DIN95-12 | 13 | 28 | 78 | |||
| DIN95-14 | 15 | 28 | 79.5 | |||
| DIN95-16 | 17 | 32 | 81 | |||
| DIN120-10 | 10.5 | 32 | 85 | 21 | 15.5 | 35 |
| DIN120-12 | 13 | 32 | 86 | |||
| DIN120-14 | 15 | 32 | 88 | |||
| DIN120-16 | 17 | 32 | 89 | |||
| DIN120-20 | 21 | 38 | 91 | |||
| DIN150-10 | 10.5 | 34 | 93 | 23.5 | 17 | 35 |
| DIN150-12 | 13 | 34 | 94 | |||
| DIN150-14 | 15 | 34 | 97 | |||
| DIN150-16 | 17 | 34 | 97 | |||
| DIN150-20 | 21 | 40 | 99 | |||
| DIN185-10 | 10.5 | 37 | 97 | 25.5 | 19 | 40 |
| DIN185-12 | 13 | 37 | 98 | |||
| DIN185-14 | 15 | 37 | 101 | |||
| DIN185-16 | 17 | 37 | 101 | |||
| DIN185-20 | 21 | 40 | 103 | |||
| DIN240-12 | 13 | 42 | 108 | 29 | 21.5 | 40 |
| DIN240-14 | 15 | 42 | 111 | |||
| DIN240-16 | 17 | 42 | 111 | |||
| DIN240-20 | 21 | 45 | 113 | |||
| DIN300-12 | 13 | 46 | 119 | 32 | 24.5 | 50 |
| DIN300-14 | 15 | 46 | 119 | |||
| DIN300-16 | 17 | 46 | 119 | |||
| DIN300-20 | 21 | 46 | 122 | |||
| DIN400-14 | 15 | 55 | 140 | 38.5 | 27.5 | 70 |
| DIN400-16 | 17 | 55 | 140 | |||
| DIN400-20 | 21 | 55 | 140 | |||
| DIN500-16 | 17 | 60 | 150 | 42 | 31 | 70 |
| DIN500-20 | 21 | 60 | 150 | |||
| DIN625-16 | 17 | 64 | 160 | 44 | 34.5 | 80 |
| DIN625-20 | 21 | 64 | 160 | |||
| DIN800-16 | 17 | 75 | 195 | 52 | 40 | 100 |
| DIN800-20 | 21 | 75 | 195 | |||
| DIN1000-16 | 17 | 85 | 195 | 58 | 44 | 100 |
| DIN1000-20 | 21 | 85 | 195 | |||
