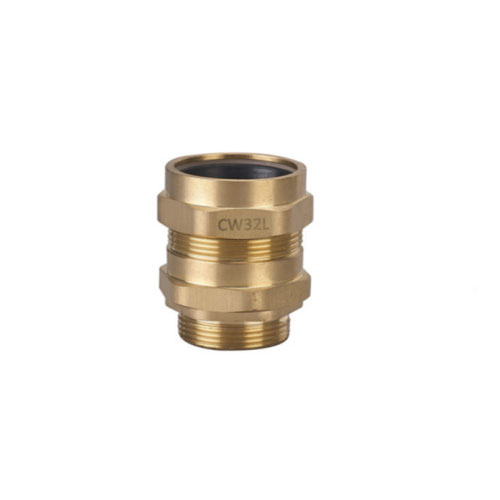

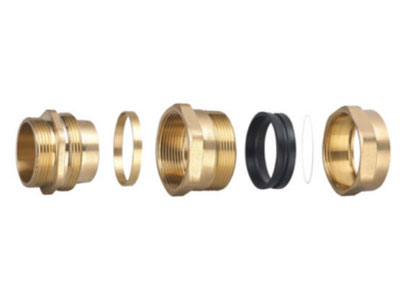

CW Cable Glands are designed for outdoor use with an IP66 rating. Brass cable gland kits for use with steel wire armoured cable (SWA cables). Available in a selection of gland sizes from 20mmS to 75mm.
Standard : BS6121
Protection Class : IP66 &IP67
Temperature : -20℃ to + 80℃
Thread : Metric , NPT , BSP and PG
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Thread | Thread size “C” | Minimum length ofthread”D” | Cable Range Max”A”(mm) | Cable Range Max”B”(mm) |
| JX-CW20S | 20 | 10 | 11.8 | 17.8 |
| JX-CW20L | 20 | 10 | 14 | 20.8 |
| JX-CW25S | 25 | 10 | 18 | 24 |
| JX-CW25L | 25 | 10 | 20.3 | 27.4 |
| JX-CW32S | 32 | 10 | 24.5 | 31 |
| JX-CW32L | 32 | 10 | 26.5 | 34.2 |
| JX-CW40S | 40 | 13 | 30.4 | 38.5 |
| JX-CW40L | 40 | 13 | 33.2 | 41 |
| JX-CW50S | 50 | 13 | 40 | 47 |
| JX-CW50L | 50 | 13 | 44 | 53.5 |
| JX-CW63S | 63 | 14 | 50 | 59 |
| JX-CW63L | 63 | 13.5 | 56 | 66 |
| JX-CW75S | 75 | 15 | 63.5 | 73 |
| JX-CW75L | 75 | 15 | 69 | 73 |
