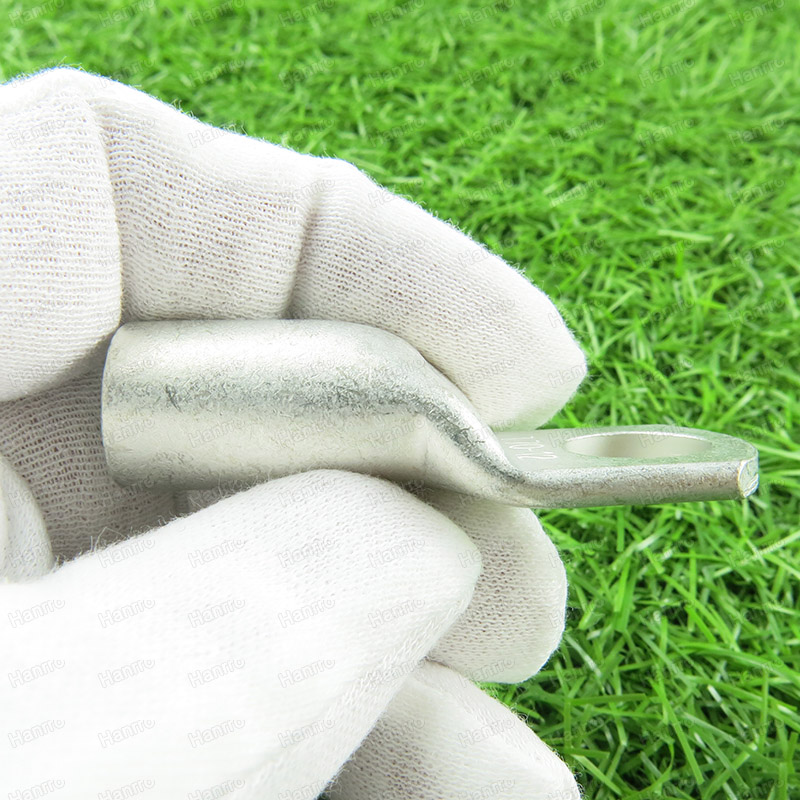

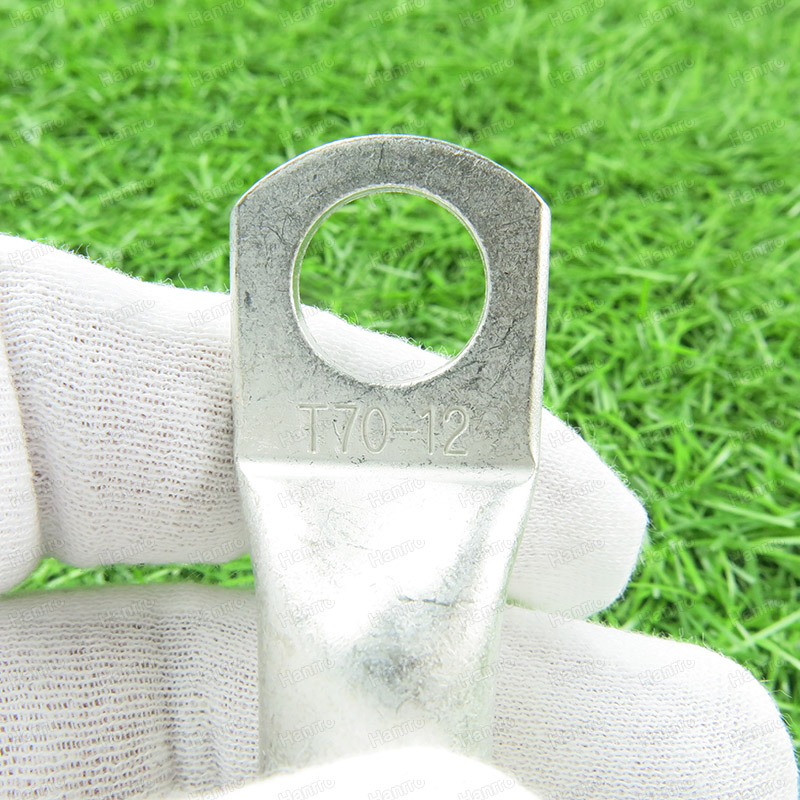

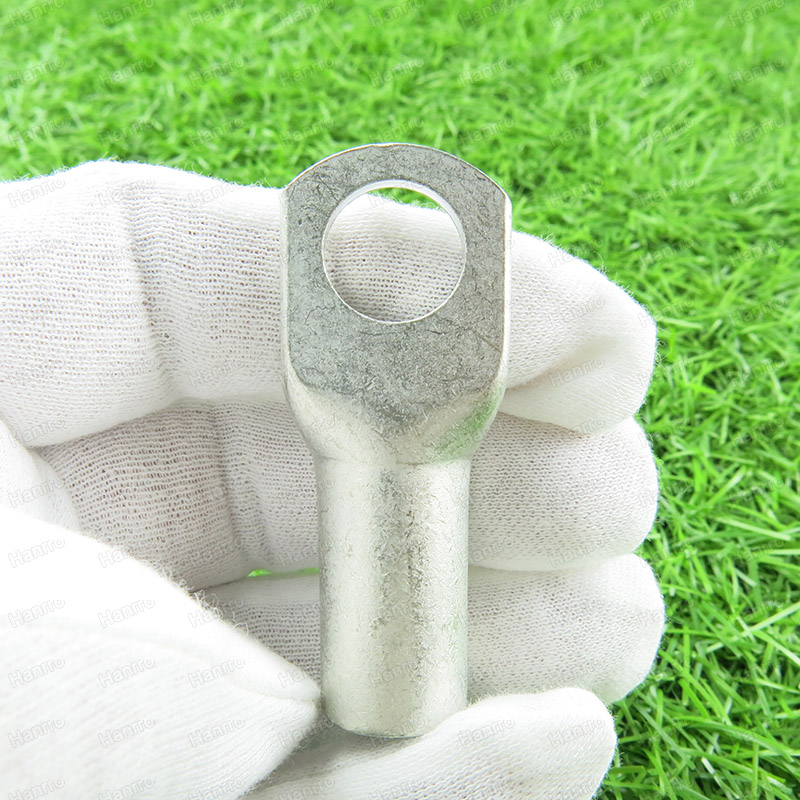

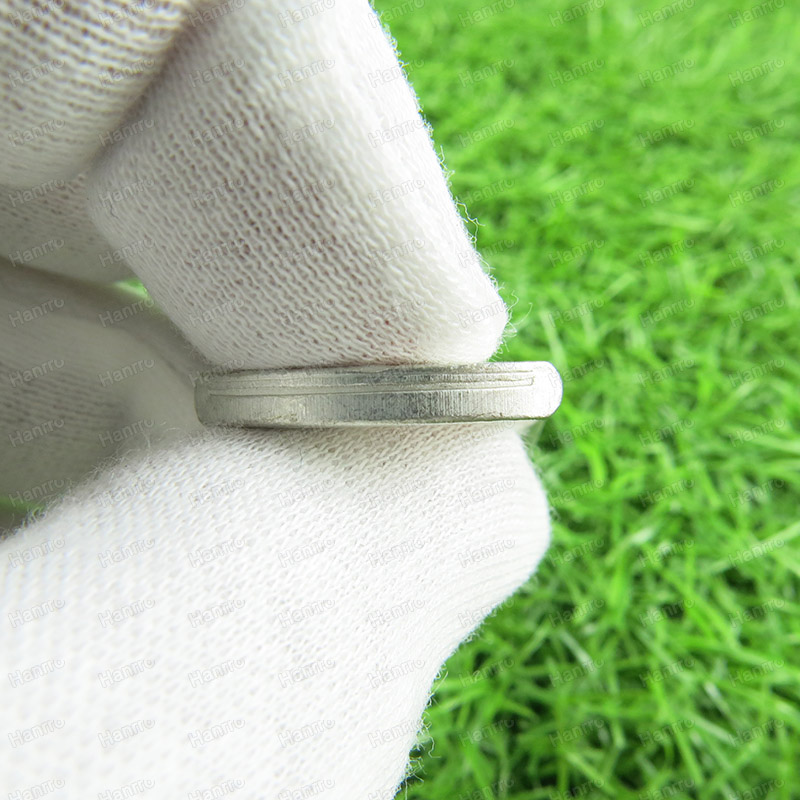

Copper Tube Terminals without Inspection Hole

Copper Tube Terminals also referred to as Copper Tube Lugs which are electrical supplies utilized to securely connect or terminate cables to electrical devices, power or control panels, junction boxes, equipments and machineries. Copper Tube Terminals without Inspection Hole are often used to join power cables together as well. Cable Lugs intended to ensure the safety of both the appliances and human beings. These lugs can be uniquely engineered according to the client’s preferences and requirements.

Features : For multi-stranded round conductors

For pre-rounded multi-stranded sector shaped conductors

Ideal cable lugs for control cabinet construction

Tin Plated to inhibit corrosion

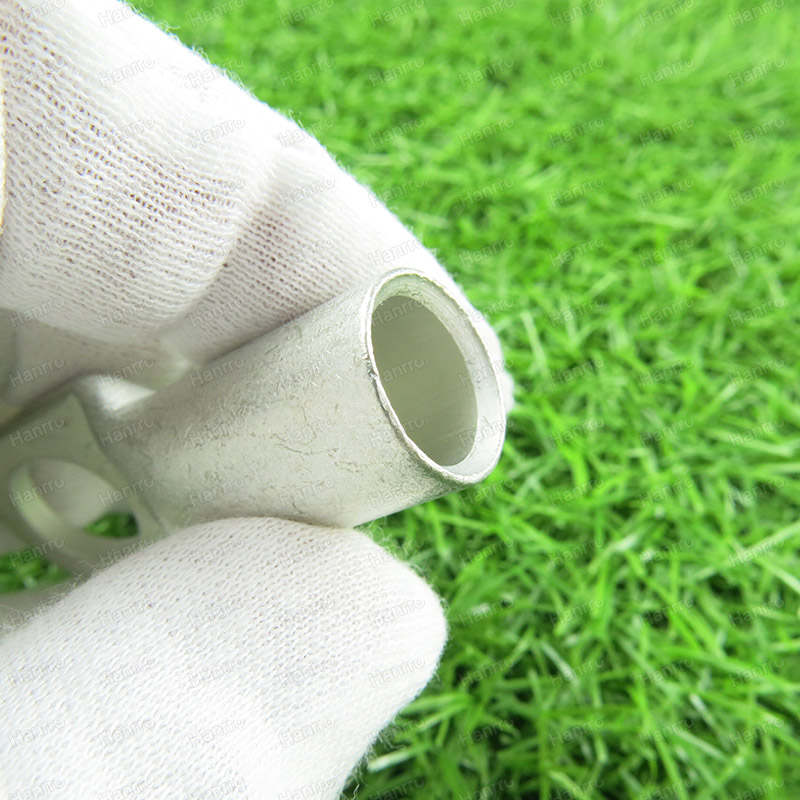

Enclosed barrel prevents corrosive material from entering barrel when

Used in harsh envirnonment.

tag： ,

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

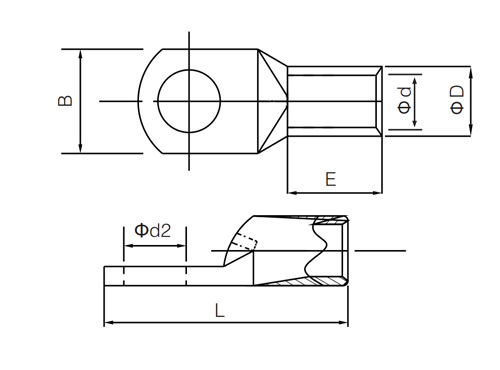

Copper Tube Terminals-Drawing

Item No Dimension
Φ d2 B L Φ D Φ d E
TWH1.5-4 4.3 8.7 19 4 2.4 7
TWH1.5-5 5.3 8.7 19
TWH1.5-6 6.4 10 20
TWH2.5-4 4.3 8.7 19 4.3 2.7 7
TWH2.5-5 5.3 8.7 19
TWH2.5-6 6.4 10.3 21
TWH2.5-8 8.3 12 23
TWH4-4 4.3 8.7 21.5 4.8 3.1 9.5
TWH4-5 5.3 8.7 21.5
TWH4-6 6.4 10.3 23.5
TWH4-8 8.3 12.5 28.5
TWH6-4 4.3 10.3 26 5.5 3.8 10
TWH6-5 5.3 10.3 26
TWH6-6 6.4 10.3 26
TWH6-8 8.3 13.9 29
TWH6-10 10.5 13.9 29
TWH10-4 4.3 11.9 27.5 6.9 4.7 11.5
TWH10-5 5.3 11.9 27.5
TWH10-6 6.4 11.9 27.5
TWH10-8 8.3 13.5 30.5
TWH10-10 10.5 15 30.5
TWH10-12 13.2 17 34
TWH16-5 5.3 12 27.5 7.8 5.6 12
TWH16-6 6.4 12 27.5
TWH16-8 8.3 13.5 31
TWH16-10 10.5 16 32
TWH16-12 13.2 17 37.5
TWH25-6 6.4 14 34 9.5 7.1 13.5
TWH25-8 8.3 14 34
TWH25-10 10.5 16 37
TWH25-12 13.2 18 40
TWH35-6 6.4 16.5 39 11 8.2 16
TWH35-8 8.3 16.5 39
TWH35-10 10.5 16.5 43
TWH35-12 13.2 18 43
TWH35-14 14.5 20 48
TWH35-16 16.5 23 48
TWH40-6 6.4 17 44 11.2 9 17
TWH40-8 8.3 17 44
TWH40-10 10.5 17 44
TWH40-12 13.2 18 44
TWH50-6 6.4 18 45 12.5 9.5 20
TWH50-8 8.3 18 45
TWH50-10 10.5 18 49
TWH50-12 13.2 18 49
TWH50-14 14.5 22 54
TWH50-16 16.5 25 62 14 9.5 23
TWH50-20 21 30 68
TWH70-8 8.3 22 47.6 15 11.5 20
TWH70-10 10.5 22 51.6
TWH70-12 13.2 22 51.6
TWH70-14 14.5 22 62.6
TWH70-16 16.5 22 62.6
TWH70-20 21 30 62.6
TWH95-8 8.3 25 55.8 17 13.5 22
TWH95-10 13.5 25 55.8
TWH95-12 13.2 25 55.8
TWH95-14 14.5 25 66.8
TWH95-16 16.5 25 66.8
TWH95-20 21 28 66.8
TWH120-10 10.5 29 71.5 20 15.6 27
TWH120-12 13.2 29 71.5
TWH120-14 14.5 29 71.5
TWH120-16 16.5 29 71.5
TWH120-20 21 29 71.5
TWH150-10 10.5 30.6 78 21 16.5 32
TWH150-12 13.2 30.6 78
TWH150-14 14.5 30.6 78
TWH150-16 16.5 30.6 78
TWH150-20 21 30.6 78
TWH185-10 10.5 34 84 23.6 18.4 34
TWH185-12 13.2 34 84
TWH185-14 14.5 34 84
TWH185-16 16.5 34 84
TWH185-20 21 34 84
TWH240-10 10.5 38.5 90 26.4 21.2 37
TWH240-12 13.2 38.5 90
TWH240-14 14.5 38.5 90
TWH240-16 16.5 38.5 90
TWH240-20 21 38.5 90
TWH300-10 10.5 42 96 28.6 23.4 40
TWH300-12 13.2 42 96
TWH300-14 14.5 42 96
TWH300-16 16.5 42 96
TWH300-20 21 42 96
TWH400-10 10.5 48 104.7 32.8 26.8 37
TWH400-12 13.2 48 104.7
TWH400-14 14.5 48 104.7
TWH400-16 16.5 48 104.7
TWH400-20 21 48 104.7
TWH500-10 10.5 55 115.5 38.4 29.8 46.5
TWH500-12 13.2 55 115.5
TWH500-14 14.5 55 115.5
TWH500-16 16.5 55 115.5
TWH500-20 21 55 115.5
TWH630-10 10.5 64 133.1 44.7 34.5 50
TWH630-12 13.2 64 133.1
TWH630-14 14.5 64 133.1
TWH630-16 16.5 64 133.1
TWH630-20 21 64 133.1
