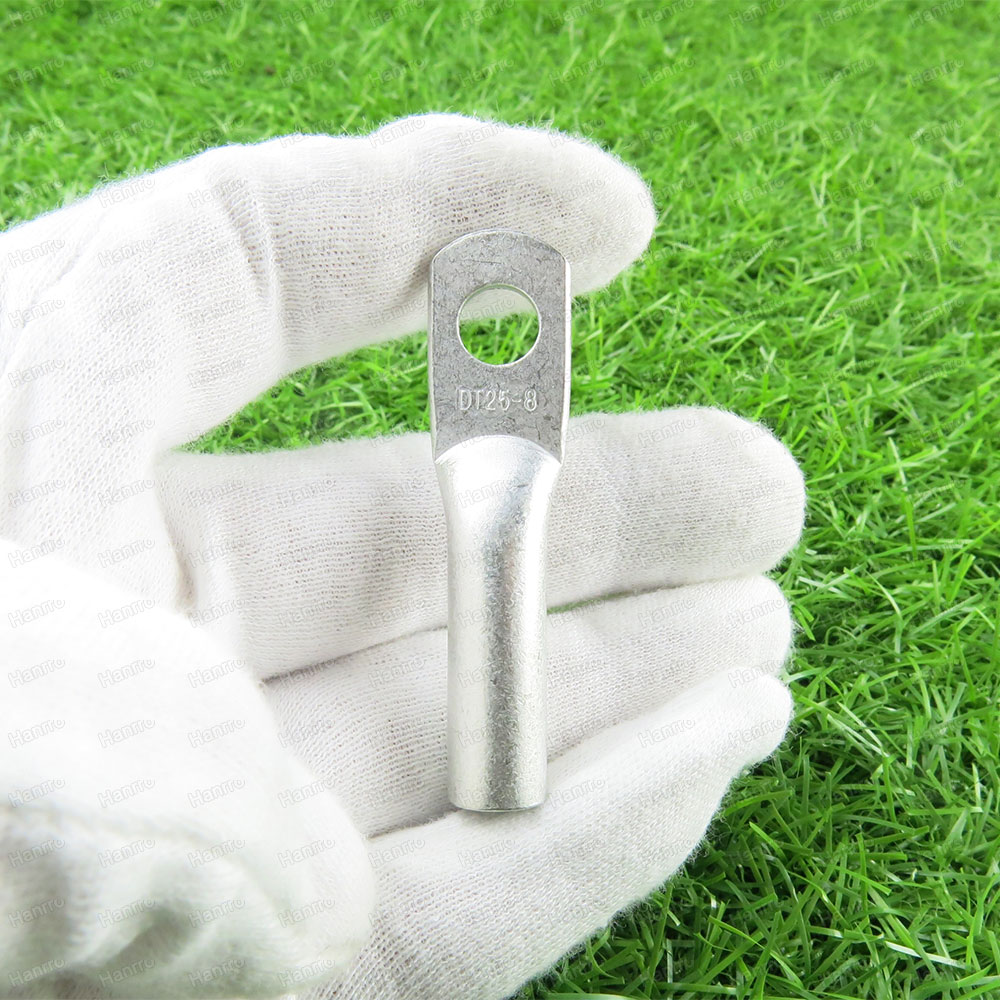

Copper Tube Terminals with Long Barrel

Copper Tube Terminals with Long Barrel provide permanent terminations for a wariety of power and grounding application, with innocation , highest reliableility and lowest installaed cost. Hanrro offer the first and only copper compression lugs to meet Network Equipment-Building Systems ( NEBS) Level 3 requirement as tested by Telcordia Technologies.

Features & Benefits :

Long Barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance

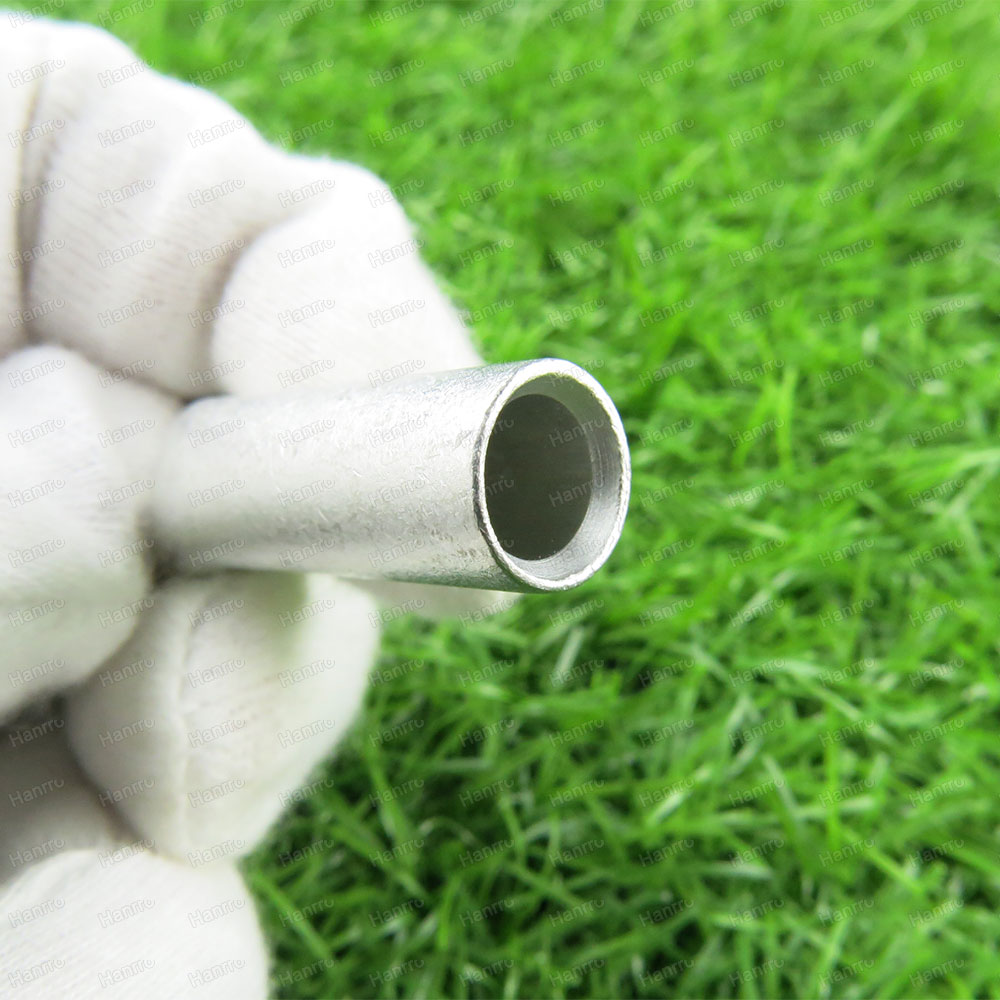

Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments

Tin-Plated to inhibit corrosion

Lugs available in 90 & 45 degree bent tongue, please refer to www.hanrro.com

UL Listed and CSA Certified to 35 KV and Temperature to 90℃

tag： Copper Tube Terminals

Add to favorites

Favorite list is empty.

Clear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

Item No	Dimension
Item No	Φ d2	B	L	Φ D	Φ d	E
DT1.5-5	5.2	8	23	4	2.2	10
DT2.5-4	4.2	8	27	4.5	2.9	13
DT2.5-5	5.2	8	27
DT2.5-6	6.4	10	27
DT4-5	5.2	10	28	5.2	3.6
DT4-6	6.4	10	28	5.2	3.6
DT6-5	5.2	10	35	6	4.2	17
DT6-6	6.4	10	35
DT6-8	8.4	12	35
DT10-6	6.4	12.4	36	7	5	17
DT10-8	8.4	12.4	36	7	5	17
DT16-6	6.4	14	58	9	6	32
DT16-8	8.4	14	58	9	6	32
DT25-6	6.4	15	58	10	7	32

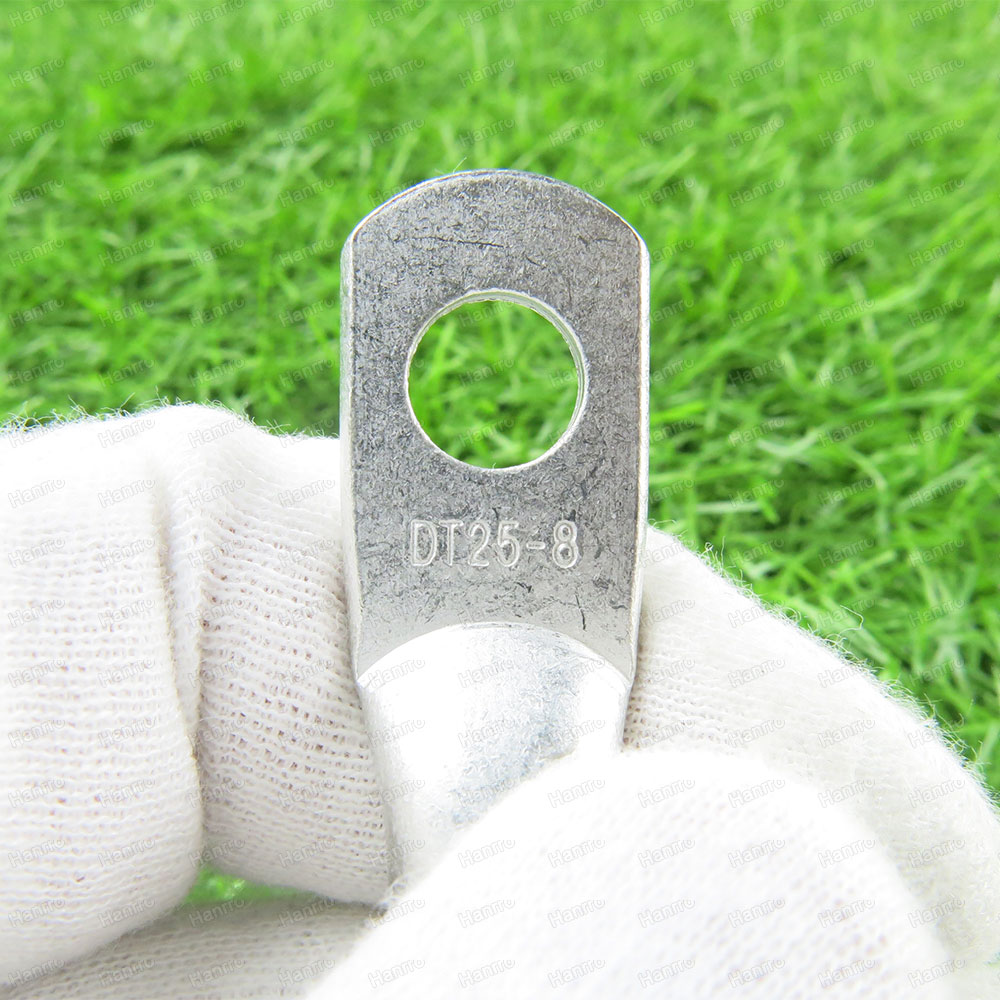

DT25-8	8.4	15	58
DT25-10	10.5	17.5	58
DT35-6	6.4	17.1	62	12	9	36
DT35-8	8.4	17.1	62
DT35-10	10.5	18	62
DT50-8	8.4	20	72	14	10	40
DT50-10	10.5	20	72	14	10	40
DT70-8	8.4	23	76	16	12	42
DT70-10	10.5	23	76
DT70-12	13	23	76
DT95-10	10.5	26	84	18	14	44
DT95-12	13	26	84	18	14	44
DT120-12	13	30	90	21	16	46
DT120-16	17	30	90	21	16	46
DT150-12	13	33	98	23	17	50
DT150-16	17	33	98	23	17	50
DT185-12	13	36	101	25	19	52
DT185-16	17	36	101	25	19	52
DT240-12	13	40	110	28	21.6	52
DT240-16	17	40	112
DT240-20	21	40	112
DT300-16	17	45	116	31	24	58
DT300-20	21	45	120	31	24	58
DT400-16	17	52	126	36.5	28.5	66
DT400-20	21	52	131	36.5	28.5	66
DT500-16	17	56	141	39	30.5	70
DT500-20	21	56	146	39	30.5	70
DT630-20	21	65	168	45	35.5	80
