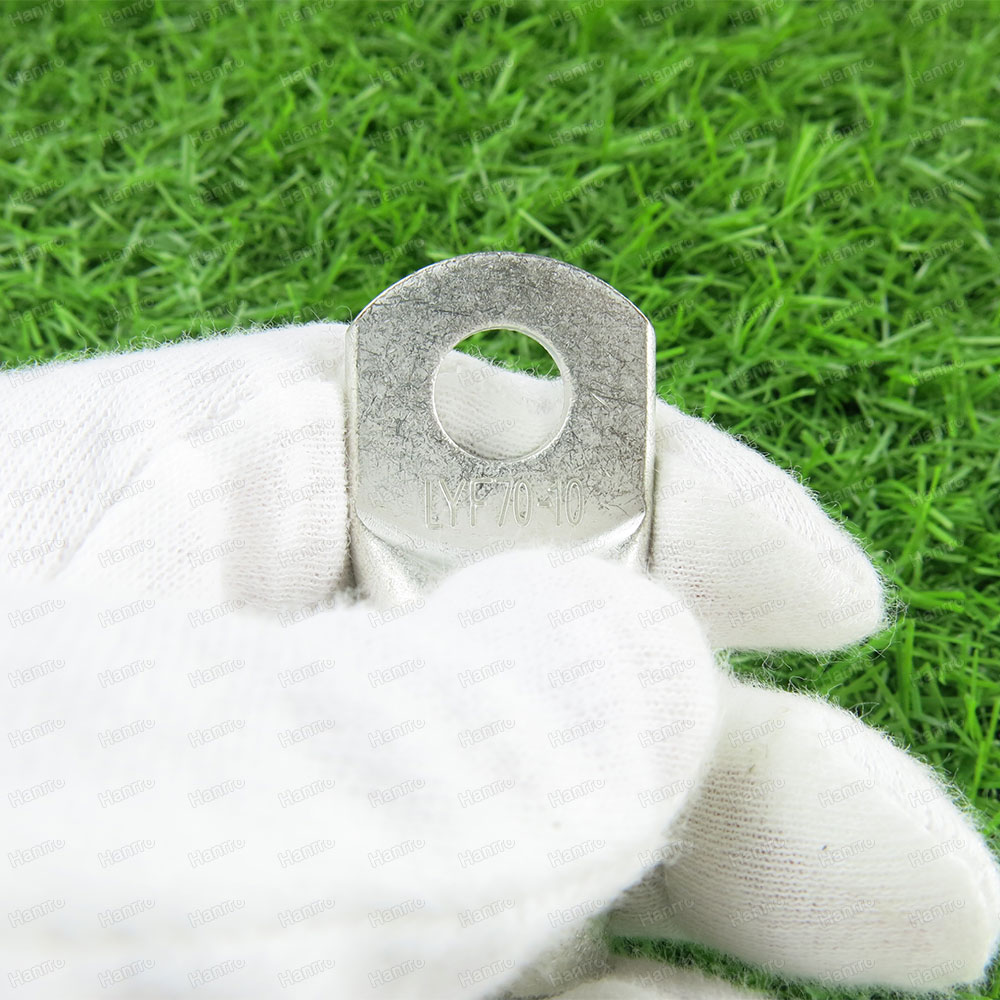

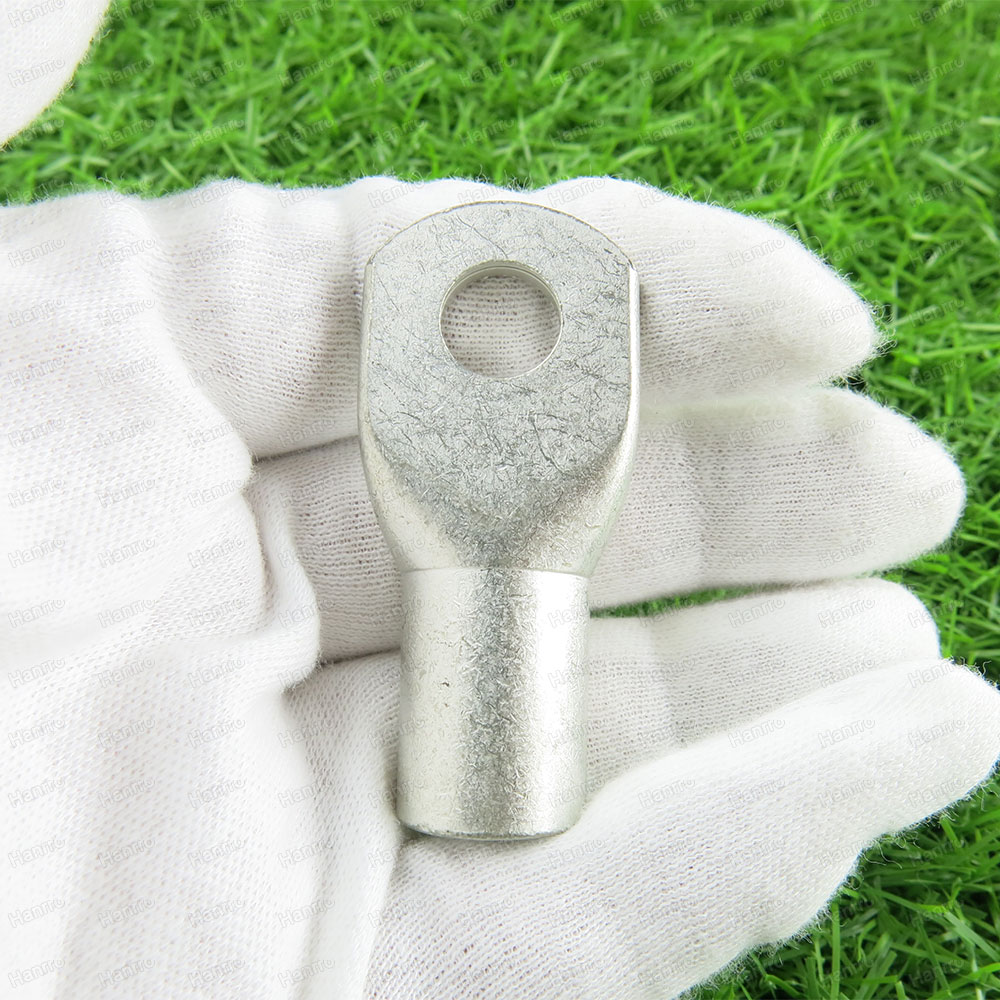

Copper Cable Lugs are connecting devices used primarily for
terminating and joining cable and wire conductors in electrical
installations and equipment.

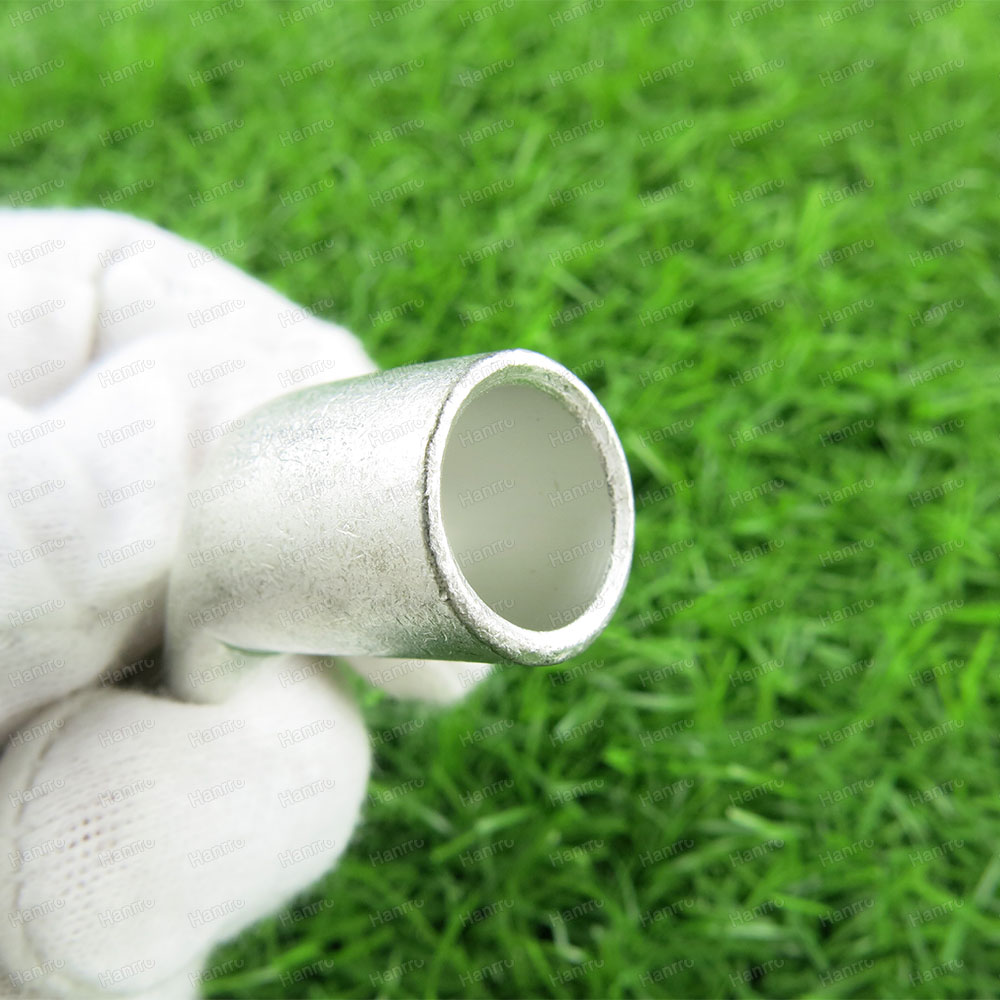

In general, Copper Cable Lugs are fixed to the cables and wires by
inserting the conductor/s into the “barrel” (tube) of the device and
then “crimping” (squeezing) the “barrel” onto the conductor/s to
form a secure mechanical and electrical joint.
The devices are manufactured in a number of different designs and
made from high conductivity copper (tin plated) to suit
various cable and wire types and specific installation requirements.
Careful consideration must be given to selecting the right product
for an application and the following information will assist in making
the correct choice.
Features & Benefits

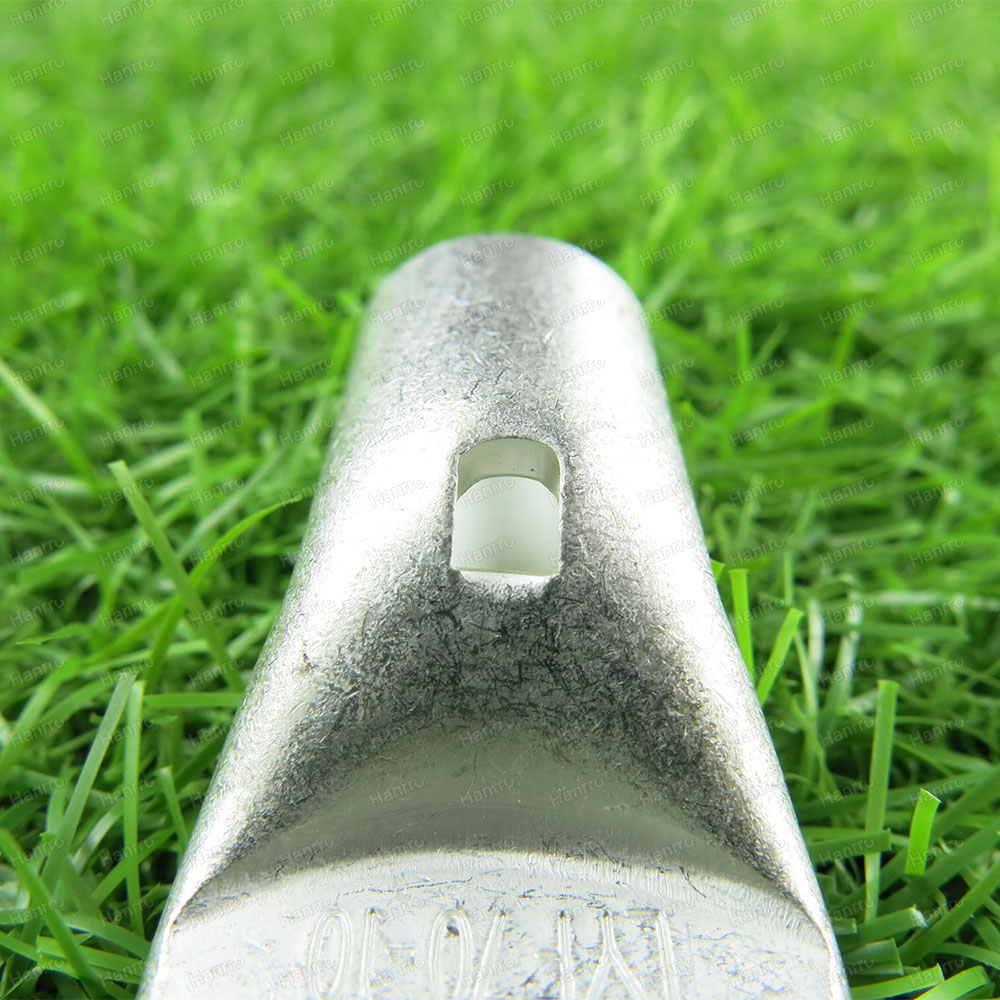

Inspection window allows visual inspection of proper wire insertion
UL Listed and CSA Certified to 35KV and Temperature rated to 90℃ when crimped with specified Hanrro crimping tools and dies
Copper Cable Lugs Surface Treatment by Tin-Plated to inhibit corrosion
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

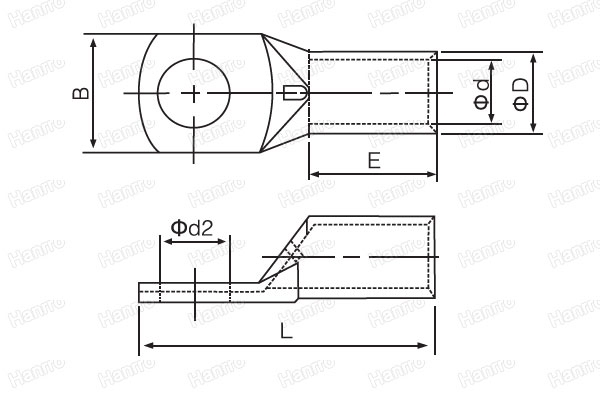

| Item No | Dimension | |||||
| Φ d2 | B | L | Φ D | Φ d | E | |
| KRF10-5 | 5.3 | 11.5 | 28 | 8 | 5 | 9 |
| KRF10-6 | 6.5 | 11.5 | 28 | |||
| KRF10-8 | 8.4 | 13.5 | 32 | |||
| KRF10-10 | 10.5 | 16 | 34 | |||
| KRF16-6 | 6.5 | 13 | 33 | 9 | 6 | 10 |
| KRF16-8 | 8.4 | 13 | 33 | |||
| KRF16-10 | 10.5 | 16 | 38 | |||
| KRF16-12 | 13 | 22 | 47 | |||
| KRF25-6 | 6.5 | 16 | 37 | 11 | 8 | 11 |
| KRF25-8 | 8.4 | 16 | 38 | |||
| KRF25-10 | 10.5 | 17 | 42 | |||
| KRF25-12 | 13 | 22 | 47 | |||
| KRF35-6 | 6.5 | 18 | 44 | 13 | 9 | 14 |
| KRF35-8 | 8.4 | 18 | 44 | |||
| KRF35-10 | 10.5 | 18 | 44 | |||
| KRF35-12 | 13 | 22 | 52 | |||
| KRF50-6 | 6.5 | 21 | 50 | 14.5 | 11 | 17 |
| KRF50-8 | 8.4 | 21 | 50 | |||
| KRF50-10 | 10.5 | 21 | 50 | |||
| KRF50-12 | 13 | 21 | 53 | |||
| KRF70-6 | 6.5 | 25 | 55 | 17 | 13 | 20 |
| KRF70-8 | 8.4 | 25 | 55 | |||
| KRF70-10 | 10.5 | 25 | 55 | |||
| KRF70-12 | 13 | 25 | 58 | |||
| KRF70-16 | 17 | 28 | 64 | |||
| KRF95-8 | 8.4 | 29 | 69 | 20 | 15 | 23 |
| KRF95-10 | 10.5 | 29 | 69 | |||
| KRF95-12 | 13 | 29 | 69 | |||
| KRF95-16 | 17 | 29 | 69 | |||
| KRF120-10 | 10.5 | 32 | 73 | 22 | 17 | 25 |
| KRF120-12 | 13 | 32 | 73 | |||
| KRF120-16 | 17 | 32 | 73 | |||
| KRF150-10 | 10.5 | 36 | 80 | 25 | 19 | 30 |
| KRF150-12 | 13 | 36 | 80 | |||
| KRF150-16 | 17 | 36 | 80 | |||
| KRF150-20 | 21 | 36 | 87 | |||
| KRF185-10 | 10.5 | 39 | 86 | 27 | 21 | 35 |
| KRF185-12 | 13 | 39 | 86 | |||
| KRF185-16 | 17 | 39 | 86 | |||
| KRF185-20 | 21 | 39 | 93 | |||
| KRF240-10 | 10.5 | 44 | 95 | 30 | 24 | 35 |
| KRF240-12 | 13 | 44 | 95 | |||
| KRF240-16 | 17 | 44 | 95 | |||
| KRF240-20 | 21 | 44 | 95 | |||
| KRF300-10 | 10.5 | 47 | 114 | 32 | 26 | 42 |
| KRF300-12 | 13 | 47 | 114 | |||
| KRF300-16 | 17 | 47 | 114 | |||
| KRF300-20 | 21 | 47 | 114 | |||
| KRF300-24 | 26 | 47 | 114 | |||
| KRF400-12 | 13 | 54 | 126 | 36 | 30 | 48 |
| KRF400-16 | 17 | 54 | 126 | |||
| KRF400-20 | 21 | 54 | 126 | |||
| KRF400-24 | 26 | 54 | 126 | |||
| KRF500-20 | 21 | 61 | 134 | 42 | 33 | 47 |
| KRF500-24 | 26 | 61 | 134 | |||
| KRF630-BL | 75 | 180 | 53 | 39 | 68 | |
| KRF630-20 | 21 | 75 | 180 | |||
| KRF630-24 | 26 | 75 | 180 | |||
