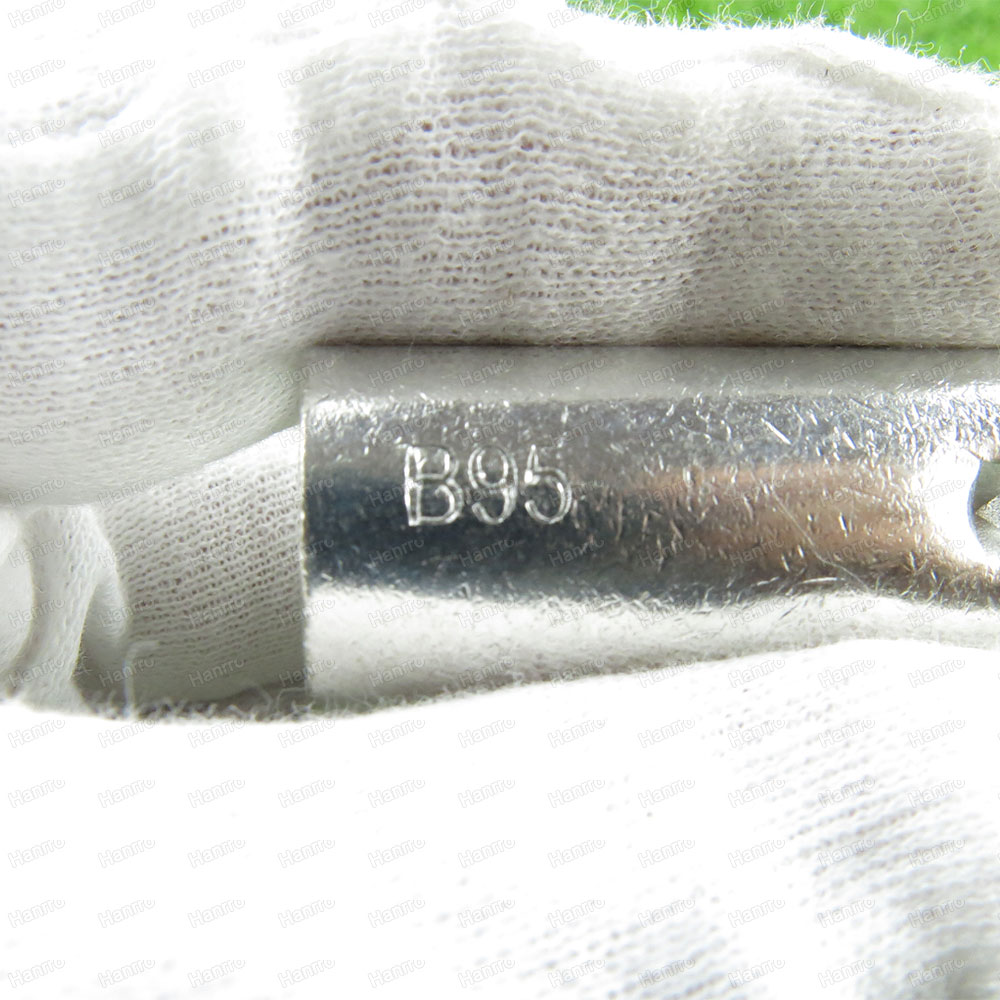

Copper Butt Splices are made from tinned copper and feature color coded die markings showing the correct crimp locations and crimp die. Butt splices are used to join two wires or cables together in a secure and reliable manner.
Copper Butt Splices are best suited when special performance or installation characteristics are not needed. Non-insulated butt connectors popular terminals used in applications that utilizes wire to transfer electrical current.The barrel on this non-insulated butt connector can be crimped anywhere on the barrel surface.The brazed seam will not separate under pressure or operating stress.Stranded wire cannot escape the confines of the sealed barrel during or after crimping.Reliable wire termination thanks to uniform wall thickness all along the connectors.
Features & Benefits
Internal wire stops to prevent over-insertion of conductor
Tin-Plated to inhibit corrosion
UL Listed and CSA Certified to 35 KV and Temperature up to 90℃
Tested by Telcordia-meets NEBS Level 3
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

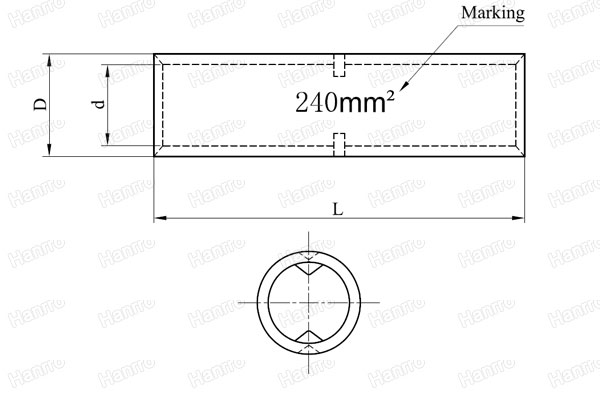

| Item No | L (mm) | Tolarance | D(mm) ±0.2 | d(mm) | |
| GTY-2-1.5 | 20 | -0.5 | 3.1 | 1.9 | + 0.2 / -0.1 |
| GTY-2-2.5 | 20 | 4 | 2.8 | ||
| GTY-2-4 | 20 | 4.5 | 3.2 | ||
| GTY-2-6 | 25 | 5.1 | 3.7 | ||
| GTY-2-10 | 30 | 6.1 | 4.5 | ||
| GTY-2-16 | 35 | 7.3 | 5.7 | ||
| GTY-2-25 | 40 | 9 | 7.2 | ||
| GTY-2-35 | 45 | 10.8 | 8.5 | ||
| GTY-2-50 | 50 | 12.5 | 9.8 | ||
| GTY-2-70 | 55 | 14.5 | 11.5 | ||
| GTY-2-95 | 60 | 17 | 13.7 | ||
| GTY-2-120 | 65 | 19 | 15 | ||
| GTY-2-150 | 70 | 21 | 16.7 | ||
| GTY-2-185 | 75 | -1 | 23.5 | 19.2 | |
| GTY-2-240 | 80 | 26 | 21 | ||
| GTY-2-300 | 85 | 30 | 24 | ||
| GTY-2-400 | 90 | 34 | 27 | ||
| GTY-2-500 | 100 | 38 | 30 | ||
| GTY-2-630 | 110 | 44 | 35 | ||
| GTY-2-800 | 150 | -1.5 | 50 | 39 | |
| GTY-2-1000 | 170 | 56 | 44 | ||
