Cable Ties are one the most versatile tools around. Ergonomic, simple-to-use, and remarkably strong, there is a cable tie for practically any situation you can imagine. That being said, each classification of cable tie (‘zip tie’ or ‘tie wrap’) is engineered to meet certain demands. It’s important to understand the types of stressors your system will endure, as given certain conditions, cable ties will degrade or worse, break. This could lead to system failures or safety hazards. Nylon is the predominant plastic used for ties and there are a number of variants, which we’ll cover in this message
Feature : Versatile cable ties can be used in countless applications
One-piece construction for consistent performance and reliability
Lowest threading force of any one-piece cable tie in the industry
Curved tip is easy to pick up from flat surfaces and allows faster initial
Material : DuPont Zytel 6.6 nylon
Color : Natural & Black & Colorful
Flame Resistant : UL94V-2
Working Temperature : -40°C to +85°C
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
Miniature cable ties offer the ideal solution for small, light duty cable and wire bundling applications up to 18 lbs.
The one piece construction allows for consistent performance and reliability. A very low insertion force is

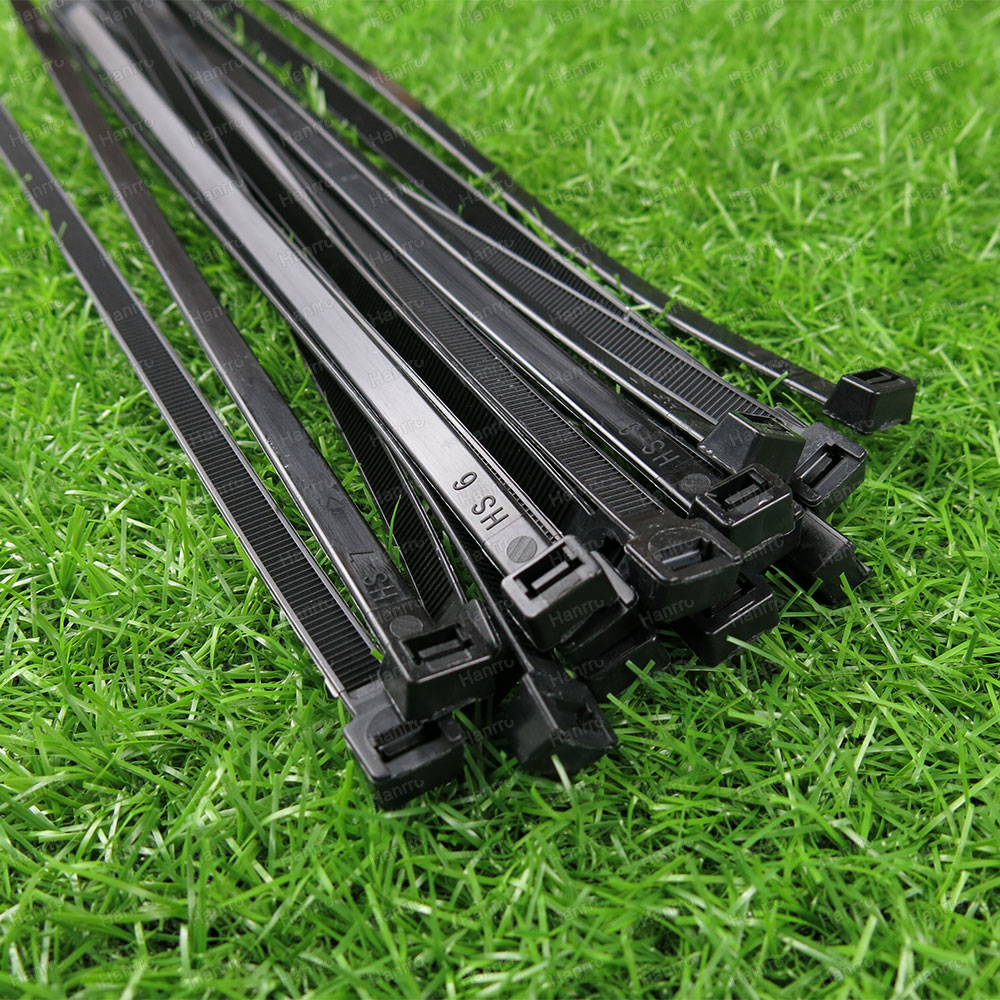

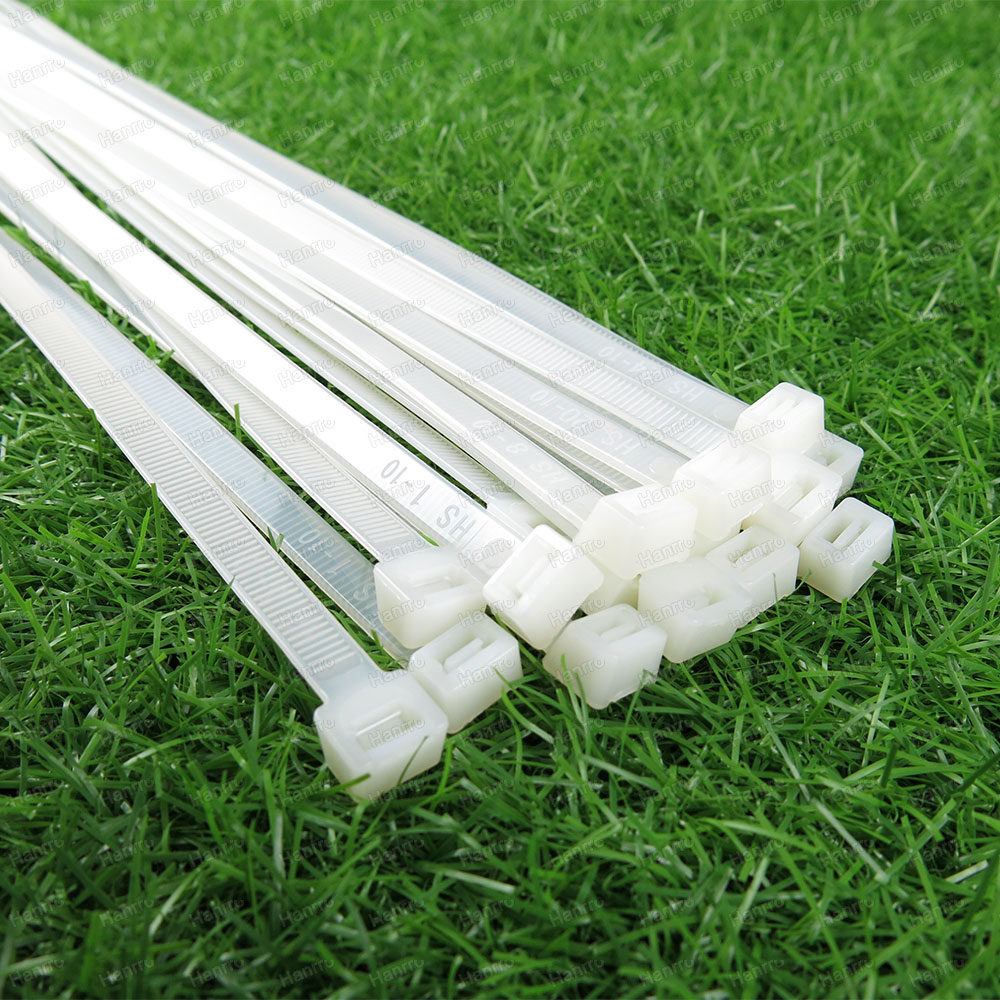

Required with the Miniature cable ties. Natural ties are preferred for indoor use applications while UV Black is
Recommended for outdoor applications, providing greater resistance to ultraviolet light
| Item No | Length | Width | Max Bundle Diameter | Tensile Strength | ||||||
| Inch | mm | LBS | KGS | |||||||
| HRO-2.2 × 60mm | 2.4 | 60 | 2.2 | 11 | 18 | 8 | ||||
| HRO-2.5 × 80mm | 3.2 | 80 | 2.5 | 16 | 18 | 8 | ||||
| HRO-2.5 × 100mm | 4.0 | 100 | 2.5 | 22 | 18 | 8 | ||||
| HRO-2.5 × 120mm | 4.8 | 120 | 2.5 | 30 | 18 | 8 | ||||
| HRO-2.5 × 150mm | 6.0 | 150 | 2.5 | 35 | 18 | 8 | ||||
| HRO-2.5 × 160mm | 6.4 | 160 | 2.5 | 40 | 18 | 8 | ||||
| HRO-2.5 × 200mm | 8.0 | 200 | 2.5 | 40 | 18 | 8 | ||||
Intermediate Cable Ties are effective for use in a wide variety cable and wire bundling applications requiring a
Maximum 40 lb tensile strength. The one piece construction allows for consistent performance and reliability.
These ties work efficiently and are a cost effective alternative when the heavier standard 50 lb series is not
Required. Natural Ties are preferred for indoor use applications while UV Black is recommended for outdoor
Applications,which providing greater resistance to ultraviolet light
| Item No | Length | Width | Max Bundle Diameter | Tensile Strength | ||||||
| Inch | mm | LBS | KGS | |||||||
| HRO-3.2 × 150mm | 6.0 | 150 | 3.2 | 35 | 40 | 18 | ||||
| HRO-3.2 × 200mm | 8.0 | 200 | 3.2 | 50 | 40 | 18 | ||||
| HRO-3.6 × 120mm | 4.8 | 120 | 3.6 | 30 | 40 | 18 | ||||
| HRO-3.6 × 150mm | 6.0 | 150 | 3.6 | 35 | 40 | 18 | ||||
| HRO-3.6 × 180mm | 7.2 | 180 | 3.6 | 42 | 40 | 18 | ||||
| HRO-3.6 × 200mm | 8.0 | 200 | 3.6 | 50 | 40 | 18 | ||||
| HRO-3.6 × 250mm | 10.0 | 250 | 3.6 | 65 | 40 | 18 | ||||
| HRO-3.6 × 280mm | 11.2 | 280 | 3.6 | 70 | 40 | 18 | ||||
| HRO-3.6 × 300mm | 12.0 | 300 | 3.6 | 80 | 40 | 18 | ||||
| HRO-3.6 × 370mm | 14.8 | 370 | 3.6 | 102 | 40 | 18 | ||||
Standard Cable Ties are among the most popular cable ties currently being sold. The one piece construction
Allows for consistent performance and reliability. They offer the perfect solution in a wide variety of applications
In Industry, Wire Bundling and Cable Management
| Item No | Length | Width | Max Bundle Diameter | Tensile Strength | ||||||
| Inch | mm | LBS | KGS | |||||||
| HRO-4.2 x 250mm | 10.0 | 250 | 4.2 | 65 | 50 | 22 | ||||
| HRO-4.2 x 300mm | 12.0 | 300 | 4.2 | 82 | 50 | 22 | ||||
| HRO-4.2 x 350mm | 14.0 | 350 | 4.2 | 90 | 50 | 22 | ||||
| HRO-4.2 x 400mm | 16.0 | 400 | 4.2 | 105 | 50 | 22 | ||||
| HRO-4.2 x 450mm | 18.0 | 450 | 4.2 | 130 | 50 | 22 | ||||
| HRO-4.6 × 120mm | 4.8 | 120 | 4.6 | 24 | 50 | 22 | ||||
| HRO-4.6 × 150mm | 6.0 | 150 | 4.6 | 35 | 50 | 22 | ||||
| HRO-4.6 × 190mm | 7.6 | 190 | 4.6 | 46 | 50 | 22 | ||||
| HRO-4.6 × 200mm | 8.0 | 200 | 4.6 | 50 | 50 | 22 | ||||
| HRO-4.6 × 250mm | 10.0 | 250 | 4.6 | 65 | 50 | 22 | ||||
| HRO-4.6 × 280mm | 11.2 | 280 | 4.6 | 70 | 50 | 22 | ||||
| HRO-4.8 × 300mm | 12.0 | 300 | 4.8 | 82 | 50 | 22 | ||||
| HRO-4.8 × 350mm | 14.0 | 350 | 4.8 | 90 | 50 | 22 | ||||
| HRO-4.8 × 370mm | 14.8 | 370 | 4.8 | 102 | 50 | 22 | ||||
| HRO-4.8 × 400mm | 16.0 | 400 | 4.8 | 105 | 50 | 22 | ||||
| HRO-4.8 × 430mm | 17.2 | 430 | 4.8 | 120 | 50 | 22 | ||||
| HRO-4.8 × 450mm | 18.0 | 450 | 4.8 | 130 | 50 | 22 | ||||
| HRO-4.8 × 500mm | 20.0 | 500 | 4.8 | 140 | 50 | 22 | ||||
| HRO-4.8 × 530mm | 21.2 | 530 | 4.8 | 147 | 50 | 22 | ||||
Heavy Duty Cable Ties (or zip ties) are effective in applications requiring 120 lb tensile strengths. The one
Piece construction allows for consistent performance and reliability.The 120 lb cable ties are available in lengths
From 12” – 22”. Natural ties are preferred for indoor use applications while UV Black recommended for outdoor
Applications, providing greater resistance to ultraviolet light
| Item No | Length | Width | Max Bundle Diameter | Tensile Strength | ||||||
| Inch | mm | LBS | KGS | |||||||
| HRO-6.8 x 300mm | 12.0 | 300 | 6.8 | 82 | 120 | 55 | ||||
| HRO-6.8 x 370mm | 14.8 | 370 | 6.8 | 102 | 120 | 55 | ||||
| HRO-7.2 × 150mm | 6.0 | 150 | 7.2 | 33 | 120 | 55 | ||||
| HRO-7.2 × 200mm | 8.0 | 200 | 7.2 | 50 | 120 | 55 | ||||
| HRO-7.6 × 250mm | 10.0 | 250 | 7.6 | 63 | 120 | 55 | ||||
| HRO-7.6 × 300mm | 12.0 | 300 | 7.6 | 82 | 120 | 55 | ||||
| HRO-7.6 × 350mm | 14.0 | 350 | 7.6 | 90 | 120 | 55 | ||||
| HRO-7.6 × 370mm | 14.8 | 370 | 7.6 | 102 | 120 | 55 | ||||
| HRO-7.6 × 400mm | 16.0 | 400 | 7.6 | 105 | 120 | 55 | ||||
| HRO-7.6 × 450mm | 18.0 | 450 | 7.6 | 118 | 120 | 55 | ||||
| HRO-7.6 × 500mm | 20.0 | 500 | 7.6 | 150 | 120 | 55 | ||||
| HRO-7.6 × 550mm | 22.0 | 550 | 7.6 | 160 | 120 | 55 | ||||
Extra Heavy Duty Cable Ties (also called wire ties, zip ties or tie wraps) are effective in applications requiring
Up to 175 lb tensile strengths. The one piece construction allows for consistent performance and reliability.
For heavier duty cable and wire bundling applications, a 175 lb tie is recommended and is available in lengths
From 18”-46”. Natural ties are preferred for indoor use applications while UV Black is recommended for outdoor
Applications, providing greater resistance to ultraviolet light
| Item No | Length | Width | Max Bundle Diameter | Tensile Strength | ||||||
| Inch | mm | LBS | KGS | |||||||
| HRO-9.0 × 430mm | 17.2 | 430 | 8.8 | 112 | 175 | 80 | ||||
| HRO-9.0 × 550mm | 22.0 | 550 | 8.8 | 160 | 175 | 80 | ||||
| HRO-9.0 × 600mm | 24.0 | 600 | 8.8 | 170 | 175 | 80 | ||||
| HRO-9.0 × 650mm | 26.0 | 650 | 8.8 | 190 | 175 | 80 | ||||
| HRO-9.0 × 700mm | 28.0 | 700 | 8.8 | 205 | 175 | 80 | ||||
| HRO-9.0 × 760mm | 30.4 | 760 | 8.8 | 225 | 175 | 80 | ||||
| HRO-9.0 × 810mm | 32.4 | 810 | 8.8 | 239 | 175 | 80 | ||||
| HRO-9.0 × 920mm | 36.8 | 920 | 8.8 | 265 | 175 | 80 | ||||
| HRO-9.0 × 1168mm | 45.7 | 1168 | 8.8 | 360 | 175 | 80 | ||||
Ultra Heavy Duty Cable Ties are the strongest in the industry with the capability of supporting bundles up to
250 lbs. The one piece construction allows for consistent performance and reliability. Available lengths of the
Ultra Heavy Duty Cable Ties range from 9”-40”. Natural colored ties are preferred for indoor use applications
While UV Black is recommended for outdoor applications, providing greater resistance to ultraviolet light
| Item No | Length | Width | Max Bundle Diameter | Tensile Strength | ||||||
| Inch | mm | LBS | KGS | |||||||
| HRO-12.7 × 550mm | 22.0 | 550 | 12.7 | 160 | 250 | 114 | ||||
ROHS TESTING REPORT
PAHS TESTING REPORT
SDS TESTING REPORT
MSDS TESTING REPORT
MDS TESTING REPORT
HIGH TEMPERATURE RESISTANT TESTING REPORT
UV RESISTANT TESTING REPORT
REACH TESTING REPORT
FDA TESTING REPORT
