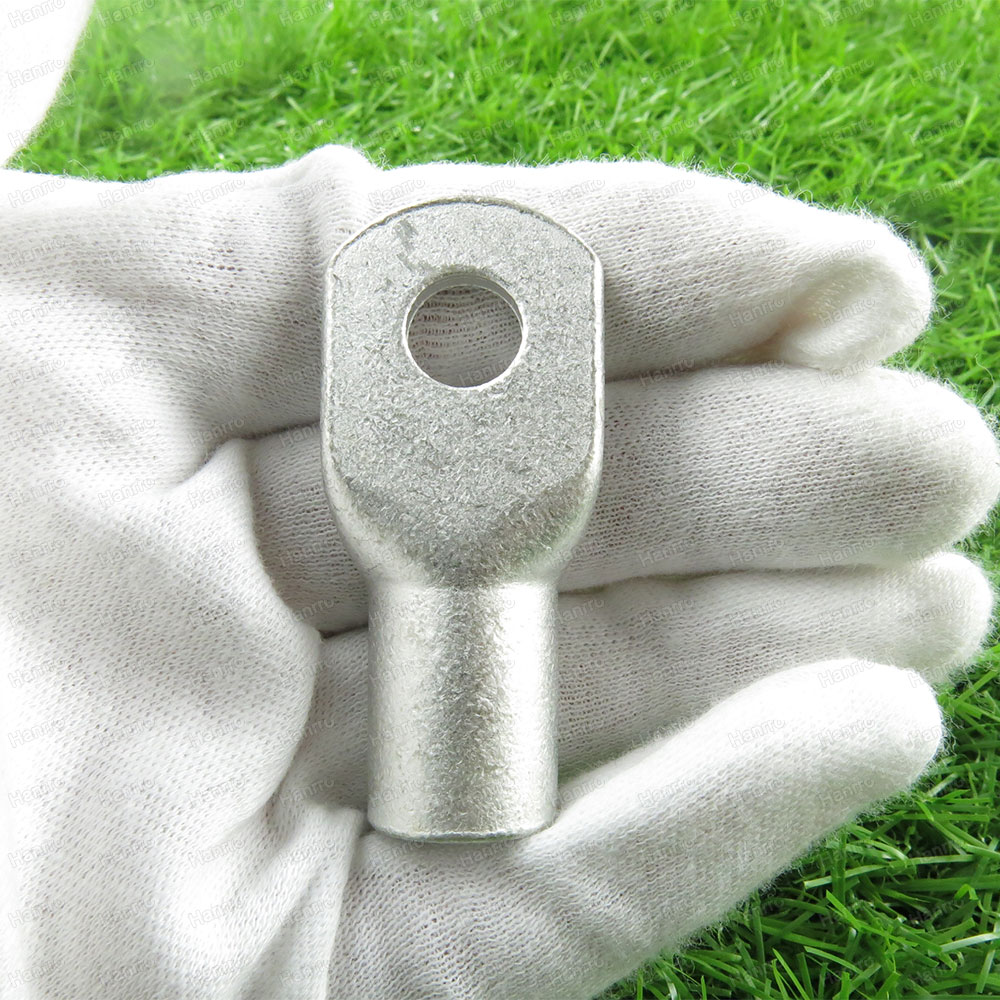

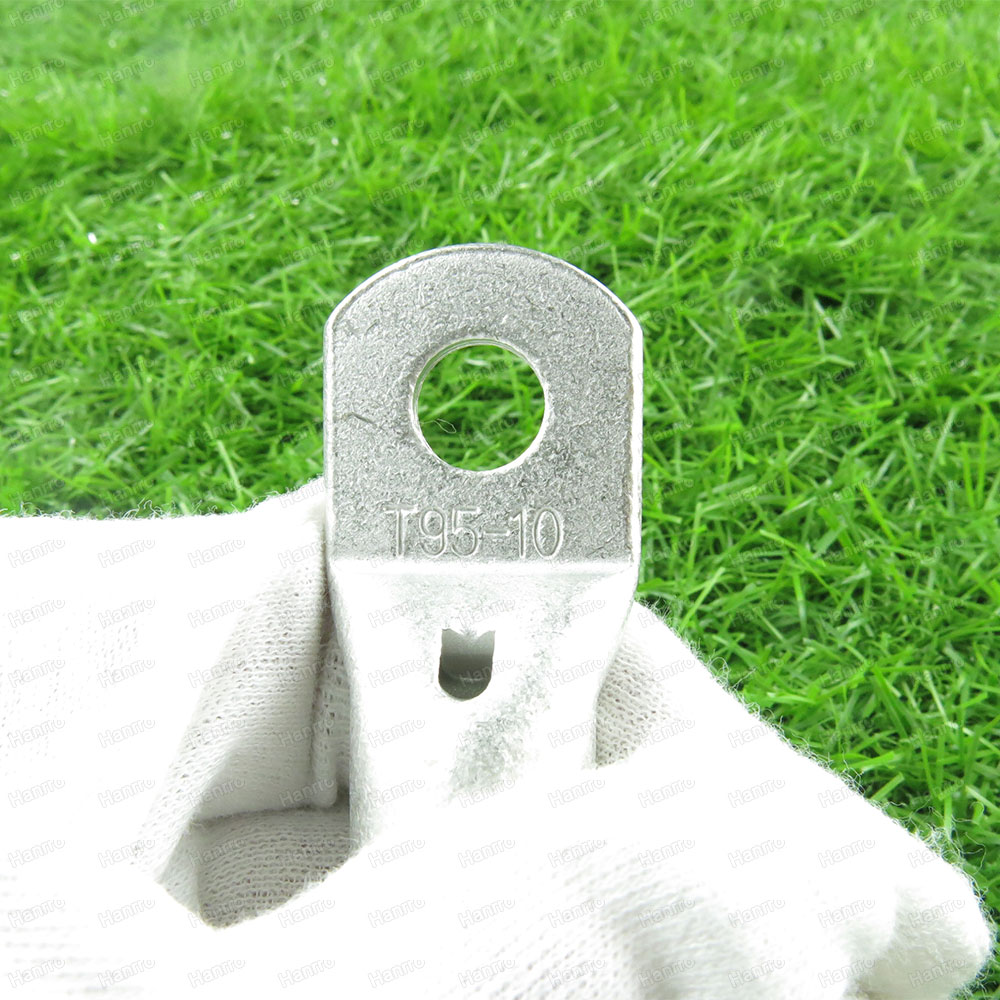

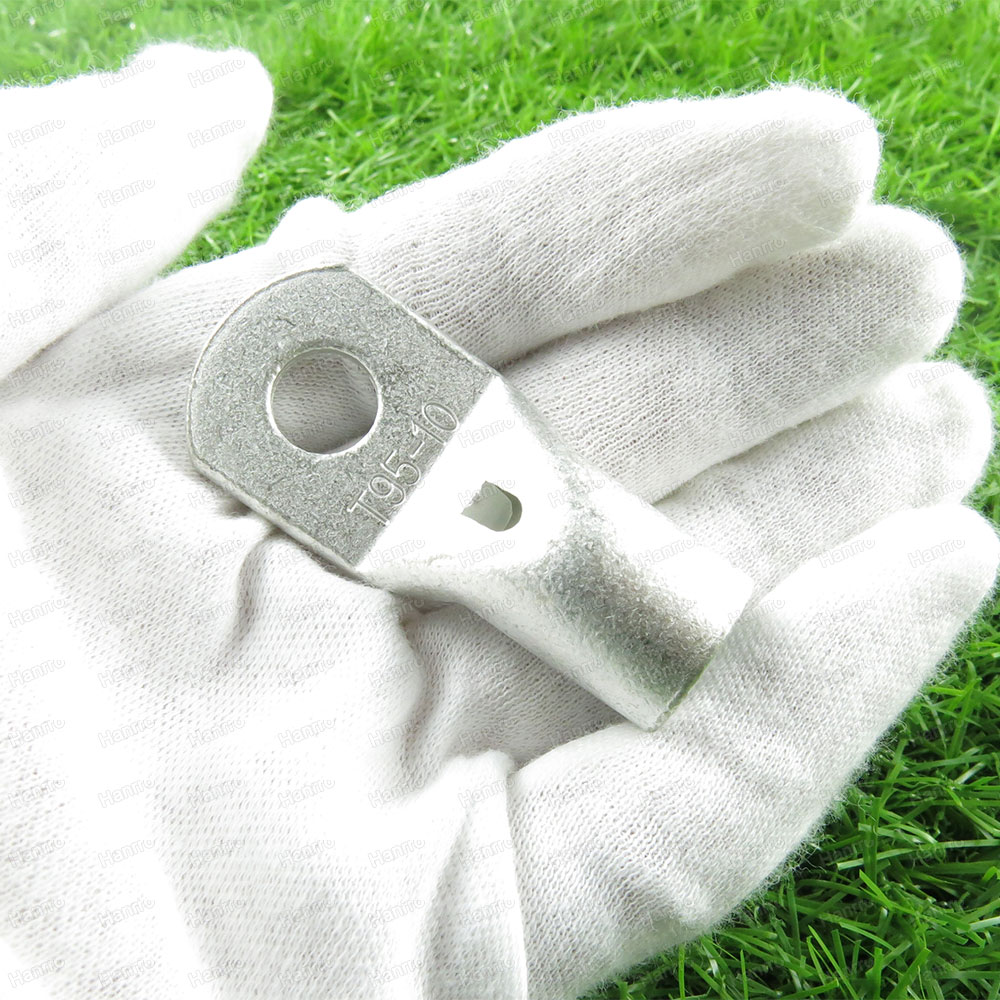

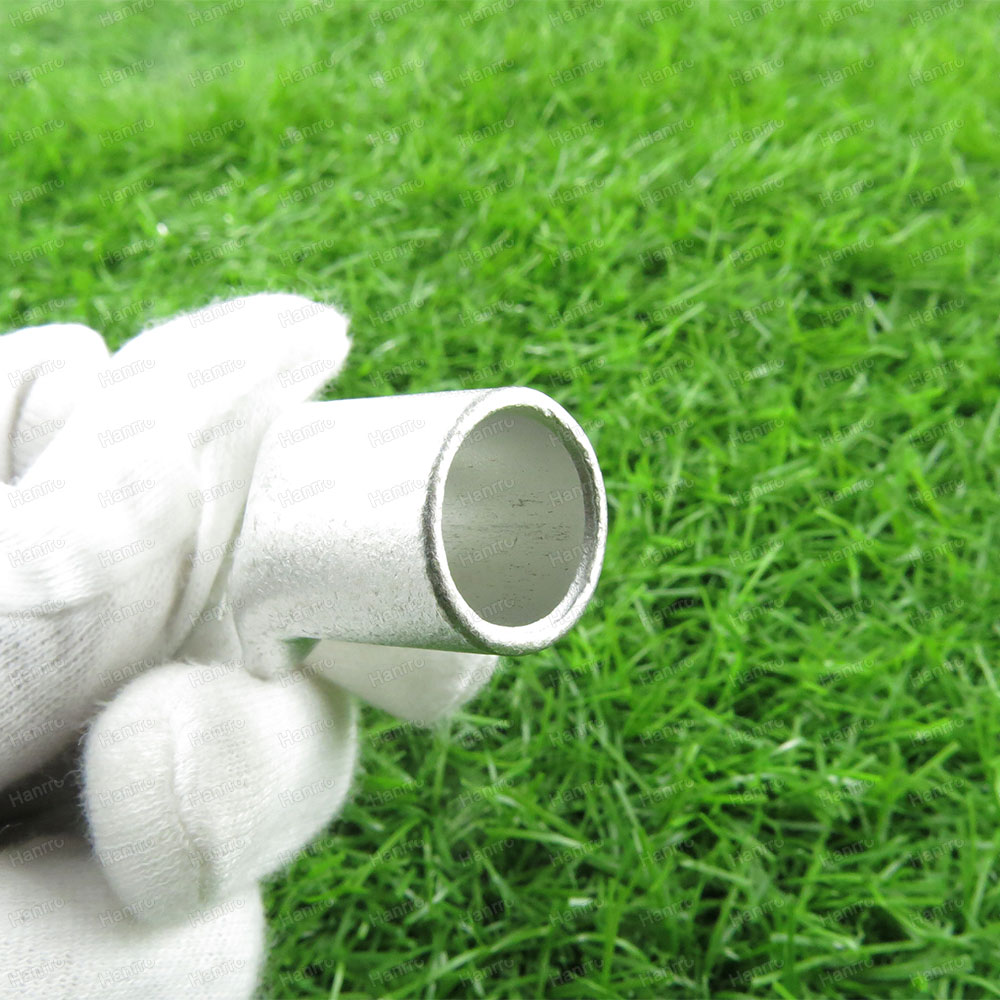

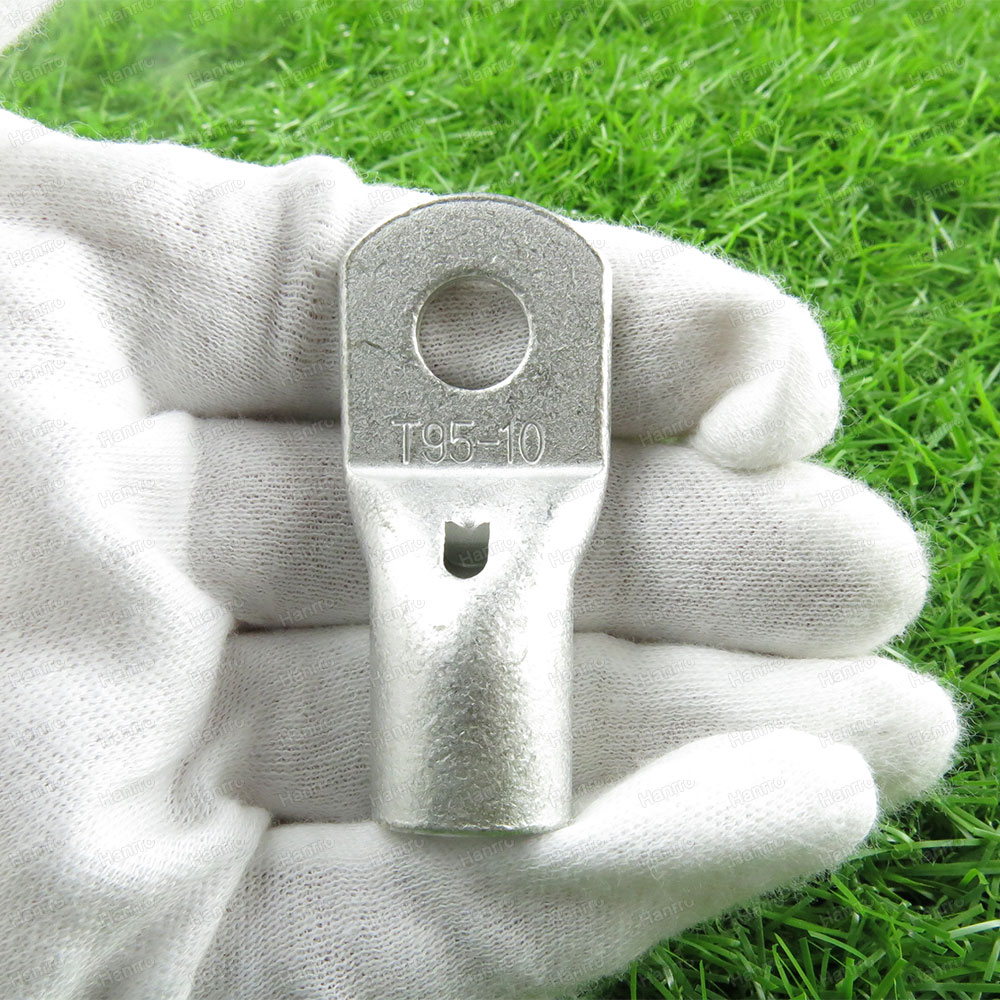

Cable Lugs also referred to as Compression Lugs or Cable Connectors are electrical supplies utilized to securely connect or terminate cables to electrical devices, power or control panels, junction boxes, equipments and machineries. These copper cable lugs are often used to join power cables together as well. Cable Lugs intended to ensure the safety of both the appliances and human beings. These lugs can be uniquely engineered according to the client’s preferences and requirements.
An electrical cable carries electric current to equipments, machineries, power or control panels, junction boxes and various electrical devices depending on the cable size and capacity to carry electrical current. Proper termination and connection of these cables are as important as an improper connection that may result to short circuit or leakage and lead to costly damage to machines or even the user. The method of proper terminating of power cable is done by safely and securely linking the leading end of cable to the bus bar inside the panel or junction box or into the input point of the machine or equipment.
The functionality of a cable lug is one of the most safe and common method of cable termination. It is designed in a way that cable termination and removal for maintenance or repair is very simple, thus a cable lug is broadly used instead of direct fastening methods. It is also utilized by almost electrical equipment even in manufacturing of tires for vehicles, drums and many others. The various types of lugs consist of terminal lugs, tube lugs, fork lugs, bi metallic lugs and aluminum tubular lugs. The option for the material used in cable lugs depends on the type of the cable. Electrical cable lugs can be used on automobiles as the role of lugs for efficient performance of the machines is highly indispensable as well as in electrical boxes, transformers and generator machines.
For 45 Degree , Please refer to 45 Degree Angled Cable Lugs
For 90 Degree , Please refer to 90 Degree Angled Cable Lugs
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

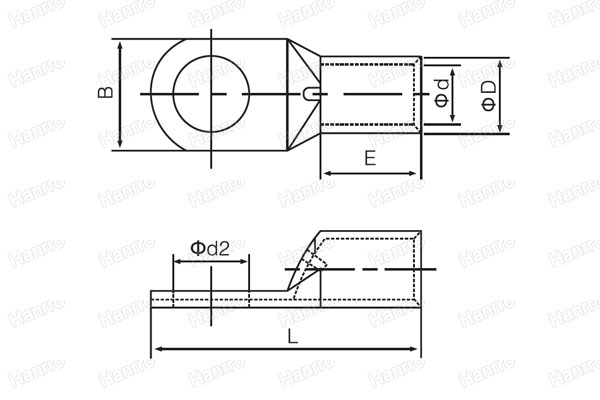

| Item No | Dimension | |||||
| Φ d2 | B | L | Φ D | Φ d | E | |
| T1.5-4 | 4.3 | 8.7 | 19 | 4 | 2.4 | 7 |
| T1.5-5 | 5.3 | 8.7 | 19 | |||
| T1.5-6 | 6.4 | 10 | 20 | |||
| T2.5-4 | 4.3 | 8.7 | 19 | 4.3 | 2.7 | 7 |
| T2.5-5 | 5.3 | 8.7 | 19 | |||
| T2.5-6 | 6.4 | 10.3 | 21 | |||
| T2.5-8 | 8.3 | 12 | 23 | |||
| T4-4 | 4.3 | 8.7 | 21.5 | 4.8 | 3.1 | 9.5 |
| T4-5 | 5.3 | 8.7 | 21.5 | |||
| T4-6 | 6.4 | 10.3 | 23.5 | |||
| T4-8 | 8.3 | 12.5 | 28.5 | |||
| T6-4 | 4.3 | 10.3 | 26 | 5.5 | 3.8 | 10 |
| T6-5 | 5.3 | 10.3 | 26 | |||
| T6-6 | 6.4 | 10.3 | 26 | |||
| T6-8 | 8.3 | 13.9 | 29 | |||
| T6-10 | 10.5 | 13.9 | 29 | |||
| T10-4 | 4.3 | 11.9 | 27.5 | 6.9 | 4.7 | 11.5 |
| T10-5 | 5.3 | 11.9 | 27.5 | |||
| T10-6 | 6.4 | 11.9 | 27.5 | |||
| T10-8 | 8.3 | 13.5 | 30.5 | |||
| T10-10 | 10.5 | 15 | 30.5 | |||
| T10-12 | 13.2 | 17 | 34 | |||
| T16-5 | 5.3 | 12 | 27.5 | 7.8 | 5.6 | 12 |
| T16-6 | 6.4 | 12 | 27.5 | |||
| T16-8 | 8.3 | 13.5 | 31 | |||
| T16-10 | 10.5 | 16 | 32 | |||
| T16-12 | 13.2 | 17 | 37.5 | |||
| T25-6 | 6.4 | 14 | 34 | 9.5 | 7.1 | 13.5 |
| T25-8 | 8.3 | 14 | 34 | |||
| T25-10 | 10.5 | 16 | 37 | |||
| T25-12 | 13.2 | 18 | 40 | |||
| T35-6 | 6.4 | 16.5 | 39 | 11 | 8.2 | 16 |
| T35-8 | 8.3 | 16.5 | 39 | |||
| T35-10 | 10.5 | 16.5 | 43 | |||
| T35-12 | 13.2 | 18 | 43 | |||
| T35-14 | 14.5 | 20 | 48 | |||
| T35-16 | 16.5 | 23 | 48 | |||
| T40-6 | 6.4 | 17 | 44 | 11.2 | 9 | 17 |
| T40-8 | 8.3 | 17 | 44 | |||
| T40-10 | 10.5 | 17 | 44 | |||
| T40-12 | 13.2 | 18 | 44 | |||
| T50-6 | 6.4 | 18 | 45 | 12.5 | 9.5 | 20 |
| T50-8 | 8.3 | 18 | 45 | |||
| T50-10 | 10.5 | 18 | 49 | |||
| T50-12 | 13.2 | 18 | 49 | |||
| T50-14 | 14.5 | 22 | 54 | |||
| T50-16 | 16.5 | 25 | 62 | 14 | 9.5 | 23 |
| T50-20 | 21 | 30 | 68 | |||
| T70-8 | 8.3 | 22 | 47.6 | 15 | 11.5 | 20 |
| T70-10 | 10.5 | 22 | 51.6 | |||
| T70-12 | 13.2 | 22 | 51.6 | |||
| T70-14 | 14.5 | 22 | 62.6 | |||
| T70-16 | 16.5 | 22 | 62.6 | |||
| T70-20 | 21 | 30 | 62.6 | |||
| T95-8 | 8.3 | 25 | 55.8 | 17 | 13.5 | 22 |
| T95-10 | 13.5 | 25 | 55.8 | |||
| T95-12 | 13.2 | 25 | 55.8 | |||
| T95-14 | 14.5 | 25 | 66.8 | |||
| T95-16 | 16.5 | 25 | 66.8 | |||
| T95-20 | 21 | 28 | 66.8 | |||
| T120-10 | 10.5 | 29 | 71.5 | 20 | 15.6 | 27 |
| T120-12 | 13.2 | 29 | 71.5 | |||
| T120-14 | 14.5 | 29 | 71.5 | |||
| T120-16 | 16.5 | 29 | 71.5 | |||
| T120-20 | 21 | 29 | 71.5 | |||
| T150-10 | 10.5 | 30.6 | 78 | 21 | 16.5 | 32 |
| T150-12 | 13.2 | 30.6 | 78 | |||
| T150-14 | 14.5 | 30.6 | 78 | |||
| T150-16 | 16.5 | 30.6 | 78 | |||
| T150-20 | 21 | 30.6 | 78 | |||
| T185-10 | 10.5 | 34 | 84 | 23.6 | 18.4 | 34 |
| T185-12 | 13.2 | 34 | 84 | |||
| T185-14 | 14.5 | 34 | 84 | |||
| T185-16 | 16.5 | 34 | 84 | |||
| T185-20 | 21 | 34 | 84 | |||
| T240-10 | 10.5 | 38.5 | 90 | 26.4 | 21.2 | 37 |
| T240-12 | 13.2 | 38.5 | 90 | |||
| T240-14 | 14.5 | 38.5 | 90 | |||
| T240-16 | 16.5 | 38.5 | 90 | |||
| T240-20 | 21 | 38.5 | 90 | |||
| T300-10 | 10.5 | 42 | 96 | 28.6 | 23.4 | 40 |
| T300-12 | 13.2 | 42 | 96 | |||
| T300-14 | 14.5 | 42 | 96 | |||
| T300-16 | 16.5 | 42 | 96 | |||
| T300-20 | 21 | 42 | 96 | |||
| T400-10 | 10.5 | 48 | 104.7 | 32.8 | 26.8 | 37 |
| T400-12 | 13.2 | 48 | 104.7 | |||
| T400-14 | 14.5 | 48 | 104.7 | |||
| T400-16 | 16.5 | 48 | 104.7 | |||
| T400-20 | 21 | 48 | 104.7 | |||
| T500-10 | 10.5 | 55 | 115.5 | 38.4 | 29.8 | 46.5 |
| T500-12 | 13.2 | 55 | 115.5 | |||
| T500-14 | 14.5 | 55 | 115.5 | |||
| T500-16 | 16.5 | 55 | 115.5 | |||
| T500-20 | 21 | 55 | 115.5 | |||
| T630-10 | 10.5 | 64 | 133.1 | 44.7 | 34.5 | 50 |
| T630-12 | 13.2 | 64 | 133.1 | |||
| T630-14 | 14.5 | 64 | 133.1 | |||
| T630-16 | 16.5 | 64 | 133.1 | |||
| T630-20 | 21 | 64 | 133.1 | |||
