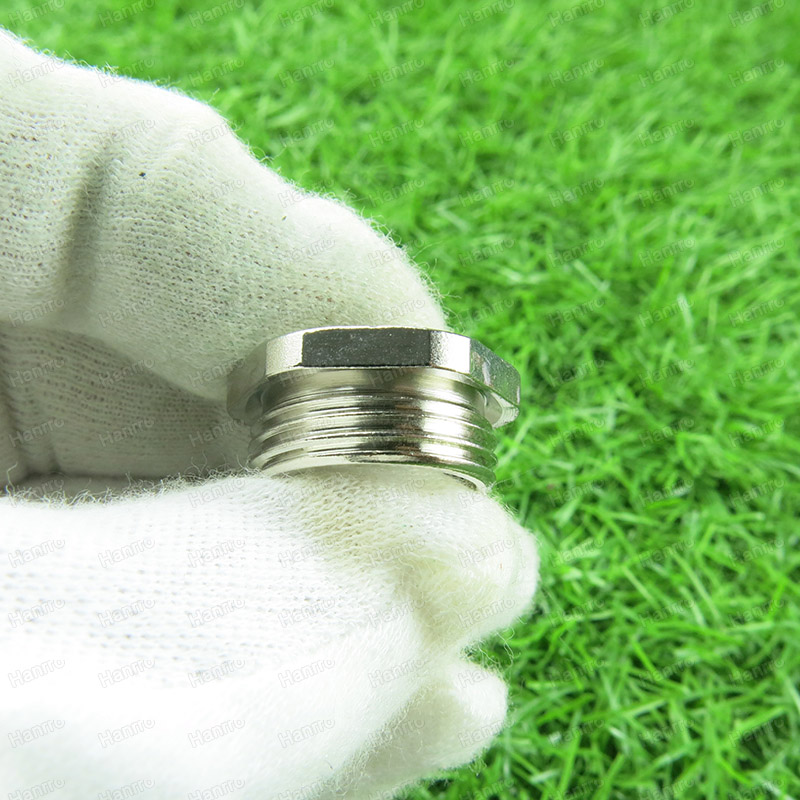

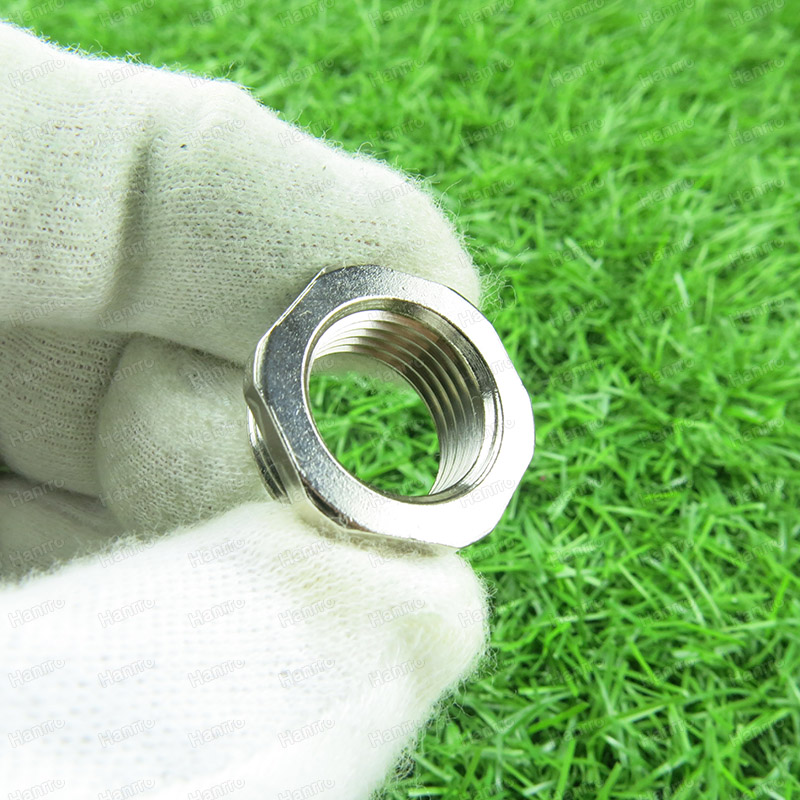

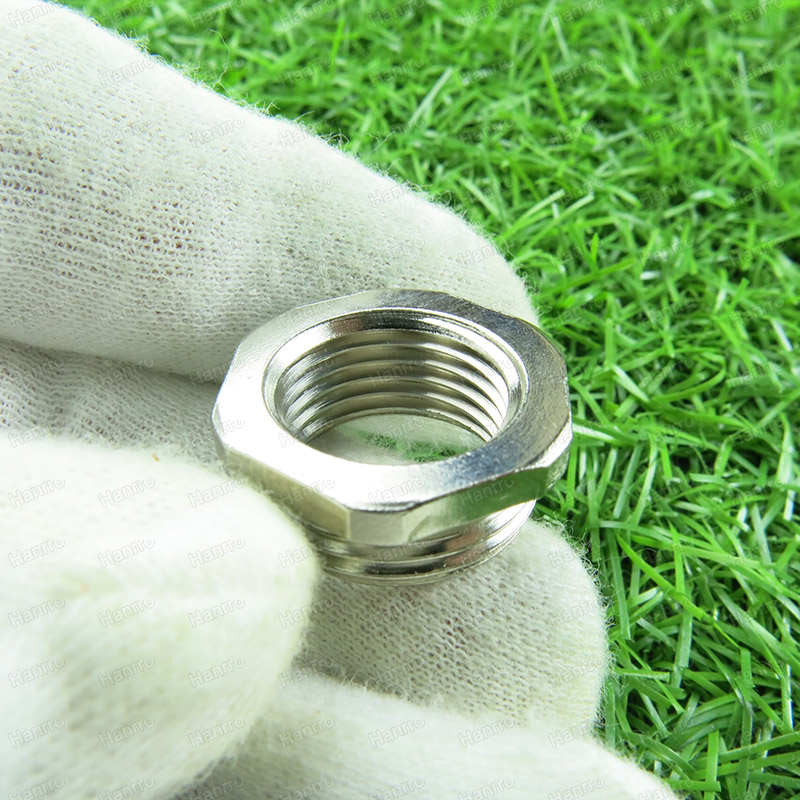

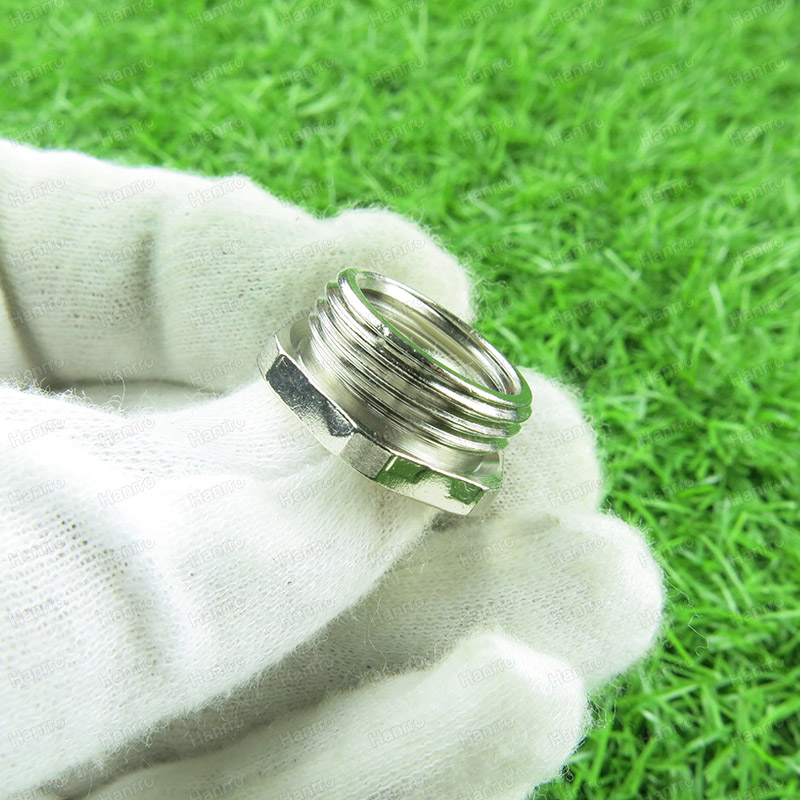

Cable Glands Reducers are designed allowing dissimilar sizes and threads to be connected together. It functions for a big thread sizes converted to small thread
Material : Nickle Plated Brass
Sealing Material : NBR
Thread Type : PG according to DIN40430
Thread Type : Metric according to EN60423
Protection Grade : IP54
Note : IP68 should be assemble O-Ring in the Tightening parts
Working Temperature : From -40℃ to + 100℃
Add to favorites
- Favorite list is empty.
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
Item No | GL | H | D | AG | Panel Mounting Hole |
PG9/PG7 | 6 | 8.8 | 17 | 15.2 | 15.2-15.5 |
PG11/PG7 | 6 | 9 | 20 | 18.6 | 18.6-18.9 |
PG11/PG9 | 6 | 9 | 20 | 18.6 | 18.6-18.9 |
PG13.5/PG9 | 6.5 | 9.5 | 22 | 20.4 | 20.4-20.7 |
PG13.5/PG11 | 6.5 | 9.5 | 22 | 20.4 | 20.4-20.7 |
PG16/PG9 | 6.5 | 9.5 | 24 | 22.5 | 22.5-22.8 |
PG16/PG11 | 6.5 | 9.5 | 24 | 22.5 | 22.5-22.8 |
PG16/PG13.5 | 6.5 | 9.5 | 24 | 22.5 | 22.5-22.8 |
PG21/PG11 | 7 | 10.3 | 30 | 28.3 | 28.3-28.6 |
PG21/PG13.5 | 7 | 10.3 | 30 | 28.3 | 28.3-28.6 |
PG21/PG16 | 7 | 10.3 | 30 | 28.3 | 28.3-28.6 |
PG29/PG16 | 8 | 11.5 | 40 | 37 | 37-37.3 |
PG29/PG21 | 8 | 11.5 | 40 | 37 | 37-37.3 |
PG36/PG21 | 9 | 12.5 | 50 | 47 | 47-47.3 |
PG36/PG29 | 9 | 12.5 | 50 | 47 | 47-47.3 |
PG42/PG29 | 10 | 13.5 | 57 | 54 | 54-54.3 |
PG42/PG36 | 10 | 13.5 | 57 | 54 | 54-54.3 |
PG48/PG36 | 10 | 13.5 | 64 | 59.3 | 59.3-59.6 |
PG48/PG42 | 10 | 13.5 | 64 | 59.3 | 59.3-59.6 |
M16x1.5/M12x1.5 | 6 | 8.8 | 17 | 16 | 16-16.3 |
M20x1.5/M12x1.5 | 6.5 | 9.5 | 22 | 20 | 20-20.3 |
M20x1.5/M16x1.5 | 6.5 | 9.5 | 22 | 20 | 20-20.3 |
M25x1.5/M16x1.5 | 7 | 10 | 27 | 25 | 25-25.3 |
M25x1.5/M20x1.5 | 7 | 10 | 27 | 25 | 25-25.3 |
M32x1.5/M16x1.5 | 8 | 11 | 34 | 32 | 32-32.3 |
M32x1.5/M20x1.5 | 8 | 11 | 34 | 32 | 32-32.3 |
M32x1.5/M25x1.5 | 8 | 11 | 34 | 32 | 32-32.3 |
M40x1.5/M20x1.5 | 8 | 12 | 44 | 40 | 40-40.3 |
M40x1.5/M25x1.5 | 8 | 12 | 44 | 40 | 40-40.3 |
M40x1.5/M32x1.5 | 8 | 12 | 44 | 40 | 40-40.3 |
M50x1.5/M25x1.5 | 9 | 13 | 55 | 50 | 50-50.3 |
M50x1.5/M32x1.5 | 9 | 13 | 55 | 50 | 50-50.3 |
M50x1.5/M40x1.5 | 9 | 13 | 55 | 50 | 50-50.3 |
M63x1.5/M32x1.5 | 10 | 14 | 65 | 63 | 63-63.6 |
M63x1.5/M40x1.5 | 10 | 14 | 65 | 63 | 63-63.6 |
M63x1.5/M50x1.5 | 10 | 14 | 65 | 63 | 63-63.3 |
NPT1/2/NPT3/8 | 13 | 16.2 | 24 | 21.2 | 21.2-21.5 |
NPT3/4/NPT3/8 | 13 | 16.5 | 30 | 26.6 | 26.6-26.9 |
NPT3/4/NPT1/2 | 13 | 16.5 | 30 | 26.6 | 26.6-26.9 |
NPT1/NPT1/2 | 16 | 20 | 36 | 33.3 | 33.3-33.6 |
NPT1/NPT3/4 | 16 | 20 | 36 | 33.3 | 33.3-33.6 |
NPT1 1/4/NPT1/2 | 18 | 22.5 | 45 | 42 | 42-42.3 |
NPT1 1/4/NPT3/4 | 18 | 22.5 | 45 | 42 | 42-42.3 |
NPT1 1/4/NPT1 | 18 | 22.5 | 45 | 42 | 42-42.3 |
NPT1 1/2/NPT1/2 | 18 | 22.5 | 51 | 48 | 48-48.4 |
NPT1 1/2/NPT3/4 | 18 | 22.5 | 51 | 48 | 48-48.4 |
NPT1 1/2/NPT1 | 18 | 22.5 | 51 | 48 | 48-48.4 |
NPT1 1/2/NPT1 1/4 | 18 | 22.5 | 51 | 48 | 48-48.4 |
NPT2/NPT1 | 18 | 23 | 64 | 60 | 60-60.4 |
NPT2/NPT1 1/4 | 18 | 23 | 64 | 60 | 60-60.4 |
NPT2/NPT1 1/2 | 18 | 23 | 64 | 60 | 60-60.4 |
G1/2/G3/8 | 7 | 10 | 24 | 20.955 | 21-21.3 |
G3/4/G3/8 | 7 | 10 | 30 | 26.441 | 26.5-26.8 |
G3/4/G1/2 | 7 | 10 | 30 | 26.441 | 26.5-26.8 |
G1/G1/2 | 8 | 12 | 36 | 33.249 | 33.3-33.6 |
G1/G3/4 | 8 | 12 | 36 | 33.249 | 33.3-33.6 |
G1 1/4/G1/2 | 9 | 13 | 45 | 41.910 | 42-42.3 |
G1 1/4/G3/4 | 9 | 13 | 45 | 41.910 | 42-42.3 |
G1 1/4/G1 | 9 | 13 | 45 | 41.910 | 42-42.3 |
G1 1/2/G1/2 | 10 | 14.5 | 51 | 47.803 | 47.8-48.1 |
G1 1/2/G3/4 | 10 | 14.5 | 51 | 47.803 | 47.8-48.2 |
G1 1/2/G1 | 10 | 14.5 | 51 | 47.803 | 47.8-48.1 |
G1 1/2/G1 1/4 | 10 | 14.5 | 51 | 47.803 | 47.8-48.1 |
G2/G3/4 | 10 | 14.5 | 64 | 59.614 | 59.7-60 |
G2/G1 | 10 | 14.5 | 64 | 59.614 | 59.7-60 |
G2/G1 1/4 | 10 | 14.5 | 64 | 59.614 | 59.7-60 |
G2/G1 1/2 | 10 | 14.5 | 64 | 59.614 | 59.7-60 |
