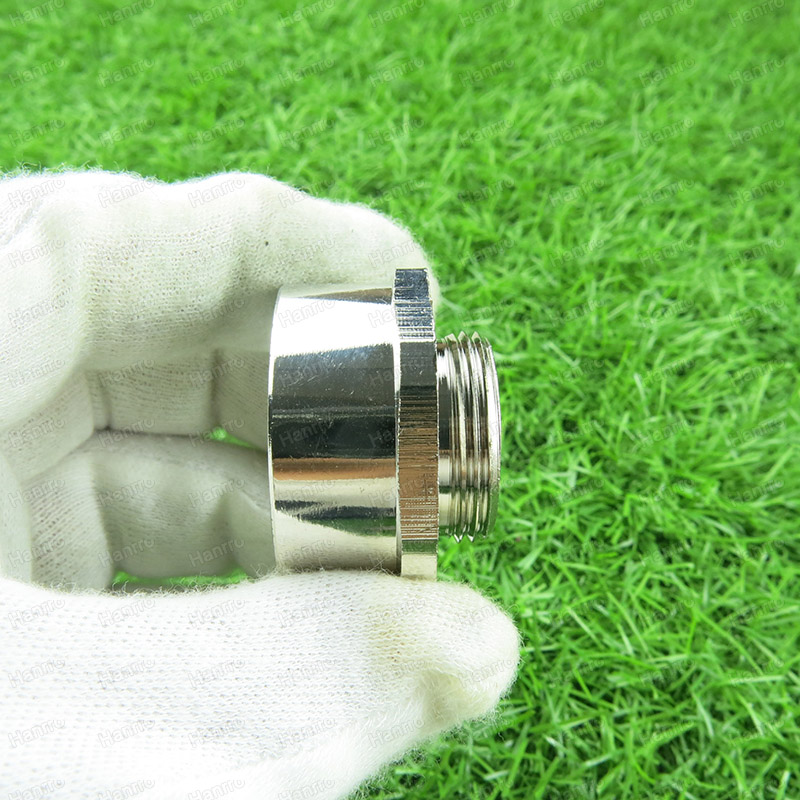

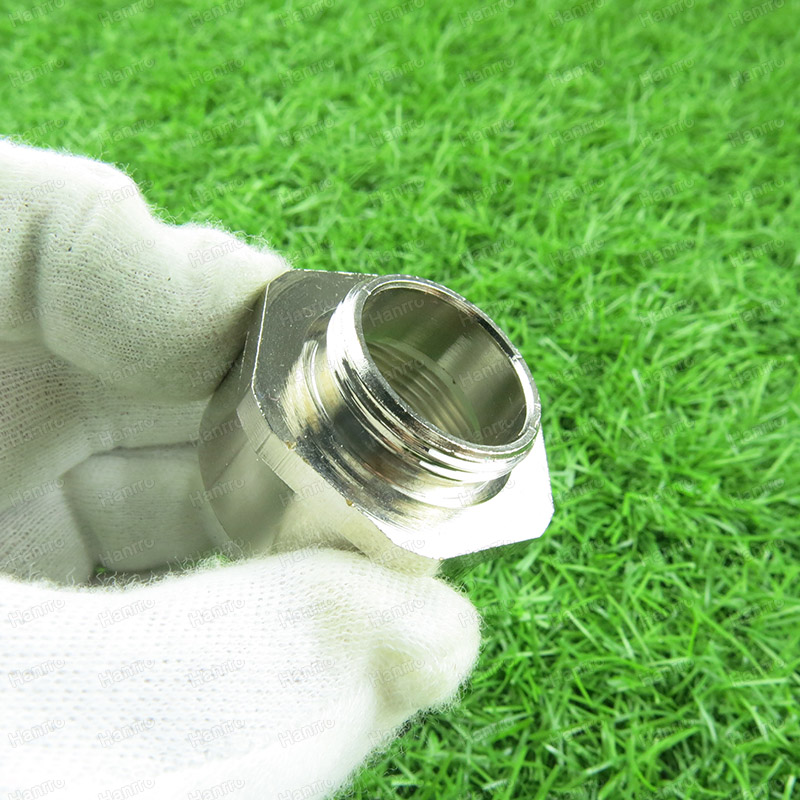

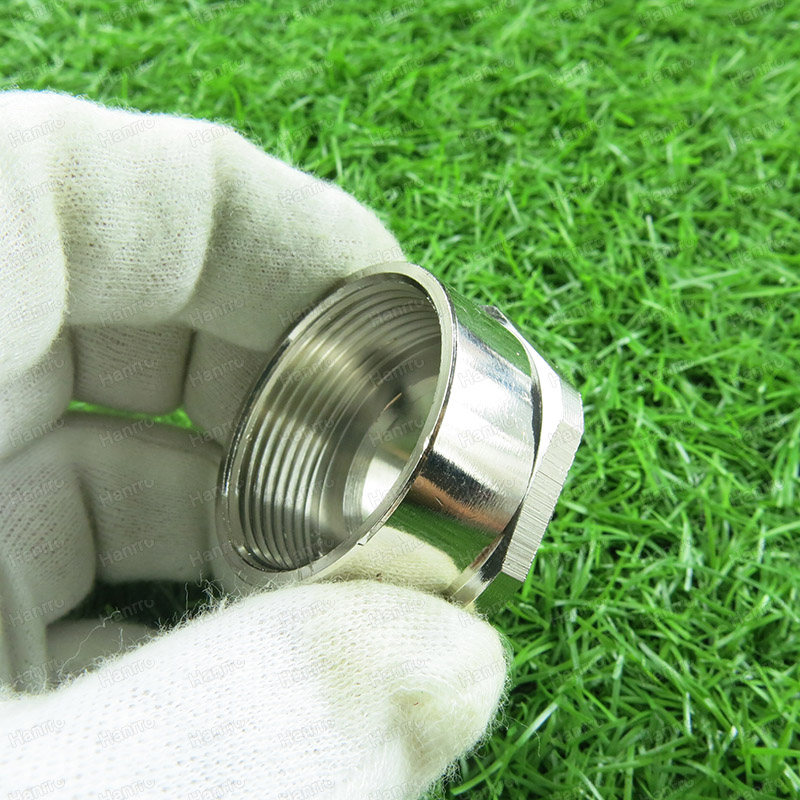

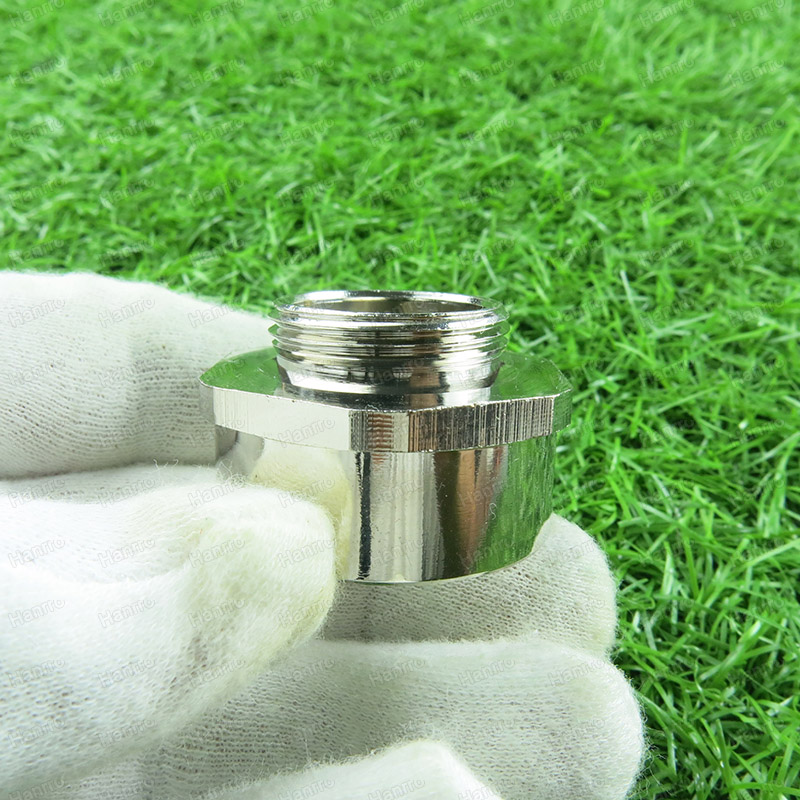

Cable Glands Adaptors are designed allowing dissimilar sizes and threads to be connected together. It functions for a small thread sizes converted to larger thread
Material : Nickle Plated Brass
Sealing Material : NBR
Thread Type : PG according to DIN40430
Thread Type : Metric according to EN60423
Protection Grade : IP54
Note : IP68 should be assemble O-Ring in the Tightening parts
Working Temperature : From -40℃ to + 100℃
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.
| Item No | GL | H | SW | AG | Panel Mounting Hole |
| PG7/PG9 | 5 | 10.5 | 18 | 12.5 | 12.5-12.8 |
| PG9/PG11 | 6 | 12.5 | 21 | 15.2 | 15.2-15.5 |
| PG9/PG13.5 | 6 | 12.5 | 23 | 15.2 | 15.2-15.5 |
| PG11/PG13.5 | 6 | 12.5 | 23 | 18.6 | 18.6-18.9 |
| PG11/PG16 | 6 | 12.5 | 25 | 18.6 | 18.6-18.9 |
| PG11/PG21 | 6 | 14.5 | 32 | 18.6 | 18.6-18.9 |
| PG13.5/PG16 | 6.5 | 12.5 | 25 | 20.4 | 20.4-20.7 |
| PG13.5/PG21 | 6.5 | 14.5 | 32 | 20.4 | 20.4-20.7 |
| PG16/PG21 | 6.5 | 14.5 | 32 | 22.5 | 22.5-22.8 |
| PG16/PG29 | 6.5 | 16.5 | 41 | 22.5 | 22.5-22.8 |
| PG21/PG29 | 7 | 16.5 | 41 | 28.3 | 28.3-28.6 |
| PG29/PG36 | 8 | 19 | 51 | 37 | 37-37.3 |
| PG36/PG42 | 9 | 20 | 60 | 47 | 47-47.3 |
| PG42/PG48 | 10 | 21 | 65 | 54 | 54-54.3 |
| M12x1.5/M16x1.5 | 6 | 10.5 | 18 | 12 | 12-12.3 |
| M16x1.5/M18x1.5 | 6 | 12.5 | 21 | 16 | 16-16.3 |
| M16x1.5/M20x1.5 | 6 | 12.5 | 23 | 16 | 16-16.3 |
| M18x1.5/M20x1.5 | 6 | 12.5 | 23 | 18 | 18-18.3 |
| M20x1.5/M22x1.5 | 6.5 | 12.5 | 25 | 20 | 20-20.3 |
| M20x1.5/M25x1.5 | 6.5 | 14.5 | 29 | 20 | 20-20.3 |
| M22x1.5/M25x1.5 | 6.5 | 14.5 | 29 | 22 | 22-22.3 |
| M25x1.5/M32x1.5 | 7 | 16.5 | 36 | 25 | 25-25.3 |
| M32x1.5/M40x1.5 | 8 | 19 | 45 | 32 | 32-32.3 |
| M40x1.5/M50x1.5 | 9 | 20 | 55 | 40 | 40-40.3 |
| M50x1.5/M63x1.5 | 10 | 21 | 58 | 50 | 50-50.3 |
| NPT3/8-NPT1/2 | 15 | 17 | 24 | 17.055 | 17.1-17.4 |
| NPT1/2-NPT3/4 | 13 | 17 | 30 | 21.224 | 21.3-21.6 |
| NPT3/4-NPT1 | 13 | 21 | 40 | 26.569 | 26.6-26.9 |
| NPT3/4-NPT1 1/4 | 13 | 23 | 46 | 26.569 | 26.6-26.9 |
| NPT1-NPT1 1/4 | 16 | 23 | 46 | 33.228 | 33.3-33.6 |
| NPT1-NPT1 1/2 | 16 | 24 | 55 | 33.228 | 33.3-33.6 |
| NPT1 1/4-NPT1 1/2 | 18 | 24 | 55 | 41.985 | 42-42.3 |
| NPT1 1/2-NPT2 | 18 | 25 | 65 | 48.054 | 48.1-48.4 |
| G1/4-G3/8 | 7 | 11.5 | 20 | 13.157 | 13.2-13.5 |
| G3/4-G1/2 | 7 | 12.5 | 24 | 16.662 | 16.7-17 |
| G1/2-G3/4 | 7 | 13 | 30 | 20.995 | 21-21.3 |
| G3/4-G1 | 7 | 13 | 40 | 26.441 | 26.5-26.8 |
| G3/4-G1 1/4 | 7 | 14 | 46 | 26.441 | 26.5-26.8 |
| G1-G1 1/4 | 8 | 14 | 46 | 33.249 | 33.3-33.6 |
| G1-G1 1/2 | 8 | 15 | 55 | 33.249 | 33.3-33.6 |
| G1 1/4-G1 1/2 | 9 | 15 | 55 | 41.910 | 42-42.3 |
| G1 1/2-G2 | 10 | 15 | 55 | 47.803 | 47.8-48.1 |
