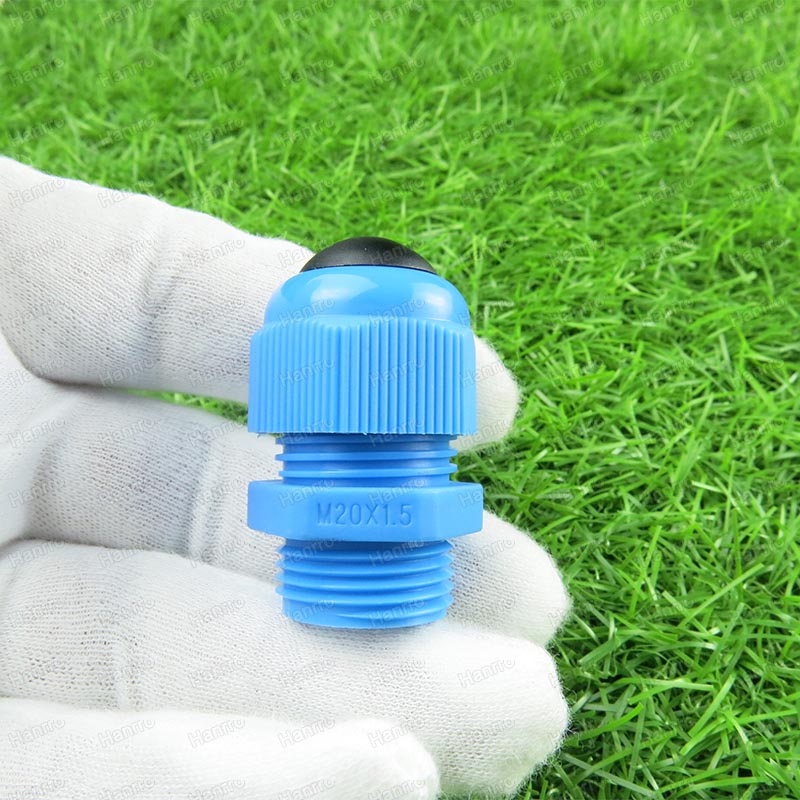

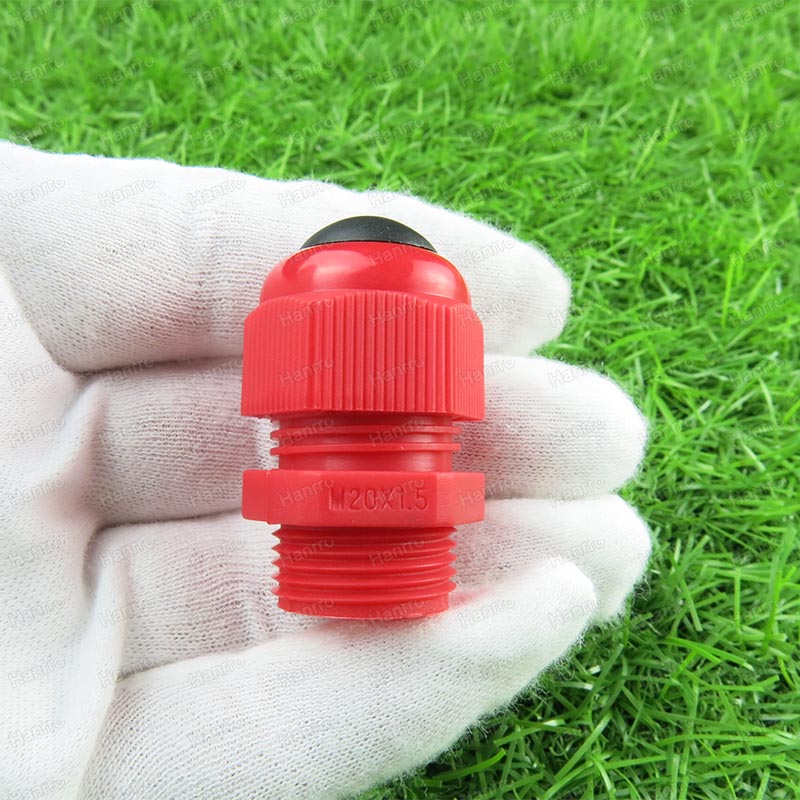

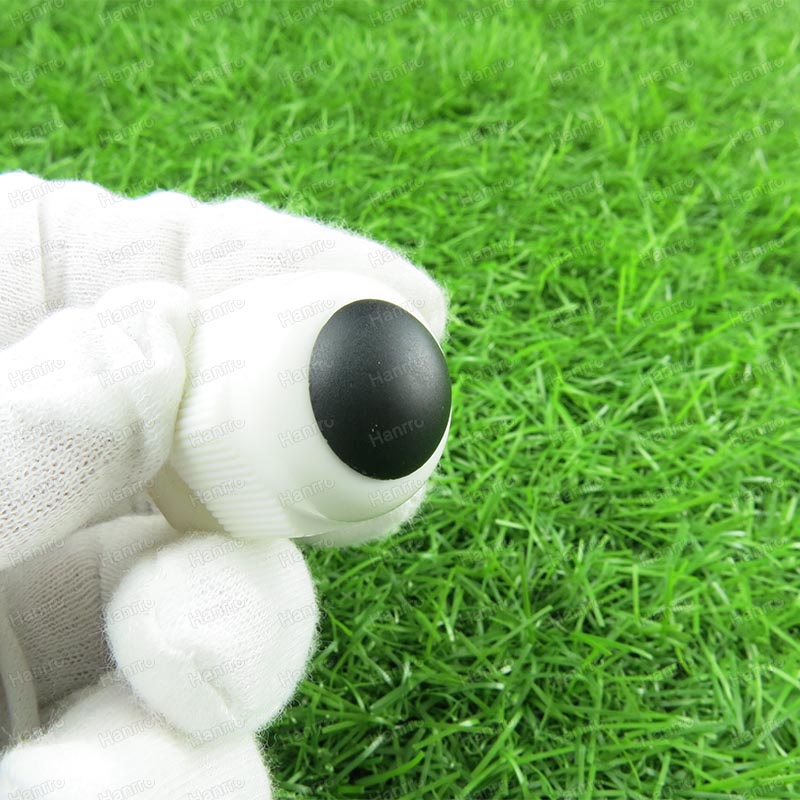

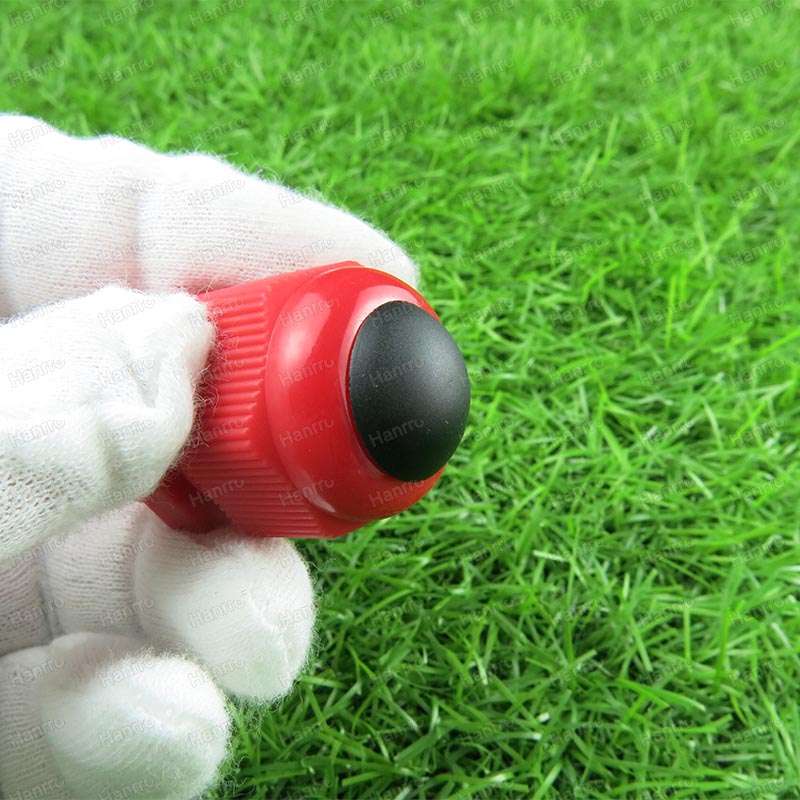

Cable Gland Internal Plug also known well as Cable Gland Sealing Plug is used to provide a means of temporarily sealing off any unused cable glands on your enclosure or panel to maintain your ingress protection level of at least IP68, which exceeds NEMA 4X.
Product Name : Cable Gland Internal Plug
Material : Nylon 6
Color : Grey , Black
Flammability : UL94V-2
Add to favorites
Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

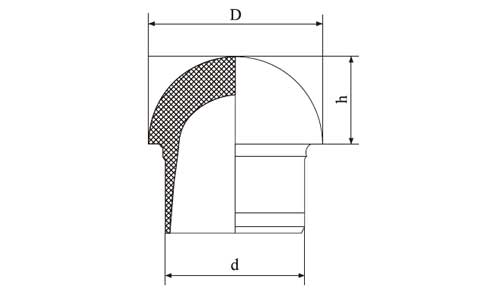

| Item No. | Suitable Cable Range(mm) | D(mm) | d(mm) | h(mm) |
| NSP-6 | 3–6.5 | 9.5 | 6.3 | 2.5 |
| NSP-8 | 4–8 | 11 | 7.8 | 3 |
| NSP-10 | 5–10 | 13.5 | 9.8 | 3.5 |
| NSP-12 | 6–12 | 16 | 11.8 | 4.5 |
| NSP-14 | 10–14 | 18.5 | 13.8 | 5 |
| NSP-18 | 13–18 | 22.5 | 17.8 | 6 |
| NSP-25 | 18–25 | 29 | 25 | 7 |
| NSP-32 | 22–32 | 38 | 32 | 11 |
| NSP-38 | 32–38 | 43 | 38 | 12 |
| NSP-44 | 37–44 | 49 | 44 | 12 |
