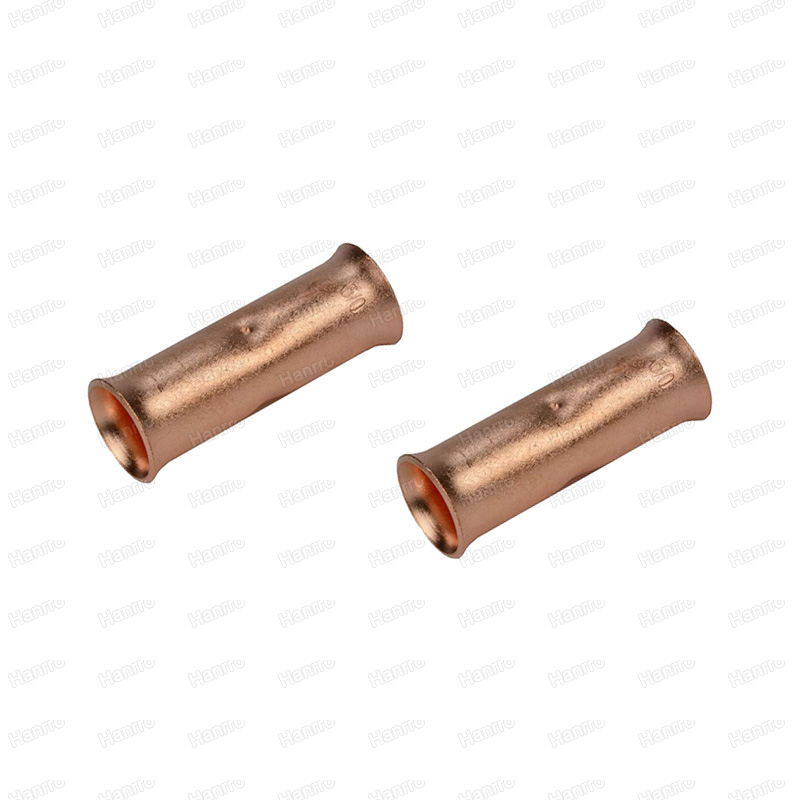

Butt Splice Connectors-Unplated

Butt Splice Connectors come in either Bare Copper or Tin Plated Copper. No matter your material choice, you’re getting a high quality connector for a variety of applications. With high temperature resistance, a solid copper construction, and flared openings for simple and clean wire insertions, you’re bound to find a lasting connecting in one of our various sizes: 6, 4, 2, 1, 1/0, 2/0, 3/0, and 4/0 AWG. When combined with an adhesive-lined shrink sleeve, you can prevent corrosion by sealing out moisture.

Features

  • One year FULL refund! Don’t choose a product that will degrade or fail prematurely.

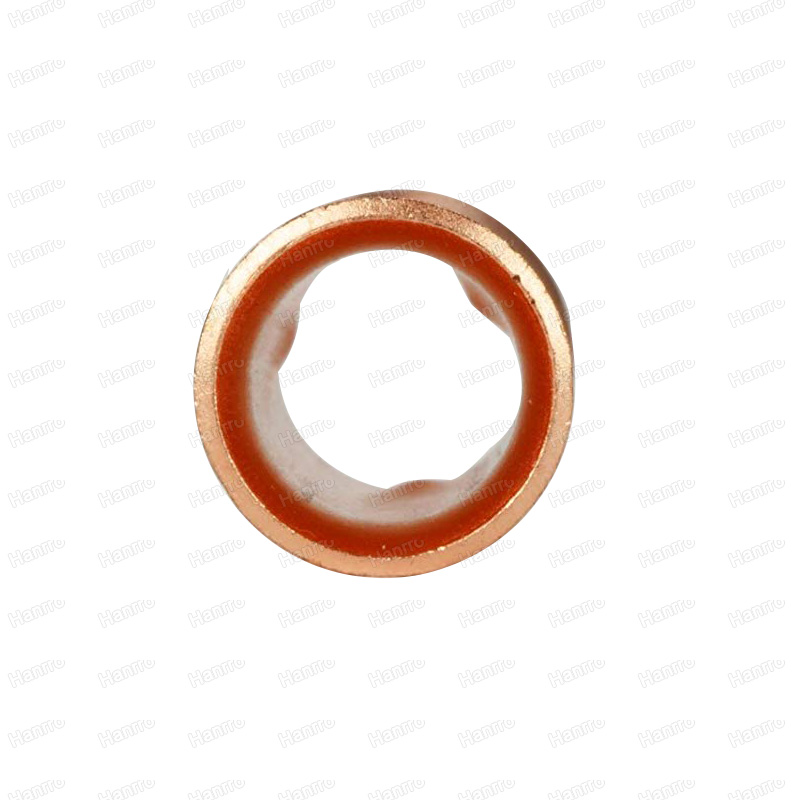

  • Flared opening for easy wire insertion.
  • Precision fit. High tolerance dies are used in the molding process.
  • High temperature resistance. Won’t degrade in high temperature conditions.
  • High electroltye grade copper connectors outlast and outperform brass and aluminum models.

tag:

FavoriteLoadingAdd to favorites
  • Favorite list is empty.
FavoriteLoadingClear favorites

Your favorite posts saved to your browsers cookies. If you clear cookies also favorite posts will be deleted.

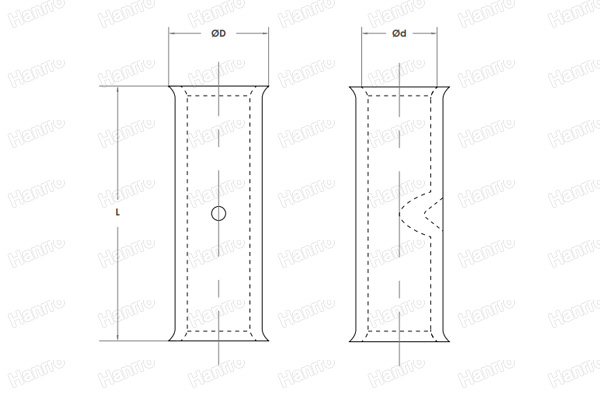

Butt Splice Connectors-Drawing

Dimension (Inch)

Wire Gauge Outside Diameter (ΦD) Inside Diameter (Φd) L
6 AWG 0.319 0.232 1.098
4 AWG 0.374 0.287 1.252
2 AWG 0.437 0.334 1.402
1 AWG 0.461 0.358 1.402
1/0 0.512 0.409 1.598
2/0 0.559 0.466 1.85
3/0 0.618 0.512 1.949
4/0 0.677 0.559 2.051
